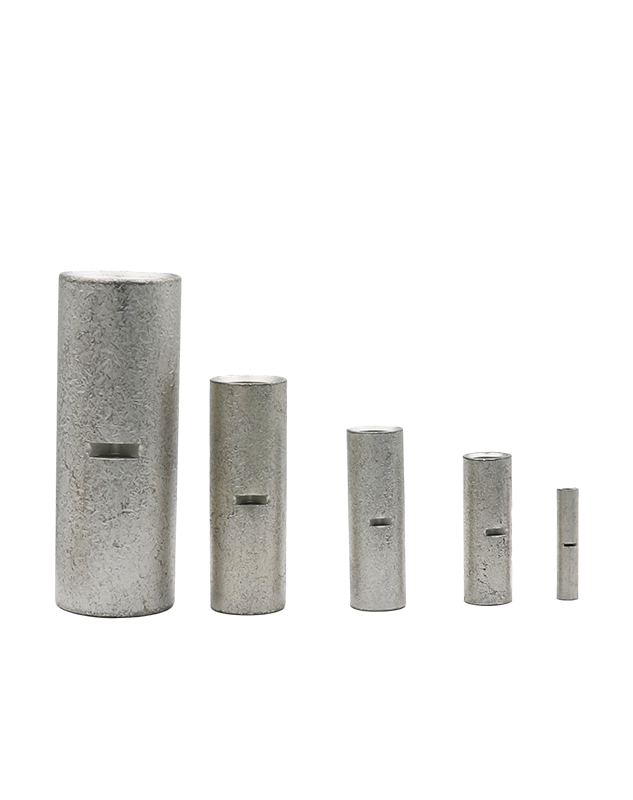

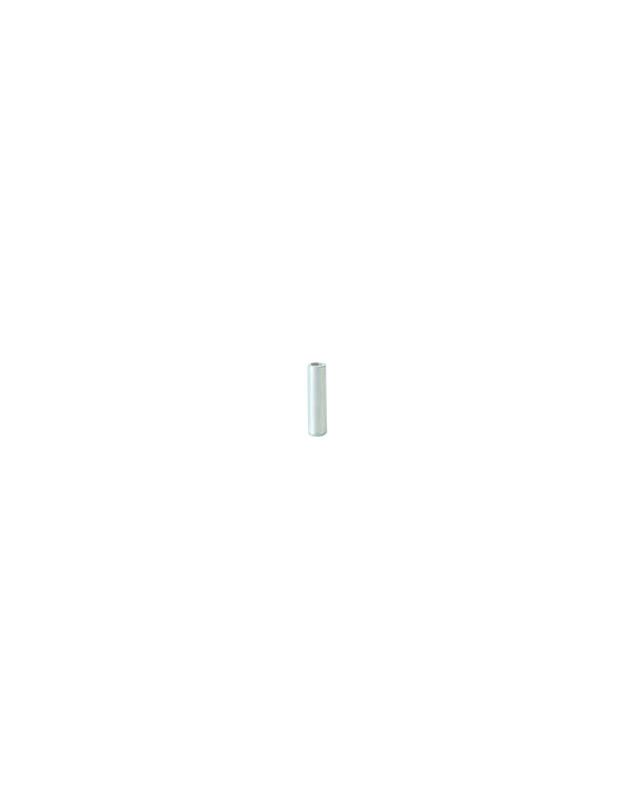

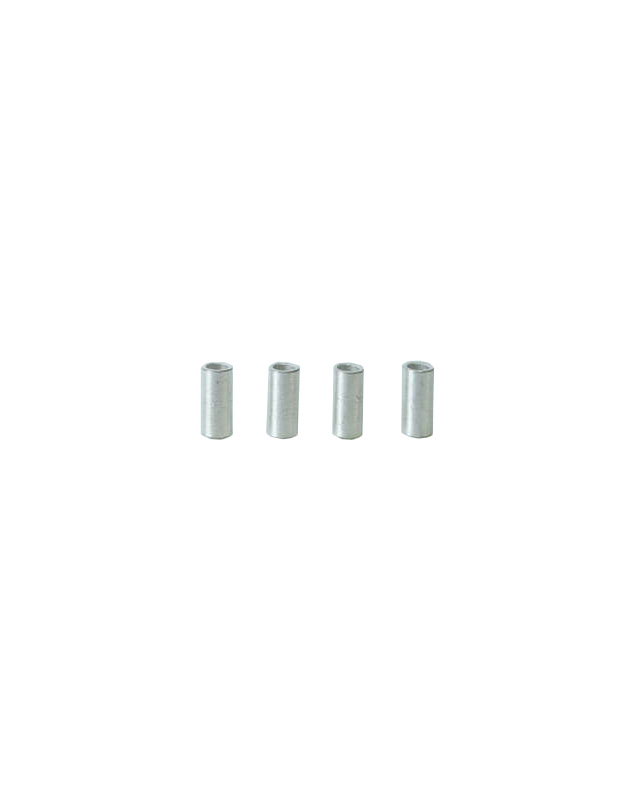

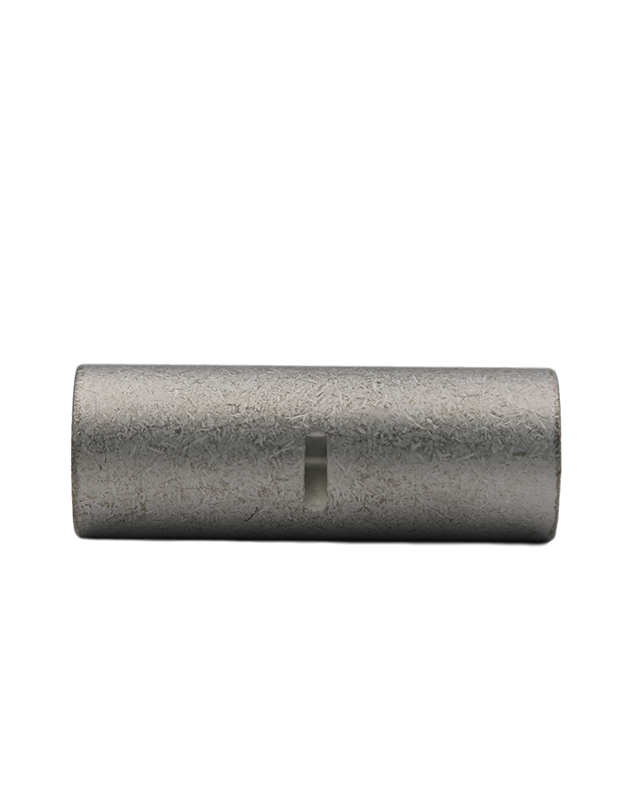

Non-Insulated Butt Splice Connectors (BM)

Non-Insulated Butt Splice Connectors (BM)

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 1,690

Product Details

Spec (American AWG) 16 14 12 10 8 6 4 2 1/0 2/0 3/0 4/0 250/300MCM 300/350MCM 400MCM 500MCM 600/750MCM
Spec (JIS AWG) 1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400
Spec (DIN AWG)
Spec (GB mm2)
Max Current 18 30 35 50 70 95 125 170 230 265 310 360 445 505 545 620 785

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Tool PCS/Pack
USA L D d
A.W.G. 16 KFBOM10 16 AWG Non-Insulated Butt Splice Connectors (BM) BM1.5 BM1.5   0.866 0.157 0.094 IZUMI 5N18 1000
A.W.G. 14 KFBOM20 14 AWG Non-Insulated Butt Splice Connectors (BM) BM2.5 BM2.5   0.866 0.169 0.106 IZUMI 5N18 1000
A.W.G. 12 KFBOM30 12 AWG Non-Insulated Butt Splice Connectors (BM) BM4 BM4   0.984 0.189 0.122 IZUMI 5N18 1000
A.W.G. 10 KFBOM40 10 AWG Non-Insulated Butt Splice Connectors (BM) BM6 BM6   0.984 0.217 0.150 IZUMI 5N18 500
A.W.G. 8 KFBOM50 8 AWG Non-Insulated Butt Splice Connectors (BM) BM10 BM10   0.984 0.272 0.185 IZUMI 5N18 500
A.W.G.6 KFBOM60 6 AWG Non-Insulated Butt Splice Connectors (BM) BM16 BM16   1.142 0.307 0.220 IZUMI 5N18 500
A.W.G. 4 KFBOM70 4 AWG Non-Insulated Butt Splice Connectors (BM) BM25 BM25   1.142 0.374 0.280 OPT THX-185 250
A.W.G. 2 KFBOM80 2 AWG Non-Insulated Butt Splice Connectors (BM) BM35 BM35   1.378 0.433 0.323 OPT THX-185 200
A.W.G. 1/0 KFBOM90 1/0 AWG Non-Insulated Butt Splice Connectors (BM) BM50 BM50   1.378 0.492 0.374 OPT THX-185 100
A.W.G. 2/0 KFBOMA0 2/0 AWG Non-Insulated Butt Splice Connectors (BM) BM70 BM70   1.772 0.591 0.453 OPT THX-185 100
A.W.G. 3/0 KFBOMB0 3/0 AWG Non-Insulated Butt Splice Connectors (BM) BM95 BM95   1.850 0.669 0.531 OPT THX-185 50
A.W.G. 4/0 KFBOMC0 4/0 AWG Non-Insulated Butt Splice Connectors (BM) BM120 BM120   2.047 0.787 0.614 OPT THX-185 30
A.W.G.250/300MCM KFBOMD0 250/300 AWG Non-Insulated Butt Splice Connectors (BM) BM150 BM150   2.323 0.827 0.650 OPT THX-185 10
A.W.G.300/350MCM KFBOME0 300/350 AWG Non-Insulated Butt Splice Connectors (BM) BM185 BM185   2.559 0.929 0.724 OPT THX-185 10
A.W.G.400MCM KFBOMF0 400 AWG Non-Insulated Butt Splice Connectors (BM) BM240 BM240   2.953 1.039 0.835 OPT THX-185 10
A.W.G.500MCM KFBOMG0 500 AWG Non-Insulated Butt Splice Connectors (BM) BM300 BM300   3.543 1.126 0.921 OPT THX-185 5
A.W.G.600/750MCM KFBOMH0 600/750 AWG Non-Insulated Butt Splice Connectors (BM) BM400 BM400   4.173 1.291 1.055 OPT THX-185 5
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Tool PCS/Pack
Meric L D d
1.5mm² KFBOM10 16 AWG Non-Insulated Butt Splice Connectors (BM) BM1.5 BM1.5   22.0  4.0  2.40  IZUMI 5N18 1000
 2.5mm² KFBOM20 14 AWG Non-Insulated Butt Splice Connectors (BM) BM2.5 BM2.5   22.0  4.3  2.70  IZUMI 5N18 1000
4mm² KFBOM30 12 AWG Non-Insulated Butt Splice Connectors (BM) BM4 BM4   25.0  4.8  3.10  IZUMI 5N18 1000
6mm² KFBOM40 10 AWG Non-Insulated Butt Splice Connectors (BM) BM6 BM6   25.0  5.5  3.80  IZUMI 5N18 500
10mm² KFBOM50 8 AWG Non-Insulated Butt Splice Connectors (BM) BM10 BM10   25.0  6.9  4.70  IZUMI 5N18 500
16mm² KFBOM60 6 AWG Non-Insulated Butt Splice Connectors (BM) BM16 BM16   29.0  7.8  5.60  IZUMI 5N18 500
 25mm² KFBOM70 4 AWG Non-Insulated Butt Splice Connectors (BM) BM25 BM25   29.0  9.5  7.10  OPT THX-185 250
35mm² KFBOM80 2 AWG Non-Insulated Butt Splice Connectors (BM) BM35 BM35   35.0  11.0  8.20  OPT THX-185 200
 50mm² KFBOM90 1/0 AWG Non-Insulated Butt Splice Connectors (BM) BM50 BM50   35.0  12.5  9.50  OPT THX-185 100
 70mm² KFBOMA0 2/0 AWG Non-Insulated Butt Splice Connectors (BM) BM70 BM70   45.0  15.0  11.50  OPT THX-185 100
95mm² KFBOMB0 3/0 AWG Non-Insulated Butt Splice Connectors (BM) BM95 BM95   47.0  17.0  13.50  OPT THX-185 50
120mm² KFBOMC0 4/0 AWG Non-Insulated Butt Splice Connectors (BM) BM120 BM120   52.0  20.0  15.60  OPT THX-185 30
150mm² KFBOMD0 250/300 AWG Non-Insulated Butt Splice Connectors (BM) BM150 BM150   59.0  21.0  16.50  OPT THX-185 10
185mm² KFBOME0 300/350 AWG Non-Insulated Butt Splice Connectors (BM) BM185 BM185   65.0  23.6  18.40  OPT THX-185 10
240mm² KFBOMF0 400 AWG Non-Insulated Butt Splice Connectors (BM) BM240 BM240   75.0  26.4  21.20  OPT THX-185 10
300mm² KFBOMG0 500 AWG Non-Insulated Butt Splice Connectors (BM) BM300 BM300   90.0  28.6  23.40  OPT THX-185 5
400mm² KFBOMH0 600/750 AWG Non-Insulated Butt Splice Connectors (BM) BM400 BM400   106.0  32.8  26.80  OPT THX-185 5
