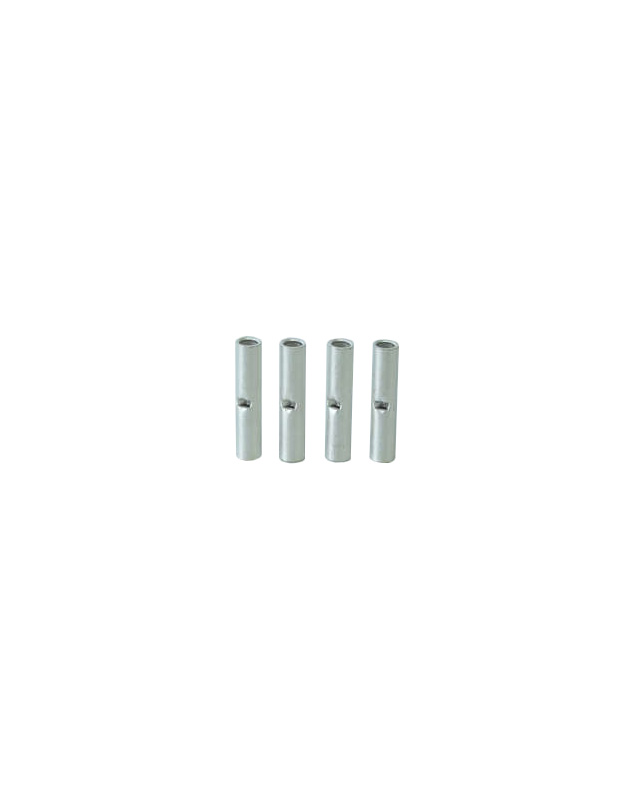

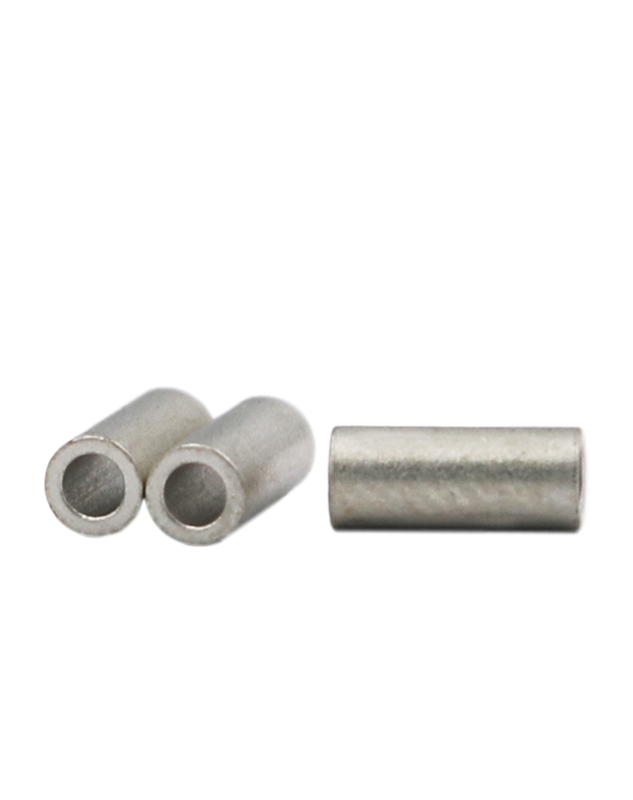

Non-Insulated Butt Splice Connectors (Parallel)

Non-Insulated Butt Splice Connectors (Parallel)

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 2,665

Product Details

Spec (American AWG) 26 -22 22-16 16-1 4 14-12 12-10 8 6 4 2 1/0 2/0 3/0 4/0 250-300MCM 300-350MCM 400-500MCM 500-600MCM
Spec (JIS AWG) 0.5 1.25 2 3.5 5.5  8 14 22 38 60 70 80 100 150 180 200 325
Spec (DIN AWG) 0.5 1 2.5   4.0-6.0 10 16 25 35   70 95 120 150 185 240 300
Spec (GB mm2) 0.1- 0.5 0.5-1.5 2.5 4 6 10 16 25 35 60 70 95 120 150 185 240 300
Max Current 9 19 27 37 48 62 88 115 160 215 235 255 300 395 440 470 650

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Tool PCS/Pack
USA L D d
A.W.G. 26-22 KFBOS10 26-22 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT0.5 PNT0.5   0.315 0.079 0.059 OPT SN-02 1000
A.W.G. 22-16  KFBOS20 22-16 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT1.25 PNT1.25   0.315 0.138 0.067 IZUMI 5N18 1000
A.W.G. 16-14 KFBOS30 16-14 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT2 PNT2   0.315 0.157 0.098 IZUMI 5N18 1000
A.W.G. 14-12 KFBOS40 14-12 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT3.5 PNT3.5   0.335 0.197 0.118 IZUMI 5N18 1000
A.W.G. 12-10 KFBOS50 12-10 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT5.5 PNT5.5   0.335 0.217 0.138 IZUMI 5N18 1000
A.W.G.8 KFBOS60 8 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT8 PNT8   0.374 0.276 0.177 IZUMI 5N18 1000
A.W.G. 6 KFBOS70 6 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT14 PNT14   0.433 0.354 0.236 OPT THX-185 200
A.W.G. 4 KFBOS80 4 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT22 PNT22   0.531 0.453 0.315 OPT THX-185 200
A.W.G. 2 KFBOS90 2 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT38 PNT38   0.650 0.512 0.374 OPT THX-185 200
A.W.G. 1/0 KFBOSA0 16 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT60 PNT60   0.748 0.610 0.453 OPT THX-185 100
A.W.G. 2/0 KFBOSB0 16 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT70 PNT70   0.748 0.689 0.531 OPT THX-185 100
A.W.G. 3/0 KFBOSC0 1/0 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT80 PNT80   0.768 0.768 0.571 OPT THX-185 100
A.W.G. 4/0 KFBOSD0 4/0 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT100 PNT100   0.787 0.866 0.650 OPT THX-185 100
A.W.G.250/300MCM KFBOSE0 250/300 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT150 PNT150   1.063 1.043 0.768 OPT THX-185 20
A.W.G.300/350MCM KFBOSF0 300/350 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT180 PNT180   1.122 1.122 0.827 OPT THX-325 20
A.W.G.400/500MCM KFBOSG0 400/500 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT200 PNT200   1.260 1.280 0.945 OPT THX-325 20
A.W.G.500/600MCM KFBOSH0 500/600 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT325 PNT325   1.457 1.457 1.102 OPT THX-325 20
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Tool PCS/Pack
Meric L D d
 0.2~0.5mm² KFBOS10 26-22 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT0.5 PNT0.5   8.0  2.0  1.50  OPT SN-02 1000
0.5~1.5mm² KFBOS20 22-16 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT1.25 PNT1.25   8.0  3.5  1.70  IZUMI 5N18 1000
1.5~2.5mm² KFBOS30 16-14 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT2 PNT2   8.0  4.0  2.50  IZUMI 5N18 1000
 2.5~4mm² KFBOS40 14-12 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT3.5 PNT3.5   8.5  5.0  3.00  IZUMI 5N18 1000
4~6mm² KFBOS50 12-10 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT5.5 PNT5.5   8.5  5.5  3.50  IZUMI 5N18 1000
8mm² KFBOS60 8 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT8 PNT8   9.5  7.0  4.50  IZUMI 5N18 1000
14mm² KFBOS70 6 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT14 PNT14   11.0  9.0  6.00  OPT THX-185 200
22mm² KFBOS80 4 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT22 PNT22   13.5  11.5  8.00  OPT THX-185 200
38mm² KFBOS90 2 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT38 PNT38   16.5  13.0  9.50  OPT THX-185 200
60mm² KFBOSA0 16 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT60 PNT60   19.0  15.5  11.50  OPT THX-185 100
70mm² KFBOSB0 16 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT70 PNT70   19.0  17.5  13.50  OPT THX-185 100
80mm² KFBOSC0 1/0 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT80 PNT80   19.5  19.5  14.50  OPT THX-185 100
 100mm² KFBOSD0 4/0 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT100 PNT100   20.0  22.0  16.50  OPT THX-185 100
150mm² KFBOSE0 250/300 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT150 PNT150   27.0  26.5  19.50  OPT THX-185 20
180mm² KFBOSF0 300/350 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT180 PNT180   28.5  28.5  21.00  OPT THX-325 20
200mm² KFBOSG0 400/500 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT200 PNT200   32.0  32.5  24.00  OPT THX-325 20
325mm² KFBOSH0 500/600 AWG Non-Insulated Butt Splice Connectors (Parallel) PNT325 PNT325   37.0  37.0  28.00  OPT THX-325 20
