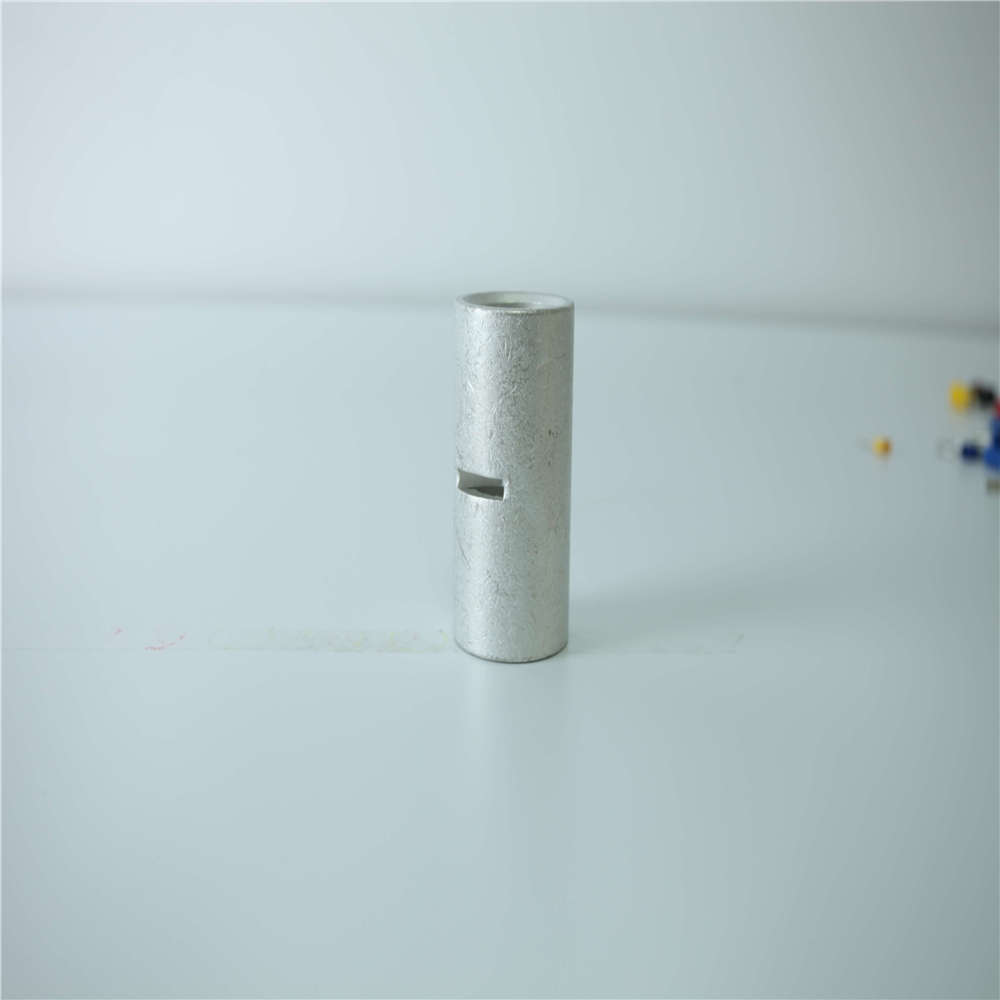

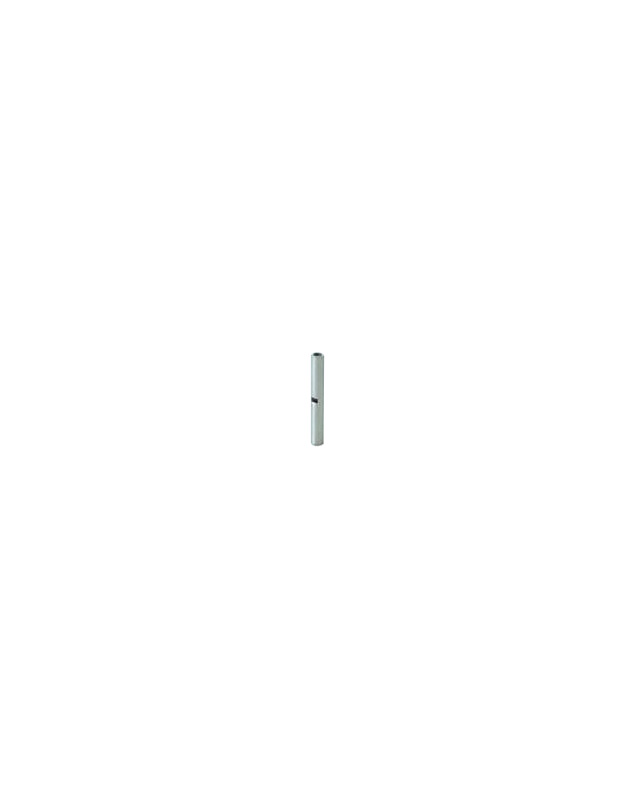

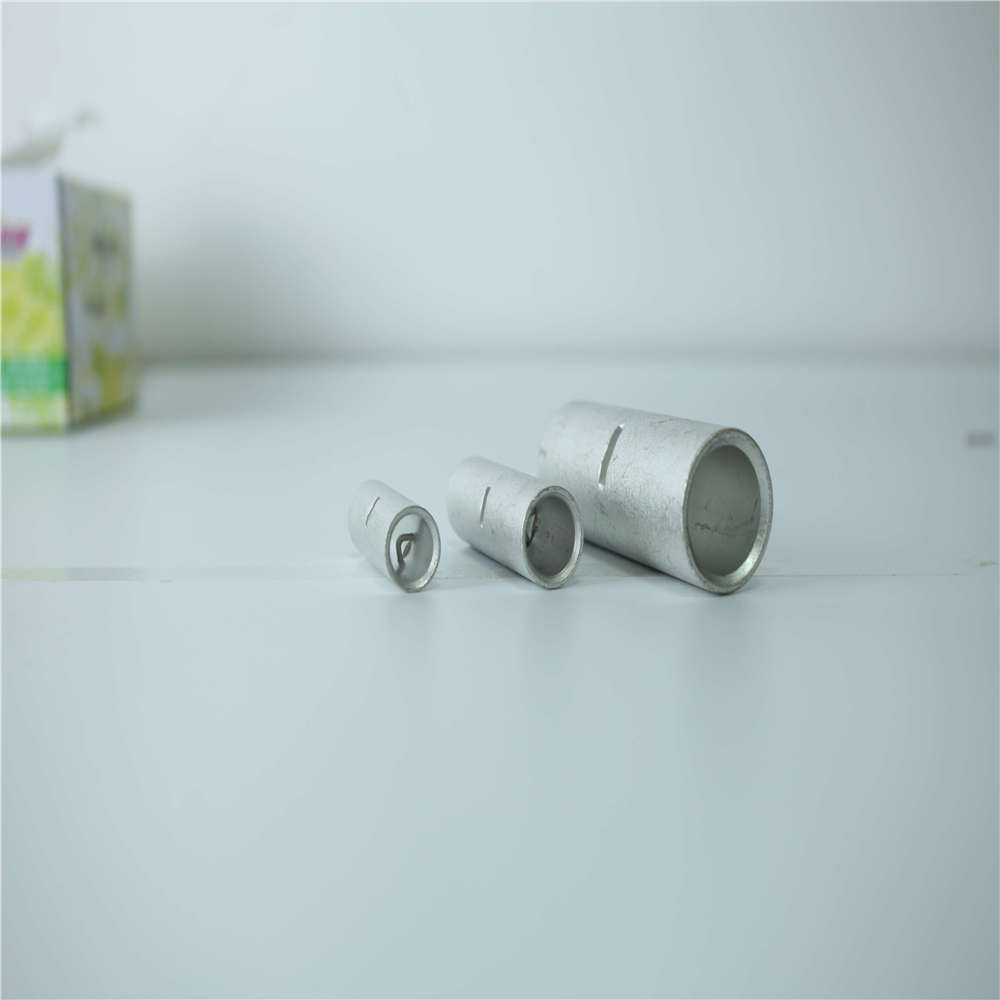

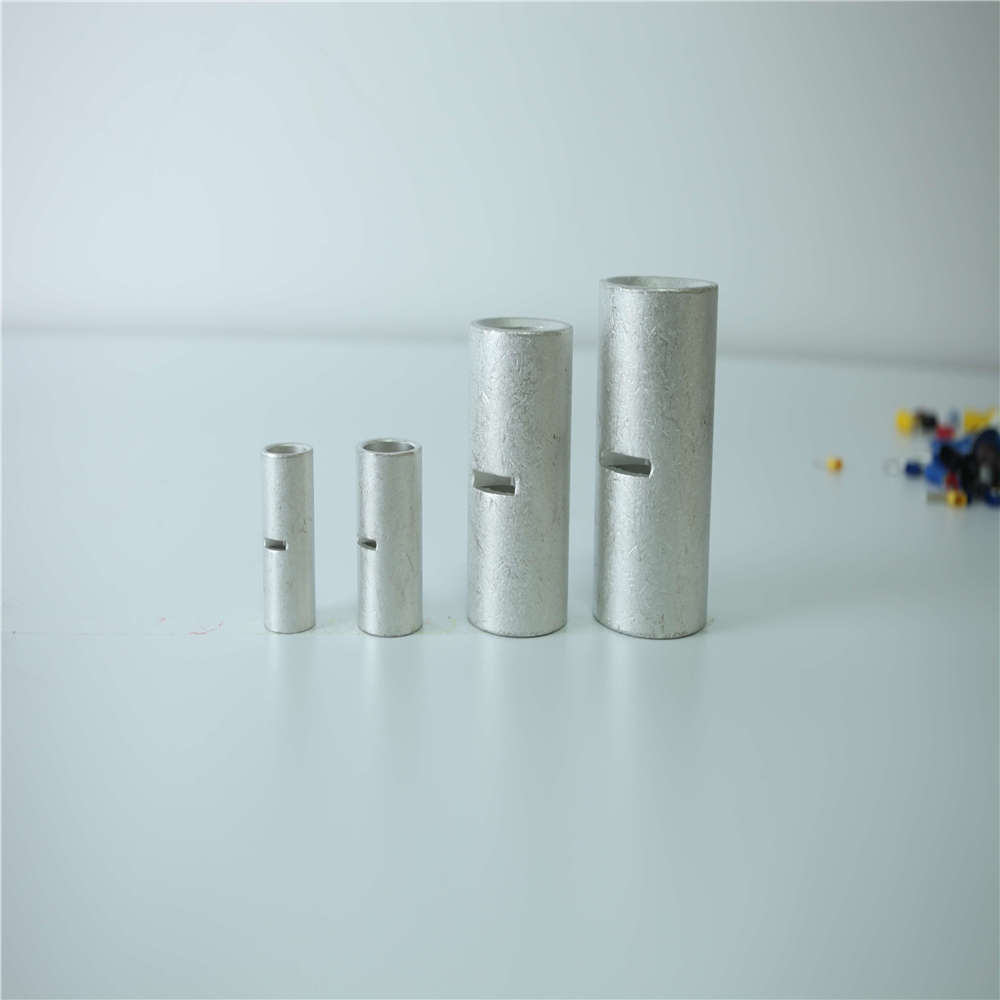

Non-Insulated Butt Splice Connectors (TL)

Non-Insulated Butt Splice Connectors (TL)

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 1,529

Product Details

Spec (American AWG) 26 -22 22-16 16-1 4 14-12 12-10 8 6 4 2 1/0 2/0 3/0 4/0 250-300MCM 300-350MCM 400-500MCM 500-600MCM
Spec (JIS AWG) 0.5 1.25 2 3.5 5.5  8 14 22 38 60 70 80 100 150 180 200 325
Spec (DIN AWG) 0.5 1 2.5   4.0-6.0 10 16 25 35   70 95 120 150 185 240 300
Spec (GB mm2) 0.1- 0.5 0.5-1.5 2.5 4 6 10 16 25 35 60 70 95 120 150 185 240 300
Max Current 9 19 27 37 48 62 88 115 160 215 235 255 300 395 440 470 650

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Tool PCS/Pack
USA L D d
A.W.G. 26-22 KFBOL10 26-22 AWG Non-Insulated Butt Splice Connectors (TL) BN0.5 BN0.5   0.472 0.079 0.059 OPT SN-02 1000
A.W.G. 22-16 KFBOL20 22-16 AWG Non-Insulated Butt Splice Connectors (TL) BN1.25 BN1.25   0.591 0.138 0.079 IZUMI 5N18 1000
A.W.G. 16-14 KFBOL30 16-14 AWG Non-Insulated Butt Splice Connectors (TL) BN2 BN2   0.591 0.157 0.098 IZUMI 5N18 1000
A.W.G. 14-12 KFBOL40 14-12 AWG Non-Insulated Butt Splice Connectors (TL) BN3.5 BN3.5   0.591 0.197 0.138 IZUMI 5N18 1000
A.W.G. 12-10 KFBOL50 12-10 AWG Non-Insulated Butt Splice Connectors (TL) BN5.5 BN5.5   0.591 0.217 0.157 IZUMI 5N18 1000
A.W.G.8 KFBOL60 8 AWG Non-Insulated Butt Splice Connectors (TL) BN8 BN8   0.827 0.276 0.197 IZUMI 5N18 500
A.W.G. 6 KFBOL70 6 AWG Non-Insulated Butt Splice Connectors (TL) BN14 BN14   1.024 0.354 0.256 OPT THX-185 500
A.W.G. 4 KFBOL80 4 AWG Non-Insulated Butt Splice Connectors (TL) BN22 BN22   1.142 0.453 0.335 OPT THX-185 250
A.W.G. 2 KFBOL90 2 AWG Non-Insulated Butt Splice Connectors (TL) BN38 BN38   1.260 0.512 0.394 OPT THX-185 200
A.W.G. 1/0 KFBOLA0 16 AWG Non-Insulated Butt Splice Connectors (TL) BN60 BN60   1.378 0.571 0.453 OPT THX-185 100
A.W.G. 2/0 KFBOLB0 16 AWG Non-Insulated Butt Splice Connectors (TL) BN70 BN70   1.457 0.630 0.492 OPT THX-185 100
A.W.G. 3/0 KFBOLC0 1/0 AWG Non-Insulated Butt Splice Connectors (TL) BN80 BN80   1.496 0.709 0.551 OPT THX-185 100
A.W.G. 4/0 KFBOLD0 4/0 AWG Non-Insulated Butt Splice Connectors (TL) BN100 BN100   1.496 0.807 0.630 OPT THX-185 100
A.W.G.250/300MCM KFBOLE0 250/300 AWG Non-Insulated Butt Splice Connectors (TL) BN150 BN150   2.126 1.043 0.768 OPT THX-185 20
A.W.G.300/350MCM KFBOLF0 300/350 AWG Non-Insulated Butt Splice Connectors (TL) BN180 BN180   2.244 1.122 0.827 OPT THX-325 20
A.W.G.400/500MCM KFBOLG0 400/500 AWG Non-Insulated Butt Splice Connectors (TL) BN200 BN200   2.480 1.280 0.945 OPT THX-325 20
A.W.G.500/600MCM KFBOLH0 500/600 AWG Non-Insulated Butt Splice Connectors (TL) BN325 BN325   2.835 1.457 1.102 OPT THX-325 20
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Tool PCS/Pack
Meric L D d
 0.2~0.5mm² KFBOL10 26-22 AWG Non-Insulated Butt Splice Connectors (TL) BN0.5 BN0.5   12.0  2.0  1.50  OPT SN-02 1000
0.5~1.5mm² KFBOL20 22-16 AWG Non-Insulated Butt Splice Connectors (TL) BN1.25 BN1.25   15.0  3.5  2.00  IZUMI 5N18 1000
1.5~2.5mm² KFBOL30 16-14 AWG Non-Insulated Butt Splice Connectors (TL) BN2 BN2   15.0  4.0  2.50  IZUMI 5N18 1000
2.5~4mm² KFBOL40 14-12 AWG Non-Insulated Butt Splice Connectors (TL) BN3.5 BN3.5   15.0  5.0  3.50  IZUMI 5N18 1000
4~6mm² KFBOL50 12-10 AWG Non-Insulated Butt Splice Connectors (TL) BN5.5 BN5.5   15.0  5.5  4.00  IZUMI 5N18 1000
8mm² KFBOL60 8 AWG Non-Insulated Butt Splice Connectors (TL) BN8 BN8   21.0  7.0  5.00  IZUMI 5N18 500
14mm² KFBOL70 6 AWG Non-Insulated Butt Splice Connectors (TL) BN14 BN14   26.0  9.0  6.50  OPT THX-185 500
22mm² KFBOL80 4 AWG Non-Insulated Butt Splice Connectors (TL) BN22 BN22   29.0  11.5  8.50  OPT THX-185 250
38mm² KFBOL90 2 AWG Non-Insulated Butt Splice Connectors (TL) BN38 BN38   32.0  13.0  10.00  OPT THX-185 200
60mm² KFBOLA0 16 AWG Non-Insulated Butt Splice Connectors (TL) BN60 BN60   35.0  14.5  11.50  OPT THX-185 100
70mm² KFBOLB0 16 AWG Non-Insulated Butt Splice Connectors (TL) BN70 BN70   37.0  16.0  12.50  OPT THX-185 100
80mm² KFBOLC0 1/0 AWG Non-Insulated Butt Splice Connectors (TL) BN80 BN80   38.0  18.0  14.00  OPT THX-185 100
100mm² KFBOLD0 4/0 AWG Non-Insulated Butt Splice Connectors (TL) BN100 BN100   38.0  20.5  16.00  OPT THX-185 100
150mm² KFBOLE0 250/300 AWG Non-Insulated Butt Splice Connectors (TL) BN150 BN150   54.0  26.5  19.50  OPT THX-185 20
180mm² KFBOLF0 300/350 AWG Non-Insulated Butt Splice Connectors (TL) BN180 BN180   57.0  28.5  21.00  OPT THX-325 20
200mm² KFBOLG0 400/500 AWG Non-Insulated Butt Splice Connectors (TL) BN200 BN200   63.0  32.5  24.00  OPT THX-325 20
325mm² KFBOLH0 500/600 AWG Non-Insulated Butt Splice Connectors (TL) BN325 BN325   72.0  37.0  28.00  OPT THX-325 20
