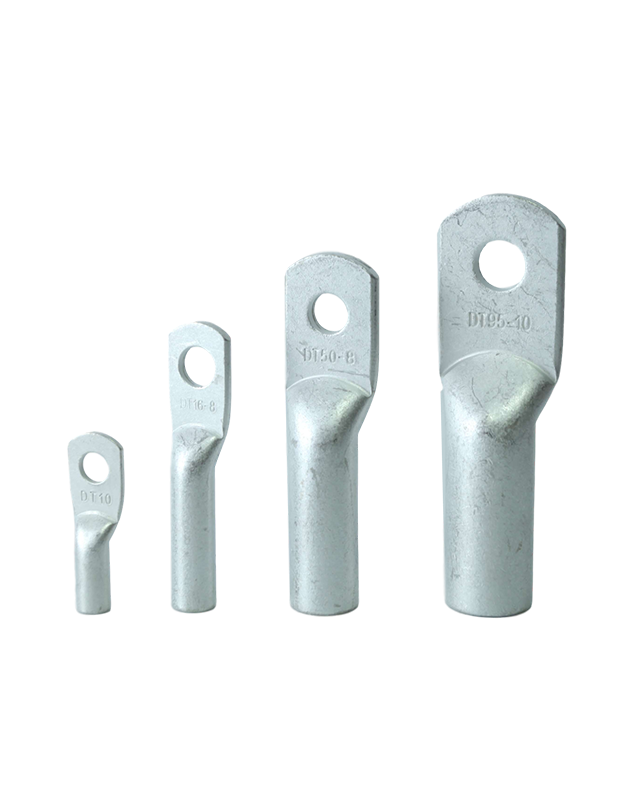

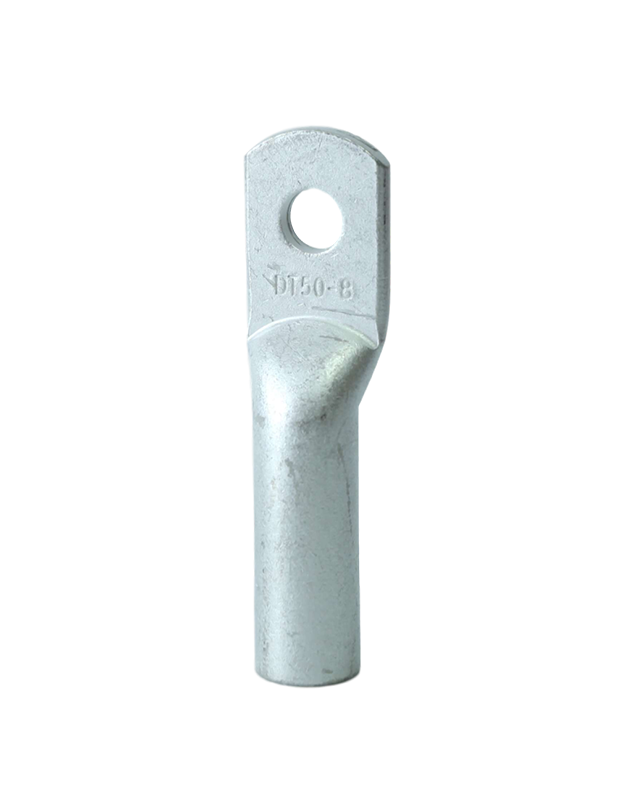

Copper Tubular Lugs (Type DT)

Copper Tubular Lugs (Type DT)

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP



0
Views: 1,153

Product Details

Spec (American AWG) 16 14 12 10 8 6 4 2 1/0 2/0 3/0 4/0 250/300MCM 300/350MCM 400MCM 500MCM 600/750MCM 800/1000MCM 1000/1250MCM
Spec (JIS AWG) 1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400
Spec (DIN AWG)
Spec (GB mm2)
Max Current 18 30 35 50 70 95 125 170 230 265 310 360 445 505 545 620 785 935 1065

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Tool PCS/Pack
USA d2 B L D d E
A.W.G. 16 KFLDT10 16 AWG Copper Tubular Lugs (Type DT) DT1.5-5 DT1.5-4 #10 0.205 0.315 0.709 0.157 0.087 0.394 IZUMI 5N18 500
A.W.G. 14 KFLDT20 14 AWG Copper Tubular Lugs (Type DT) DT2.5-4 DT2.5-4 #8 0.165 0.315 0.748 0.177 0.114 0.512 IZUMI 5N18 500
A.W.G. 14 KFLDT21 14 AWG Copper Tubular Lugs (Type DT) DT2.5-5 DT2.5-5 #10 0.205 0.32  0.787 0.177 0.114 0.512 IZUMI 5N18 500
A.W.G. 14 KFLDT22 14 AWG Copper Tubular Lugs (Type DT) DT2.5-6 DT2.5-6 1/4" 0.252 0.39  0.787 0.177 0.114 0.512 IZUMI 5N18 500
A.W.G. 12 KFLDT30 12 AWG Copper Tubular Lugs (Type DT) DT4-5 DT4-4 #10 0.205 0.394 0.768 0.205 0.142 0.512 IZUMI 5N18 500
A.W.G. 12 KFLDT31 12 AWG Copper Tubular Lugs (Type DT) DT4-6 DT4-5 1/4" 0.252 0.394 0.807 0.205 0.142 0.512 IZUMI 5N18 500
A.W.G. 10 KFLDT40 10 AWG Copper Tubular Lugs (Type DT) DT6-5 DT6-5 #10 0.205 0.394 0.866 0.236 0.165 0.669 IZUMI 5N18 300
A.W.G. 10 KFLDT41 10 AWG Copper Tubular Lugs (Type DT) DT6-6 DT6-6 1/4" 0.252 0.394 0.91  0.236 0.165 0.669 IZUMI 5N18 300
A.W.G. 10 KFLDT42 10 AWG Copper Tubular Lugs (Type DT) DT6-8 DT6-8 5/16" 0.331 0.472 0.95  0.236 0.165 0.669 IZUMI 5N18 300
A.W.G. 8 KFLDT50 8 AWG Copper Tubular Lugs (Type DT) DT10-6 DT10-5 1/4" 0.252 0.488 0.945 0.276 0.197 0.669 IZUMI 5N18 300
A.W.G. 8 KFLDT51 8 AWG Copper Tubular Lugs (Type DT) DT10-8 DT10-6 5/16" 0.331 0.488 0.945 0.276 0.197 0.669 IZUMI 5N18 300
A.W.G. 6 KFLDT60 6 AWG Copper Tubular Lugs (Type DT) DT16-6 DT16-6 1/4" 0.252 0.551 1.083 0.354 0.236 1.260 OPT TP-150D 100
A.W.G. 6 KFLDT61 6 AWG Copper Tubular Lugs (Type DT) DT16-8 DT16-8 5/16" 0.331 0.551 1.16  0.354 0.236 1.260 OPT TP-150D 100
A.W.G. 4 KFLDT70 4 AWG Copper Tubular Lugs (Type DT) DT25-6 DT25-6 1/4" 0.252 0.591 1.280 0.394 0.276 1.260 OPT TP-150D 100
A.W.G. 4 KFLDT71 4 AWG Copper Tubular Lugs (Type DT) DT25-8 DT25-8 5/16" 0.331 0.591 1.299 0.394 0.276 1.260 OPT TP-150D 100
A.W.G. 4 KFLDT72 4 AWG Copper Tubular Lugs (Type DT) DT25-10 DT25-10 3/8" 0.413 0.689 1.339 0.394 0.276 1.260 OPT TP-150D 100
A.W.G. 2 KFLDT80 2 AWG Copper Tubular Lugs (Type DT) DT35-6 DT35-6 1/4" 0.252 0.673 1.417 0.472 0.354 1.417 OPT TP-150D 100
A.W.G. 2 KFLDT81 2 AWG Copper Tubular Lugs (Type DT) DT35-8 DT35-8 5/16" 0.331 0.673 1.457 0.472 0.354 1.417 OPT TP-150D 100
A.W.G. 2 KFLDT82 2 AWG Copper Tubular Lugs (Type DT) DT35-10 DT35-10 3/8" 0.413 0.709 1.496 0.472 0.354 1.417 OPT TP-150D 100
A.W.G. 1/0 KFLDT90 1/0 AWG Copper Tubular Lugs (Type DT) DT50-8 DT50-8 5/16" 0.331 0.787 1.614 0.551 0.394 1.575 OPT TP-150D 100
A.W.G. 1/0 KFLDT91 1/0 AWG Copper Tubular Lugs (Type DT) DT50-10 DT50-10 3/8" 0.413 0.787 1.673 0.551 0.394 1.575 OPT TP-150D 100
A.W.G. 2/0 KFLDTA0 2/0 AWG Copper Tubular Lugs (Type DT) DT70-8 DT70-8 5/16" 0.331 0.906 1.909 0.630 0.472 1.654 OPT TP-150D 30
A.W.G. 2/0 KFLDTA1 2/0 AWG Copper Tubular Lugs (Type DT) DT70-10 DT70-10 3/8" 0.413 0.906 1.91  0.630 0.472 1.654 OPT TP-150D 30
A.W.G. 2/0 KFLDTA2 2/0 AWG Copper Tubular Lugs (Type DT) DT70-12 DT70-12 1/2" 0.512 0.906 1.97  0.630 0.472 1.654 OPT TP-150D 30
A.W.G. 3/0 KFLDTB0 3/0 AWG Copper Tubular Lugs (Type DT) DT95-10 DT95-10 3/8" 0.413 1.024 2.244 0.709 0.551 1.732 OPT TP-150D 30
A.W.G. 3/0 KFLDTB1 3/0 AWG Copper Tubular Lugs (Type DT) DT95-12  DT95-12 1/2" 0.512 1.024 2.244 0.709 0.551 1.732 OPT TP-150D 30
A.W.G. 4/0 KFLDTC0 4/0 AWG Copper Tubular Lugs (Type DT) DT120-12 DT120-8 1/2" 0.512 1.181 2.480 0.827 0.630 1.811 IZUMI EP-520C 20
A.W.G. 4/0 KFLDTC1 4/0 AWG Copper Tubular Lugs (Type DT) DT120-16 DT120-10 5/8" 0.669 1.181 2.480 0.827 0.630 1.811 IZUMI EP-520C 20
A.W.G. 250/300MCM KFLDTD0 250/300MCM AWG Copper Tubular Lugs (Type DT) DT150-12 DT150-12 1/2" 0.512 1.299 2.776 0.906 0.669 1.969 IZUMI EP-520C 10
A.W.G. 250/300MCM KFLDTD1 250/300MCM AWG Copper Tubular Lugs (Type DT) DT150-16 DT150-16 5/8" 0.669 1.299 2.776 0.906 0.669 1.969 IZUMI EP-520C 10
A.W.G. 300/350MCM KFLDTE0 300/350MCM AWG Copper Tubular Lugs (Type DT) DT185-12 DT185-12 1/2" 0.512 1.417 3.031 0.984 0.748 2.047 IZUMI EP-520C 10
A.W.G. 300/350MCM KFLDTE1 300/350MCM AWG Copper Tubular Lugs (Type DT) DT185-16 DT185-16 5/8" 0.669 1.417 3.031 0.984 0.748 2.047 IZUMI EP-520C 10
A.W.G. 400MCM KFLDTF0 400MCM AWG Copper Tubular Lugs (Type DT) DT240-12 DT240-12 1/2" 0.512 1.575 3.563 1.102 0.850 2.047 IZUMI EP-520C 10
A.W.G. 400MCM KFLDTF1 400MCM AWG Copper Tubular Lugs (Type DT) DT240-16 DT240-16 5/8" 0.669 1.575 3.563 1.102 0.850 2.047 IZUMI EP-520C 10
A.W.G. 400MCM KFLDTF2 400MCM AWG Copper Tubular Lugs (Type DT) DT240-20 DT240-20 3/4" 0.827 1.575 3.563 1.102 0.850 2.047 IZUMI EP-520C 10
A.W.G. 500MCM KFLDTG0 500MCM AWG Copper Tubular Lugs (Type DT) DT300-16 DT300-16 5/8" 0.669 1.772 3.937 1.220 0.945 2.283 IZUMI EP-1000A 6
A.W.G. 500MCM KFLDTG1 500MCM AWG Copper Tubular Lugs (Type DT) DT300-20 DT300-20 3/4" 0.827 1.772 3.937 1.220 0.945 2.283 IZUMI EP-1000A 6
A.W.G. 600/750MCM KFLDTH0 600/750MCM AWG  Copper Tubular Lugs (Type DT) DT400-16 DT400-16 5/8" 0.669 2.047 4.331 1.437 1.122 2.598 IZUMI EP-1000A 4
A.W.G. 600/750MCM KFLDTH1 600/750MCM AWG  Copper Tubular Lugs (Type DT) DT400-20 DT400-20 3/4" 0.827 2.047 4.331 1.437 1.122 2.598 IZUMI EP-1000A 4
A.W.G. 800/1000MCM KFLDTI0 800/1000MCM AWG Copper Tubular Lugs (Type DT) DT500-16 DT500-16 5/8" 0.669 2.205 4.843 1.535 1.201 2.756 IZUMI EP-1000A 1
A.W.G. 800/1000MCM KFLDTI1 800/1000MCM AWG Copper Tubular Lugs (Type DT) DT500-20 DT500-20 3/4" 0.827 2.205 4.843 1.535 1.201 2.756 IZUMI EP-1000A 1
A.W.G. 1000/1250MCM KFLDTJ0 1000/1250MCM AWG Copper Tubular Lugs (Type DT) DT630-20 DT630-20 3/4" 0.827 2.559 5.315 1.772 1.398 3.150 IZUMI EP-1000A 1
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Tool PCS/Pack
Meric d2 B L D d E
1.5mm² KFLDT10 16 AWG Copper Tubular Lugs (Type DT) DT1.5-5 DT1.5-4 4 5.20  8.00  18.00  4.00  2.20  10.00  IZUMI 5N18 500
2.5mm² KFLDT20 14 AWG Copper Tubular Lugs (Type DT)  DT2.5-4 DT2.5-4 4 4.20  8.00  19.00  4.50  2.90  13.00  IZUMI 5N18 500
2.5mm² KFLDT21 14 AWG Copper Tubular Lugs (Type DT)  DT2.5-5 DT2.5-5 5 5.20  8.00  20.00  4.50  2.90  13.00  IZUMI 5N18 500
2.5mm² KFLDT22 14 AWG Copper Tubular Lugs (Type DT)  DT2.5-6 DT2.5-6 6 6.40  10.00  20.00  4.50  2.90  13.00  IZUMI 5N18 500
4mm² KFLDT30 12 AWG Copper Tubular Lugs (Type DT) DT4-5 DT4-4 4 5.20  10.00  19.50  5.20  3.60  13.00  IZUMI 5N18 500
4mm² KFLDT31 12 AWG Copper Tubular Lugs (Type DT) DT4-6 DT4-5 5 6.40  10.00  20.50  5.20  3.60  13.00  IZUMI 5N18 500
6mm² KFLDT40 10 AWG Copper Tubular Lugs (Type DT) DT6-5 DT6-5 5 5.20  10.00  22.00  6.00  4.20  17.00  IZUMI 5N18 300
6mm² KFLDT41 10 AWG Copper Tubular Lugs (Type DT) DT6-6 DT6-6 6 6.40  10.00  23.00  6.00  4.20  17.00  IZUMI 5N18 300
6mm² KFLDT42 10 AWG Copper Tubular Lugs (Type DT) DT6-8 DT6-8 8 8.40  12.00  24.00  6.00  4.20  17.00  IZUMI 5N18 300
10mm² KFLDT50 8 AWG Copper Tubular Lugs (Type DT) DT10-6 DT10-5 5 6.40  12.40  24.00  7.00  5.00  17.00  IZUMI 5N18 300
10mm² KFLDT51 8 AWG Copper Tubular Lugs (Type DT) DT10-8 DT10-6 6 8.40  12.40  24.00  7.00  5.00  17.00  IZUMI 5N18 300
16mm² KFLDT60 6 AWG Copper Tubular Lugs (Type DT) DT16-6 DT16-6 6 6.40  14.00  27.50  9.00  6.00  32.00  OPT TP-150D 100
16mm² KFLDT61 6 AWG Copper Tubular Lugs (Type DT) DT16-8 DT16-8 8 8.40  14.00  29.50  9.00  6.00  32.00  OPT TP-150D 100
25mm² KFLDT70 4 AWG Copper Tubular Lugs (Type DT) DT25-6 DT25-6 6 6.40  15.00  32.50  10.00  7.00  32.00  OPT TP-150D 100
25mm² KFLDT71 4 AWG Copper Tubular Lugs (Type DT) DT25-8 DT25-8 8 8.40  15.00  33.00  10.00  7.00  32.00  OPT TP-150D 100
25mm² KFLDT72 4 AWG Copper Tubular Lugs (Type DT) DT25-10 DT25-10 10 10.50  17.50  34.00  10.00  7.00  32.00  OPT TP-150D 100
35mm² KFLDT80 2 AWG Copper Tubular Lugs (Type DT) DT35-6 DT35-6 6 6.40  17.10  36.00  12.00  9.00  36.00  OPT TP-150D 100
35mm² KFLDT81 2 AWG Copper Tubular Lugs (Type DT) DT35-8 DT35-8 8 8.40  17.10  37.00  12.00  9.00  36.00  OPT TP-150D 100
35mm² KFLDT82 2 AWG Copper Tubular Lugs (Type DT) DT35-10 DT35-10 10 10.50  18.00  38.00  12.00  9.00  36.00  OPT TP-150D 100
50mm² KFLDT90 1/0 AWG Copper Tubular Lugs (Type DT) DT50-8 DT50-8 8 8.40  20.00  41.00  14.00  10.00  40.00  OPT TP-150D 100
50mm² KFLDT91 1/0 AWG Copper Tubular Lugs (Type DT) DT50-10 DT50-10 10 10.50  20.00  42.50  14.00  10.00  40.00  OPT TP-150D 100
70mm² KFLDTA0 2/0 AWG Copper Tubular Lugs (Type DT) DT70-8 DT70-8 8 8.40  23.00  48.50  16.00  12.00  42.00  OPT TP-150D 30
70mm² KFLDTA1 2/0 AWG Copper Tubular Lugs (Type DT) DT70-10 DT70-10 10 10.50  23.00  48.50  16.00  12.00  42.00  OPT TP-150D 30
70mm² KFLDTA2 2/0 AWG Copper Tubular Lugs (Type DT) DT70-12 DT70-12 12 13.00  23.00  50.00  16.00  12.00  42.00  OPT TP-150D 30
95mm² KFLDTB0 3/0 AWG Copper Tubular Lugs (Type DT) DT95-10 DT95-10 10 10.50  26.00  57.00  18.00  14.00  44.00  OPT TP-150D 30
95mm² KFLDTB1 3/0 AWG Copper Tubular Lugs (Type DT) DT95-12  DT95-12 12 13.00  26.00  57.00  18.00  14.00  44.00  OPT TP-150D 30
120mm² KFLDTC0 4/0 AWG Copper Tubular Lugs (Type DT) DT120-12 DT120-8 8 13.00  30.00  63.00  21.00  16.00  46.00  IZUMI EP-520C 20
120mm² KFLDTC1 4/0 AWG Copper Tubular Lugs (Type DT) DT120-16 DT120-10 10 17.00  30.00  63.00  21.00  16.00  46.00  IZUMI EP-520C 20
150mm² KFLDTD0 250/300MCM AWG Copper Tubular Lugs (Type DT) DT150-12 DT150-12 12 13.00  33.00  70.50  23.00  17.00  50.00  IZUMI EP-520C 10
150mm² KFLDTD1 250/300MCM AWG Copper Tubular Lugs (Type DT) DT150-16 DT150-16 16 17.00  33.00  70.50  23.00  17.00  50.00  IZUMI EP-520C 10
185mm² KFLDTE0 300/350MCM AWG Copper Tubular Lugs (Type DT) DT185-12 DT185-12 12 13.00  36.00  77.00  25.00  19.00  52.00  IZUMI EP-520C 10
185mm² KFLDTE1 300/350MCM AWG Copper Tubular Lugs (Type DT) DT185-16 DT185-16 16 17.00  36.00  77.00  25.00  19.00  52.00  IZUMI EP-520C 10
240mm² KFLDTF0 400MCM AWG Copper Tubular Lugs (Type DT) DT240-12 DT240-12 12 13.00  40.00  90.50  28.00  21.60  52.00  IZUMI EP-520C 10
240mm² KFLDTF1 400MCM AWG Copper Tubular Lugs (Type DT) DT240-16 DT240-16 16 17.00  40.00  90.50  28.00  21.60  52.00  IZUMI EP-520C 10
240mm² KFLDTF2 400MCM AWG Copper Tubular Lugs (Type DT) DT240-20 DT240-20 20 21.00  40.00  90.50  28.00  21.60  52.00  IZUMI EP-520C 10
300mm² KFLDTG0 500MCM AWG Copper Tubular Lugs (Type DT) DT300-16 DT300-16 16 17.00  45.00  100.00  31.00  24.00  58.00  IZUMI EP-1000A 6
300mm² KFLDTG1 500MCM AWG Copper Tubular Lugs (Type DT) DT300-20 DT300-20 20 21.00  45.00  100.00  31.00  24.00  58.00  IZUMI EP-1000A 6
400mm² KFLDTH0 600/750MCM AWG  Copper Tubular Lugs (Type DT) DT400-16 DT400-16 16 17.00  52.00  110.00  36.50  28.50  66.00  IZUMI EP-1000A 4
400mm² KFLDTH1 600/750MCM AWG  Copper Tubular Lugs (Type DT) DT400-20 DT400-20 20 21.00  52.00  110.00  36.50  28.50  66.00  IZUMI EP-1000A 4
500mm² KFLDTI0 800/1000MCM AWG Copper Tubular Lugs (Type DT) DT500-16 DT500-16 16 17.00  56.00  123.00  39.00  30.50  70.00  IZUMI EP-1000A 1
500mm² KFLDTI1 800/1000MCM AWG Copper Tubular Lugs (Type DT) DT500-20 DT500-20 20 21.00  56.00  123.00  39.00  30.50  70.00  IZUMI EP-1000A 1
630mm² KFLDTJ0 1000/1250MCM AWG Copper Tubular Lugs (Type DT) DT630-20 DT630-20 20 21.00  65.00  135.00  45.00  35.50  80.00  IZUMI EP-1000A 1
