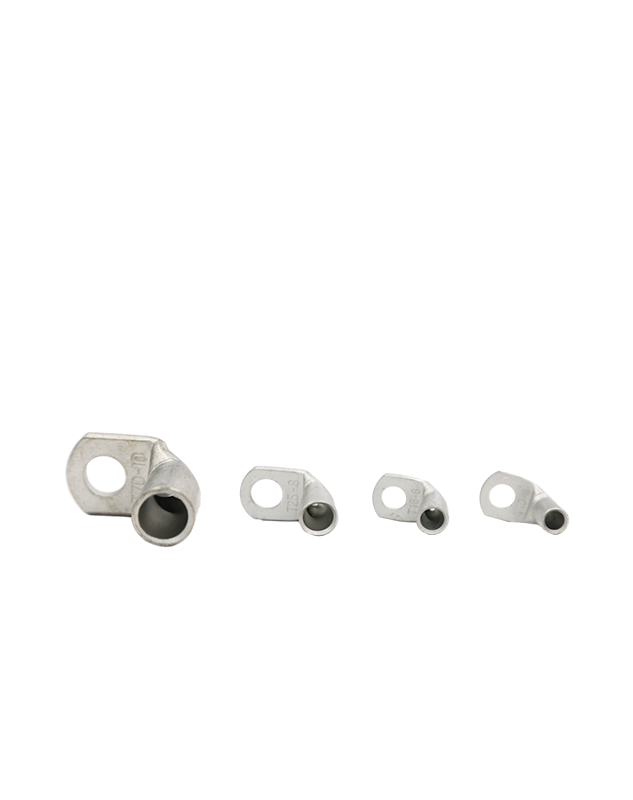

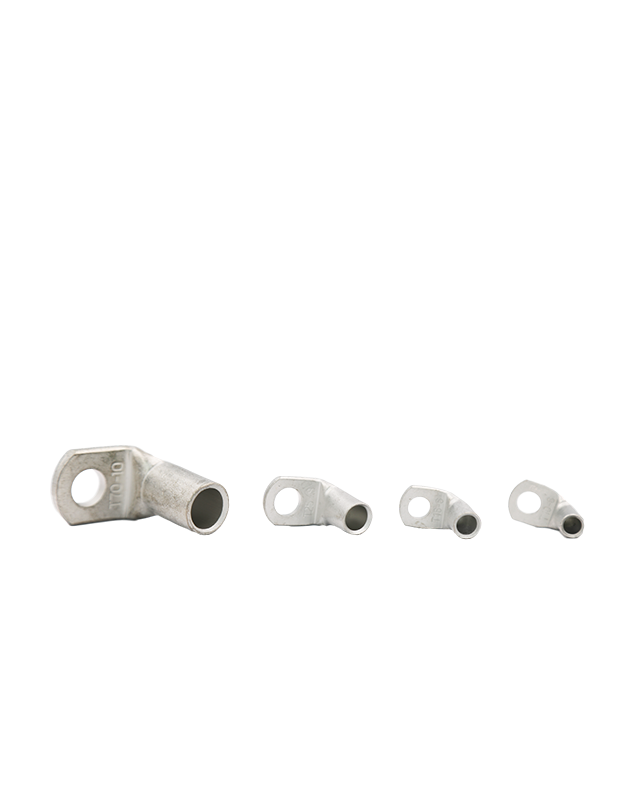

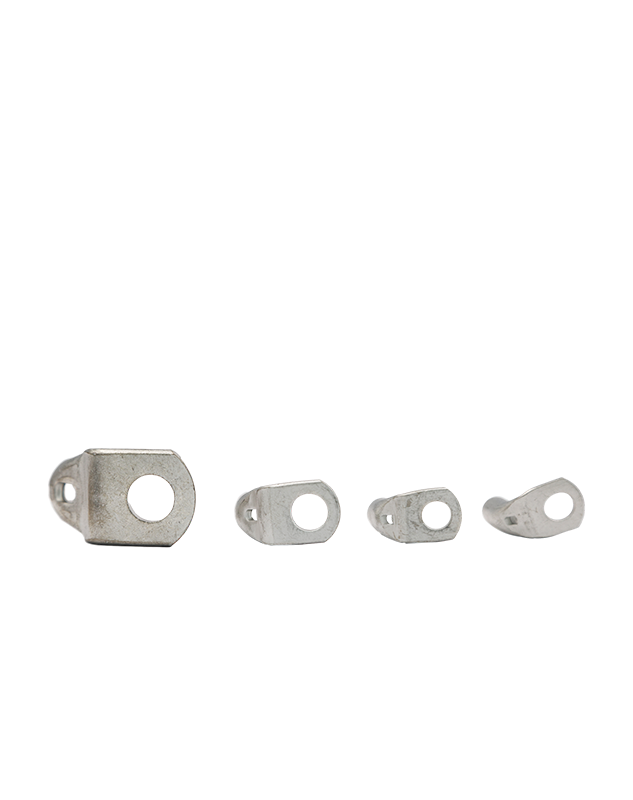

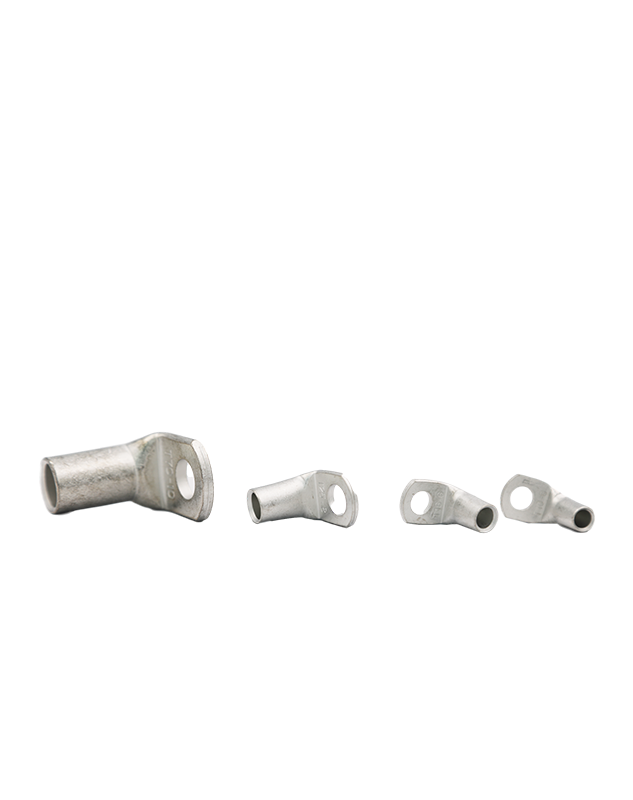

Copper Tubular Lugs (Type T 90°)

Copper Tubular Lugs (Type T 90°)

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 852

Product Details

Spec (American AWG) 8 6 4 2 1/0 2/0 3/0 4/0 250/300MCM 300/350MCM 400MCM
Spec (JIS AWG) 10 16 25 35 50 70 95 120 150 185 240
Spec (DIN AWG)
Spec (GB mm2)
Max Current 70 95 125 170 230 265 310 360 445 505 545

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU#

Description

 MFG# Stud Size  Dimensions Inch Tool PCS/Pack
USA d2 B L1 D d E
A.W.G. 8 KFLT910 8 AWG Copper Tubular Lugs (Type T 90°) T90-10/6 T90-10/6 1/4" 0.252 0.469 0.492 0.272 0.185 0.413 IZUMI 5N18 500
A.W.G. 8 KFLT911 8 AWG Copper Tubular Lugs (Type T 90°) T90-10/8 T90-10/8 5/16" 0.327 0.531 0.610 0.272 0.185 0.413 IZUMI 5N18 500
A.W.G. 6 KFLT920 6 AWG Copper Tubular Lugs (Type T 90°) T90-16/6 T90-16/6 1/4" 0.252 0.469 0.472 0.307 0.220 0.433 OPT TP-150D 500
A.W.G. 6 KFLT921 6 AWG Copper Tubular Lugs (Type T 90°) T90-16/8 T90-16/8 5/16" 0.327 0.531 0.61  0.31  0.220 0.433 OPT TP-150D 500
A.W.G. 4 KFLT930 4 AWG Copper Tubular Lugs (Type T 90°) T90-25/8 T90-25/8 5/16" 0.327 0.551 0.630 0.374 0.280 0.512 OPT TP-150D 250
A.W.G. 4 KFLT931 4 AWG Copper Tubular Lugs (Type T 90°) T90-25/10 T90-25/10 3/8" 0.413 0.630 0.748 0.374 0.280 0.512 OPT TP-150D 250
A.W.G. 2 KFLT940 2 AWG Copper Tubular Lugs (Type T 90°) T90-35/8 T90-35/8 5/16" 0.327 0.650 0.709 0.433 0.323 0.630 OPT TP-150D 200
A.W.G. 2 KFLT941 2 AWG Copper Tubular Lugs (Type T 90°) T90-35/10 T90-35/10 3/8" 0.413 0.650 0.866 0.433 0.323 0.630 OPT TP-150D 200
A.W.G. 1/0 KFLT950 1/0 AWG Copper Tubular Lugs (Type T 90°) T90-50/10 T90-50/10 3/8" 0.413 0.705 0.866 0.492 0.374 0.748 OPT TP-150D 100
A.W.G. 1/0 KFLT951 1/0 AWG Copper Tubular Lugs (Type T 90°) T90-50/12 T90-50/12 1/2" 0.512 0.705 0.866 0.492 0.374 0.748 OPT TP-150D 100
A.W.G. 2/0 KFLT960 2/0 AWG Copper Tubular Lugs (Type T 90°) T90-70/10 T90-70/10 3/8" 0.413 0.846 0.866 0.591 0.453 0.827 OPT TP-150D 100
A.W.G. 2/0 KFLT961 2/0 AWG Copper Tubular Lugs (Type T 90°) T90-70/12 T90-70/12 1/2" 0.512 0.846 0.866 0.591 0.453 0.827 OPT TP-150D 100
A.W.G. 3/0 KFLT970 3/0 AWG Copper Tubular Lugs (Type T 90°) T90-95/14 T90-95/14 9/16" 0.571 0.972 1.299 0.669 0.531 0.945 OPT TP-150D 50
A.W.G. 3/0 KFLT971 3/0 AWG Copper Tubular Lugs (Type T 90°) T90-95/16 T90-95/16 5/8" 0.650 0.972 1.299 0.669 0.531 0.945 OPT TP-150D 50
A.W.G. 4/0 KFLT980 4/0 AWG Copper Tubular Lugs (Type T 90°) T90-120/14 T90-120/14 9/16" 0.571 1.138 1.299 0.787 0.614 1.063 IZUMI EP-520C 30
A.W.G. 4/0 KFLT981 4/0 AWG Copper Tubular Lugs (Type T 90°) T90-120/16 T90-120/16 5/8" 0.650 1.138 1.299 0.787 0.614 1.063 IZUMI EP-520C 30
A.W.G. 250/300MCM KFLT990 250/300MCM AWG Copper Tubular Lugs (Type T 90°) T90-150/14 T90-150/14 9/16" 0.571 1.197 1.299 0.827 0.650 1.260 IZUMI EP-520C 10
A.W.G. 250/300MCM KFLT991 250/300MCM AWG Copper Tubular Lugs (Type T 90°) T90-150/16 T90-150/16 5/8" 0.650 1.197 1.299 0.827 0.650 1.260 IZUMI EP-520C 10
A.W.G. 300/350MCM KFLT9A0 300/350MCM AWG Copper Tubular Lugs (Type T 90°) T90-185/16 T90-185/16 5/8" 0.650 1.339 1.378 0.929 0.724 1.339 IZUMI EP-520C 10
A.W.G. 400MCM   KFLT9B0 400MCM AWG Copper Tubular Lugs (Type T 90°) T90-240/16 T90-240/16 5/8" 0.650 1.516 1.378 1.039 0.835 1.496 IZUMI EP-520C 10
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Tool PCS/Pack
Meric d2 B L2 D d E
10mm² KFLT910 8 AWG Copper Tubular Lugs (Type T 90°) T90-10/6 T90-10/6 6 6.4  11.9  12.5  6.9  4.7  10.5  IZUMI 5N18 500
10mm² KFLT911 8 AWG Copper Tubular Lugs (Type T 90°) T90-10/8 T90-10/8 8 8.3  13.5  15.5  6.9  4.7  10.5  IZUMI 5N18 500
16mm² KFLT920 6 AWG Copper Tubular Lugs (Type T 90°) T90-16/6 T90-16/6 6 6.4  11.9  12.0  7.8  5.6  11.0  OPT TP-150D 500
16mm² KFLT921 6 AWG Copper Tubular Lugs (Type T 90°) T90-16/8 T90-16/8 8 8.3  13.5  15.5  7.8  5.6  11.0  OPT TP-150D 500
25mm² KFLT930 4 AWG Copper Tubular Lugs (Type T 90°) T90-25/8 T90-25/8 8 8.3  14.0  16.0  9.5  7.1  13.0  OPT TP-150D 250
25mm² KFLT931 4 AWG Copper Tubular Lugs (Type T 90°) T90-25/10 T90-25/10 10 10.5  16.0  19.0  9.5  7.1  13.0  OPT TP-150D 250
35mm² KFLT940 2 AWG Copper Tubular Lugs (Type T 90°) T90-35/8 T90-35/8 8 8.3  16.5  18.0  11.0  8.2  16.0  OPT TP-150D 200
35mm² KFLT941 2 AWG Copper Tubular Lugs (Type T 90°) T90-35/10 T90-35/10 10 10.5  16.5  22.0  11.0  8.2  16.0  OPT TP-150D 200
50mm² KFLT950 1/0 AWG Copper Tubular Lugs (Type T 90°) T90-50/10 T90-50/10 10 10.5  17.9  22.0  12.5  9.5  19.0  OPT TP-150D 100
50mm² KFLT951 1/0 AWG Copper Tubular Lugs (Type T 90°) T90-50/12 T90-50/12 12 13.0  17.9  22.0  12.5  9.5  19.0  OPT TP-150D 100
70mm² KFLT960 2/0 AWG Copper Tubular Lugs (Type T 90°) T90-70/10 T90-70/10 10 10.5  21.5  22.0  15.0  11.5  21.0  OPT TP-150D 100
70mm² KFLT961 2/0 AWG Copper Tubular Lugs (Type T 90°) T90-70/12 T90-70/12 12 13.0  21.5  22.0  15.0  11.5  21.0  OPT TP-150D 100
95mm² KFLT970 3/0 AWG Copper Tubular Lugs (Type T 90°) T90-95/14 T90-95/14 14 14.5  24.7  33.0  17.0  13.5  24.0  OPT TP-150D 50
95mm² KFLT971 3/0 AWG Copper Tubular Lugs (Type T 90°) T90-95/16 T90-95/16 16 16.5  24.7  33.0  17.0  13.5  24.0  OPT TP-150D 50
120mm² KFLT980 4/0 AWG Copper Tubular Lugs (Type T 90°) T90-120/14 T90-120/14 14 14.5  28.9  33.0  20.0  15.6  27.0  IZUMI EP-520C 30
120mm² KFLT981 4/0 AWG Copper Tubular Lugs (Type T 90°) T90-120/16 T90-120/16 16 16.5  28.9  33.0  20.0  15.6  27.0  IZUMI EP-520C 30
150mm² KFLT990 250/300MCM AWG Copper Tubular Lugs (Type T 90°) T90-150/14 T90-150/14 14 14.5  30.4  33.0  21.0  16.5  32.0  IZUMI EP-520C 10
150mm² KFLT991 250/300MCM AWG Copper Tubular Lugs (Type T 90°) T90-150/16 T90-150/16 16 16.5  30.4  33.0  21.0  16.5  32.0  IZUMI EP-520C 10
185mm² KFLT9A0 300/350MCM AWG Copper Tubular Lugs (Type T 90°) T90-185/16 T90-185/16 16 16.5  34.0  35.0  23.6  18.4  34.0  IZUMI EP-520C 10
240mm² KFLT9B0 400MCM AWG Copper Tubular Lugs (Type T 90°) T90-240/16 T90-240/16 16 16.5  38.5  35.0  26.4  21.2  38.0  IZUMI EP-520C 10
