Spec (American AWG) |
5 | 75 | 10 | 15 | 25 | 40 | 60 | 10- | 16- | 25- | 35- | 50- |
Spec (JIS AWG) |
||||||||||||
Spec (DIN AWG) |
||||||||||||
Spec (GB mm2) |
||||||||||||
Max Current |
9 | 12 | 17 | 18 | 30 | 35 | 50 | 70 | 95 | 125 | 170 | 230 |
Operating Voltage | 600V | |||||||||||
Temperature Withstand | 105℃ |
You can tick the products you need and communicate with us in the message board.
Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions Inch | Tool | PCS/Pack | |||
USA | L | W | D | C | ||||||

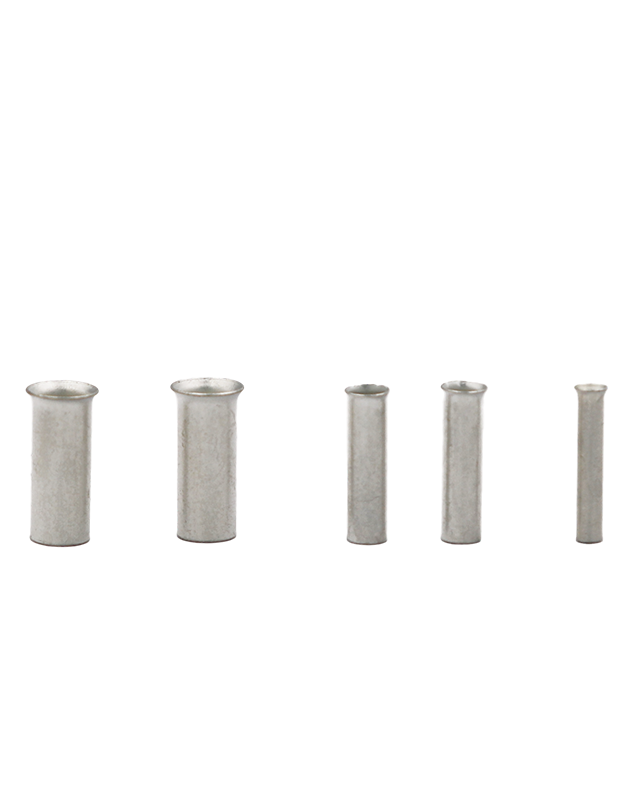

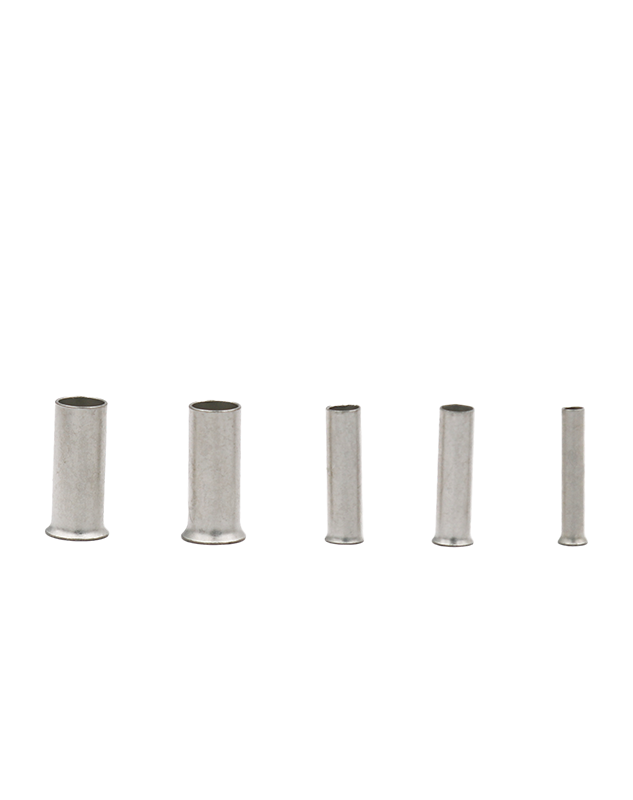

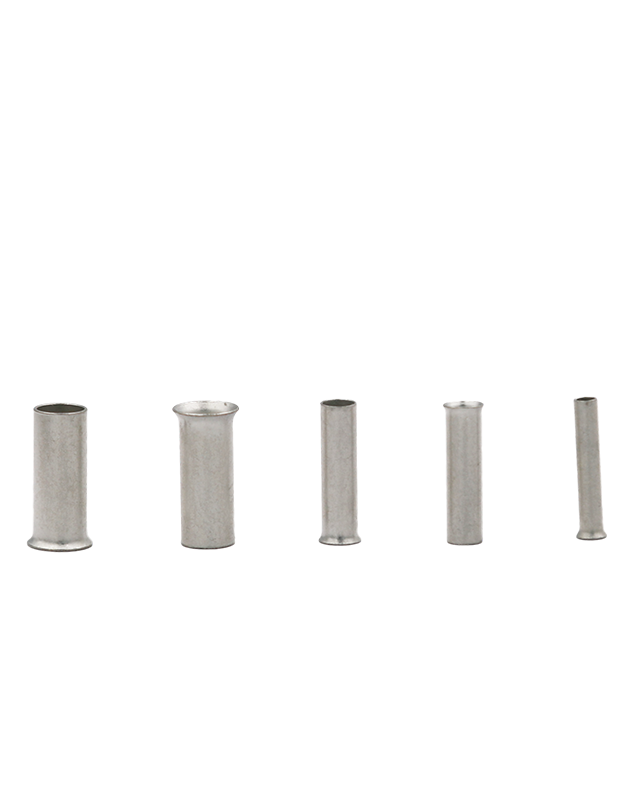

A.W.G. 22 | KFC1O10 | 22 AWG Non-Insulated Core End Terminal EN0506 | EN0506 | 0.236 | 0.073 | 0.051 | 0.039 | OPT AN-04WF | 2000 | |
A.W.G. 22 | KFC1O11 | 22 AWG Non-Insulated Core End Terminal EN0508 | EN0508 | 0.315 | 0.073 | 0.051 | 0.039 | OPT AN-04WF | 2000 | |
A.W.G. 22 | KFC1O12 | 22 AWG Non-Insulated Core End Terminal EN0510 | EN0510 | 0.394 | 0.073 | 0.051 | 0.039 | OPT AN-04WF | 2000 | |
A.W.G. 22 | KFC1O13 | 22 AWG Non-Insulated Core End Terminal EN0512 | EN0512 | 0.472 | 0.073 | 0.051 | 0.039 | OPT AN-04WF | 2000 | |
A.W.G. 20 | KFC1O20 | 20 AWG Non-Insulated Core End Terminal EN7506 | EN7506 | 0.236 | 0.081 | 0.059 | 0.047 | OPT AN-04WF | 2000 | |
A.W.G. 20 | KFC1O21 | 20 AWG Non-Insulated Core End Terminal EN7508 | EN7508 | 0.315 | 0.081 | 0.059 | 0.047 | OPT AN-04WF | 2000 | |
A.W.G. 20 | KFC1O22 | 20 AWG Non-Insulated Core End Terminal EN7510 | EN7510 | 0.394 | 0.081 | 0.059 | 0.047 | OPT AN-04WF | 2000 | |
A.W.G. 20 | KFC1O23 | 20 AWG Non-Insulated Core End Terminal EN7512 | EN7512 | 0.472 | 0.081 | 0.059 | 0.047 | OPT AN-04WF | 2000 | |
A.W.G. 18 | KFC1O30 | 18 AWG Non-Insulated Core End Terminal EN1006 | EN1006 | 0.236 | 0.093 | 0.067 | 0.055 | OPT AN-04WF | 2000 | |
A.W.G. 18 | KFC1O31 | 18 AWG Non-Insulated Core End Terminal EN1008 | EN1008 | 0.315 | 0.093 | 0.067 | 0.055 | OPT AN-04WF | 2000 | |
A.W.G. 18 | KFC1O32 | 18 AWG Non-Insulated Core End Terminal EN1010 | EN1010 | 0.394 | 0.093 | 0.067 | 0.055 | OPT AN-04WF | 2000 | |
A.W.G. 18 | KFC1O33 | 18 AWG Non-Insulated Core End Terminal EN1012 | EN1012 | 0.472 | 0.093 | 0.067 | 0.055 | OPT AN-04WF | 2000 | |
A.W.G. 16 | KFC1O40 | 16 AWG Non-Insulated Core End Terminal EN1508 | EN1508 | 0.315 | 0.104 | 0.079 | 0.067 | OPT AN-04WF | 2000 | |
A.W.G. 16 | KFC1O41 | 16 AWG Non-Insulated Core End Terminal EN1510 | EN1510 | 0.394 | 0.104 | 0.079 | 0.067 | OPT AN-04WF | 2000 | |
A.W.G. 16 | KFC1O42 | 16 AWG Non-Insulated Core End Terminal EN1512 | EN1512 | 0.472 | 0.104 | 0.079 | 0.067 | OPT AN-04WF | 2000 | |
A.W.G. 16 | KFC1O43 | 16 AWG Non-Insulated Core End Terminal EN1518 | EN1518 | 0.709 | 0.104 | 0.079 | 0.067 | OPT AN-04WF | 2000 | |
A.W.G. 14 | KFC1O50 | 14 AWG Non-Insulated Core End Terminal EN2508 | EN2508 | 0.315 | 0.132 | 0.102 | 0.091 | OPT AN-04WF | 2000 | |
A.W.G. 14 | KFC1O51 | 14 AWG Non-Insulated Core End Terminal EN2510 | EN2510 | 0.394 | 0.132 | 0.102 | 0.091 | OPT AN-04WF | 2000 | |
A.W.G. 14 | KFC1O52 | 14 AWG Non-Insulated Core End Terminal EN2512 | EN2512 | 0.472 | 0.132 | 0.102 | 0.091 | OPT AN-04WF | 2000 | |
A.W.G. 14 | KFC1O53 | 14 AWG Non-Insulated Core End Terminal EN2518 | EN2518 | 0.709 | 0.132 | 0.102 | 0.091 | OPT AN-04WF | 1000 | |
A.W.G. 12 | KFC1O60 | 12 AWG Non-Insulated Core End Terminal EN4009 | EN4009 | 0.354 | 0.161 | 0.124 | 0.110 | OPT AN-10WF | 1000 | |
A.W.G. 12 | KFC1O61 | 12 AWG Non-Insulated Core End Terminal EN4012 | EN4012 | 0.472 | 0.161 | 0.124 | 0.110 | OPT AN-10WF | 1000 | |
A.W.G. 12 | KFC1O62 | 12 AWG Non-Insulated Core End Terminal EN4018 | EN4018 | 0.709 | 0.161 | 0.124 | 0.110 | OPT AN-10WF | 1000 | |
A.W.G. 10 | KFC1O70 | 10 AWG Non-Insulated Core End Terminal EN6010 | EN6010 | 0.394 | 0.187 | 0.152 | 0.138 | OPT AN-10WF | 1000 | |
A.W.G. 10 | KFC1O71 | 10 AWG Non-Insulated Core End Terminal EN6012 | EN6012 | 0.472 | 0.187 | 0.152 | 0.138 | OPT AN-10WF | 1000 | |
A.W.G. 10 | KFC1O72 | 10 AWG Non-Insulated Core End Terminal EN6018 | EN6018 | 0.709 | 0.187 | 0.152 | 0.138 | OPT AN-10WF | 1000 | |
A.W.G. 8 | KFC1O80 | 8 AWG Non-Insulated Core End Terminal EN10-12 | EN10-12 | 0.472 | 0.236 | 0.199 | 0.185 | OPT AN-16WF | 1000 | |
A.W.G. 8 | KFC1O81 | 8 AWG Non-Insulated Core End Terminal EN10-18 | EN10-18 | 0.709 | 0.236 | 0.199 | 0.185 | OPT AN-16WF | 1000 | |
A.W.G. 6 | KFC1O90 | 6 AWG Non-Insulated Core End Terminal EN16-12 | EN16-12 | 0.472 | 0.287 | 0.242 | 0.228 | OPT AN-16WF | 1000 | |
A.W.G. 6 | KFC1O91 | 6 AWG Non-Insulated Core End Terminal EN16-18 | EN16-18 | 0.709 | 0.287 | 0.242 | 0.228 | OPT AN-16WF | 1000 | |
A.W.G. 4 | KFC1OA0 | 4 AWG Non-Insulated Core End Terminal EN25-16 | EN25-16 | 0.630 | 0.358 | 0.305 | 0.291 | OPT AN-50WF | 500 | |
A.W.G. 4 | KFC1OA1 | 4 AWG Non-Insulated Core End Terminal EN25-22 | EN25-22 | 0.866 | 0.358 | 0.305 | 0.291 | OPT AN-50WF | 500 | |
A.W.G. 2 | KFC1OB0 | 2 AWG Non-Insulated Core End Terminal EN35-16 | EN35-16 | 0.630 | 0.398 | 0.343 | 0.329 | OPT AN-50WF | 500 | |
A.W.G. 2 | KFC1OB1 | 2 AWG Non-Insulated Core End Terminal EN35-25 | EN35-25 | 0.984 | 0.398 | 0.343 | 0.329 | OPT AN-50WF | 500 | |
A.W.G. 1/10 | KFC1OC0 | 1/10 AWG Non-Insulated Core End Terminal EN50-20 | EN50-20 | 0.787 | 0.504 | 0.429 | 0.415 | OPT AN-50WF | 200 | |
A.W.G. 1/10 | KFC1OC1 | 1/10 AWG Non-Insulated Core End Terminal EN50-25 | EN50-25 | 0.984 | 0.504 | 0.429 | 0.415 | OPT AN-50WF | 200 |
Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions mm | Tool | PCS/Pack | |||
Meric | L | W | D | C | ||||||
0.5mm² | KFC1O10 | 22 AWG Non-Insulated Core End Terminal EN0506 | EN0506 | 6.00 | 1.85 | 1.30 | 1.00 | OPT AN-04WF | 2000 | |
0.5mm² | KFC1O11 | 22 AWG Non-Insulated Core End Terminal EN0508 | EN0508 | 8.00 | 1.85 | 1.30 | 1.00 | OPT AN-04WF | 2000 | |
0.5mm² | KFC1O12 | 22 AWG Non-Insulated Core End Terminal EN0510 | EN0510 | 10.00 | 1.85 | 1.30 | 1.00 | OPT AN-04WF | 2000 | |
0.5mm² | KFC1O13 | 22 AWG Non-Insulated Core End Terminal EN0512 | EN0512 | 12.00 | 1.85 | 1.30 | 1.00 | OPT AN-04WF | 2000 | |
0.75mm² | KFC1O20 | 20 AWG Non-Insulated Core End Terminal EN7506 | EN7506 | 6.00 | 2.05 | 1.50 | 1.20 | OPT AN-04WF | 2000 | |
0.75mm² | KFC1O21 | 20 AWG Non-Insulated Core End Terminal EN7508 | EN7508 | 8.00 | 2.05 | 1.50 | 1.20 | OPT AN-04WF | 2000 | |
0.75mm² | KFC1O22 | 20 AWG Non-Insulated Core End Terminal EN7510 | EN7510 | 10.00 | 2.05 | 1.50 | 1.20 | OPT AN-04WF | 2000 | |
0.75mm² | KFC1O23 | 20 AWG Non-Insulated Core End Terminal EN7512 | EN7512 | 12.00 | 2.05 | 1.50 | 1.20 | OPT AN-04WF | 2000 | |
1.0mm² | KFC1O30 | 18 AWG Non-Insulated Core End Terminal EN1006 | EN1006 | 6.00 | 2.35 | 1.70 | 1.40 | OPT AN-04WF | 2000 | |
1.0mm² | KFC1O31 | 18 AWG Non-Insulated Core End Terminal EN1008 | EN1008 | 8.00 | 2.35 | 1.70 | 1.40 | OPT AN-04WF | 2000 | |
1.0mm² | KFC1O32 | 18 AWG Non-Insulated Core End Terminal EN1010 | EN1010 | 10.00 | 2.35 | 1.70 | 1.40 | OPT AN-04WF | 2000 | |
1.0mm² | KFC1O33 | 18 AWG Non-Insulated Core End Terminal EN1012 | EN1012 | 12.00 | 2.35 | 1.70 | 1.40 | OPT AN-04WF | 2000 | |
1.5mm² | KFC1O40 | 16 AWG Non-Insulated Core End Terminal EN1508 | EN1508 | 8.00 | 2.65 | 2.00 | 1.70 | OPT AN-04WF | 2000 | |
1.5mm² | KFC1O41 | 16 AWG Non-Insulated Core End Terminal EN1510 | EN1510 | 10.00 | 2.65 | 2.00 | 1.70 | OPT AN-04WF | 2000 | |
1.5mm² | KFC1O42 | 16 AWG Non-Insulated Core End Terminal EN1512 | EN1512 | 12.00 | 2.65 | 2.00 | 1.70 | OPT AN-04WF | 2000 | |
1.5mm² | KFC1O43 | 16 AWG Non-Insulated Core End Terminal EN1518 | EN1518 | 18.00 | 2.65 | 2.00 | 1.70 | OPT AN-04WF | 2000 | |
2.5mm² | KFC1O50 | 14 AWG Non-Insulated Core End Terminal EN2508 | EN2508 | 8.00 | 3.35 | 2.60 | 2.30 | OPT AN-04WF | 2000 | |
2.5mm² | KFC1O51 | 14 AWG Non-Insulated Core End Terminal EN2510 | EN2510 | 10.00 | 3.35 | 2.60 | 2.30 | OPT AN-04WF | 2000 | |
2.5mm² | KFC1O52 | 14 AWG Non-Insulated Core End Terminal EN2512 | EN2512 | 12.00 | 3.35 | 2.60 | 2.30 | OPT AN-04WF | 2000 | |
2.5mm² | KFC1O53 | 14 AWG Non-Insulated Core End Terminal EN2518 | EN2518 | 18.00 | 3.35 | 2.60 | 2.30 | OPT AN-04WF | 1000 | |
4.0mm² | KFC1O60 | 12 AWG Non-Insulated Core End Terminal EN4009 | EN4009 | 9.00 | 4.10 | 3.15 | 2.80 | OPT AN-10WF | 1000 | |
4.0mm² | KFC1O61 | 12 AWG Non-Insulated Core End Terminal EN4012 | EN4012 | 12.00 | 4.10 | 3.15 | 2.80 | OPT AN-10WF | 1000 | |
4.0mm² | KFC1O62 | 12 AWG Non-Insulated Core End Terminal EN4018 | EN4018 | 18.00 | 4.10 | 3.15 | 2.80 | OPT AN-10WF | 1000 | |
6.0mm² | KFC1O70 | 10 AWG Non-Insulated Core End Terminal EN6010 | EN6010 | 10.00 | 4.75 | 3.85 | 3.50 | OPT AN-10WF | 1000 | |
6.0mm² | KFC1O71 | 10 AWG Non-Insulated Core End Terminal EN6012 | EN6012 | 12.00 | 4.75 | 3.85 | 3.50 | OPT AN-10WF | 1000 | |
6.0mm² | KFC1O72 | 10 AWG Non-Insulated Core End Terminal EN6018 | EN6018 | 18.00 | 4.75 | 3.85 | 3.50 | OPT AN-10WF | 1000 | |
10.0mm² | KFC1O80 | 8 AWG Non-Insulated Core End Terminal EN10-12 | EN10-12 | 12.00 | 6.00 | 5.05 | 4.70 | OPT AN-16WF | 1000 | |
10.0mm² | KFC1O81 | 8 AWG Non-Insulated Core End Terminal EN10-18 | EN10-18 | 18.00 | 6.00 | 5.05 | 4.70 | OPT AN-16WF | 1000 | |
16.0mm² | KFC1O90 | 6 AWG Non-Insulated Core End Terminal EN16-12 | EN16-12 | 12.00 | 7.30 | 6.15 | 5.80 | OPT AN-16WF | 1000 | |
16.0mm² | KFC1O91 | 6 AWG Non-Insulated Core End Terminal EN16-18 | EN16-18 | 18.00 | 7.30 | 6.15 | 5.80 | OPT AN-16WF | 1000 | |
25.0mm | KFC1OA0 | 4 AWG Non-Insulated Core End Terminal EN25-16 | EN25-16 | 16.00 | 9.10 | 7.75 | 7.40 | OPT AN-50WF | 500 | |
25.0mm | KFC1OA1 | 4 AWG Non-Insulated Core End Terminal EN25-22 | EN25-22 | 22.00 | 9.10 | 7.75 | 7.40 | OPT AN-50WF | 500 | |
35.0mm² | KFC1OB0 | 2 AWG Non-Insulated Core End Terminal EN35-16 | EN35-16 | 16.00 | 10.10 | 8.70 | 8.35 | OPT AN-50WF | 500 | |
35.0mm² | KFC1OB1 | 2 AWG Non-Insulated Core End Terminal EN35-25 | EN35-25 | 25.00 | 10.10 | 8.70 | 8.35 | OPT AN-50WF | 500 | |
50.0mm² | KFC1OC0 | 1/10 AWG Non-Insulated Core End Terminal EN50-20 | EN50-20 | 20.00 | 12.80 | 10.90 | 10.55 | OPT AN-50WF | 200 | |
50.0mm² | KFC1OC1 | 1/10 AWG Non-Insulated Core End Terminal EN50-25 | EN50-25 | 25.00 | 12.80 | 10.90 | 10.55 | OPT AN-50WF | 200 |
Want to get a sample? Please fill in the form, leave your contact information and parameter information.
Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions Inch | Tool | PCS/Pack | |||
USA | L | W | D | C | ||||||
A.W.G. 22 | KFC1O10 | 22 AWG Non-Insulated Core End Terminal EN0506 | EN0506 | 0.236 | 0.073 | 0.051 | 0.039 | OPT AN-04WF | 2000 | |
A.W.G. 22 | KFC1O11 | 22 AWG Non-Insulated Core End Terminal EN0508 | EN0508 | 0.315 | 0.073 | 0.051 | 0.039 | OPT AN-04WF | 2000 | |
A.W.G. 22 | KFC1O12 | 22 AWG Non-Insulated Core End Terminal EN0510 | EN0510 | 0.394 | 0.073 | 0.051 | 0.039 | OPT AN-04WF | 2000 | |
A.W.G. 22 | KFC1O13 | 22 AWG Non-Insulated Core End Terminal EN0512 | EN0512 | 0.472 | 0.073 | 0.051 | 0.039 | OPT AN-04WF | 2000 | |
A.W.G. 20 | KFC1O20 | 20 AWG Non-Insulated Core End Terminal EN7506 | EN7506 | 0.236 | 0.081 | 0.059 | 0.047 | OPT AN-04WF | 2000 | |
A.W.G. 20 | KFC1O21 | 20 AWG Non-Insulated Core End Terminal EN7508 | EN7508 | 0.315 | 0.081 | 0.059 | 0.047 | OPT AN-04WF | 2000 | |
A.W.G. 20 | KFC1O22 | 20 AWG Non-Insulated Core End Terminal EN7510 | EN7510 | 0.394 | 0.081 | 0.059 | 0.047 | OPT AN-04WF | 2000 | |
A.W.G. 20 | KFC1O23 | 20 AWG Non-Insulated Core End Terminal EN7512 | EN7512 | 0.472 | 0.081 | 0.059 | 0.047 | OPT AN-04WF | 2000 | |
A.W.G. 18 | KFC1O30 | 18 AWG Non-Insulated Core End Terminal EN1006 | EN1006 | 0.236 | 0.093 | 0.067 | 0.055 | OPT AN-04WF | 2000 | |
A.W.G. 18 | KFC1O31 | 18 AWG Non-Insulated Core End Terminal EN1008 | EN1008 | 0.315 | 0.093 | 0.067 | 0.055 | OPT AN-04WF | 2000 | |
A.W.G. 18 | KFC1O32 | 18 AWG Non-Insulated Core End Terminal EN1010 | EN1010 | 0.394 | 0.093 | 0.067 | 0.055 | OPT AN-04WF | 2000 | |
A.W.G. 18 | KFC1O33 | 18 AWG Non-Insulated Core End Terminal EN1012 | EN1012 | 0.472 | 0.093 | 0.067 | 0.055 | OPT AN-04WF | 2000 | |
A.W.G. 16 | KFC1O40 | 16 AWG Non-Insulated Core End Terminal EN1508 | EN1508 | 0.315 | 0.104 | 0.079 | 0.067 | OPT AN-04WF | 2000 | |
A.W.G. 16 | KFC1O41 | 16 AWG Non-Insulated Core End Terminal EN1510 | EN1510 | 0.394 | 0.104 | 0.079 | 0.067 | OPT AN-04WF | 2000 | |
A.W.G. 16 | KFC1O42 | 16 AWG Non-Insulated Core End Terminal EN1512 | EN1512 | 0.472 | 0.104 | 0.079 | 0.067 | OPT AN-04WF | 2000 | |
A.W.G. 16 | KFC1O43 | 16 AWG Non-Insulated Core End Terminal EN1518 | EN1518 | 0.709 | 0.104 | 0.079 | 0.067 | OPT AN-04WF | 2000 | |
A.W.G. 14 | KFC1O50 | 14 AWG Non-Insulated Core End Terminal EN2508 | EN2508 | 0.315 | 0.132 | 0.102 | 0.091 | OPT AN-04WF | 2000 | |
A.W.G. 14 | KFC1O51 | 14 AWG Non-Insulated Core End Terminal EN2510 | EN2510 | 0.394 | 0.132 | 0.102 | 0.091 | OPT AN-04WF | 2000 | |
A.W.G. 14 | KFC1O52 | 14 AWG Non-Insulated Core End Terminal EN2512 | EN2512 | 0.472 | 0.132 | 0.102 | 0.091 | OPT AN-04WF | 2000 | |
A.W.G. 14 | KFC1O53 | 14 AWG Non-Insulated Core End Terminal EN2518 | EN2518 | 0.709 | 0.132 | 0.102 | 0.091 | OPT AN-04WF | 1000 | |
A.W.G. 12 | KFC1O60 | 12 AWG Non-Insulated Core End Terminal EN4009 | EN4009 | 0.354 | 0.161 | 0.124 | 0.110 | OPT AN-10WF | 1000 | |
A.W.G. 12 | KFC1O61 | 12 AWG Non-Insulated Core End Terminal EN4012 | EN4012 | 0.472 | 0.161 | 0.124 | 0.110 | OPT AN-10WF | 1000 | |
A.W.G. 12 | KFC1O62 | 12 AWG Non-Insulated Core End Terminal EN4018 | EN4018 | 0.709 | 0.161 | 0.124 | 0.110 | OPT AN-10WF | 1000 | |
A.W.G. 10 | KFC1O70 | 10 AWG Non-Insulated Core End Terminal EN6010 | EN6010 | 0.394 | 0.187 | 0.152 | 0.138 | OPT AN-10WF | 1000 | |
A.W.G. 10 | KFC1O71 | 10 AWG Non-Insulated Core End Terminal EN6012 | EN6012 | 0.472 | 0.187 | 0.152 | 0.138 | OPT AN-10WF | 1000 | |
A.W.G. 10 | KFC1O72 | 10 AWG Non-Insulated Core End Terminal EN6018 | EN6018 | 0.709 | 0.187 | 0.152 | 0.138 | OPT AN-10WF | 1000 | |
A.W.G. 8 | KFC1O80 | 8 AWG Non-Insulated Core End Terminal EN10-12 | EN10-12 | 0.472 | 0.236 | 0.199 | 0.185 | OPT AN-16WF | 1000 | |
A.W.G. 8 | KFC1O81 | 8 AWG Non-Insulated Core End Terminal EN10-18 | EN10-18 | 0.709 | 0.236 | 0.199 | 0.185 | OPT AN-16WF | 1000 | |
A.W.G. 6 | KFC1O90 | 6 AWG Non-Insulated Core End Terminal EN16-12 | EN16-12 | 0.472 | 0.287 | 0.242 | 0.228 | OPT AN-16WF | 1000 | |
A.W.G. 6 | KFC1O91 | 6 AWG Non-Insulated Core End Terminal EN16-18 | EN16-18 | 0.709 | 0.287 | 0.242 | 0.228 | OPT AN-16WF | 1000 | |
A.W.G. 4 | KFC1OA0 | 4 AWG Non-Insulated Core End Terminal EN25-16 | EN25-16 | 0.630 | 0.358 | 0.305 | 0.291 | OPT AN-50WF | 500 | |
A.W.G. 4 | KFC1OA1 | 4 AWG Non-Insulated Core End Terminal EN25-22 | EN25-22 | 0.866 | 0.358 | 0.305 | 0.291 | OPT AN-50WF | 500 | |
A.W.G. 2 | KFC1OB0 | 2 AWG Non-Insulated Core End Terminal EN35-16 | EN35-16 | 0.630 | 0.398 | 0.343 | 0.329 | OPT AN-50WF | 500 | |
A.W.G. 2 | KFC1OB1 | 2 AWG Non-Insulated Core End Terminal EN35-25 | EN35-25 | 0.984 | 0.398 | 0.343 | 0.329 | OPT AN-50WF | 500 | |
A.W.G. 1/10 | KFC1OC0 | 1/10 AWG Non-Insulated Core End Terminal EN50-20 | EN50-20 | 0.787 | 0.504 | 0.429 | 0.415 | OPT AN-50WF | 200 | |
A.W.G. 1/10 | KFC1OC1 | 1/10 AWG Non-Insulated Core End Terminal EN50-25 | EN50-25 | 0.984 | 0.504 | 0.429 | 0.415 | OPT AN-50WF | 200 |
Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions mm | Tool | PCS/Pack | |||
Meric | L | W | D | C | ||||||
0.5mm² | KFC1O10 | 22 AWG Non-Insulated Core End Terminal EN0506 | EN0506 | 6.00 | 1.85 | 1.30 | 1.00 | OPT AN-04WF | 2000 | |
0.5mm² | KFC1O11 | 22 AWG Non-Insulated Core End Terminal EN0508 | EN0508 | 8.00 | 1.85 | 1.30 | 1.00 | OPT AN-04WF | 2000 | |
0.5mm² | KFC1O12 | 22 AWG Non-Insulated Core End Terminal EN0510 | EN0510 | 10.00 | 1.85 | 1.30 | 1.00 | OPT AN-04WF | 2000 | |
0.5mm² | KFC1O13 | 22 AWG Non-Insulated Core End Terminal EN0512 | EN0512 | 12.00 | 1.85 | 1.30 | 1.00 | OPT AN-04WF | 2000 | |
0.75mm² | KFC1O20 | 20 AWG Non-Insulated Core End Terminal EN7506 | EN7506 | 6.00 | 2.05 | 1.50 | 1.20 | OPT AN-04WF | 2000 | |
0.75mm² | KFC1O21 | 20 AWG Non-Insulated Core End Terminal EN7508 | EN7508 | 8.00 | 2.05 | 1.50 | 1.20 | OPT AN-04WF | 2000 | |
0.75mm² | KFC1O22 | 20 AWG Non-Insulated Core End Terminal EN7510 | EN7510 | 10.00 | 2.05 | 1.50 | 1.20 | OPT AN-04WF | 2000 | |
0.75mm² | KFC1O23 | 20 AWG Non-Insulated Core End Terminal EN7512 | EN7512 | 12.00 | 2.05 | 1.50 | 1.20 | OPT AN-04WF | 2000 | |
1.0mm² | KFC1O30 | 18 AWG Non-Insulated Core End Terminal EN1006 | EN1006 | 6.00 | 2.35 | 1.70 | 1.40 | OPT AN-04WF | 2000 | |
1.0mm² | KFC1O31 | 18 AWG Non-Insulated Core End Terminal EN1008 | EN1008 | 8.00 | 2.35 | 1.70 | 1.40 | OPT AN-04WF | 2000 | |
1.0mm² | KFC1O32 | 18 AWG Non-Insulated Core End Terminal EN1010 | EN1010 | 10.00 | 2.35 | 1.70 | 1.40 | OPT AN-04WF | 2000 | |
1.0mm² | KFC1O33 | 18 AWG Non-Insulated Core End Terminal EN1012 | EN1012 | 12.00 | 2.35 | 1.70 | 1.40 | OPT AN-04WF | 2000 | |
1.5mm² | KFC1O40 | 16 AWG Non-Insulated Core End Terminal EN1508 | EN1508 | 8.00 | 2.65 | 2.00 | 1.70 | OPT AN-04WF | 2000 | |
1.5mm² | KFC1O41 | 16 AWG Non-Insulated Core End Terminal EN1510 | EN1510 | 10.00 | 2.65 | 2.00 | 1.70 | OPT AN-04WF | 2000 | |
1.5mm² | KFC1O42 | 16 AWG Non-Insulated Core End Terminal EN1512 | EN1512 | 12.00 | 2.65 | 2.00 | 1.70 | OPT AN-04WF | 2000 | |
1.5mm² | KFC1O43 | 16 AWG Non-Insulated Core End Terminal EN1518 | EN1518 | 18.00 | 2.65 | 2.00 | 1.70 | OPT AN-04WF | 2000 | |
2.5mm² | KFC1O50 | 14 AWG Non-Insulated Core End Terminal EN2508 | EN2508 | 8.00 | 3.35 | 2.60 | 2.30 | OPT AN-04WF | 2000 | |
2.5mm² | KFC1O51 | 14 AWG Non-Insulated Core End Terminal EN2510 | EN2510 | 10.00 | 3.35 | 2.60 | 2.30 | OPT AN-04WF | 2000 | |
2.5mm² | KFC1O52 | 14 AWG Non-Insulated Core End Terminal EN2512 | EN2512 | 12.00 | 3.35 | 2.60 | 2.30 | OPT AN-04WF | 2000 | |
2.5mm² | KFC1O53 | 14 AWG Non-Insulated Core End Terminal EN2518 | EN2518 | 18.00 | 3.35 | 2.60 | 2.30 | OPT AN-04WF | 1000 | |
4.0mm² | KFC1O60 | 12 AWG Non-Insulated Core End Terminal EN4009 | EN4009 | 9.00 | 4.10 | 3.15 | 2.80 | OPT AN-10WF | 1000 | |
4.0mm² | KFC1O61 | 12 AWG Non-Insulated Core End Terminal EN4012 | EN4012 | 12.00 | 4.10 | 3.15 | 2.80 | OPT AN-10WF | 1000 | |
4.0mm² | KFC1O62 | 12 AWG Non-Insulated Core End Terminal EN4018 | EN4018 | 18.00 | 4.10 | 3.15 | 2.80 | OPT AN-10WF | 1000 | |
6.0mm² | KFC1O70 | 10 AWG Non-Insulated Core End Terminal EN6010 | EN6010 | 10.00 | 4.75 | 3.85 | 3.50 | OPT AN-10WF | 1000 | |
6.0mm² | KFC1O71 | 10 AWG Non-Insulated Core End Terminal EN6012 | EN6012 | 12.00 | 4.75 | 3.85 | 3.50 | OPT AN-10WF | 1000 | |
6.0mm² | KFC1O72 | 10 AWG Non-Insulated Core End Terminal EN6018 | EN6018 | 18.00 | 4.75 | 3.85 | 3.50 | OPT AN-10WF | 1000 | |
10.0mm² | KFC1O80 | 8 AWG Non-Insulated Core End Terminal EN10-12 | EN10-12 | 12.00 | 6.00 | 5.05 | 4.70 | OPT AN-16WF | 1000 | |
10.0mm² | KFC1O81 | 8 AWG Non-Insulated Core End Terminal EN10-18 | EN10-18 | 18.00 | 6.00 | 5.05 | 4.70 | OPT AN-16WF | 1000 | |
16.0mm² | KFC1O90 | 6 AWG Non-Insulated Core End Terminal EN16-12 | EN16-12 | 12.00 | 7.30 | 6.15 | 5.80 | OPT AN-16WF | 1000 | |
16.0mm² | KFC1O91 | 6 AWG Non-Insulated Core End Terminal EN16-18 | EN16-18 | 18.00 | 7.30 | 6.15 | 5.80 | OPT AN-16WF | 1000 | |
25.0mm | KFC1OA0 | 4 AWG Non-Insulated Core End Terminal EN25-16 | EN25-16 | 16.00 | 9.10 | 7.75 | 7.40 | OPT AN-50WF | 500 | |
25.0mm | KFC1OA1 | 4 AWG Non-Insulated Core End Terminal EN25-22 | EN25-22 | 22.00 | 9.10 | 7.75 | 7.40 | OPT AN-50WF | 500 | |
35.0mm² | KFC1OB0 | 2 AWG Non-Insulated Core End Terminal EN35-16 | EN35-16 | 16.00 | 10.10 | 8.70 | 8.35 | OPT AN-50WF | 500 | |
35.0mm² | KFC1OB1 | 2 AWG Non-Insulated Core End Terminal EN35-25 | EN35-25 | 25.00 | 10.10 | 8.70 | 8.35 | OPT AN-50WF | 500 | |
50.0mm² | KFC1OC0 | 1/10 AWG Non-Insulated Core End Terminal EN50-20 | EN50-20 | 20.00 | 12.80 | 10.90 | 10.55 | OPT AN-50WF | 200 | |
50.0mm² | KFC1OC1 | 1/10 AWG Non-Insulated Core End Terminal EN50-25 | EN50-25 | 25.00 | 12.80 | 10.90 | 10.55 | OPT AN-50WF | 200 |
