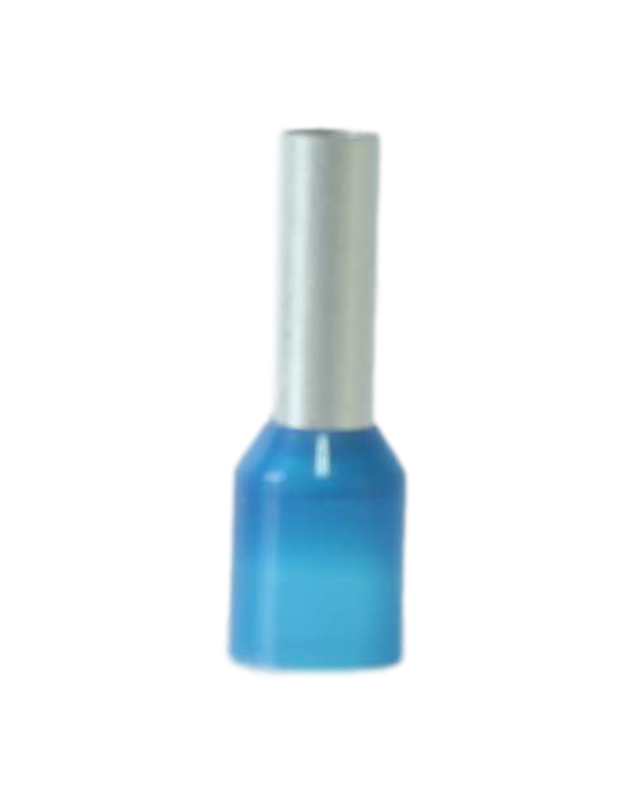

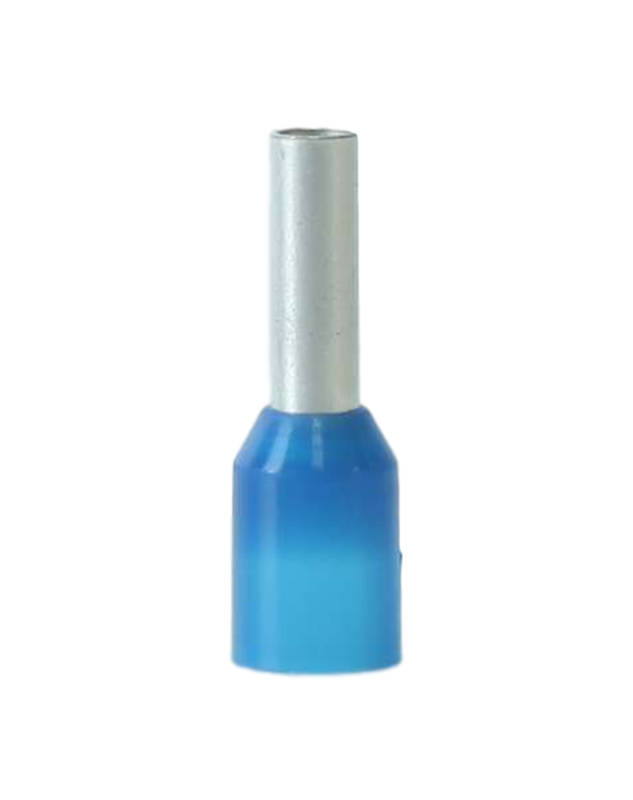

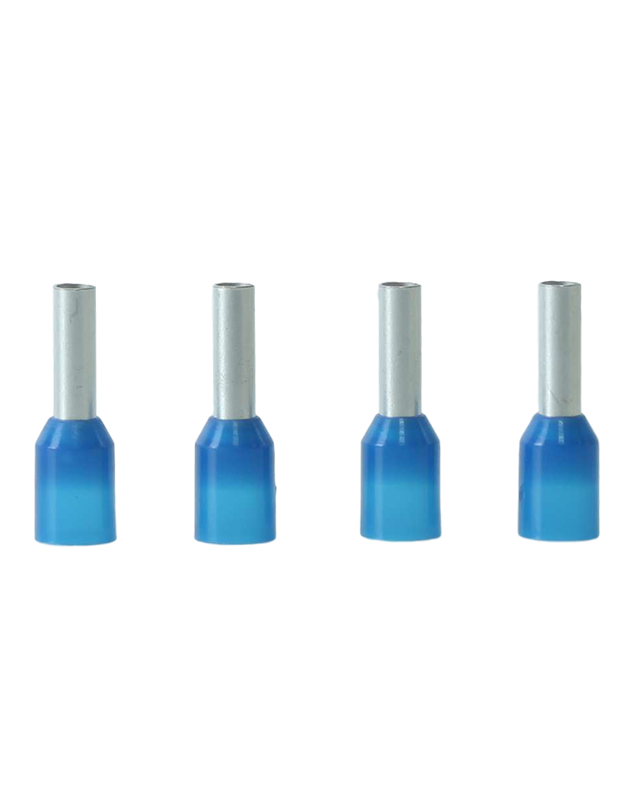

PP-Insulated Cord End Terminalss

PP-Insulated Cord End Terminalss

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper,PP

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 1,711

Product Details

Spec (American AWG)

 5 75 10 15 25 40 60 10- 16- 25- 35- 50- 70- 95-

Spec (JIS AWG)



Spec (DIN AWG)



Spec (GB mm2)



Max Current

 9 12 17 18 30 35 50 70 95 125 170 230 265 310
Operating Voltage 600V
Temperature Withstand 105℃

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA F L W D C
A.W.G. 22 KFC1V10 22 AWG PP-Insulated Cord End Terminals E0506 E0506   0.236 0.472 0.106 0.051 0.039 (1)Orange (2)White OPT AN-04WF 2000
A.W.G. 22 KFC1V11 22 AWG PP-Insulated Cord End Terminals E0508 E0508   0.315 0.551 0.106 0.051 0.039 (1)Orange (2)White OPT AN-04WF 2000
A.W.G. 22 KFC1V12 22 AWG PP-Insulated Cord End Terminals E0510 E0510   0.394 0.630 0.106 0.051 0.039 (1)Orange) (2)White OPT AN-04WF 2000
A.W.G. 22 KFC1V13 22 AWG PP-Insulated Cord End Terminals E0512 E0512   0.472 0.709 0.106 0.051 0.039 (1)Orange (2)White OPT AN-04WF 2000
A.W.G. 20 KFC1V20 20 AWG PP-Insulated Cord End Terminals E7506 E7506   0.236 0.472 0.110 0.059 0.047 (1)White (2)Blue OPT AN-04WF 2000
A.W.G. 20 KFC1V21 20 AWG PP-Insulated Cord End Terminals E7508 E7508   0.315 0.551 0.110 0.059 0.047 (1)White (2)Blue OPT AN-04WF 2000
A.W.G. 20 KFC1V22 20 AWG PP-Insulated Cord End Terminals E7510 E7510   0.394 0.630 0.110 0.059 0.047 (1)White (2)Blue OPT AN-04WF 2000
A.W.G. 20 KFC1V23 20 AWG PP-Insulated Cord End Terminals E7512 E7512   0.472 0.709 0.110 0.059 0.047 (1)White (2)Blue OPT AN-04WF 2000
A.W.G. 18 KFC1V30 18 AWG PP-Insulated Cord End Terminals E1006 E1006   0.236 0.492 0.114 0.067 0.055 (1)Yellow (2)Red OPT AN-04WF 2000
A.W.G. 18 KFC1V31 18 AWG PP-Insulated Cord End Terminals E1008 E1008   0.315 0.571 0.114 0.067 0.055 (1)Yellow (2)Red OPT AN-04WF 2000
A.W.G. 18 KFC1V32 18 AWG PP-Insulated Cord End Terminals E1010 E1010   0.394 0.650 0.114 0.067 0.055 (1)Yellow (2)Red OPT AN-04WF 2000
A.W.G. 18 KFC1V33 18 AWG PP-Insulated Cord End Terminals E1012 E1012   0.472 0.728 0.114 0.067 0.055 (1)Yellow (2)Red OPT AN-04WF 2000
A.W.G. 16 KFC1V40 16 AWG PP-Insulated Cord End Terminals E1508 E1508   0.315 0.571 0.138 0.079 0.067 (1)Red (2)Black OPT AN-04WF 2000
A.W.G. 16 KFC1V41 16 AWG PP-Insulated Cord End Terminals E1510 E1510   0.394 0.650 0.138 0.079 0.067 (1)Red (2)Black OPT AN-04WF 2000
A.W.G. 16 KFC1V42 16 AWG PP-Insulated Cord End Terminals E1512 E1512   0.472 0.728 0.138 0.079 0.067 (1)Red (2)Black OPT AN-04WF 2000
A.W.G. 16 KFC1V43 16 AWG PP-Insulated Cord End Terminals E1518 E1518   0.709 0.965 0.138 0.079 0.067 (1)Red (2)Black OPT AN-04WF 2000
A.W.G. 14 KFC1V50 14 AWG PP-Insulated Cord End Terminals E2508 E2508   0.315 0.610 0.161 0.102 0.091 (1)Blue (2)Gray OPT AN-04WF 2000
A.W.G. 14 KFC1V51 14 AWG PP-Insulated Cord End Terminals E2510 E2510   0.394 0.689 0.161 0.102 0.091 (1)Blue (2)Gray OPT AN-04WF 2000
A.W.G. 14 KFC1V52 14 AWG PP-Insulated Cord End Terminals E2512 E2512   0.472 0.768 0.161 0.102 0.091 (1)Blue (2)Gray OPT AN-04WF 2000
A.W.G. 14 KFC1V53 14 AWG PP-Insulated Cord End Terminals E2518 E2518   0.709 1.004 0.161 0.102 0.091 (1)Blue (2)Gray OPT AN-04WF 1000
A.W.G. 12 KFC1V60 12 AWG PP-Insulated Cord End Terminals E4009 E4009   0.354 0.650 0.177 0.124 0.110 (1)Gray (2)Orange OPT AN-10WF 1000
A.W.G. 12 KFC1V61 12 AWG PP-Insulated Cord End Terminals E4012 E4012   0.472 0.768 0.177 0.124 0.110 (1)Gray (2)Orange OPT AN-10WF 1000
A.W.G. 12 KFC1V62 12 AWG PP-Insulated Cord End Terminals E4018 E4018   0.709 1.004 0.177 0.124 0.110 (1)Gray (2)Orange OPT AN-10WF 1000
A.W.G. 10 KFC1V70 10 AWG PP-Insulated Cord End Terminals E6010 E6010   0.394 0.709 0.252 0.152 0.138 (1)Black (2)Green OPT AN-10WF 1000
A.W.G. 10 KFC1V71 10 AWG PP-Insulated Cord End Terminals E6012 E6012   0.472 0.787 0.252 0.152 0.138 (1)Black  (2)Green OPT AN-10WF 1000
A.W.G. 10 KFC1V72 10 AWG PP-Insulated Cord End Terminals E6018 E6018   0.709 1.024 0.252 0.152 0.138 (1)Black  (2)Green OPT AN-10WF 1000
A.W.G. 8 KFC1V80 8 AWG PP-Insulated Cord End Terminals E10-12 E10-12   0.472 0.886 0.303 0.199 0.185 (1)Milk  (2)Brown OPT AN-16WF 1000
A.W.G. 8 KFC1V81 8 AWG PP-Insulated Cord End Terminals E10-18 E10-18   0.709 1.122 0.303 0.199 0.185 (1)Milk  (2)Brown OPT AN-16WF 1000
A.W.G. 6 KFC1V90 6 AWG PP-Insulated Cord End Terminals E16-12 E16-12   0.472 0.925 0.350 0.242 0.228 (1)Green   (2)Milk OPT AN-16WF 1000
A.W.G. 6 KFC1V91 6 AWG PP-Insulated Cord End Terminals E16-18 E16-18   0.709 1.161 0.350 0.242 0.228 (1)Green   (2)Milk OPT AN-16WF 1000
A.W.G. 4 KFC1VA0 4 AWG PP-Insulated Cord End Terminals E25-16 E25-16   0.630 1.122 0.429 0.305 0.291 (1)Brown  (2)Black OPT SU-50WF 500
A.W.G. 4 KFC1VA1 4 AWG PP-Insulated Cord End Terminals E25-22 E25-22   0.866 1.358 0.429 0.305 0.291 (1)Brown  (2)Black OPT SU-50WF 500
A.W.G. 2 KFC1VB0 2 AWG PP-Insulated Cord End Terminals E35-16 E35-16   0.630 1.201 0.480 0.343 0.329 Gray OPT SU-50WF 500
A.W.G. 2 KFC1VB1 2 AWG PP-Insulated Cord End Terminals E35-25 E35-25   0.984 1.555 0.480 0.343 0.329 Gray OPT SU-50WF 500
A.W.G. 1/0 KFC1VC0 1/0 AWG PP-Insulated Cord End Terminals E50-20 E50-20   0.787 1.476 0.579 0.429 0.415 Olive OPT SU-50WF 200
A.W.G. 1/0 KFC1VC1 1/0 AWG PP-Insulated Cord End Terminals E50-25 E50-25   0.984 1.673 0.579 0.429 0.415 Olive OPT SU-50WF 200
A.W.G. 2/0 KFC1VD0 2/0 AWG PP-Insulated Cord End Terminals E70-20 E70-20   0.787 1.437 0.638 0.567 0.537 Yellow OPT SU-95WF 200
A.W.G. 2/0 KFC1VD1 2/0 AWG PP-Insulated Cord End Terminals E70-25 E70-25   0.984 1.634 0.638 0.567 0.537 Yellow OPT SU-95WF 200
A.W.G. 3/0 KFC1VE0 3/0 AWG PP-Insulated Cord End Terminals E95-20 E95-20   0.787 1.713 0.732 0.614 0.583 Red OPT SU-95WF 200
A.W.G. 3/0 KFC1VE1 3/0 AWG PP-Insulated Cord End Terminals E95-25 E95-25   0.984 1.909 0.732 0.614 0.583 Red OPT SU-95WF 200
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric F L W D C
 0.5mm² KFC1V10 22 AWG PP-Insulated Cord End Terminals E0506 E0506   6.0  12.0  2.7  1.3  1.00  (1)Orange (2)White OPT AN-04WF 2000
 0.5mm² KFC1V11 22 AWG PP-Insulated Cord End Terminals E0508 E0508   8.0  14.0  2.7  1.3  1.00  (1)Orange (2)White OPT AN-04WF 2000
 0.5mm² KFC1V12 22 AWG PP-Insulated Cord End Terminals E0510 E0510   10.0  16.0  2.7  1.3  1.00  (1)Orange (2)White OPT AN-04WF 2000
 0.5mm² KFC1V13 22 AWG PP-Insulated Cord End Terminals E0512 E0512   12.0  18.0  2.7  1.3  1.00  (1)Orange (2)White OPT AN-04WF 2000
0.75mm² KFC1V20 20 AWG PP-Insulated Cord End Terminals E7506 E7506   6.0  12.0  2.8  1.5  1.20  (1)White (2)Blue OPT AN-04WF 2000
0.75mm² KFC1V21 20 AWG PP-Insulated Cord End Terminals E7508 E7508   8.0  14.0  2.8  1.5  1.20  (1)White (2)Blue OPT AN-04WF 2000
0.75mm² KFC1V22 20 AWG PP-Insulated Cord End Terminals E7510 E7510   10.0  16.0  2.8  1.5  1.20  (1)White (2)Blue OPT AN-04WF 2000
0.75mm² KFC1V23 20 AWG PP-Insulated Cord End Terminals E7512 E7512   12.0  18.0  2.8  1.5  1.20  (1)White (2)Blue OPT AN-04WF 2000
 1.0mm² KFC1V30 18 AWG PP-Insulated Cord End Terminals E1006 E1006   6.0  12.5  2.9  1.7  1.40  (1)Yellow (2)Red OPT AN-04WF 2000
 1.0mm² KFC1V31 18 AWG PP-Insulated Cord End Terminals E1008 E1008   8.0  14.5  2.9  1.7  1.40  (1)Yellow (2)Red OPT AN-04WF 2000
 1.0mm² KFC1V32 18 AWG PP-Insulated Cord End Terminals E1010 E1010   10.0  16.5  2.9  1.7  1.40  (1)Yellow (2)Red OPT AN-04WF 2000
 1.0mm² KFC1V33 18 AWG PP-Insulated Cord End Terminals E1012 E1012   12.0  18.5  2.9  1.7  1.40  (1)Yellow (2)Red OPT AN-04WF 2000
 1.5mm² KFC1V40 16 AWG PP-Insulated Cord End Terminals E1508 E1508   8.0  14.5  3.5  2.0  1.70  (1)Red (2)Black OPT AN-04WF 2000
 1.5mm² KFC1V41 16 AWG PP-Insulated Cord End Terminals E1510 E1510   10.0  16.5  3.5  2.0  1.70  (1)Red (2)Black OPT AN-04WF 2000
 1.5mm² KFC1V42 16 AWG PP-Insulated Cord End Terminals E1512 E1512   12.0  18.5  3.5  2.0  1.70  (1)Red (2)Black OPT AN-04WF 2000
 1.5mm² KFC1V43 16 AWG PP-Insulated Cord End Terminals E1518 E1518   18.0  24.5  3.5  2.0  1.70  (1)Red (2)Black OPT AN-04WF 2000
2.5mm² KFC1V50 14 AWG PP-Insulated Cord End Terminals E2508 E2508   8.0  15.5  4.1  2.6  2.30  (1)Blue (2)Gray OPT AN-04WF 2000
2.5mm² KFC1V51 14 AWG PP-Insulated Cord End Terminals E2510 E2510   10.0  17.5  4.1  2.6  2.30  (1)Blue (2)Gray OPT AN-04WF 2000
2.5mm² KFC1V52 14 AWG PP-Insulated Cord End Terminals E2512 E2512   12.0  19.5  4.1  2.6  2.30  (1)Blue (2)Gray OPT AN-04WF 2000
2.5mm² KFC1V53 14 AWG PP-Insulated Cord End Terminals E2518 E2518   18.0  25.5  4.1  2.6  2.30  (1)Blue (2)Gray OPT AN-04WF 1000
4.0mm² KFC1V60 12 AWG PP-Insulated Cord End Terminals E4009 E4009   9.0  16.5  4.5  3.2  2.80  (1)Gray (2)Orange OPT AN-10WF 1000
4.0mm² KFC1V61 12 AWG PP-Insulated Cord End Terminals E4012 E4012   12.0  19.5  4.5  3.2  2.80  (1)Gray (2)Orange) OPT AN-10WF 1000
4.0mm² KFC1V62 12 AWG PP-Insulated Cord End Terminals E4018 E4018   18.0  25.5  4.5  3.2  2.80  (1)Gray (2)Orange OPT AN-10WF 1000
6.0mm² KFC1V70 10 AWG PP-Insulated Cord End Terminals E6010 E6010   10.0  18.0  6.4  3.9  3.50  (1)Black (2)Green OPT AN-10WF 1000
6.0mm² KFC1V71 10 AWG PP-Insulated Cord End Terminals E6012 E6012   12.0  20.0  6.4  3.9  3.50  (1)Black (2)Green OPT AN-10WF 1000
6.0mm² KFC1V72 10 AWG PP-Insulated Cord End Terminals E6018 E6018   18.0  26.0  6.4  3.9  3.50  (1)Black (2)Green OPT AN-10WF 1000
10.0mm² KFC1V80 8 AWG PP-Insulated Cord End Terminals E10-12 E10-12   12.0  22.5  7.7  5.1  4.70  (1)Milk (2)Brown OPT AN-16WF 1000
10.0mm² KFC1V81 8 AWG PP-Insulated Cord End Terminals E10-18 E10-18   18.0  28.5  7.7  5.1  4.70  (1)Milk (2)Brown OPT AN-16WF 1000
16.0mm² KFC1V90 6 AWG PP-Insulated Cord End Terminals E16-12 E16-12   12.0  23.5  8.9  6.2  5.80  (1)Green (2)Milk OPT AN-16WF 1000
16.0mm² KFC1V91 6 AWG PP-Insulated Cord End Terminals E16-18 E16-18   18.0  29.5  8.9  6.2  5.80  (1)Green (2)Milk OPT AN-16WF 1000
25.0mm KFC1VA0 4 AWG PP-Insulated Cord End Terminals E25-16 E25-16   16.0  28.5  10.9  7.8  7.40  (1)Brown (2)Black OPT SU-50WF 500
25.0mm KFC1VA1 4 AWG PP-Insulated Cord End Terminals E25-22 E25-22   22.0  34.5  10.9  7.8  7.40  (1)Brown (2)Black OPT SU-50WF 500
 35.0mm² KFC1VB0 2 AWG PP-Insulated Cord End Terminals E35-16 E35-16   16.0  30.5  12.2  8.7  8.35  Gray OPT SU-50WF 500
 35.0mm² KFC1VB1 2 AWG PP-Insulated Cord End Terminals E35-25 E35-25   25.0  39.5  12.2  8.7  8.35  Gray OPT SU-50WF 500
50.0mm² KFC1VC0 1/0 AWG PP-Insulated Cord End Terminals E50-20 E50-20   20.0  37.5  14.7  10.9  10.55  Olive OPT SU-50WF 200
50.0mm² KFC1VC1 1/0 AWG PP-Insulated Cord End Terminals E50-25 E50-25   25.0  42.5  14.7  10.9  10.55  Olive OPT SU-50WF 200
70.0mm² KFC1VD0 2/0 AWG PP-Insulated Cord End Terminals E70-20 E70-20   20.0  36.5  16.2  14.4  13.65  Yellow OPT SU-95WF 200
70.0mm² KFC1VD1 2/0 AWG PP-Insulated Cord End Terminals E70-25 E70-25   25.0  41.5  16.2  14.4  13.65  Yellow OPT SU-95WF 200
 95.0mm² KFC1VE0 3/0 AWG PP-Insulated Cord End Terminals E95-20 E95-20   20.0  43.5  18.6  15.6  14.80  Red OPT SU-95WF 200
95.0mm² KFC1VE1 3/0 AWG PP-Insulated Cord End Terminals E95-25 E95-25   25.0  48.5  18.6  15.6  14.80  Red OPT SU-95WF 200
