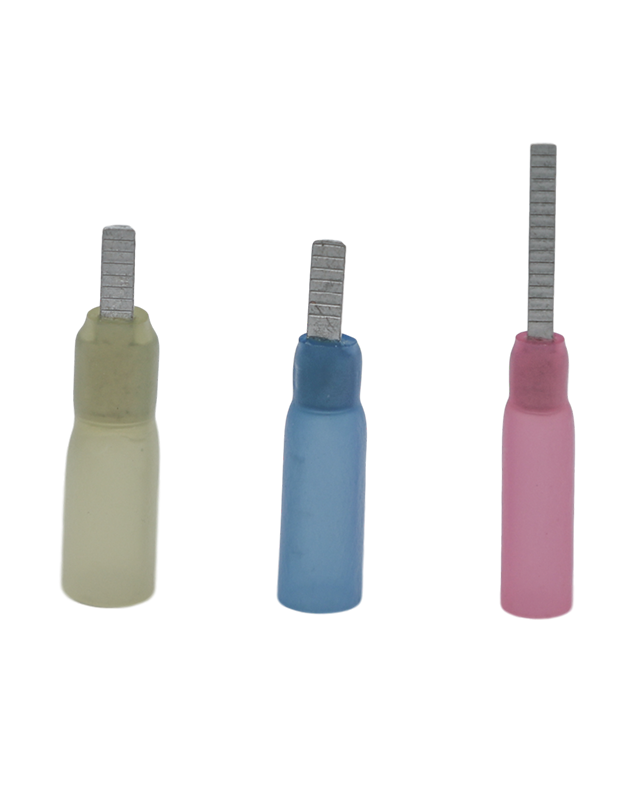

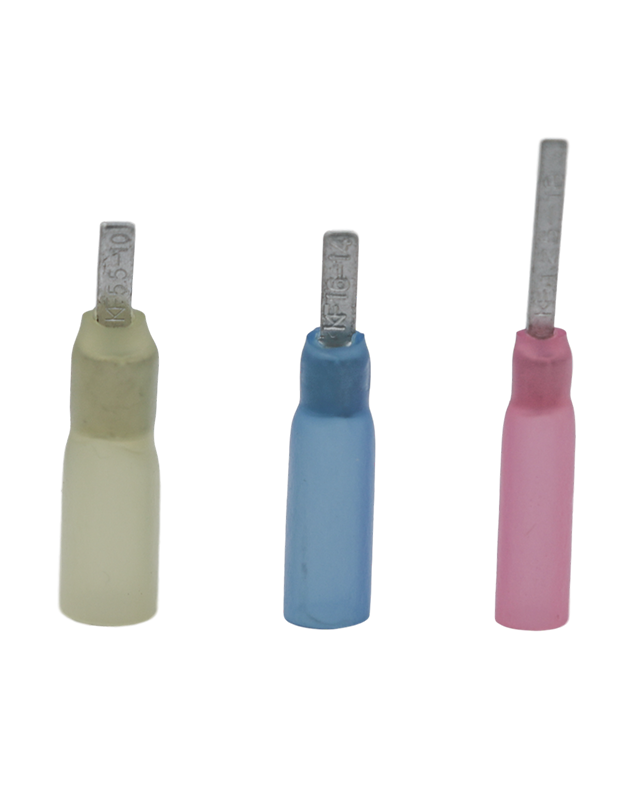

Heat Shrink-Insulated Single Crimp Blade Terminals

Heat Shrink-Insulated Single Crimp Blade Terminals

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper,PE

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 768

Product Details

Spec (American AWG)

 22-16 16-14 12-10

Spec (JIS AWG)

 1.25 2 5.5

Spec (DIN AWG)

 1 2.5 4.0-6.0

Spec (GB mm2)

 0.5-1.5 2.5 6

Max Current

  19 27 48
Operating Voltage 600V
Heat Shrinkable Temperature 150℃

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA B D L Thickness
A.W.G. 22-16 KFSH510 22-16 AWG Heat Shrink-Insulated Single Crimp Blade Terminals 1.25-10 DBH1.25-10 3/8" 0.091 0.197 1.260 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSH511 22-16 AWG Heat Shrink-Insulated Single Crimp Blade Terminals 1.25-14 DBH1.25-14 9/16" 0.087 0.197 1.417 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSH512 22-16 AWG Heat Shrink-Insulated Single Crimp Blade Terminals 1.25-18 DBH1.25-18 11/16" 0.087 0.197 1.575 0.030 Red IZUMI 3# 1000
A.W.G. 16-14 KFSH520 16-14 AWG Heat Shrink-Insulated Single Crimp Blade Terminals 2-10 DBH2-10 3/8" 0.112 0.236 1.260 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSH521 16-14 AWG Heat Shrink-Insulated Single Crimp Blade Terminals 2-14 DBH2-14 9/16" 0.094 0.236 1.417 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSH522 16-14 AWG Heat Shrink-Insulated Single Crimp Blade Terminals 2-18 DBH2-18 11/16" 0.087 0.236 1.575 0.031 Blue IZUMI 4# 1000
A.W.G. 12-10 KFSH530 12-10 AWG Heat Shrink-Insulated Single Crimp Blade Terminals 5.5-10 DBH5.5-10 3/8" 0.110 0.256 1.299 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSH531 12-10 AWG Heat Shrink-Insulated Single Crimp Blade Terminals 5.5-14 DBH5.5-14 9/16" 0.177 0.256 1.457 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSH532 12-10 AWG Heat Shrink-Insulated Single Crimp Blade Terminals 5.5-18 DBH5.5-18 11/16" 0.177 0.256 1.614 0.039 Yellow IZUMI 5# 500
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric B D L Thickness
  0.5~1.5mm² KFSH510 22-16 AWG Heat Shrink-Insulated Single Crimp Blade Terminals 1.25-10 DBH1.25-10 10.0 2.3  5.0  32.0  0.75  Red IZUMI 3# 1000
  0.5~1.5mm² KFSH511 22-16 AWG Heat Shrink-Insulated Single Crimp Blade Terminals 1.25-14 DBH1.25-14 14.0 2.2  5.0  36.0  0.75  Red IZUMI 3# 1000
  0.5~1.5mm² KFSH512 22-16 AWG Heat Shrink-Insulated Single Crimp Blade Terminals 1.25-18 DBH1.25-18 18.0 2.2  5.0  40.0  0.75  Red IZUMI 3# 1000
  1.5~2.5mm² KFSH520 16-14 AWG Heat Shrink-Insulated Single Crimp Blade Terminals 2-10 DBH2-10 10.0 2.9  6.0  32.0  0.80  Blue IZUMI 4# 1000
  1.5~2.5mm² KFSH521 16-14 AWG Heat Shrink-Insulated Single Crimp Blade Terminals 2-14 DBH2-14 14.0 2.4  6.0  36.0  0.80  Blue IZUMI 4# 1000
  1.5~2.5mm² KFSH522 16-14 AWG Heat Shrink-Insulated Single Crimp Blade Terminals 2-18 DBH2-18 18.0 2.2  6.0  40.0  0.80  Blue IZUMI 4# 1000
  4.0~6.0mm² KFSH530 12-10 AWG Heat Shrink-Insulated Single Crimp Blade Terminals 5.5-10 DBH5.5-10 10.0 2.8  6.5  33.0  1.00  Yellow IZUMI 5# 1000
 4.0~6.0mm² KFSH531 12-10 AWG Heat Shrink-Insulated Single Crimp Blade Terminals 5.5-14 DBH5.5-14 14.0 4.5  6.5  37.0  1.00  Yellow IZUMI 5# 1000
  4.0~6.0mm² KFSH532 12-10 AWG Heat Shrink-Insulated Single Crimp Blade Terminals 5.5-18 DBH5.5-18 18.0 4.5  6.5  41.0  1.00  Yellow IZUMI 5# 500
