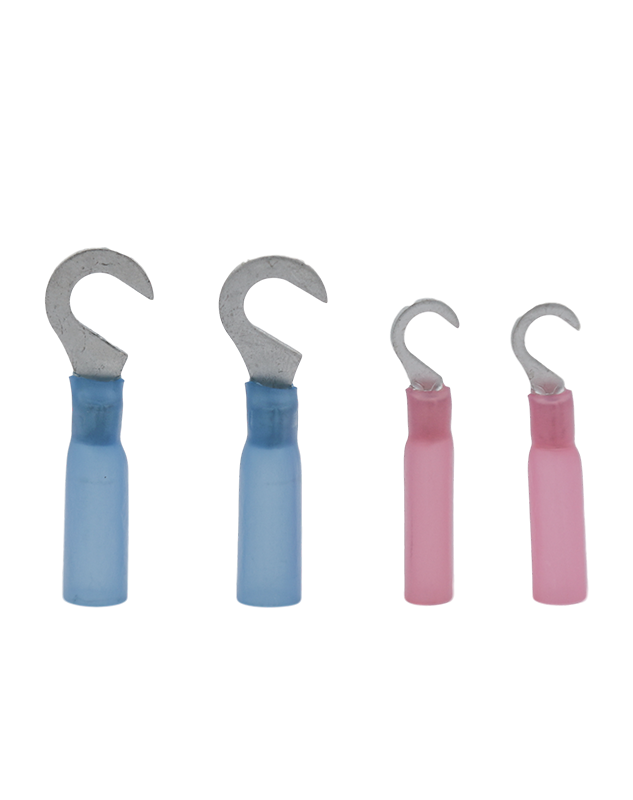

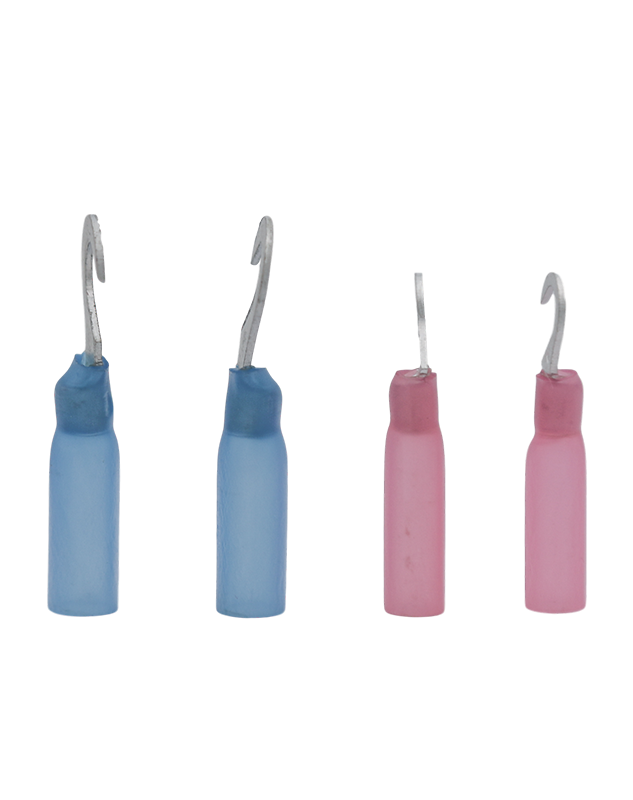

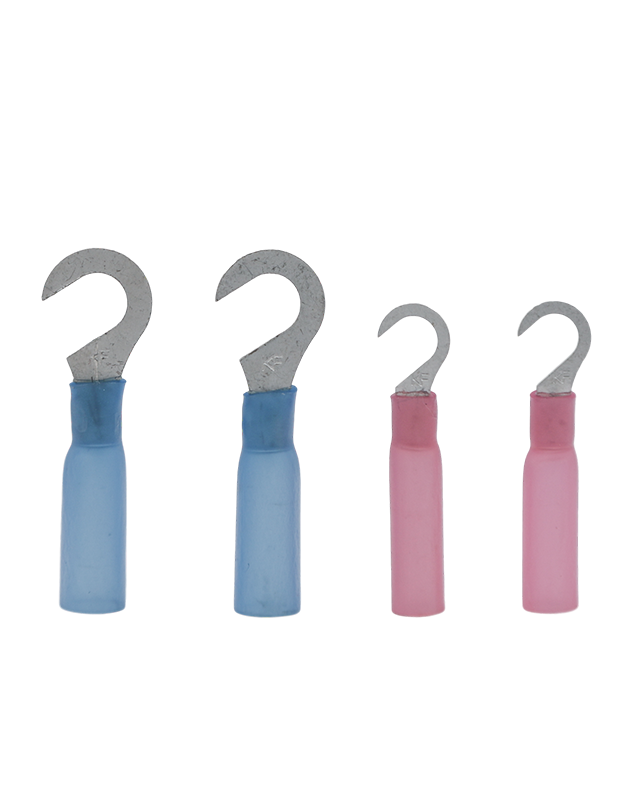

Heat Shrink-Insulated Single Crimp Hook Terminals

Heat Shrink-Insulated Single Crimp Hook Terminals

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper,PE

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 494

Product Details

Spec (American AWG)

 22-16 16-14 12-10

Spec (JIS AWG)

 1.25 2 5.5

Spec (DIN AWG)

 1 2.5 4.0-6.0

Spec (GB mm2)

 0.5-1.5 2.5 6

Max Current

  19 27 48
Operating Voltage 600V
Heat Shrinkable Temperature 150℃

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA d2 B L Thickness
A.W.G. 22-16 KFSH710 22-16 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 1.25-3.5 HH1.25-3.5 #6 0.146 0.315 1.299 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSH711 22-16 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 1.25-4 HH1.25-4 #8 0.169 0.315 1.299 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSH712 22-16 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 1.25-5 HH1.25-5 #10 0.209 0.315 1.299 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSH713 22-16 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 1.25-6 HH1.25-6 1/4" 0.252 0.453 1.535 0.030 Red IZUMI 3# 1000
A.W.G. 16-14 KFSH720 16-14 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 2-3.5 HH2-3.5 #6 0.146 0.335 1.339 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSH721 16-14 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 2-4 HH2-4 #8 0.169 0.335 1.339 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSH722 16-14 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 2-5 HH2-5 #10 0.209 0.374 1.339 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSH723 16-14 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 2-6 HH2-6 1/4" 0.252 0.472 1.535 0.031 Blue IZUMI 4# 1000
A.W.G. 12-10 KFSH730 12-10 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 5.5-3.5 HH5.5-3.5 #6 0.146 0.276 1.280 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSH731 12-10 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 5.5-4 HH5.5-4 #8 0.169 0.374 1.417 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSH732 12-10 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 5.5-5 HH5.5-5 #10 0.209 0.374 1.417 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSH733 12-10 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 5.5-6 HH5.5-6 1/4" 0.252 0.472 1.555 0.039 Yellow IZUMI 5# 500
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric d2 B L Thickness
0.5~1.5mm² KFSH710 22-16 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 1.25-3.5 HH1.25-3.5 3.5 3.70  8.0  33.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSH711 22-16 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 1.25-4 HH1.25-4 4.0 4.30  8.0  33.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSH712 22-16 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 1.25-5 HH1.25-5 5.0 5.30  8.0  33.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSH713 22-16 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 1.25-6 HH1.25-6 6.0 6.40  11.5  39.0  0.75  Red IZUMI 3# 1000
1.5~2.5mm² KFSH720 16-14 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 2-3.5 HH2-3.5 3.5 3.70  8.5  34.0  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSH721 16-14 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 2-4 HH2-4 4.0 4.30  8.5  34.0  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSH722 16-14 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 2-5 HH2-5 5.0 5.30  9.5  34.0  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSH723 16-14 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 2-6 HH2-6 6.0 6.40  12.0  39.0  0.80  Blue IZUMI 4# 1000
4.0~6.0mm² KFSH730 12-10 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 5.5-3.5 HH5.5-3.5 3.5 3.70  7.0  32.5  1.00  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSH731 12-10 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 5.5-4 HH5.5-4 4.0 4.30  9.5  36.0  1.00  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSH732 12-10 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 5.5-5 HH5.5-5 5.0 5.30  9.5  36.0  1.00  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSH733 12-10 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 5.5-6 HH5.5-6 6.0 6.40  12.0  39.5  1.00  Yellow IZUMI 5# 500







leave A Message

Want to get a sample? Please fill in the form, leave your contact information and parameter information.

*Name: *Tel: *E-mail:
Please fill in the correct and valid email address and contact information
Message:


Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA d2 B L Thickness
A.W.G. 22-16 KFSH710 22-16 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 1.25-3.5 HH1.25-3.5 #6 0.146 0.315 1.299 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSH711 22-16 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 1.25-4 HH1.25-4 #8 0.169 0.315 1.299 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSH712 22-16 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 1.25-5 HH1.25-5 #10 0.209 0.315 1.299 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSH713 22-16 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 1.25-6 HH1.25-6 1/4" 0.252 0.453 1.535 0.030 Red IZUMI 3# 1000
A.W.G. 16-14 KFSH720 16-14 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 2-3.5 HH2-3.5 #6 0.146 0.335 1.339 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSH721 16-14 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 2-4 HH2-4 #8 0.169 0.335 1.339 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSH722 16-14 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 2-5 HH2-5 #10 0.209 0.374 1.339 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSH723 16-14 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 2-6 HH2-6 1/4" 0.252 0.472 1.535 0.031 Blue IZUMI 4# 1000
A.W.G. 12-10 KFSH730 12-10 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 5.5-3.5 HH5.5-3.5 #6 0.146 0.276 1.280 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSH731 12-10 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 5.5-4 HH5.5-4 #8 0.169 0.374 1.417 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSH732 12-10 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 5.5-5 HH5.5-5 #10 0.209 0.374 1.417 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSH733 12-10 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 5.5-6 HH5.5-6 1/4" 0.252 0.472 1.555 0.039 Yellow IZUMI 5# 500
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric d2 B L Thickness
0.5~1.5mm² KFSH710 22-16 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 1.25-3.5 HH1.25-3.5 3.5 3.70  8.0  33.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSH711 22-16 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 1.25-4 HH1.25-4 4.0 4.30  8.0  33.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSH712 22-16 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 1.25-5 HH1.25-5 5.0 5.30  8.0  33.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSH713 22-16 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 1.25-6 HH1.25-6 6.0 6.40  11.5  39.0  0.75  Red IZUMI 3# 1000
1.5~2.5mm² KFSH720 16-14 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 2-3.5 HH2-3.5 3.5 3.70  8.5  34.0  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSH721 16-14 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 2-4 HH2-4 4.0 4.30  8.5  34.0  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSH722 16-14 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 2-5 HH2-5 5.0 5.30  9.5  34.0  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSH723 16-14 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 2-6 HH2-6 6.0 6.40  12.0  39.0  0.80  Blue IZUMI 4# 1000
4.0~6.0mm² KFSH730 12-10 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 5.5-3.5 HH5.5-3.5 3.5 3.70  7.0  32.5  1.00  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSH731 12-10 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 5.5-4 HH5.5-4 4.0 4.30  9.5  36.0  1.00  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSH732 12-10 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 5.5-5 HH5.5-5 5.0 5.30  9.5  36.0  1.00  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSH733 12-10 AWG Heat Shrink-Insulated Single Crimp Hook Terminals 5.5-6 HH5.5-6 6.0 6.40  12.0  39.5  1.00  Yellow IZUMI 5# 500
