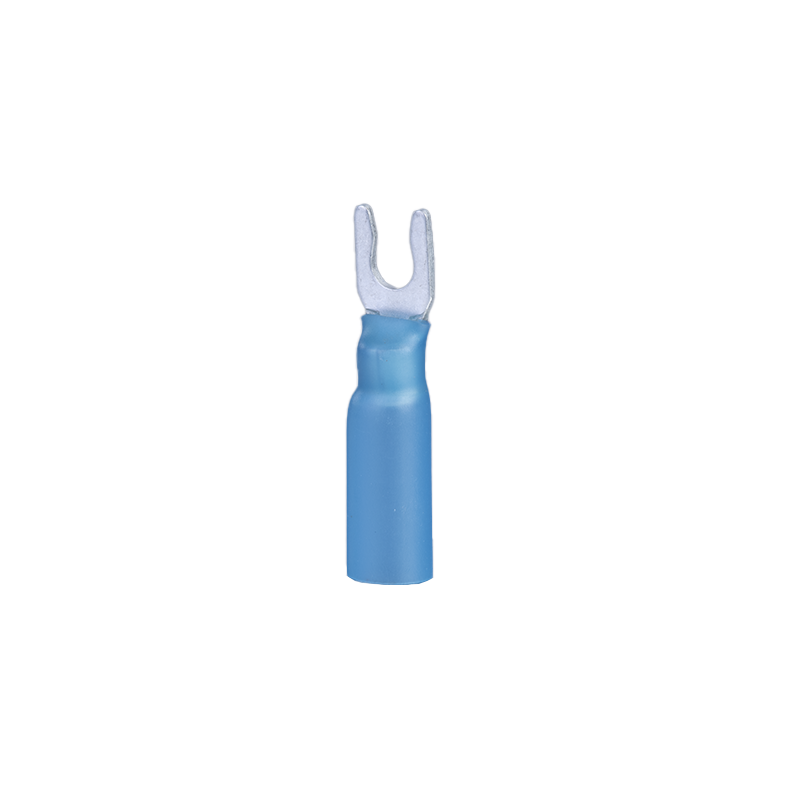

Heat Shrink-Insulated Single Crimp Locking Spade Terminals

Heat Shrink-Insulated Single Crimp Locking Spade Terminals

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper,PE

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 682

Product Details

Spec (American AWG)

 22-16 16-14 12-10

Spec (JIS AWG)

 1.25 2 5.5

Spec (DIN AWG)

 1 2.5 4.0-6.0

Spec (GB mm2)

 0.5-1.5 2.5 6

Max Current

  19 27 48
Operating Voltage 600V
Heat Shrinkable Temperature 150℃

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA d2 B L Thickness
A.W.G. 22-16 KFSH310 22-16 AWG Heat Shrink-Insulated Single Crimp Locking Spade Terminals 1.25-3.5 LSH1.25-3.5 #6 0.146 0.256 1.299 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSH311 22-16 AWG Heat Shrink-Insulated Single Crimp Locking Spade Terminals 1.25-4M LSHM1.25-4 #8 0.169 0.276 1.299 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSH312 22-16 AWG Heat Shrink-Insulated Single Crimp Locking Spade Terminals 1.25-4L LSHL1.25-4 #8 0.169 0.315 1.299 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSH313 22-16 AWG Heat Shrink-Insulated Single Crimp Locking Spade Terminals 1.25-5S LSHS1.25-5 #10 0.209 0.315 1.299 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSH314 22-16 AWG Heat Shrink-Insulated Single Crimp Locking Spade Terminals 1.25-5L LSHL1.25-5 #10 0.209 0.374 1.299 0.030 Red IZUMI 3# 1000
A.W.G. 16-14 KFSH320 16-14 AWG Heat Shrink-Insulated Single Crimp Locking Spade Terminals 2-3.5 LSH2-3.5 #6 0.146 0.236 1.299 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSH321 16-14 AWG Heat Shrink-Insulated Single Crimp Locking Spade Terminals 2-4M LSHM2-4 #8 0.169 0.276 1.299 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSH322 16-14 AWG Heat Shrink-Insulated Single Crimp Locking Spade Terminals 2-4L LSHL2-4 #8 0.169 0.315 1.299 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSH323 16-14 AWG Heat Shrink-Insulated Single Crimp Locking Spade Terminals 2-5S LSHS2-5 #10 0.209 0.315 1.299 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSH324 16-14 AWG Heat Shrink-Insulated Single Crimp Locking Spade Terminals 2-5L LSHL2-5 #10 0.209 0.374 1.299 0.031 Blue IZUMI 4# 1000
A.W.G. 12-10 KFSH330 12-10 AWG Heat Shrink-Insulated Single Crimp Locking Spade Terminals 5.5-3.5 LSH5.5-3.5 #6 0.146 0.335 1.398 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSH331 12-10 AWG Heat Shrink-Insulated Single Crimp Locking Spade Terminals 5.5-4 LSH5.5-4 #8 0.169 0.335 1.398 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSH332 12-10 AWG Heat Shrink-Insulated Single Crimp Locking Spade Terminals 5.5-5 LSH5.5-5 #10 0.209 0.354 1.398 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSH333 12-10 AWG Heat Shrink-Insulated Single Crimp Locking Spade Terminals 5.5-6 LSH5.5-6 1/4" 0.252 0.472 1.634 0.039 Yellow IZUMI 5# 1000
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric d2 B L Thickness
0.5~1.5mm² KFSH310 22-16 AWG Heat Shrink-Insulated Single Crimp Locking Spade Terminals 1.25-3.5 LSH1.25-3.5 3.5  3.7  6.5  33.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSH311 22-16 AWG Heat Shrink-Insulated Single Crimp Locking Spade Terminals 1.25-4M LSHM1.25-4 4.0  4.3  7.0  33.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSH312 22-16 AWG Heat Shrink-Insulated Single Crimp Locking Spade Terminals 1.25-4L LSHL1.25-4 4.0  4.3  8.0  33.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSH313 22-16 AWG Heat Shrink-Insulated Single Crimp Locking Spade Terminals 1.25-5S LSHS1.25-5 5.0  5.3  8.0  33.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSH314 22-16 AWG Heat Shrink-Insulated Single Crimp Locking Spade Terminals 1.25-5L LSHL1.25-5 5.0  5.3  9.5  33.0  0.75  Red IZUMI 3# 1000
1.5~2.5mm² KFSH320 16-14 AWG Heat Shrink-Insulated Single Crimp Locking Spade Terminals 2-3.5 LSH2-3.5 3.5  3.7  6.0  33.0  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSH321 16-14 AWG Heat Shrink-Insulated Single Crimp Locking Spade Terminals 2-4M LSHM2-4 4.0  4.3  7.0  33.0  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSH322 16-14 AWG Heat Shrink-Insulated Single Crimp Locking Spade Terminals 2-4L LSHL2-4 4.0  4.3  8.0  33.0  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSH323 16-14 AWG Heat Shrink-Insulated Single Crimp Locking Spade Terminals 2-5S LSHS2-5 5.0  5.3  8.0  33.0  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSH324 16-14 AWG Heat Shrink-Insulated Single Crimp Locking Spade Terminals 2-5L LSHL2-5 5.0  5.3  9.5  33.0  0.80  Blue IZUMI 4# 1000
4.0~6.0mm² KFSH330 12-10 AWG Heat Shrink-Insulated Single Crimp Locking Spade Terminals 5.5-3.5 LSH5.5-3.5 3.5  3.7  8.5  35.5  1.00  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSH331 12-10 AWG Heat Shrink-Insulated Single Crimp Locking Spade Terminals 5.5-4 LSH5.5-4 4.0  4.3  8.5  35.5  1.00  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSH332 12-10 AWG Heat Shrink-Insulated Single Crimp Locking Spade Terminals 5.5-5 LSH5.5-5 5.0  5.3  9.0  35.5  1.00  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSH333 12-10 AWG Heat Shrink-Insulated Single Crimp Locking Spade Terminals 5.5-6 LSH5.5-6 6.0  6.4  12.0  41.5  1.00  Yellow IZUMI 5# 1000
