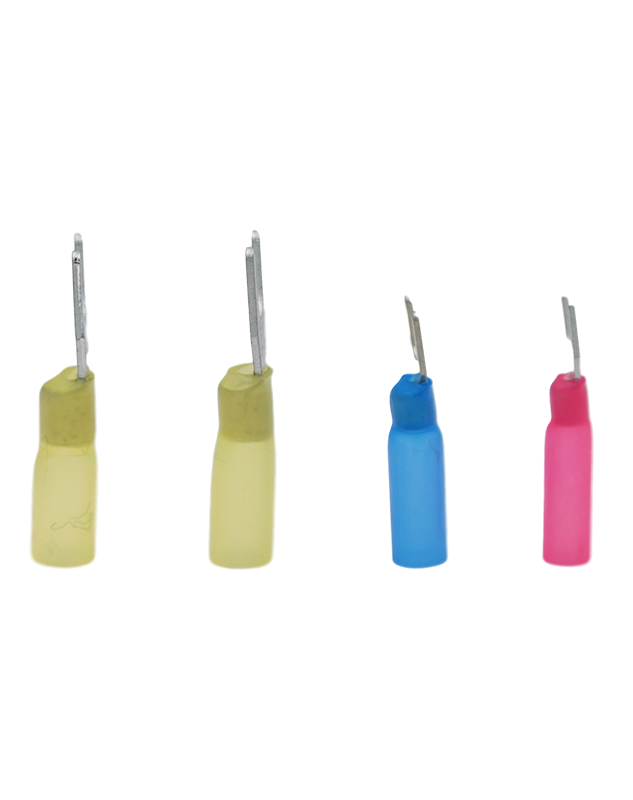

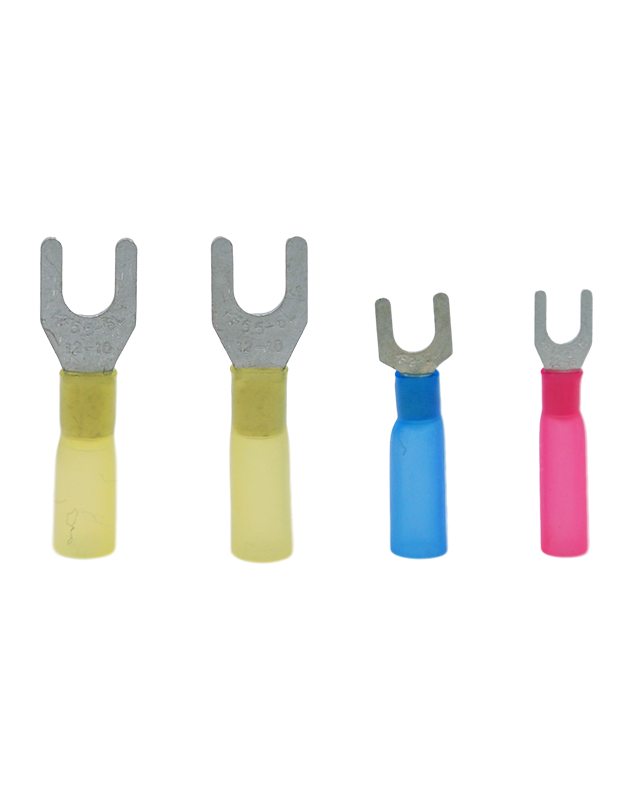

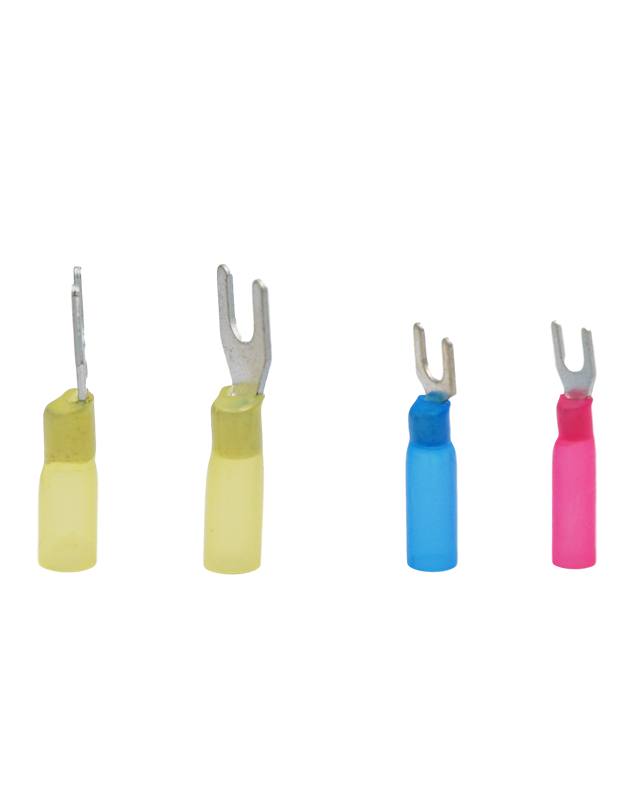

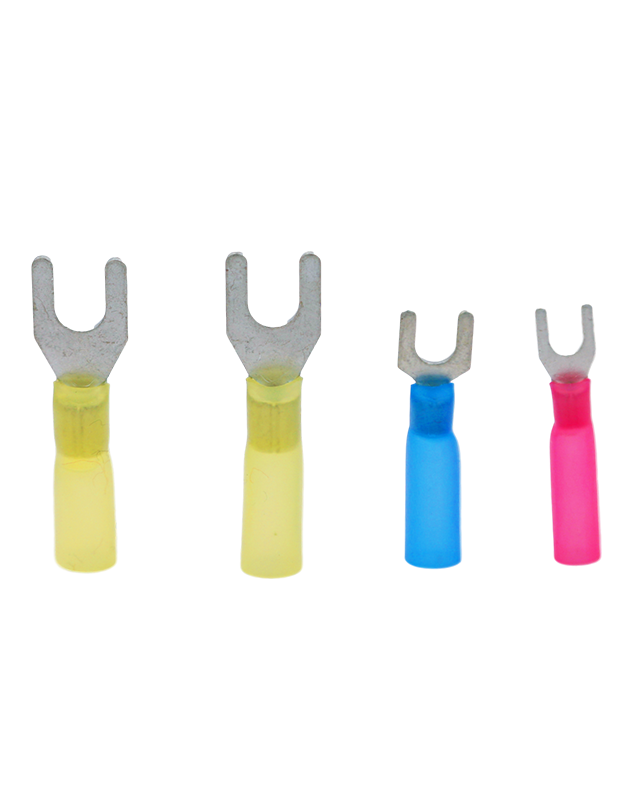

Heat Shrink-Insulated Single Crimp Spade Terminals

Heat Shrink-Insulated Single Crimp Spade Terminals

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper,PE

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 983

Product Details

Spec (American AWG)

 22-16 16-14 12-10

Spec (JIS AWG)

 1.25 2 5.5

Spec (DIN AWG)

 1 2.5 4.0-6.0

Spec (GB mm2)

 0.5-1.5 2.5 6

Max Current

  19 27 48
Operating Voltage 600V
Heat Shrinkable Temperature 150℃

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA d2 W L Thickness
A.W.G. 22-16 KFSH010 22-16 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 1.25-3 SHB1.25-3 #4 0.126 0.217 1.299 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSH011 22-16 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 1.25-3.5S SHBS1.25-3.5 #6 0.146 0.217 1.299 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSH012 22-16 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 1.25-3.5L SHBL1.25-3.5 #6 0.146 0.256 1.299 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSH013 22-16 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 1.25-4S SHBS1.25-4 #8 0.169 0.256 1.299 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSH014 22-16 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 1.25-4M SHBM1.25-4 #8 0.169 0.276 1.299 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSH015 22-16 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 1.25-4L SHBL1.25-4 #8 0.169 0.315 1.299 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSH016 22-16 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 1.25-5S SHBS1.25-5 #10 0.209 0.315 1.299 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSH017 22-16 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 1.25-5L SHBL1.25-5 #10 0.209 0.374 1.299 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSH018 22-16 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 1.25-6S SHBS1.25-6 1/4" 0.252 0.374 1.299 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSH019 22-16 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 1.25-6L SHBL1.25-6 1/4" 0.252 0.472 1.535 0.030 Red IZUMI 3# 1000
A.W.G. 16-14 KFSH020 16-14 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 2-3 SHB2-3 #4 0.126 0.217 1.299 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSH021 16-14 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 2-3.5S SHBS2-3.5 #6 0.146 0.217 1.299 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSH022 16-14 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 2-3.5L SHBL2-3.5 #6 0.146 0.276 1.299 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSH023 16-14 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 2-4S SHBS2-4 #8 0.169 0.256 1.299 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSH024 16-14 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 2-4M SHBM2-4 #8 0.169 0.276 1.299 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSH025 16-14 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 2-4L SHBL2-4 #8 0.169 0.315 1.299 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSH026 16-14 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 2-5S SHBS2-5 #10 0.209 0.315 1.299 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSH027 16-14 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 2-5L SHBL2-5 #10 0.209 0.374 1.299 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSH028 16-14 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 2-6S SHBS2-6 1/4" 0.252 0.374 1.299 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSH029 16-14 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 2-6L SHBL2-6 1/4" 0.252 0.472 1.535 0.031 Blue IZUMI 4# 1000
A.W.G. 12-10 KFSH030 12-10 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 5.5-3.5 SHB5.5-3.5 #6 0.146 0.335 1.437 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSH031 12-10 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 5.5-4S SHBS5.5-4 #8 0.169 0.335 1.437 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSH032 12-10 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 5.5-4L SHBL5.5-4 #8 0.169 0.374 1.437 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSH033 12-10 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 5.5-5 SHB5.5-5 #10 0.209 0.354 1.437 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSH034 12-10 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 5.5-6S SHBS5.5-6 1/4" 0.252 0.354 1.437 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSH035 12-10 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 5.5-6L SHBL5.5-6 1/4" 0.252 0.472 1.634 0.039 Yellow IZUMI 5# 500
A.W.G. 12-10 KFSH036 12-10 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 5.5-8 SHB5.5-8 5/16" 0.331 0.551 1.594 0.039 Yellow IZUMI 5# 500
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric d2 W L Thickness
0.5~1.5mm² KFSH010 22-16 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 1.25-3 SHB1.25-3 3.0 3.2  5.5  33.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSH011 22-16 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 1.25-3.5S SHBS1.25-3.5 3.5 3.7  5.5  33.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSH012 22-16 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 1.25-3.5L SHBL1.25-3.5 3.5 3.7  6.5  33.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSH013 22-16 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 1.25-4S SHBS1.25-4 4.0 4.3  6.5  33.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSH014 22-16 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 1.25-4M SHBM1.25-4 4.0 4.3  7.0  33.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSH015 22-16 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 1.25-4L SHBL1.25-4 4.0 4.3  8.0  33.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSH016 22-16 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 1.25-5S SHBS1.25-5 5.0 5.3  8.0  33.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSH017 22-16 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 1.25-5L SHBL1.25-5 5.0 5.3  9.5  33.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSH018 22-16 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 1.25-6S SHBS1.25-6 6.0 6.4  9.5  33.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSH019 22-16 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 1.25-6L SHBL1.25-6 6.0 6.4  12.0  39.0  0.75  Red IZUMI 3# 1000
1.5~2.5mm² KFSH020 16-14 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 2-3 SHB2-3 3.0 3.2  5.5  33.0  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSH021 16-14 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 2-3.5S SHBS2-3.5 3.5 3.7  5.5  33.0  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSH022 16-14 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 2-3.5L SHBL2-3.5 3.5 3.7  7.0  33.0  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSH023 16-14 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 2-4S SHBS2-4 4.0 4.3  6.5  33.0  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSH024 16-14 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 2-4M SHBM2-4 4.0 4.3  7.0  33.0  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSH025 16-14 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 2-4L SHBL2-4 4.0 4.3  8.0  33.0  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSH026 16-14 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 2-5S SHBS2-5 5.0 5.3  8.0  33.0  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSH027 16-14 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 2-5L SHBL2-5 5.0 5.3  9.5  33.0  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSH028 16-14 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 2-6S SHBS2-6 6.0 6.4  9.5  33.0  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSH029 16-14 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 2-6L SHBL2-6 6.0 6.4  12.0  39.0  0.80  Blue IZUMI 4# 1000
4.0~6.0mm² KFSH030 12-10 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 5.5-3.5 SHB5.5-3.5 3.5 3.7  8.5  36.5  1.00  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSH031 12-10 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 5.5-4S SHBS5.5-4 4.0 4.3  8.5  36.5  1.00  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSH032 12-10 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 5.5-4L SHBL5.5-4 4.0 4.3  9.5  36.5  1.00  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSH033 12-10 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 5.5-5 SHB5.5-5 5.0 5.3  9.0  36.5  1.00  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSH034 12-10 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 5.5-6S SHBS5.5-6 6.0 6.4  9.0  36.5  1.00  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSH035 12-10 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 5.5-6L SHBL5.5-6 6.0 6.4  12.0  41.5  1.00  Yellow IZUMI 5# 500
4.0~6.0mm² KFSH036 12-10 AWG Heat Shrink-Insulated Single Crimp Spade Terminals 5.5-8 SHB5.5-8 8.0 8.4  14.0  40.5  1.00  Yellow IZUMI 5# 500
