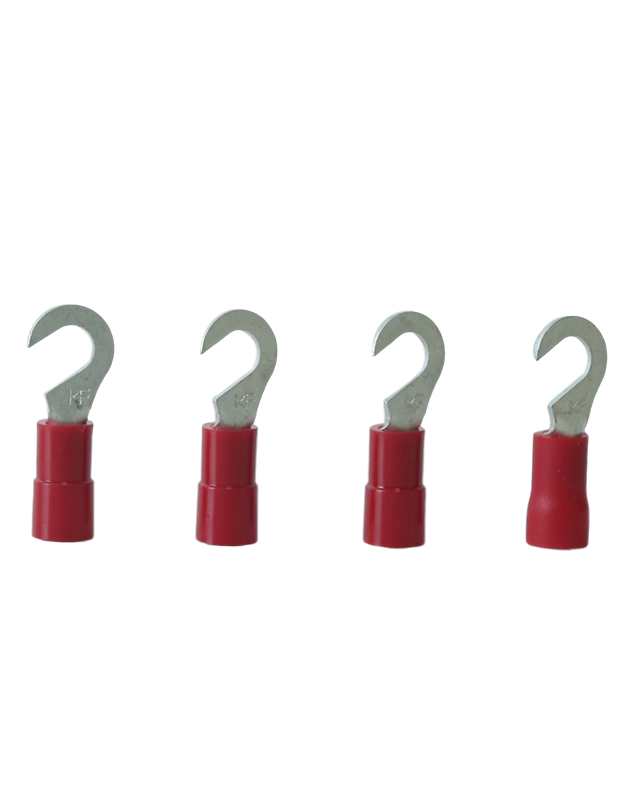

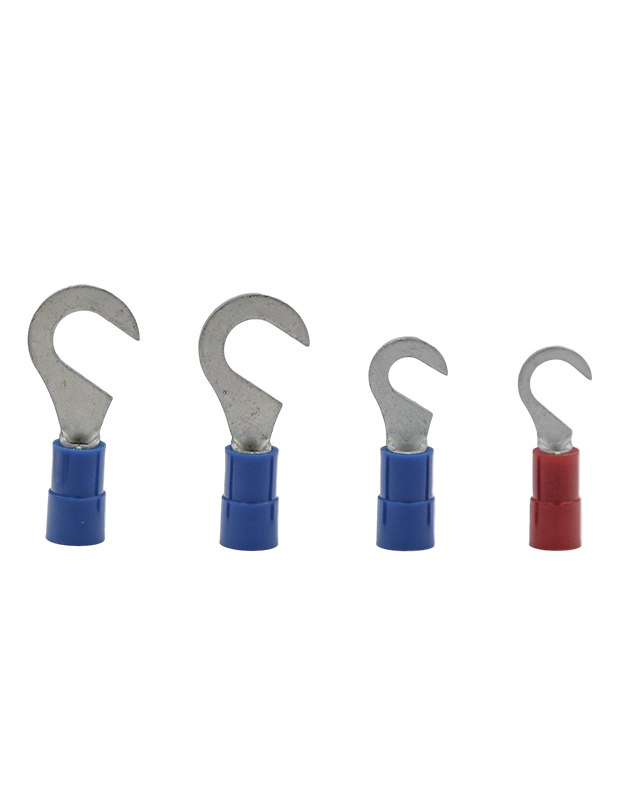

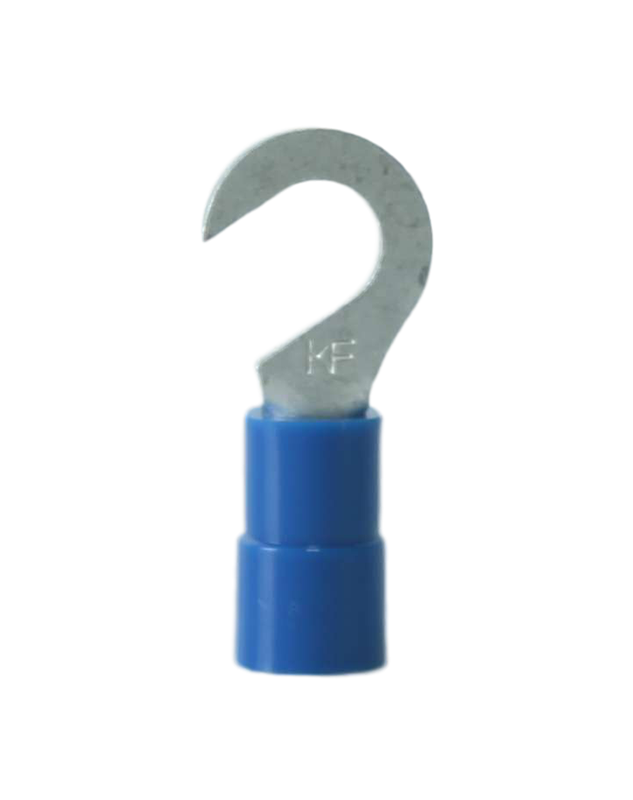

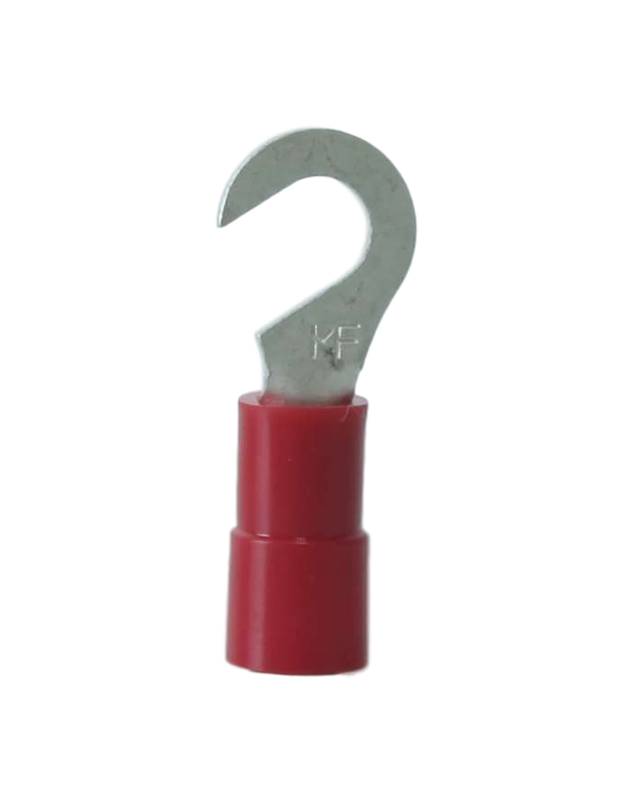

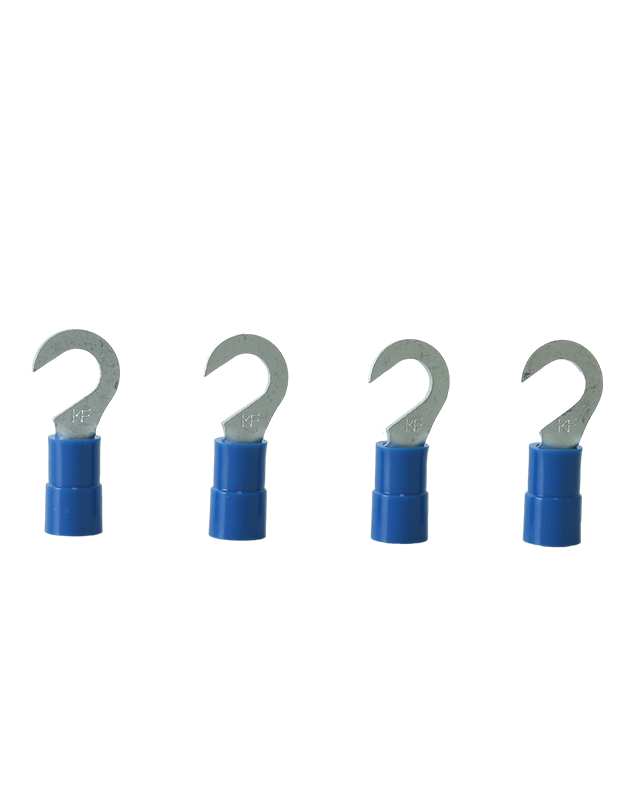

Nylon-Insulated Single Crimp Hook Terminals

Nylon-Insulated Single Crimp Hook Terminals

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper,Nylon

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 577

Product Details

Spec (American AWG)

 22-16 16-14 12-10

Spec (JIS AWG)

 1.25 2 5.5

Spec (DIN AWG)

 1 2.5 4.0-6.0

Spec (GB mm2)

 0.5-1.5 2.5 6

Max Current

  19 27 48
Operating Voltage 600V
Temperature Withstand 105℃

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA d2 B L F H D T
A.W.G. 22-16 KFSN710 22-16 AWG Nylon-Insulated Single Crimp Hook Terminals 1.25-3.5 HNY1.25-3.5 #6 0.146 0.315 0.846 0.276 0.413 0.157 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSN711 22-16 AWG Nylon-Insulated Single Crimp Hook Terminals 1.25-4 HNY1.25-4 #8 0.169 0.315 0.846 0.276 0.413 0.157 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSN712 22-16 AWG Nylon-Insulated Single Crimp Hook Terminals 1.25-5 HNY1.25-5 #10 0.209 0.315 0.846 0.276 0.413 0.157 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSN713 22-16 AWG Nylon-Insulated Single Crimp Hook Terminals 1.25-6 HNY1.25-6 1/4" 0.252 0.453 1.083 0.433 0.413 0.157 0.030 Red IZUMI 3# 1000
A.W.G. 16-14 KFSN720 16-14 AWG Nylon-Insulated Single Crimp Hook Terminals 2-3.5 HNY2-3.5 #6 0.146 0.335 0.886 0.315 0.413 0.177 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSN721 16-14 AWG Nylon-Insulated Single Crimp Hook Terminals 2-4 HNY2-4 #8 0.169 0.335 0.886 0.315 0.413 0.177 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSN722 16-14 AWG Nylon-Insulated Single Crimp Hook Terminals 2-5 HNY2-5 #10 0.209 0.374 0.886 0.295 0.413 0.177 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSN723 16-14 AWG Nylon-Insulated Single Crimp Hook Terminals 2-6 HNY2-6 1/4" 0.252 0.472 1.083 0.433 0.413 0.177 0.031 Blue IZUMI 4# 1000
A.W.G. 12-10 KFSN730 12-10 AWG Nylon-Insulated Single Crimp Hook Terminals 5.5-3.5 HNY5.5-3.5 #6 0.146 0.276 0.906 0.236 0.531 0.276 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSN731 12-10 AWG Nylon-Insulated Single Crimp Hook Terminals 5.5-4 HNY5.5-4 #8 0.169 0.374 1.043 0.315 0.531 0.276 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSN732 12-10 AWG Nylon-Insulated Single Crimp Hook Terminals 5.5-5 HNY5.5-5 #10 0.209 0.374 1.043 0.315 0.531 0.276 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSN733 12-10 AWG Nylon-Insulated Single Crimp Hook Terminals 5.5-6 HNY5.5-6 1/4" 0.252 0.472 1.181 0.413 0.531 0.276 0.039 Yellow IZUMI 5# 500
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric d2 B L F H D T
0.5~1.5mm² KFSN710 22-16 AWG Nylon-Insulated Single Crimp Hook Terminals 1.25-3.5 HNY1.25-3.5 3.5 3.7  8.0  21.5  7.0  10.5  4.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSN711 22-16 AWG Nylon-Insulated Single Crimp Hook Terminals 1.25-4 HNY1.25-4 4.0 4.3  8.0  21.5  7.0  10.5  4.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSN712 22-16 AWG Nylon-Insulated Single Crimp Hook Terminals 1.25-5 HNY1.25-5 5.0 5.3  8.0  21.5  7.0  10.5  4.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSN713 22-16 AWG Nylon-Insulated Single Crimp Hook Terminals 1.25-6 HNY1.25-6 6.0 6.4  11.5  27.5  11.0  10.5  4.0  0.75  Red IZUMI 3# 1000
1.5~2.5mm² KFSN720 16-14 AWG Nylon-Insulated Single Crimp Hook Terminals 2-3.5 HNY2-3.5 3.5 3.7  8.5  22.5  8.0  10.5  4.5  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSN721 16-14 AWG Nylon-Insulated Single Crimp Hook Terminals 2-4 HNY2-4 4.0 4.3  8.5  22.5  8.0  10.5  4.5  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSN722 16-14 AWG Nylon-Insulated Single Crimp Hook Terminals 2-5 HNY2-5 5.0 5.3  9.5  22.5  7.5  10.5  4.5  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSN723 16-14 AWG Nylon-Insulated Single Crimp Hook Terminals 2-6 HNY2-6 6.0 6.4  12.0  27.5  11.0  10.5  4.5  0.80  Blue IZUMI 4# 1000
4.0~6.0mm² KFSN730 12-10 AWG Nylon-Insulated Single Crimp Hook Terminals 5.5-3.5 HNY5.5-3.5 3.5 3.7  7.0  23.0  6.0  13.5  7.0  1.00  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSN731 12-10 AWG Nylon-Insulated Single Crimp Hook Terminals 5.5-4 HNY5.5-4 4.0 4.3  9.5  26.5  8.0  13.5  7.0  1.00  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSN732 12-10 AWG Nylon-Insulated Single Crimp Hook Terminals 5.5-5 HNY5.5-5 5.0 5.3  9.5  26.5  8.0  13.5  7.0  1.00  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSN733 12-10 AWG Nylon-Insulated Single Crimp Hook Terminals 5.5-6 HNY5.5-6 6.0 6.4  12.0  30.0  10.5  13.5  7.0  1.00  Yellow IZUMI 5# 500
