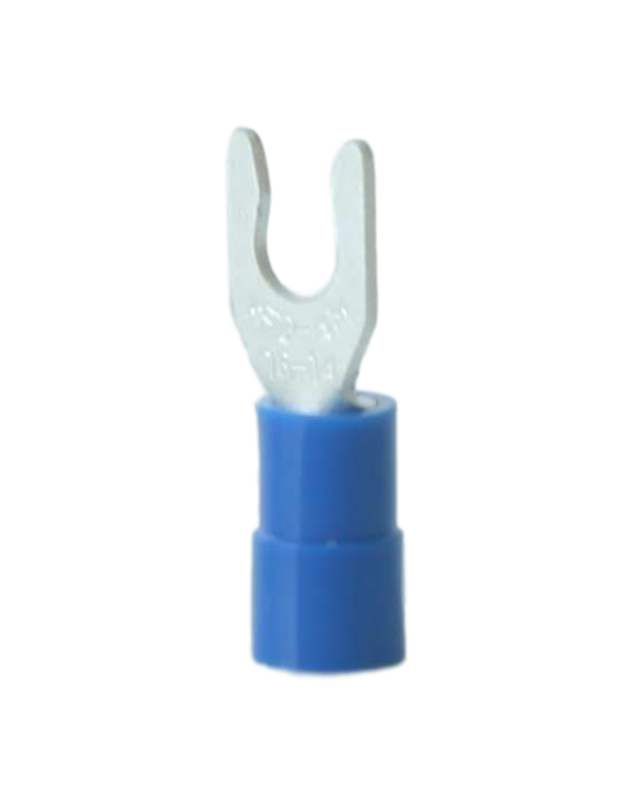

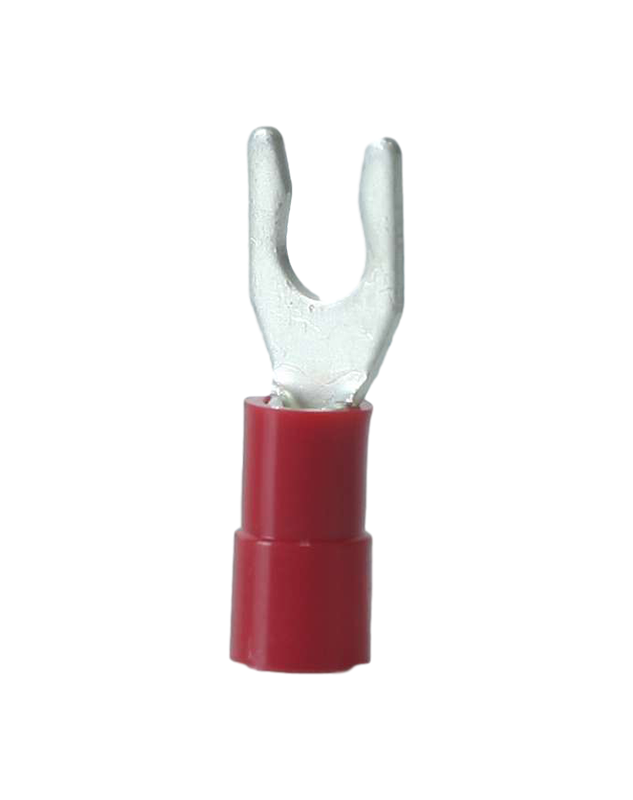

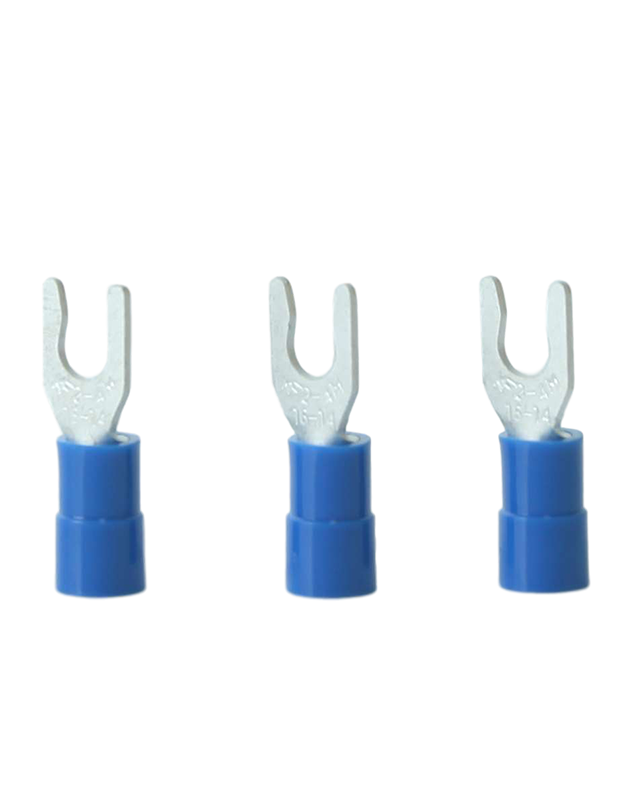

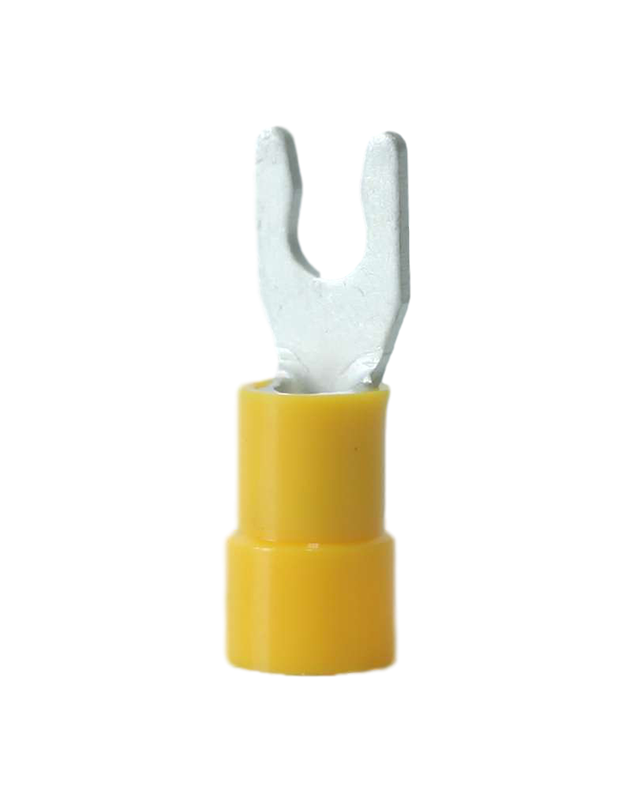

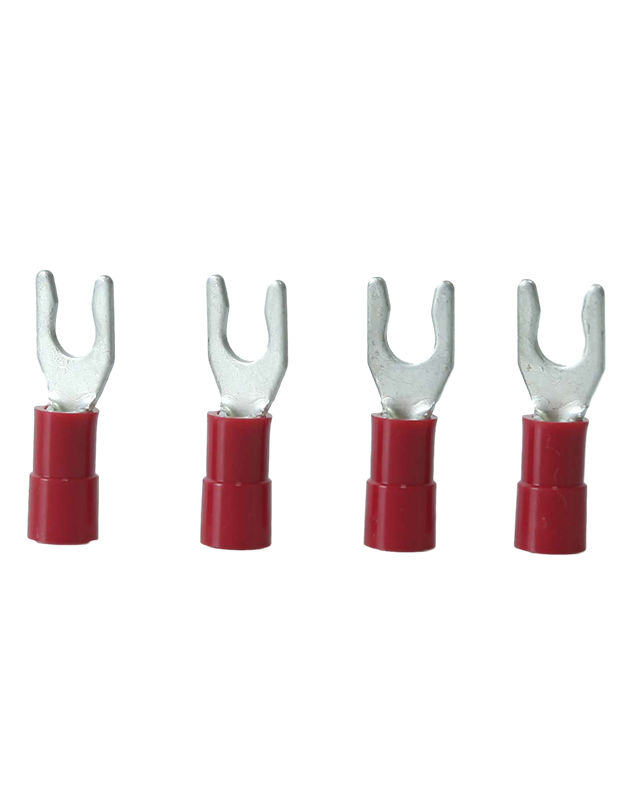

Nylon-Insulated Single Crimp Locking Spade Terminals

Nylon-Insulated Single Crimp Locking Spade Terminals

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper,Nylon

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 747

Product Details

Spec (American AWG)

 22-16 16-14 12-10

Spec (JIS AWG)

 1.25 2 5.5

Spec (DIN AWG)

 1 2.5 4.0-6.0

Spec (GB mm2)

 0.5-1.5 2.5 6

Max Current

  19 27 48
Operating Voltage 600V
Temperature Withstand 105℃

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA d2 B L F H D T
A.W.G. 22-16 KFSN310 22-16 AWG Nylon-Insulated Single Crimp Locking Spade Terminals 1.25-3.5 LSNY1.25-3.5 #6 0.146 0.256 0.846 0.256 0.413 0.157 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSN311 22-16 AWG Nylon-Insulated Single Crimp Locking Spade Terminals 1.25-4M LSNYM1.25-4 #8 0.169 0.276 0.846 0.256 0.413 0.157 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSN312 22-16 AWG Nylon-Insulated Single Crimp Locking Spade Terminals 1.25-4L LSNYL1.25-4 #8 0.169 0.315 0.846 0.256 0.413 0.157 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSN313 22-16 AWG Nylon-Insulated Single Crimp Locking Spade Terminals 1.25-5S LSNYS1.25-5 #10 0.209 0.315 0.846 0.256 0.413 0.157 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSN314 22-16 AWG Nylon-Insulated Single Crimp Locking Spade Terminals 1.25-5L LSNYL1.25-5 #10 0.209 0.374 0.846 0.256 0.413 0.157 0.030 Red IZUMI 3# 1000
A.W.G. 16-14 KFSN320 16-14 AWG Nylon-Insulated Single Crimp Locking Spade Terminals 2-3.5 LSNY2-3.5 #6 0.146 0.236 0.846 0.256 0.413 0.177 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSN321 16-14 AWG Nylon-Insulated Single Crimp Locking Spade Terminals 2-4M LSNYM2-4 #8 0.169 0.276 0.846 0.256 0.413 0.177 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSN322 16-14 AWG Nylon-Insulated Single Crimp Locking Spade Terminals 2-4L LSNYL2-4 #8 0.169 0.315 0.846 0.256 0.413 0.177 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSN323 16-14 AWG Nylon-Insulated Single Crimp Locking Spade Terminals 2-5S LSNYS2-5 #10 0.209 0.315 0.846 0.256 0.413 0.177 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSN324 16-14 AWG Nylon-Insulated Single Crimp Locking Spade Terminals 2-5L LSNYL2-5 #10 0.209 0.374 0.846 0.256 0.413 0.177 0.031 Blue IZUMI 4# 1000
A.W.G. 12-10 KFSN330 12-10 AWG Nylon-Insulated Single Crimp Locking Spade Terminals 5.5-3.5 LSNY5.5-3.5 #6 0.146 0.335 1.024 0.295 0.531 0.276 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSN331 12-10 AWG Nylon-Insulated Single Crimp Locking Spade Terminals 5.5-4 LSNY5.5-4 #8 0.169 0.335 1.024 0.295 0.531 0.276 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSN332 12-10 AWG Nylon-Insulated Single Crimp Locking Spade Terminals 5.5-5 LSNY5.5-5 #10 0.209 0.354 1.024 0.295 0.531 0.276 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSN333 12-10 AWG Nylon-Insulated Single Crimp Locking Spade Terminals 5.5-6 LSNY5.5-6 1/4" 0.252 0.472 1.260 0.472 0.531 0.276 0.039 Yellow IZUMI 5# 1000
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric d2 B L F H D T
0.5~1.5mm² KFSN310 22-16 AWG Nylon-Insulated Single Crimp Locking Spade Terminals 1.25-3.5 LSNY1.25-3.5 3.5  3.7  6.5  21.5  6.5  10.5  4.0  0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSN311 22-16 AWG Nylon-Insulated Single Crimp Locking Spade Terminals 1.25-4M LSNYM1.25-4 4.0  4.3  7.0  21.5  6.5  10.5  4.0  0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSN312 22-16 AWG Nylon-Insulated Single Crimp Locking Spade Terminals 1.25-4L LSNYL1.25-4 4.0  4.3  8.0  21.5  6.5  10.5  4.0  0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSN313 22-16 AWG Nylon-Insulated Single Crimp Locking Spade Terminals 1.25-5S LSNYS1.25-5 5.0  5.3  8.0  21.5  6.5  10.5  4.0  0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSN314 22-16 AWG Nylon-Insulated Single Crimp Locking Spade Terminals 1.25-5L LSNYL1.25-5 5.0  5.3  9.5  21.5  6.5  10.5  4.0  0.75 Red IZUMI 3# 1000
1.5~2.5mm² KFSN320 16-14 AWG Nylon-Insulated Single Crimp Locking Spade Terminals 2-3.5 LSNY2-3.5 3.5  3.7  6.0  21.5  6.5  10.5  4.5  0.80 Blue IZUMI 4# 1000
1.5~2.5mm² KFSN321 16-14 AWG Nylon-Insulated Single Crimp Locking Spade Terminals 2-4M LSNYM2-4 4.0  4.3  7.0  21.5  6.5  10.5  4.5  0.80 Blue IZUMI 4# 1000
1.5~2.5mm² KFSN322 16-14 AWG Nylon-Insulated Single Crimp Locking Spade Terminals 2-4L LSNYL2-4 4.0  4.3  8.0  21.5  6.5  10.5  4.5  0.80 Blue IZUMI 4# 1000
1.5~2.5mm² KFSN323 16-14 AWG Nylon-Insulated Single Crimp Locking Spade Terminals 2-5S LSNYS2-5 5.0  5.3  8.0  21.5  6.5  10.5  4.5  0.80 Blue IZUMI 4# 1000
1.5~2.5mm² KFSN324 16-14 AWG Nylon-Insulated Single Crimp Locking Spade Terminals 2-5L LSNYL2-5 5.0  5.3  9.5  21.5  6.5  10.5  4.5  0.80 Blue IZUMI 4# 1000
4.0~6.0mm² KFSN330 12-10 AWG Nylon-Insulated Single Crimp Locking Spade Terminals 5.5-3.5 LSNY5.5-3.5 3.5  3.7  8.5  26.0  7.5  13.5  7.0  1.00 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSN331 12-10 AWG Nylon-Insulated Single Crimp Locking Spade Terminals 5.5-4 LSNY5.5-4 4.0  4.3  8.5  26.0  7.5  13.5  7.0  1.00 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSN332 12-10 AWG Nylon-Insulated Single Crimp Locking Spade Terminals 5.5-5 LSNY5.5-5 5.0  5.3  9.0  26.0  7.5  13.5  7.0  1.00 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSN333 12-10 AWG Nylon-Insulated Single Crimp Locking Spade Terminals 5.5-6 LSNY5.5-6 6.0  6.4  12.0  32.0  12.0  13.5  7.0  1.00 Yellow IZUMI 5# 1000
