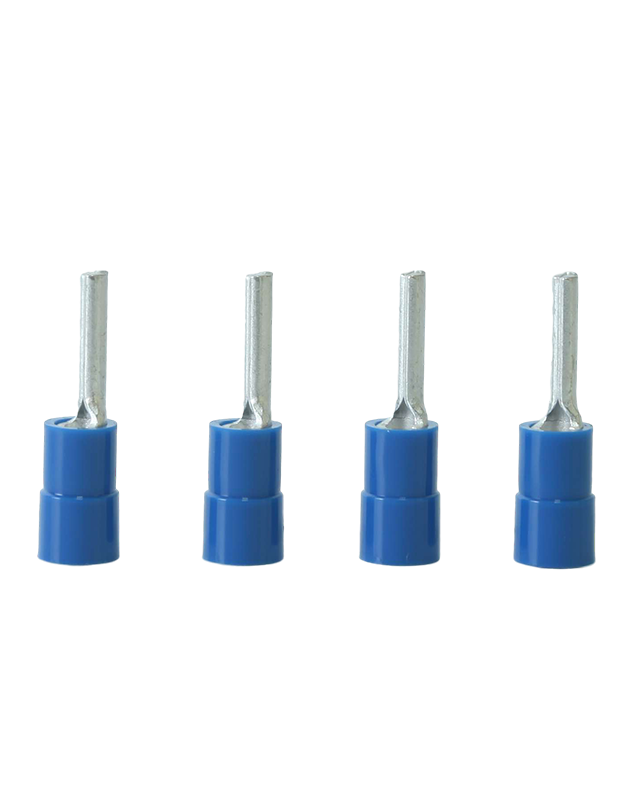

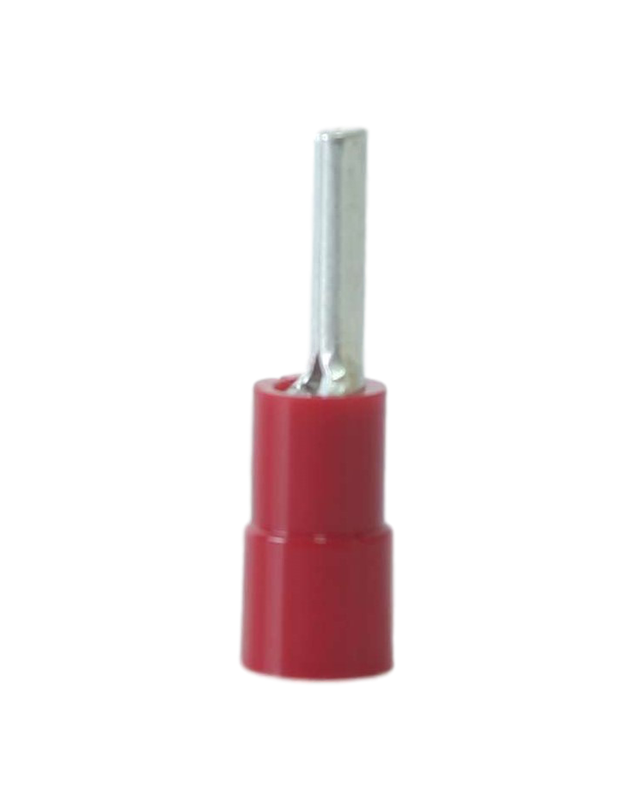

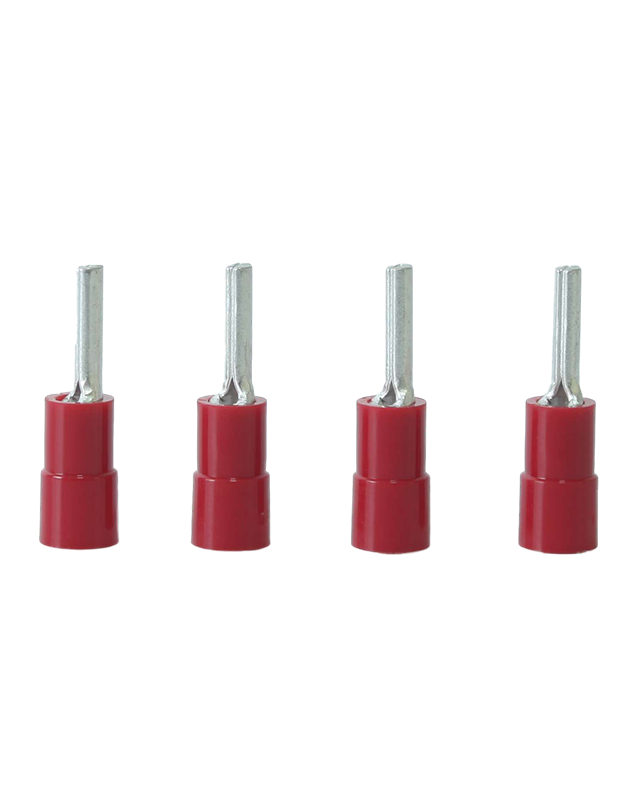

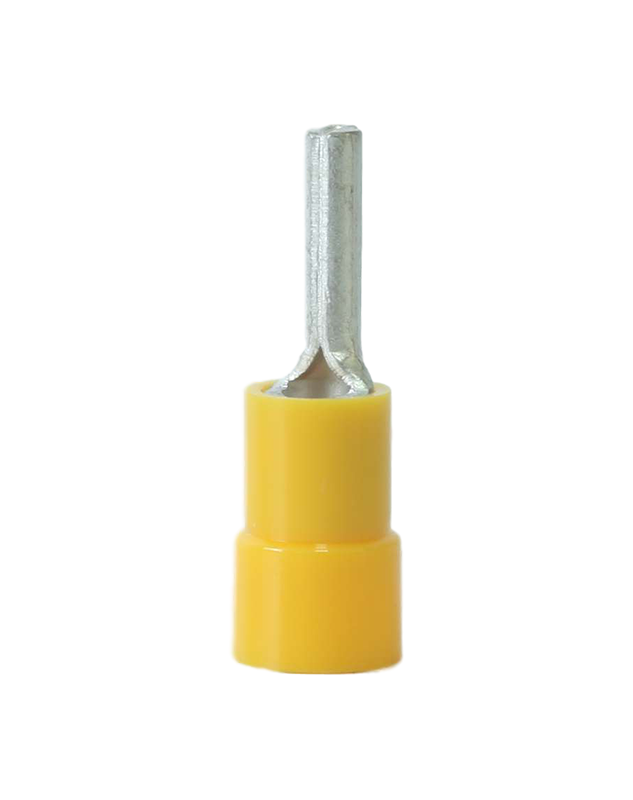

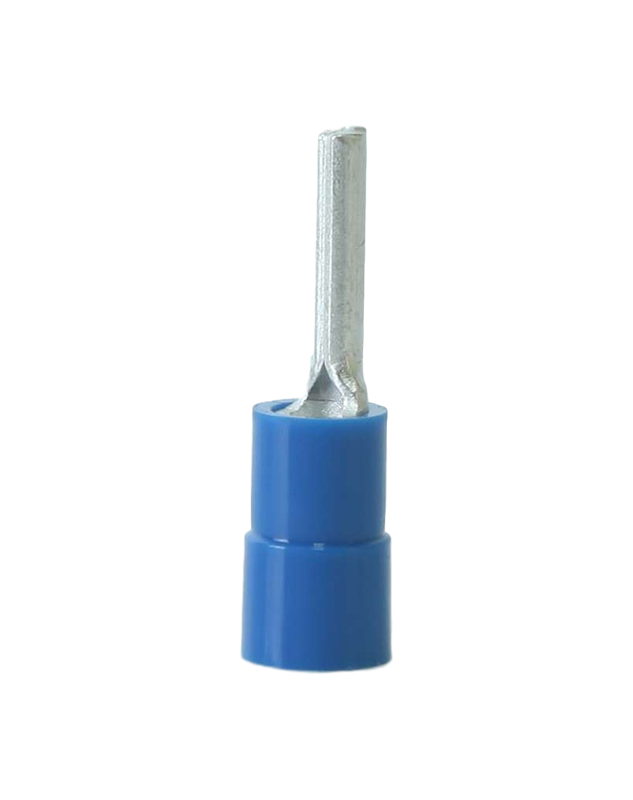

Nylon-Insulated Single Crimp Pin Terminals

Nylon-Insulated Single Crimp Pin Terminals

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper,Nylon

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 714

Product Details

Spec (American AWG)

22-16

16-1 4

14-12

12-10

Spec (JIS AWG)

1.25

2

3.5

5.5

Spec (DIN AWG)

1

2.5



4.0-6.0

Spec (GB mm2)

0.5-1.5

2.5

4

6

Max Current

19

27

37

48
Operating Voltage 600V
Temperature Withstand 105℃

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA F L H D Thickness
A.W.G. 22-16  KFSN410 22-16 AWG Nylon-Insulated Single Crimp Pin Terminals 1.25-10 PTNY1.25-10 3/8" 0.079 0.807 0.413 0.157 0.030 Red IZUMI 3# 1000
A.W.G. 22-16  KFSN411 22-16 AWG Nylon-Insulated Single Crimp Pin Terminals 1.25-12 PTNY1.25-12 1/2" 0.079 0.886 0.413 0.157 0.030 Red IZUMI 3# 1000
A.W.G. 22-16  KFSN412 22-16 AWG Nylon-Insulated Single Crimp Pin Terminals 1.25-18 PTNY1.25-18 11/16" 0.079 1.122 0.413 0.157 0.030 Red IZUMI 3# 1000
A.W.G. 16-14   KFSN420 16-14 AWG Nylon-Insulated Single Crimp Pin Terminals 2-10 PTNY2-10 3/8" 1.079 0.807 0.413 0.177 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14   KFSN421 16-14 AWG Nylon-Insulated Single Crimp Pin Terminals 2-12 PTNY2-12 1/2" 1.079 0.886 0.413 0.177 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14   KFSN422 16-14 AWG Nylon-Insulated Single Crimp Pin Terminals 2-18 PTNY2-18 11/16" 1.079 1.122 0.413 0.177 0.031 Blue IZUMI 4# 1000
A.W.G. 14-12   KFSN430 14-12 AWG Nylon-Insulated Single Crimp Pin Terminals 3.5-10 PTNY3.5-10 3/8" 0.118 0.925 0.531 0.236 0.039 Black IZUMI 5# 1000
A.W.G. 14-12   KFSN431 14-12 AWG Nylon-Insulated Single Crimp Pin Terminals 3.5-13 PTNY3.5-13   0.118 1.043 0.531 0.236 0.039 Black IZUMI 5# 1000
A.W.G. 12-10   KFSN440 12-10 AWG Nylon-Insulated Single Crimp Pin Terminals 5.5-13 PTNY5.5-13   1.118 1.043 0.531 0.276 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10   KFSN441 12-10 AWG Nylon-Insulated Single Crimp Pin Terminals 5.5-18 PTNY5.5-18 11/16" 1.118 1.240 0.531 0.276 0.039 Yellow IZUMI 5# 1000
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric F L H D Thickness
0.5~1.5mm² KFSN410 22-16 AWG Nylon-Insulated Single Crimp Pin Terminals 1.25-10 PTNY1.25-10 10.0  2.0  20.5  10.5  4.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSN411 22-16 AWG Nylon-Insulated Single Crimp Pin Terminals 1.25-12 PTNY1.25-12 12.0  2.0  22.5  10.5  4.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSN412 22-16 AWG Nylon-Insulated Single Crimp Pin Terminals 1.25-18 PTNY1.25-18 18.0  2.0  28.5  10.5  4.0  0.75  Red IZUMI 3# 1000
1.5~2.5mm² KFSN420 16-14 AWG Nylon-Insulated Single Crimp Pin Terminals 2-10 PTNY2-10 10.0  2.0  20.5  10.5  4.5  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSN421 16-14 AWG Nylon-Insulated Single Crimp Pin Terminals 2-12 PTNY2-12 12.0  2.0  22.5  10.5  4.5  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSN422 16-14 AWG Nylon-Insulated Single Crimp Pin Terminals 2-18 PTNY2-18 18.0  2.0  28.5  10.5  4.5  0.80  Blue IZUMI 4# 1000
2.5~4.0mm² KFSN430 14-12 AWG Nylon-Insulated Single Crimp Pin Terminals 3.5-10 PTNY3.5-10 10.0  3.0  23.5  13.5  6.0  1.00  Black IZUMI 5# 1000
2.5~4.0mm² KFSN431 14-12 AWG Nylon-Insulated Single Crimp Pin Terminals 3.5-13 PTNY3.5-13 13.0  3.0  26.5  13.5  6.0  1.00  Black IZUMI 5# 1000
4.0~6.0mm² KFSN440 12-10 AWG Nylon-Insulated Single Crimp Pin Terminals 5.5-13 PTNY5.5-13 13.0  3.0  26.5  13.5  7.0  1.00  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSN441 12-10 AWG Nylon-Insulated Single Crimp Pin Terminals 5.5-18 PTNY5.5-18 18.0  3.0  31.5  13.5  7.0  1.00  Yellow IZUMI 5# 1000
