Brand |
KF |
|
Finish/Coating |
Tinned |
|
Base Materials |
Copper,Nylon |
|
Insulation Material |
N/A |
|
Brazed |
Seam |
|
Wire/Cable Type |
Regular Wire |
|
Color Code |
Standard |
|
MOQ |
1000Pcs/item |
|
Payment Terms |
Based on orders |
|
Delivery |
FOB/CIF/DDP |
|
Spec (American AWG) |
22-16 |
16-1 4 |
14-12 |
12-10 |
8 |
6 |
4 |
2 |
|
Spec (JIS AWG) |
1.25 |
2 |
3.5 |
5.5 |
8 |
14 |
22 |
38 |
|
Spec (DIN AWG) |
1 |
2.5 |
|
4.0-6.0 |
10 |
16 |
25 |
35 |
|
Spec (GB mm2) |
0.5-1.5 |
2.5 |
4 |
6 |
10 |
16 |
25 |
35 |
|
Max Current |
19 |
27 |
37 |
48 |
62 |
88 |
115 |
160 |
| Operating Voltage | 600V | |||||||
| Temperature Withstand | 105℃ | |||||||
You can tick the products you need and communicate with us in the message board.
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions Inch | Color | Tool | PCS/Pack | ||||||
| USA | d2 | B | F | L | H | D | T | |||||||

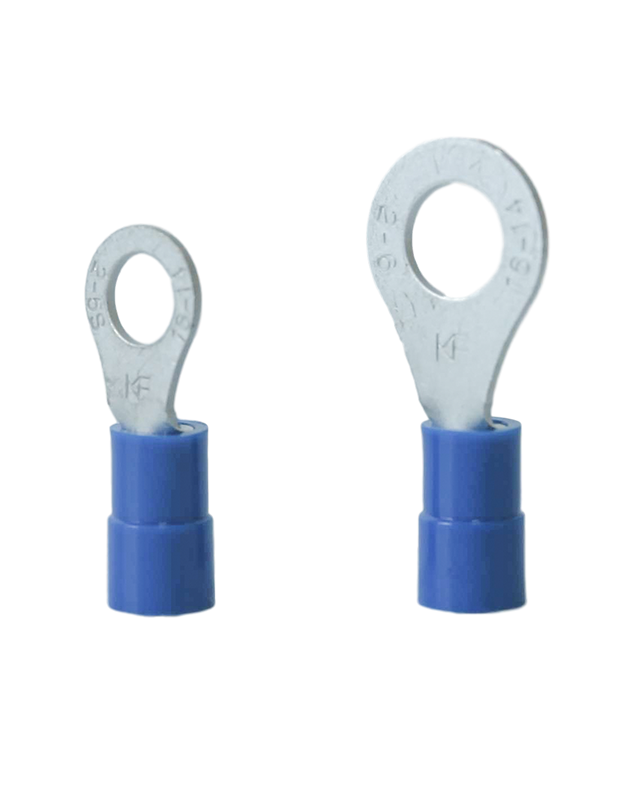

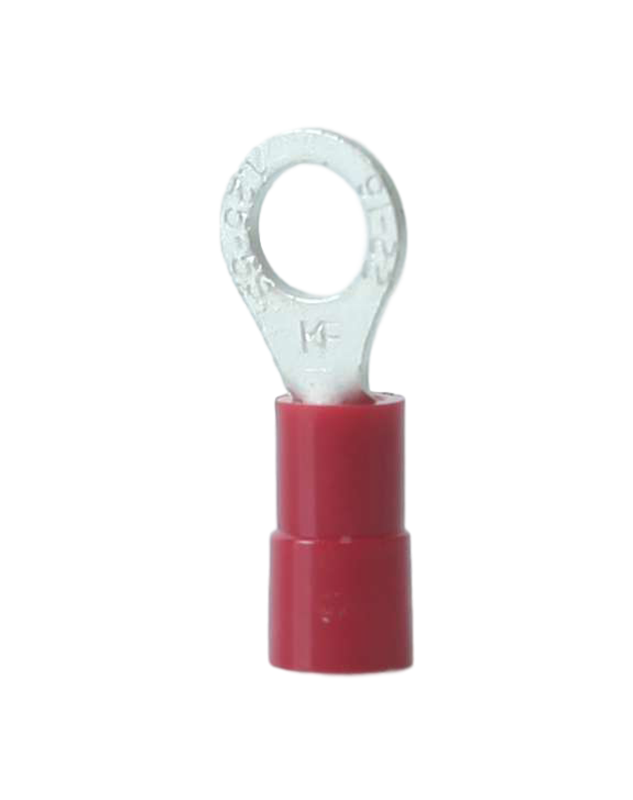

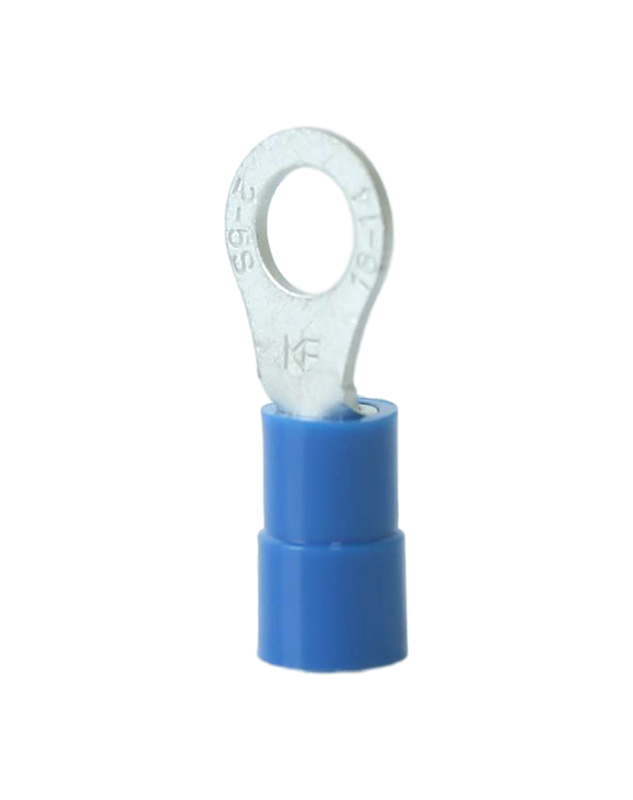

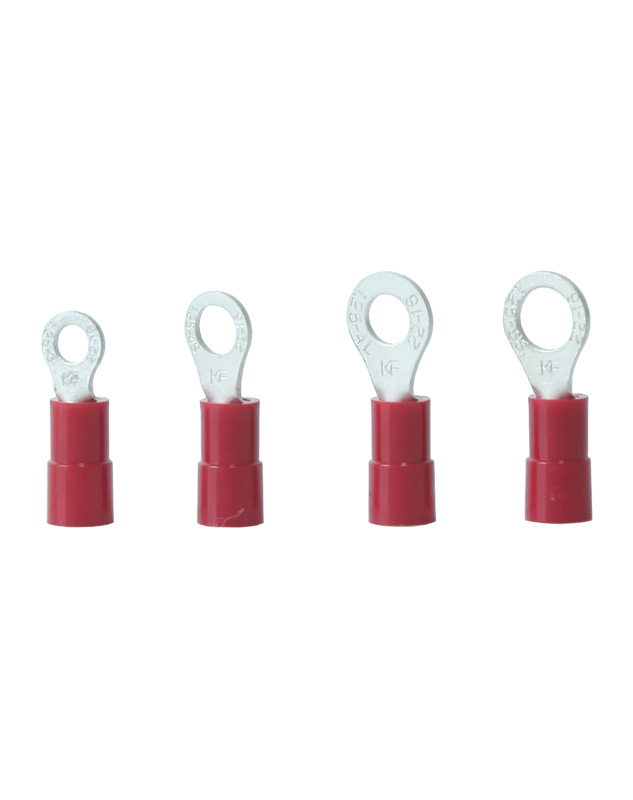

| A.W.G. 22-16 | KFSN110 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-3 | RNY1.25-3 | #4 | 0.126 | 0.217 | 0.197 | 0.709 | 0.413 | 0.157 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSN111 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-3.5S | RNYS1.25-3.5 | #6 | 0.146 | 0.217 | 0.197 | 0.709 | 0.413 | 0.157 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSN112 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-3.5M | RNYM1.25-3.5 | #6 | 0.146 | 0.256 | 0.236 | 0.787 | 0.413 | 0.157 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSN113 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-4S | RNYS1.25-4 | #8 | 0.169 | 0.256 | 0.236 | 0.787 | 0.413 | 0.157 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSN114 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-4L | RNYL1.25-4 | #8 | 0.169 | 0.315 | 0.276 | 0.846 | 0.413 | 0.157 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSN115 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-5 | RNY1.25-5 | #10 | 0.209 | 0.315 | 0.276 | 0.846 | 0.413 | 0.157 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSN116 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-5L | RNYL1.25-5 | #10 | 0.209 | 0.394 | 0.315 | 0.925 | 0.413 | 0.157 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSN117 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-6S | RNYS1.25-6 | 1/4" | 0.256 | 0.394 | 0.315 | 0.925 | 0.413 | 0.157 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSN118 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-6 | RNY1.25-6 | 1/4" | 0.256 | 0.453 | 0.433 | 1.083 | 0.413 | 0.157 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSN119 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-8 | RNY1.25-8 | 5/16" | 0.335 | 0.453 | 0.433 | 1.083 | 0.413 | 0.157 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSN11A | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-10 | RNY1.25-10 | 3/8" | 0.413 | 0.531 | 0.551 | 1.220 | 0.413 | 0.157 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSN11B | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-12 | RNY1.25-12 | 1/2" | 0.512 | 0.748 | 0.551 | 1.417 | 0.413 | 0.157 | 0.030 | Red | IZUMI 3# | 500 |
| A.W.G. 16-14 | KFSN120 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-3 | RNY2-3 | #4 | 0.126 | 0.256 | 0.177 | 0.728 | 0.413 | 0.177 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSN121 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-3.5S | RNYS2-3.5 | #6 | 0.146 | 0.256 | 0.177 | 0.728 | 0.413 | 0.177 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSN122 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-3.5M | RNYM2-3.5 | #6 | 0.146 | 0.256 | 0.236 | 0.787 | 0.413 | 0.177 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSN123 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-4S | RNYS2-4 | #8 | 0.169 | 0.256 | 0.236 | 0.787 | 0.413 | 0.177 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSN124 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-4L | RNYL2-4 | #8 | 0.169 | 0.335 | 0.315 | 0.886 | 0.413 | 0.177 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSN125 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-5S | RNYS2-5 | #10 | 0.209 | 0.335 | 0.315 | 0.886 | 0.413 | 0.177 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSN126 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-5L | RNYL2-5 | #10 | 0.209 | 0.374 | 0.295 | 0.886 | 0.413 | 0.177 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSN127 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-6 | RNY2-6 | 1/4" | 0.256 | 0.472 | 0.433 | 1.083 | 0.413 | 0.177 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSN128 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-8 | RNY2-8 | 5/16" | 0.335 | 0.472 | 0.433 | 1.083 | 0.413 | 0.177 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSN129 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-10 | RNY2-10 | 3/8" | 0.413 | 0.531 | 0.551 | 1.220 | 0.413 | 0.177 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSN12A | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-12 | RNY2-12 | 1/2" | 0.512 | 0.748 | 0.630 | 1.417 | 0.413 | 0.177 | 0.031 | Blue | IZUMI 4# | 500 |
| A.W.G. 14-12 | KFSN130 | 14-12 AWG Nylon-Insulated Single Crimp Ring Terminals 3.5-4 | RNY3.5-4 | #8 | 0.169 | 0.315 | 0.315 | 1.004 | 0.531 | 0.236 | 0.039 | Black | IZUMI 5# | 1000 |
| A.W.G. 14-12 | KFSN131 | 14-12 AWG Nylon-Insulated Single Crimp Ring Terminals 3.5-5S | RNYS3.5-5 | #10 | 0.209 | 0.315 | 0.315 | 1.004 | 0.531 | 0.236 | 0.039 | Black | IZUMI 5# | 1000 |
| A.W.G. 14-12 | KFSN132 | 14-12 AWG Nylon-Insulated Single Crimp Ring Terminals 3.5-5L | RNYL3.5-5 | #10 | 0.209 | 0.472 | 0.374 | 1.142 | 0.531 | 0.236 | 0.039 | Black | IZUMI 5# | 500 |
| A.W.G. 14-12 | KFSN133 | 14-12 AWG Nylon-Insulated Single Crimp Ring Terminals 3.5-6 | RNY3.5-6 | 1/4" | 0.256 | 0.472 | 0.374 | 1.142 | 0.531 | 0.236 | 0.039 | Black | IZUMI 5# | 500 |
| A.W.G. 14-12 | KFSN134 | 14-12 AWG Nylon-Insulated Single Crimp Ring Terminals 3.5-8 | RNY3.5-8 | 5/16" | 0.335 | 0.591 | 0.531 | 1.358 | 0.531 | 0.236 | 0.039 | Black | IZUMI 5# | 500 |
| A.W.G. 14-12 | KFSN135 | 14-12 AWG Nylon-Insulated Single Crimp Ring Terminals 3.5-10 | RNY3.5-10 | 3/8" | 0.413 | 0.591 | 0.531 | 1.358 | 0.531 | 0.236 | 0.039 | Black | IZUMI 5# | 500 |
| A.W.G. 14-12 | KFSN136 | 14-12 AWG Nylon-Insulated Single Crimp Ring Terminals 3.5-12 | RNY3.5-12 | 1/2" | 0.512 | 0.787 | 0.610 | 1.535 | 0.531 | 0.236 | 0.039 | Black | IZUMI 5# | 500 |
| A.W.G. 12-10 | KFSN140 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-3.5 | RNY5.5-3.5 | #6 | 0.146 | 0.276 | 0.236 | 0.906 | 0.531 | 0.256 | 0.039 | Yellow | IZUMI 5# | 1000 |
| A.W.G. 12-10 | KFSN141 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-4S | RNYS5.5-4 | #8 | 0.169 | 0.276 | 0.236 | 0.906 | 0.531 | 0.256 | 0.039 | Yellow | IZUMI 5# | 1000 |
| A.W.G. 12-10 | KFSN142 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-4L | RNYL5.5-4 | #8 | 0.169 | 0.374 | 0.315 | 1.043 | 0.531 | 0.256 | 0.039 | Yellow | IZUMI 5# | 1000 |
| A.W.G. 12-10 | KFSN143 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-5 | RNY5.5-5 | #10 | 0.209 | 0.374 | 0.315 | 1.043 | 0.531 | 0.256 | 0.039 | Yellow | IZUMI 5# | 1000 |
| A.W.G. 12-10 | KFSN144 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-6 | RNY5.5-6 | 1/4" | 0.256 | 0.472 | 0.413 | 1.181 | 0.531 | 0.256 | 0.039 | Yellow | IZUMI 5# | 500 |
| A.W.G. 12-10 | KFSN145 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-8 | RNY5.5-8 | 5/16" | 0.335 | 0.591 | 0.531 | 1.350 | 0.531 | 0.256 | 0.039 | Yellow | IZUMI 5# | 500 |
| A.W.G. 12-10 | KFSN146 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-10 | RNY5.5-10 | 3/8" | 0.413 | 0.591 | 0.531 | 1.350 | 0.531 | 0.256 | 0.039 | Yellow | IZUMI 5# | 500 |
| A.W.G. 12-10 | KFSN147 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-12 | RNY5.5-12 | 1/2" | 0.512 | 0.748 | 0.630 | 1.535 | 0.531 | 0.256 | 0.039 | Yellow | IZUMI 5# | 500 |
| A.W.G. 8 | KFSN150 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-4 | RNY8-4 | #8 | 0.169 | 0.346 | 0.413 | 1.240 | 0.650 | 0.354 | 0.047 | Red | OPT TP-80 | 500 |
| A.W.G. 8 | KFSN151 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-5S | RNYS8-5 | #10 | 0.209 | 0.346 | 0.413 | 1.240 | 0.650 | 0.354 | 0.047 | Red | OPT TP-80 | 500 |
| A.W.G. 8 | KFSN152 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-5M | RNYM8-5 | #10 | 0.209 | 0.472 | 0.354 | 1.240 | 0.650 | 0.354 | 0.047 | Red | OPT TP-80 | 500 |
| A.W.G. 8 | KFSN153 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-5L | RNYL8-5 | #10 | 0.209 | 0.591 | 0.551 | 1.496 | 0.650 | 0.354 | 0.047 | Red | OPT TP-80 | 500 |
| A.W.G. 8 | KFSN154 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-6S | RNYS8-6 | 1/4" | 0.256 | 0.472 | 0.354 | 1.240 | 0.650 | 0.354 | 0.047 | Red | OPT TP-80 | 500 |
| A.W.G. 8 | KFSN155 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-6L | RNYL8-6 | 1/4" | 0.266 | 0.591 | 0.551 | 1.496 | 0.650 | 0.354 | 0.047 | Red | OPT TP-80 | 250 |
| A.W.G. 8 | KFSN156 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-8 | RNY8-8 | 5/16" | 0.335 | 0.591 | 0.551 | 1.496 | 0.650 | 0.354 | 0.047 | Red | OPT TP-80 | 250 |
| A.W.G. 8 | KFSN157 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-10 | RNY8-10 | 3/8" | 0.413 | 0.591 | 0.551 | 1.496 | 0.650 | 0.354 | 0.047 | Red | OPT TP-80 | 250 |
| A.W.G. 8 | KFSN158 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-12 | RNY8-12 | 1/2" | 0.512 | 0.866 | 0.591 | 1.673 | 0.650 | 0.354 | 0.047 | Red | OPT TP-80 | 250 |
| A.W.G. 6 | KFSN160 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-4 | RNY14-4 | #8 | 0.169 | 0.472 | 0.531 | 1.555 | 0.807 | 0.433 | 0.055 | Blue | OPT TP-80 | 250 |
| A.W.G. 6 | KFSN161 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-5 | RNY14-5 | #10 | 0.209 | 0.472 | 0.531 | 1.555 | 0.807 | 0.433 | 0.055 | Blue | OPT TP-80 | 250 |
| A.W.G. 6 | KFSN162 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-6S | RNYS14-6 | 1/4" | 0.256 | 0.472 | 0.531 | 1.555 | 0.807 | 0.433 | 0.055 | Blue | OPT TP-80 | 250 |
| A.W.G. 6 | KFSN163 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-6L | RNYL14-6 | 1/4" | 0.256 | 0.630 | 0.551 | 1.673 | 0.807 | 0.433 | 0.055 | Blue | OPT TP-80 | 250 |
| A.W.G. 6 | KFSN164 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-8 | RNY14-8 | 5/16" | 0.335 | 0.630 | 0.551 | 1.673 | 0.807 | 0.433 | 0.055 | Blue | OPT TP-80 | 250 |
| A.W.G. 6 | KFSN165 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-10 | RNY14-10 | 3/8" | 0.413 | 0.630 | 0.551 | 1.673 | 0.807 | 0.433 | 0.055 | Blue | OPT TP-80 | 250 |
| A.W.G. 6 | KFSN166 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-12 | RNY14-12 | 1/2" | 0.512 | 0.866 | 0.768 | 2.008 | 0.807 | 0.433 | 0.055 | Blue | OPT TP-80 | 200 |
| A.W.G. 6 | KFSN167 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-16 | RNY14-16 | 5/8" | 0.669 | 1.181 | 1.004 | 2.402 | 0.807 | 0.433 | 0.055 | Blue | OPT TP-80 | 200 |
| A.W.G. 4 | KFSN170 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-5S | RNYS22-5 | #10 | 0.209 | 0.472 | 0.571 | 1.752 | 0.945 | 0.531 | 0.067 | Yellow | OPT TP-80 | 100 |
| A.W.G. 4 | KFSN171 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-5L | RNYL22-5 | #10 | 0.209 | 0.650 | 0.531 | 1.791 | 0.945 | 0.531 | 0.067 | Yellow | OPT TP-80 | 100 |
| A.W.G. 4 | KFSN172 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-6S | RNYS22-6 | 1/4" | 0.256 | 0.472 | 0.571 | 1.752 | 0.945 | 0.531 | 0.067 | Yellow | OPT TP-80 | 100 |
| A.W.G. 4 | KFSN173 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-6L | RNYL22-6 | 1/4" | 0.256 | 0.650 | 0.531 | 1.791 | 0.945 | 0.531 | 0.067 | Yellow | OPT TP-80 | 100 |
| A.W.G. 4 | KFSN174 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-8 | RNY22-8 | 5/16" | 0.335 | 0.650 | 0.531 | 1.791 | 0.945 | 0.531 | 0.067 | Yellow | OPT TP-80 | 100 |
| A.W.G. 4 | KFSN175 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-10 | RNY22-10 | 3/8" | 0.413 | 0.650 | 0.531 | 1.791 | 0.945 | 0.531 | 0.067 | Yellow | OPT TP-80 | 100 |
| A.W.G. 4 | KFSN176 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-12 | RNY22-12 | 1/2" | 0.512 | 0.866 | 0.768 | 2.146 | 0.945 | 0.531 | 0.067 | Yellow | OPT TP-80 | 100 |
| A.W.G. 4 | KFSN177 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-14 | RNY22-14 | 9/16" | 0.591 | 1.181 | 0.984 | 2.520 | 0.945 | 0.531 | 0.067 | Yellow | OPT TP-80 | 100 |
| A.W.G. 4 | KFSN178 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-16 | RNY22-16 | 5/8" | 0.669 | 1.181 | 0.984 | 2.520 | 0.945 | 0.531 | 0.067 | Yellow | OPT TP-80 | 100 |
| A.W.G. 2 | KFSN180 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-5 | RNY38-5 | #10 | 0.209 | 0.610 | 0.728 | 2.106 | 1.083 | 0.591 | 0.071 | Red | OPT TP-80 | 50 |
| A.W.G. 2 | KFSN181 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-6 | RNY38-6 | 1/4" | 0.256 | 0.610 | 0.728 | 2.106 | 1.083 | 0.591 | 0.071 | Red | OPT TP-80 | 50 |
| A.W.G. 2 | KFSN182 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-8S | RNYS38-8 | 5/16" | 0.335 | 0.610 | 0.728 | 2.106 | 1.083 | 0.591 | 0.071 | Red | OPT TP-80 | 50 |
| A.W.G. 2 | KFSN183 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-8L | RNYL38-8 | 5/16" | 0.335 | 0.866 | 0.689 | 2.205 | 1.083 | 0.591 | 0.071 | Red | OPT TP-80 | 50 |
| A.W.G. 2 | KFSN184 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-10S | RNYS38-10 | 3/8" | 0.413 | 0.610 | 0.728 | 2.106 | 1.083 | 0.591 | 0.071 | Red | OPT TP-80 | 50 |
| A.W.G. 2 | KFSN185 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-10L | RNYL38-10 | 3/8" | 0.413 | 0.866 | 0.689 | 2.205 | 1.083 | 0.591 | 0.071 | Red | OPT TP-80 | 50 |
| A.W.G. 2 | KFSN186 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-12 | RNY38-12 | 1/2" | 0.512 | 0.866 | 0.689 | 2.205 | 1.083 | 0.591 | 0.071 | Red | OPT TP-80 | 50 |
| A.W.G. 2 | KFSN187 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-14 | RNY38-14 | 9/16" | 0.591 | 1.181 | 0.945 | 2.598 | 1.083 | 0.591 | 0.071 | Red | OPT TP-80 | 50 |
| A.W.G. 2 | KFSN188 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-16 | RNY38-16 | 5/8" | 0.669 | 1.181 | 0.945 | 2.598 | 1.083 | 0.591 | 0.071 | Red | OPT TP-80 | 50 |
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions mm | Color | Tool | PCS/Pack | ||||||
| Meric | d2 | B | F | L | H | D | T | |||||||
| 0.5~1.5mm² | KFSN110 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-3 | RNY1.25-3 | 3.0 | 3.2 | 5.5 | 5.0 | 18.0 | 10.5 | 4.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSN111 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-3.5S | RNYS1.25-3.5 | 3.5 | 3.7 | 5.5 | 5.0 | 18.0 | 10.5 | 4.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSN112 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-3.5M | RNYM1.25-3.5 | 3.5 | 3.7 | 6.5 | 6.0 | 20.0 | 10.5 | 4.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSN113 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-4S | RNYS1.25-4 | 4.0 | 4.3 | 6.5 | 6.0 | 20.0 | 10.5 | 4.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSN114 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-4L | RNYL1.25-4 | 4.0 | 4.3 | 8.0 | 7.0 | 21.5 | 10.5 | 4.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSN115 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-5 | RNY1.25-5 | 5.0 | 5.3 | 8.0 | 7.0 | 21.5 | 10.5 | 4.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSN116 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-5L | RNYL1.25-5 | 5.0 | 5.3 | 10.0 | 8.0 | 23.5 | 10.5 | 4.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSN117 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-6S | RNYS1.25-6 | 6.0 | 6.5 | 10.0 | 8.0 | 23.5 | 10.5 | 4.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSN118 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-6 | RNY1.25-6 | 6.0 | 6.5 | 11.5 | 11.0 | 27.5 | 10.5 | 4.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSN119 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-8 | RNY1.25-8 | 8.0 | 8.5 | 11.5 | 11.0 | 27.5 | 10.5 | 4.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSN11A | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-10 | RNY1.25-10 | 10.0 | 10.5 | 13.5 | 14.0 | 31.0 | 10.5 | 4.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSN11B | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-12 | RNY1.25-12 | 12.0 | 13.0 | 19.0 | 14.0 | 36.0 | 10.5 | 4.0 | 0.75 | Red | IZUMI 3# | 500 |
| 1.5~2.5mm² | KFSN120 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-3 | RNY2-3 | 3.0 | 3.2 | 6.5 | 4.5 | 18.5 | 10.5 | 4.5 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSN121 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-3.5S | RNYS2-3.5 | 3.5 | 3.7 | 6.5 | 4.5 | 18.5 | 10.5 | 4.5 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSN122 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-3.5M | RNYM2-3.5 | 3.5 | 3.7 | 6.5 | 6.0 | 20.0 | 10.5 | 4.5 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSN123 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-4S | RNYS2-4 | 4.0 | 4.3 | 6.5 | 6.0 | 20.0 | 10.5 | 4.5 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSN124 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-4L | RNYL2-4 | 4.0 | 4.3 | 8.5 | 8.0 | 22.5 | 10.5 | 4.5 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSN125 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-5S | RNYS2-5 | 5.0 | 5.3 | 8.5 | 8.0 | 22.5 | 10.5 | 4.5 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSN126 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-5L | RNYL2-5 | 5.0 | 5.3 | 9.5 | 7.5 | 22.5 | 10.5 | 4.5 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSN127 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-6 | RNY2-6 | 6.0 | 6.5 | 12.0 | 11.0 | 27.5 | 10.5 | 4.5 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSN128 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-8 | RNY2-8 | 8.0 | 8.5 | 12.0 | 11.0 | 27.5 | 10.5 | 4.5 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSN129 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-10 | RNY2-10 | 10.0 | 10.5 | 13.5 | 14.0 | 31.0 | 10.5 | 4.5 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSN12A | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-12 | RNY2-12 | 12.0 | 13.0 | 19.0 | 16.0 | 36.0 | 10.5 | 4.5 | 0.80 | Blue | IZUMI 4# | 500 |
| 2.5~4.0mm² | KFSN130 | 14-12 AWG Nylon-Insulated Single Crimp Ring Terminals 3.5-4 | RNY3.5-4 | 4.0 | 4.3 | 8.0 | 8.0 | 25.5 | 13.5 | 6.0 | 1.00 | Black | IZUMI 5# | 1000 |
| 2.5~4.0mm² | KFSN131 | 14-12 AWG Nylon-Insulated Single Crimp Ring Terminals 3.5-5S | RNYS3.5-5 | 5.0 | 5.3 | 8.0 | 8.0 | 25.5 | 13.5 | 6.0 | 1.00 | Black | IZUMI 5# | 1000 |
| 2.5~4.0mm² | KFSN132 | 14-12 AWG Nylon-Insulated Single Crimp Ring Terminals 3.5-5L | RNYL3.5-5 | 5.0 | 5.3 | 12.0 | 9.5 | 29.0 | 13.5 | 6.0 | 1.00 | Black | IZUMI 5# | 500 |
| 2.5~4.0mm² | KFSN133 | 14-12 AWG Nylon-Insulated Single Crimp Ring Terminals 3.5-6 | RNY3.5-6 | 6.0 | 6.5 | 12.0 | 9.5 | 29.0 | 13.5 | 6.0 | 1.00 | Black | IZUMI 5# | 500 |
| 2.5~4.0mm² | KFSN134 | 14-12 AWG Nylon-Insulated Single Crimp Ring Terminals 3.5-8 | RNY3.5-8 | 8.0 | 8.5 | 15.0 | 13.5 | 34.5 | 13.5 | 6.0 | 1.00 | Black | IZUMI 5# | 500 |
| 2.5~4.0mm² | KFSN135 | 14-12 AWG Nylon-Insulated Single Crimp Ring Terminals 3.5-10 | RNY3.5-10 | 10.0 | 10.5 | 15.0 | 13.5 | 34.5 | 13.5 | 6.0 | 1.00 | Black | IZUMI 5# | 500 |
| 2.5~4.0mm² | KFSN136 | 14-12 AWG Nylon-Insulated Single Crimp Ring Terminals 3.5-12 | RNY3.5-12 | 12.0 | 13.0 | 20.0 | 15.5 | 39.0 | 13.5 | 6.0 | 1.00 | Black | IZUMI 5# | 500 |
| 4.0~6.0mm² | KFSN140 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-3.5 | RNY5.5-3.5 | 3.5 | 3.7 | 7.0 | 6.0 | 23.0 | 13.5 | 6.5 | 1.00 | Yellow | IZUMI 5# | 1000 |
| 4.0~6.0mm² | KFSN141 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-4S | RNYS5.5-4 | 4.0 | 4.3 | 7.0 | 6.0 | 23.0 | 13.5 | 6.5 | 1.00 | Yellow | IZUMI 5# | 1000 |
| 4.0~6.0mm² | KFSN142 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-4L | RNYL5.5-4 | 4.0 | 4.3 | 9.5 | 8.0 | 26.5 | 13.5 | 6.5 | 1.00 | Yellow | IZUMI 5# | 1000 |
| 4.0~6.0mm² | KFSN143 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-5 | RNY5.5-5 | 5.0 | 5.3 | 9.5 | 8.0 | 26.5 | 13.5 | 6.5 | 1.00 | Yellow | IZUMI 5# | 1000 |
| 4.0~6.0mm² | KFSN144 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-6 | RNY5.5-6 | 6.0 | 6.5 | 12.0 | 10.5 | 30.0 | 13.5 | 6.5 | 1.00 | Yellow | IZUMI 5# | 500 |
| 4.0~6.0mm² | KFSN145 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-8 | RNY5.5-8 | 8.0 | 8.5 | 15.0 | 13.5 | 34.3 | 13.5 | 6.5 | 1.00 | Yellow | IZUMI 5# | 500 |
| 4.0~6.0mm² | KFSN146 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-10 | RNY5.5-10 | 10.0 | 10.5 | 15.0 | 13.5 | 34.3 | 13.5 | 6.5 | 1.00 | Yellow | IZUMI 5# | 500 |
| 4.0~6.0mm² | KFSN147 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-12 | RNY5.5-12 | 12.0 | 13.0 | 19.0 | 16.0 | 39.0 | 13.5 | 6.5 | 1.00 | Yellow | IZUMI 5# | 500 |
| 8mm² | KFSN150 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-4 | RNY8-4 | 4.0 | 4.3 | 8.8 | 10.5 | 31.5 | 16.5 | 9.0 | 1.20 | Red | OPT TP-80 | 500 |
| 8mm² | KFSN151 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-5S | RNYS8-5 | 5.0 | 5.3 | 8.8 | 10.5 | 31.5 | 16.5 | 9.0 | 1.20 | Red | OPT TP-80 | 500 |
| 8mm² | KFSN152 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-5M | RNYM8-5 | 5.0 | 5.3 | 12.0 | 9.0 | 31.5 | 16.5 | 9.0 | 1.20 | Red | OPT TP-80 | 500 |
| 8mm² | KFSN153 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-5L | RNYL8-5 | 5.0 | 5.3 | 15.0 | 14.0 | 38.0 | 16.5 | 9.0 | 1.20 | Red | OPT TP-80 | 500 |
| 8mm² | KFSN154 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-6S | RNYS8-6 | 6.0 | 6.5 | 12.0 | 9.0 | 31.5 | 16.5 | 9.0 | 1.20 | Red | OPT TP-80 | 500 |
| 8mm² | KFSN155 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-6L | RNYL8-6 | 6.0 | 6.8 | 15.0 | 14.0 | 38.0 | 16.5 | 9.0 | 1.20 | Red | OPT TP-80 | 250 |
| 8mm² | KFSN156 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-8 | RNY8-8 | 8.0 | 8.5 | 15.0 | 14.0 | 38.0 | 16.5 | 9.0 | 1.20 | Red | OPT TP-80 | 250 |
| 8mm² | KFSN157 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-10 | RNY8-10 | 10.0 | 10.5 | 15.0 | 14.0 | 38.0 | 16.5 | 9.0 | 1.20 | Red | OPT TP-80 | 250 |
| 8mm² | KFSN158 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-12 | RNY8-12 | 12.0 | 13.0 | 22.0 | 15.0 | 42.5 | 16.5 | 9.0 | 1.20 | Red | OPT TP-80 | 250 |
| 14mm² | KFSN160 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-4 | RNY14-4 | 4.0 | 4.3 | 12.0 | 13.5 | 39.5 | 20.5 | 11.0 | 1.40 | Blue | OPT TP-80 | 250 |
| 14mm² | KFSN161 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-5 | RNY14-5 | 5.0 | 5.3 | 12.0 | 13.5 | 39.5 | 20.5 | 11.0 | 1.40 | Blue | OPT TP-80 | 250 |
| 14mm² | KFSN162 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-6S | RNYS14-6 | 6.0 | 6.5 | 12.0 | 13.5 | 39.5 | 20.5 | 11.0 | 1.40 | Blue | OPT TP-80 | 250 |
| 14mm² | KFSN163 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-6L | RNYL14-6 | 6.0 | 6.5 | 16.0 | 14.0 | 42.5 | 20.5 | 11.0 | 1.40 | Blue | OPT TP-80 | 250 |
| 14mm² | KFSN164 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-8 | RNY14-8 | 8.0 | 8.5 | 16.0 | 14.0 | 42.5 | 20.5 | 11.0 | 1.40 | Blue | OPT TP-80 | 250 |
| 14mm² | KFSN165 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-10 | RNY14-10 | 10.0 | 10.5 | 16.0 | 14.0 | 42.5 | 20.5 | 11.0 | 1.40 | Blue | OPT TP-80 | 250 |
| 14mm² | KFSN166 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-12 | RNY14-12 | 12.0 | 13.0 | 22.0 | 19.5 | 51.0 | 20.5 | 11.0 | 1.40 | Blue | OPT TP-80 | 200 |
| 14mm² | KFSN167 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-16 | RNY14-16 | 16.0 | 17.0 | 30.0 | 25.5 | 61.0 | 20.5 | 11.0 | 1.40 | Blue | OPT TP-80 | 200 |
| 22mm² | KFSN170 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-5S | RNYS22-5 | 5.0 | 5.3 | 12.0 | 14.5 | 44.5 | 24.0 | 13.5 | 1.70 | Yellow | OPT TP-80 | 100 |
| 22mm² | KFSN171 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-5L | RNYL22-5 | 5.0 | 5.3 | 16.5 | 13.5 | 45.5 | 24.0 | 13.5 | 1.70 | Yellow | OPT TP-80 | 100 |
| 22mm² | KFSN172 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-6S | RNYS22-6 | 6.0 | 6.5 | 12.0 | 14.5 | 44.5 | 24.0 | 13.5 | 1.70 | Yellow | OPT TP-80 | 100 |
| 22mm² | KFSN173 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-6L | RNYL22-6 | 6.0 | 6.5 | 16.5 | 13.5 | 45.5 | 24.0 | 13.5 | 1.70 | Yellow | OPT TP-80 | 100 |
| 22mm² | KFSN174 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-8 | RNY22-8 | 8.0 | 8.5 | 16.5 | 13.5 | 45.5 | 24.0 | 13.5 | 1.70 | Yellow | OPT TP-80 | 100 |
| 22mm² | KFSN175 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-10 | RNY22-10 | 10.0 | 10.5 | 16.5 | 13.5 | 45.5 | 24.0 | 13.5 | 1.70 | Yellow | OPT TP-80 | 100 |
| 22mm² | KFSN176 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-12 | RNY22-12 | 12.0 | 13.0 | 22.0 | 19.5 | 54.5 | 24.0 | 13.5 | 1.70 | Yellow | OPT TP-80 | 100 |
| 22mm² | KFSN177 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-14 | RNY22-14 | 14.0 | 15.0 | 30.0 | 25.0 | 64.0 | 24.0 | 13.5 | 1.70 | Yellow | OPT TP-80 | 100 |
| 22mm² | KFSN178 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-16 | RNY22-16 | 16.0 | 17.0 | 30.0 | 25.0 | 64.0 | 24.0 | 13.5 | 1.70 | Yellow | OPT TP-80 | 100 |
| 38mm² | KFSN180 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-5 | RNY38-5 | 5.0 | 5.3 | 15.5 | 18.5 | 53.5 | 27.5 | 15.0 | 1.80 | Red | OPT TP-80 | 50 |
| 38mm² | KFSN181 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-6 | RNY38-6 | 6.0 | 6.5 | 15.5 | 18.5 | 53.5 | 27.5 | 15.0 | 1.80 | Red | OPT TP-80 | 50 |
| 38mm² | KFSN182 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-8S | RNYS38-8 | 8.0 | 8.5 | 15.5 | 18.5 | 53.5 | 27.5 | 15.0 | 1.80 | Red | OPT TP-80 | 50 |
| 38mm² | KFSN183 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-8L | RNYL38-8 | 8.0 | 8.5 | 22.0 | 17.5 | 56.0 | 27.5 | 15.0 | 1.80 | Red | OPT TP-80 | 50 |
| 38mm² | KFSN184 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-10S | RNYS38-10 | 10.0 | 10.5 | 15.5 | 18.5 | 53.5 | 27.5 | 15.0 | 1.80 | Red | OPT TP-80 | 50 |
| 38mm² | KFSN185 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-10L | RNYL38-10 | 10.0 | 10.5 | 22.0 | 17.5 | 56.0 | 27.5 | 15.0 | 1.80 | Red | OPT TP-80 | 50 |
| 38mm² | KFSN186 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-12 | RNY38-12 | 12.0 | 13.0 | 22.0 | 17.5 | 56.0 | 27.5 | 15.0 | 1.80 | Red | OPT TP-80 | 50 |
| 38mm² | KFSN187 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-14 | RNY38-14 | 14.0 | 15.0 | 30.0 | 24.0 | 66.0 | 27.5 | 15.0 | 1.80 | Red | OPT TP-80 | 50 |
| 38mm² | KFSN188 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-16 | RNY38-16 | 16.0 | 17.0 | 30.0 | 24.0 | 66.0 | 27.5 | 15.0 | 1.80 | Red | OPT TP-80 | 50 |
Want to get a sample? Please fill in the form, leave your contact information and parameter information.
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions Inch | Color | Tool | PCS/Pack | ||||||
| USA | d2 | B | F | L | H | D | T | |||||||
| A.W.G. 22-16 | KFSN110 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-3 | RNY1.25-3 | #4 | 0.126 | 0.217 | 0.197 | 0.709 | 0.413 | 0.157 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSN111 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-3.5S | RNYS1.25-3.5 | #6 | 0.146 | 0.217 | 0.197 | 0.709 | 0.413 | 0.157 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSN112 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-3.5M | RNYM1.25-3.5 | #6 | 0.146 | 0.256 | 0.236 | 0.787 | 0.413 | 0.157 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSN113 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-4S | RNYS1.25-4 | #8 | 0.169 | 0.256 | 0.236 | 0.787 | 0.413 | 0.157 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSN114 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-4L | RNYL1.25-4 | #8 | 0.169 | 0.315 | 0.276 | 0.846 | 0.413 | 0.157 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSN115 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-5 | RNY1.25-5 | #10 | 0.209 | 0.315 | 0.276 | 0.846 | 0.413 | 0.157 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSN116 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-5L | RNYL1.25-5 | #10 | 0.209 | 0.394 | 0.315 | 0.925 | 0.413 | 0.157 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSN117 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-6S | RNYS1.25-6 | 1/4" | 0.256 | 0.394 | 0.315 | 0.925 | 0.413 | 0.157 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSN118 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-6 | RNY1.25-6 | 1/4" | 0.256 | 0.453 | 0.433 | 1.083 | 0.413 | 0.157 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSN119 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-8 | RNY1.25-8 | 5/16" | 0.335 | 0.453 | 0.433 | 1.083 | 0.413 | 0.157 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSN11A | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-10 | RNY1.25-10 | 3/8" | 0.413 | 0.531 | 0.551 | 1.220 | 0.413 | 0.157 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSN11B | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-12 | RNY1.25-12 | 1/2" | 0.512 | 0.748 | 0.551 | 1.417 | 0.413 | 0.157 | 0.030 | Red | IZUMI 3# | 500 |
| A.W.G. 16-14 | KFSN120 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-3 | RNY2-3 | #4 | 0.126 | 0.256 | 0.177 | 0.728 | 0.413 | 0.177 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSN121 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-3.5S | RNYS2-3.5 | #6 | 0.146 | 0.256 | 0.177 | 0.728 | 0.413 | 0.177 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSN122 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-3.5M | RNYM2-3.5 | #6 | 0.146 | 0.256 | 0.236 | 0.787 | 0.413 | 0.177 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSN123 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-4S | RNYS2-4 | #8 | 0.169 | 0.256 | 0.236 | 0.787 | 0.413 | 0.177 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSN124 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-4L | RNYL2-4 | #8 | 0.169 | 0.335 | 0.315 | 0.886 | 0.413 | 0.177 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSN125 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-5S | RNYS2-5 | #10 | 0.209 | 0.335 | 0.315 | 0.886 | 0.413 | 0.177 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSN126 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-5L | RNYL2-5 | #10 | 0.209 | 0.374 | 0.295 | 0.886 | 0.413 | 0.177 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSN127 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-6 | RNY2-6 | 1/4" | 0.256 | 0.472 | 0.433 | 1.083 | 0.413 | 0.177 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSN128 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-8 | RNY2-8 | 5/16" | 0.335 | 0.472 | 0.433 | 1.083 | 0.413 | 0.177 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSN129 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-10 | RNY2-10 | 3/8" | 0.413 | 0.531 | 0.551 | 1.220 | 0.413 | 0.177 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSN12A | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-12 | RNY2-12 | 1/2" | 0.512 | 0.748 | 0.630 | 1.417 | 0.413 | 0.177 | 0.031 | Blue | IZUMI 4# | 500 |
| A.W.G. 14-12 | KFSN130 | 14-12 AWG Nylon-Insulated Single Crimp Ring Terminals 3.5-4 | RNY3.5-4 | #8 | 0.169 | 0.315 | 0.315 | 1.004 | 0.531 | 0.236 | 0.039 | Black | IZUMI 5# | 1000 |
| A.W.G. 14-12 | KFSN131 | 14-12 AWG Nylon-Insulated Single Crimp Ring Terminals 3.5-5S | RNYS3.5-5 | #10 | 0.209 | 0.315 | 0.315 | 1.004 | 0.531 | 0.236 | 0.039 | Black | IZUMI 5# | 1000 |
| A.W.G. 14-12 | KFSN132 | 14-12 AWG Nylon-Insulated Single Crimp Ring Terminals 3.5-5L | RNYL3.5-5 | #10 | 0.209 | 0.472 | 0.374 | 1.142 | 0.531 | 0.236 | 0.039 | Black | IZUMI 5# | 500 |
| A.W.G. 14-12 | KFSN133 | 14-12 AWG Nylon-Insulated Single Crimp Ring Terminals 3.5-6 | RNY3.5-6 | 1/4" | 0.256 | 0.472 | 0.374 | 1.142 | 0.531 | 0.236 | 0.039 | Black | IZUMI 5# | 500 |
| A.W.G. 14-12 | KFSN134 | 14-12 AWG Nylon-Insulated Single Crimp Ring Terminals 3.5-8 | RNY3.5-8 | 5/16" | 0.335 | 0.591 | 0.531 | 1.358 | 0.531 | 0.236 | 0.039 | Black | IZUMI 5# | 500 |
| A.W.G. 14-12 | KFSN135 | 14-12 AWG Nylon-Insulated Single Crimp Ring Terminals 3.5-10 | RNY3.5-10 | 3/8" | 0.413 | 0.591 | 0.531 | 1.358 | 0.531 | 0.236 | 0.039 | Black | IZUMI 5# | 500 |
| A.W.G. 14-12 | KFSN136 | 14-12 AWG Nylon-Insulated Single Crimp Ring Terminals 3.5-12 | RNY3.5-12 | 1/2" | 0.512 | 0.787 | 0.610 | 1.535 | 0.531 | 0.236 | 0.039 | Black | IZUMI 5# | 500 |
| A.W.G. 12-10 | KFSN140 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-3.5 | RNY5.5-3.5 | #6 | 0.146 | 0.276 | 0.236 | 0.906 | 0.531 | 0.256 | 0.039 | Yellow | IZUMI 5# | 1000 |
| A.W.G. 12-10 | KFSN141 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-4S | RNYS5.5-4 | #8 | 0.169 | 0.276 | 0.236 | 0.906 | 0.531 | 0.256 | 0.039 | Yellow | IZUMI 5# | 1000 |
| A.W.G. 12-10 | KFSN142 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-4L | RNYL5.5-4 | #8 | 0.169 | 0.374 | 0.315 | 1.043 | 0.531 | 0.256 | 0.039 | Yellow | IZUMI 5# | 1000 |
| A.W.G. 12-10 | KFSN143 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-5 | RNY5.5-5 | #10 | 0.209 | 0.374 | 0.315 | 1.043 | 0.531 | 0.256 | 0.039 | Yellow | IZUMI 5# | 1000 |
| A.W.G. 12-10 | KFSN144 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-6 | RNY5.5-6 | 1/4" | 0.256 | 0.472 | 0.413 | 1.181 | 0.531 | 0.256 | 0.039 | Yellow | IZUMI 5# | 500 |
| A.W.G. 12-10 | KFSN145 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-8 | RNY5.5-8 | 5/16" | 0.335 | 0.591 | 0.531 | 1.350 | 0.531 | 0.256 | 0.039 | Yellow | IZUMI 5# | 500 |
| A.W.G. 12-10 | KFSN146 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-10 | RNY5.5-10 | 3/8" | 0.413 | 0.591 | 0.531 | 1.350 | 0.531 | 0.256 | 0.039 | Yellow | IZUMI 5# | 500 |
| A.W.G. 12-10 | KFSN147 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-12 | RNY5.5-12 | 1/2" | 0.512 | 0.748 | 0.630 | 1.535 | 0.531 | 0.256 | 0.039 | Yellow | IZUMI 5# | 500 |
| A.W.G. 8 | KFSN150 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-4 | RNY8-4 | #8 | 0.169 | 0.346 | 0.413 | 1.240 | 0.650 | 0.354 | 0.047 | Red | OPT TP-80 | 500 |
| A.W.G. 8 | KFSN151 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-5S | RNYS8-5 | #10 | 0.209 | 0.346 | 0.413 | 1.240 | 0.650 | 0.354 | 0.047 | Red | OPT TP-80 | 500 |
| A.W.G. 8 | KFSN152 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-5M | RNYM8-5 | #10 | 0.209 | 0.472 | 0.354 | 1.240 | 0.650 | 0.354 | 0.047 | Red | OPT TP-80 | 500 |
| A.W.G. 8 | KFSN153 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-5L | RNYL8-5 | #10 | 0.209 | 0.591 | 0.551 | 1.496 | 0.650 | 0.354 | 0.047 | Red | OPT TP-80 | 500 |
| A.W.G. 8 | KFSN154 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-6S | RNYS8-6 | 1/4" | 0.256 | 0.472 | 0.354 | 1.240 | 0.650 | 0.354 | 0.047 | Red | OPT TP-80 | 500 |
| A.W.G. 8 | KFSN155 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-6L | RNYL8-6 | 1/4" | 0.266 | 0.591 | 0.551 | 1.496 | 0.650 | 0.354 | 0.047 | Red | OPT TP-80 | 250 |
| A.W.G. 8 | KFSN156 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-8 | RNY8-8 | 5/16" | 0.335 | 0.591 | 0.551 | 1.496 | 0.650 | 0.354 | 0.047 | Red | OPT TP-80 | 250 |
| A.W.G. 8 | KFSN157 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-10 | RNY8-10 | 3/8" | 0.413 | 0.591 | 0.551 | 1.496 | 0.650 | 0.354 | 0.047 | Red | OPT TP-80 | 250 |
| A.W.G. 8 | KFSN158 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-12 | RNY8-12 | 1/2" | 0.512 | 0.866 | 0.591 | 1.673 | 0.650 | 0.354 | 0.047 | Red | OPT TP-80 | 250 |
| A.W.G. 6 | KFSN160 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-4 | RNY14-4 | #8 | 0.169 | 0.472 | 0.531 | 1.555 | 0.807 | 0.433 | 0.055 | Blue | OPT TP-80 | 250 |
| A.W.G. 6 | KFSN161 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-5 | RNY14-5 | #10 | 0.209 | 0.472 | 0.531 | 1.555 | 0.807 | 0.433 | 0.055 | Blue | OPT TP-80 | 250 |
| A.W.G. 6 | KFSN162 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-6S | RNYS14-6 | 1/4" | 0.256 | 0.472 | 0.531 | 1.555 | 0.807 | 0.433 | 0.055 | Blue | OPT TP-80 | 250 |
| A.W.G. 6 | KFSN163 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-6L | RNYL14-6 | 1/4" | 0.256 | 0.630 | 0.551 | 1.673 | 0.807 | 0.433 | 0.055 | Blue | OPT TP-80 | 250 |
| A.W.G. 6 | KFSN164 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-8 | RNY14-8 | 5/16" | 0.335 | 0.630 | 0.551 | 1.673 | 0.807 | 0.433 | 0.055 | Blue | OPT TP-80 | 250 |
| A.W.G. 6 | KFSN165 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-10 | RNY14-10 | 3/8" | 0.413 | 0.630 | 0.551 | 1.673 | 0.807 | 0.433 | 0.055 | Blue | OPT TP-80 | 250 |
| A.W.G. 6 | KFSN166 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-12 | RNY14-12 | 1/2" | 0.512 | 0.866 | 0.768 | 2.008 | 0.807 | 0.433 | 0.055 | Blue | OPT TP-80 | 200 |
| A.W.G. 6 | KFSN167 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-16 | RNY14-16 | 5/8" | 0.669 | 1.181 | 1.004 | 2.402 | 0.807 | 0.433 | 0.055 | Blue | OPT TP-80 | 200 |
| A.W.G. 4 | KFSN170 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-5S | RNYS22-5 | #10 | 0.209 | 0.472 | 0.571 | 1.752 | 0.945 | 0.531 | 0.067 | Yellow | OPT TP-80 | 100 |
| A.W.G. 4 | KFSN171 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-5L | RNYL22-5 | #10 | 0.209 | 0.650 | 0.531 | 1.791 | 0.945 | 0.531 | 0.067 | Yellow | OPT TP-80 | 100 |
| A.W.G. 4 | KFSN172 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-6S | RNYS22-6 | 1/4" | 0.256 | 0.472 | 0.571 | 1.752 | 0.945 | 0.531 | 0.067 | Yellow | OPT TP-80 | 100 |
| A.W.G. 4 | KFSN173 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-6L | RNYL22-6 | 1/4" | 0.256 | 0.650 | 0.531 | 1.791 | 0.945 | 0.531 | 0.067 | Yellow | OPT TP-80 | 100 |
| A.W.G. 4 | KFSN174 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-8 | RNY22-8 | 5/16" | 0.335 | 0.650 | 0.531 | 1.791 | 0.945 | 0.531 | 0.067 | Yellow | OPT TP-80 | 100 |
| A.W.G. 4 | KFSN175 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-10 | RNY22-10 | 3/8" | 0.413 | 0.650 | 0.531 | 1.791 | 0.945 | 0.531 | 0.067 | Yellow | OPT TP-80 | 100 |
| A.W.G. 4 | KFSN176 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-12 | RNY22-12 | 1/2" | 0.512 | 0.866 | 0.768 | 2.146 | 0.945 | 0.531 | 0.067 | Yellow | OPT TP-80 | 100 |
| A.W.G. 4 | KFSN177 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-14 | RNY22-14 | 9/16" | 0.591 | 1.181 | 0.984 | 2.520 | 0.945 | 0.531 | 0.067 | Yellow | OPT TP-80 | 100 |
| A.W.G. 4 | KFSN178 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-16 | RNY22-16 | 5/8" | 0.669 | 1.181 | 0.984 | 2.520 | 0.945 | 0.531 | 0.067 | Yellow | OPT TP-80 | 100 |
| A.W.G. 2 | KFSN180 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-5 | RNY38-5 | #10 | 0.209 | 0.610 | 0.728 | 2.106 | 1.083 | 0.591 | 0.071 | Red | OPT TP-80 | 50 |
| A.W.G. 2 | KFSN181 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-6 | RNY38-6 | 1/4" | 0.256 | 0.610 | 0.728 | 2.106 | 1.083 | 0.591 | 0.071 | Red | OPT TP-80 | 50 |
| A.W.G. 2 | KFSN182 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-8S | RNYS38-8 | 5/16" | 0.335 | 0.610 | 0.728 | 2.106 | 1.083 | 0.591 | 0.071 | Red | OPT TP-80 | 50 |
| A.W.G. 2 | KFSN183 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-8L | RNYL38-8 | 5/16" | 0.335 | 0.866 | 0.689 | 2.205 | 1.083 | 0.591 | 0.071 | Red | OPT TP-80 | 50 |
| A.W.G. 2 | KFSN184 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-10S | RNYS38-10 | 3/8" | 0.413 | 0.610 | 0.728 | 2.106 | 1.083 | 0.591 | 0.071 | Red | OPT TP-80 | 50 |
| A.W.G. 2 | KFSN185 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-10L | RNYL38-10 | 3/8" | 0.413 | 0.866 | 0.689 | 2.205 | 1.083 | 0.591 | 0.071 | Red | OPT TP-80 | 50 |
| A.W.G. 2 | KFSN186 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-12 | RNY38-12 | 1/2" | 0.512 | 0.866 | 0.689 | 2.205 | 1.083 | 0.591 | 0.071 | Red | OPT TP-80 | 50 |
| A.W.G. 2 | KFSN187 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-14 | RNY38-14 | 9/16" | 0.591 | 1.181 | 0.945 | 2.598 | 1.083 | 0.591 | 0.071 | Red | OPT TP-80 | 50 |
| A.W.G. 2 | KFSN188 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-16 | RNY38-16 | 5/8" | 0.669 | 1.181 | 0.945 | 2.598 | 1.083 | 0.591 | 0.071 | Red | OPT TP-80 | 50 |
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions mm | Color | Tool | PCS/Pack | ||||||
| Meric | d2 | B | F | L | H | D | T | |||||||
| 0.5~1.5mm² | KFSN110 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-3 | RNY1.25-3 | 3.0 | 3.2 | 5.5 | 5.0 | 18.0 | 10.5 | 4.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSN111 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-3.5S | RNYS1.25-3.5 | 3.5 | 3.7 | 5.5 | 5.0 | 18.0 | 10.5 | 4.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSN112 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-3.5M | RNYM1.25-3.5 | 3.5 | 3.7 | 6.5 | 6.0 | 20.0 | 10.5 | 4.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSN113 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-4S | RNYS1.25-4 | 4.0 | 4.3 | 6.5 | 6.0 | 20.0 | 10.5 | 4.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSN114 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-4L | RNYL1.25-4 | 4.0 | 4.3 | 8.0 | 7.0 | 21.5 | 10.5 | 4.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSN115 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-5 | RNY1.25-5 | 5.0 | 5.3 | 8.0 | 7.0 | 21.5 | 10.5 | 4.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSN116 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-5L | RNYL1.25-5 | 5.0 | 5.3 | 10.0 | 8.0 | 23.5 | 10.5 | 4.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSN117 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-6S | RNYS1.25-6 | 6.0 | 6.5 | 10.0 | 8.0 | 23.5 | 10.5 | 4.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSN118 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-6 | RNY1.25-6 | 6.0 | 6.5 | 11.5 | 11.0 | 27.5 | 10.5 | 4.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSN119 | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-8 | RNY1.25-8 | 8.0 | 8.5 | 11.5 | 11.0 | 27.5 | 10.5 | 4.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSN11A | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-10 | RNY1.25-10 | 10.0 | 10.5 | 13.5 | 14.0 | 31.0 | 10.5 | 4.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSN11B | 22-16 AWG Nylon-Insulated Single Crimp Ring Terminals 1.25-12 | RNY1.25-12 | 12.0 | 13.0 | 19.0 | 14.0 | 36.0 | 10.5 | 4.0 | 0.75 | Red | IZUMI 3# | 500 |
| 1.5~2.5mm² | KFSN120 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-3 | RNY2-3 | 3.0 | 3.2 | 6.5 | 4.5 | 18.5 | 10.5 | 4.5 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSN121 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-3.5S | RNYS2-3.5 | 3.5 | 3.7 | 6.5 | 4.5 | 18.5 | 10.5 | 4.5 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSN122 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-3.5M | RNYM2-3.5 | 3.5 | 3.7 | 6.5 | 6.0 | 20.0 | 10.5 | 4.5 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSN123 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-4S | RNYS2-4 | 4.0 | 4.3 | 6.5 | 6.0 | 20.0 | 10.5 | 4.5 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSN124 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-4L | RNYL2-4 | 4.0 | 4.3 | 8.5 | 8.0 | 22.5 | 10.5 | 4.5 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSN125 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-5S | RNYS2-5 | 5.0 | 5.3 | 8.5 | 8.0 | 22.5 | 10.5 | 4.5 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSN126 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-5L | RNYL2-5 | 5.0 | 5.3 | 9.5 | 7.5 | 22.5 | 10.5 | 4.5 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSN127 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-6 | RNY2-6 | 6.0 | 6.5 | 12.0 | 11.0 | 27.5 | 10.5 | 4.5 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSN128 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-8 | RNY2-8 | 8.0 | 8.5 | 12.0 | 11.0 | 27.5 | 10.5 | 4.5 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSN129 | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-10 | RNY2-10 | 10.0 | 10.5 | 13.5 | 14.0 | 31.0 | 10.5 | 4.5 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSN12A | 16-14 AWG Nylon-Insulated Single Crimp Ring Terminals 2-12 | RNY2-12 | 12.0 | 13.0 | 19.0 | 16.0 | 36.0 | 10.5 | 4.5 | 0.80 | Blue | IZUMI 4# | 500 |
| 2.5~4.0mm² | KFSN130 | 14-12 AWG Nylon-Insulated Single Crimp Ring Terminals 3.5-4 | RNY3.5-4 | 4.0 | 4.3 | 8.0 | 8.0 | 25.5 | 13.5 | 6.0 | 1.00 | Black | IZUMI 5# | 1000 |
| 2.5~4.0mm² | KFSN131 | 14-12 AWG Nylon-Insulated Single Crimp Ring Terminals 3.5-5S | RNYS3.5-5 | 5.0 | 5.3 | 8.0 | 8.0 | 25.5 | 13.5 | 6.0 | 1.00 | Black | IZUMI 5# | 1000 |
| 2.5~4.0mm² | KFSN132 | 14-12 AWG Nylon-Insulated Single Crimp Ring Terminals 3.5-5L | RNYL3.5-5 | 5.0 | 5.3 | 12.0 | 9.5 | 29.0 | 13.5 | 6.0 | 1.00 | Black | IZUMI 5# | 500 |
| 2.5~4.0mm² | KFSN133 | 14-12 AWG Nylon-Insulated Single Crimp Ring Terminals 3.5-6 | RNY3.5-6 | 6.0 | 6.5 | 12.0 | 9.5 | 29.0 | 13.5 | 6.0 | 1.00 | Black | IZUMI 5# | 500 |
| 2.5~4.0mm² | KFSN134 | 14-12 AWG Nylon-Insulated Single Crimp Ring Terminals 3.5-8 | RNY3.5-8 | 8.0 | 8.5 | 15.0 | 13.5 | 34.5 | 13.5 | 6.0 | 1.00 | Black | IZUMI 5# | 500 |
| 2.5~4.0mm² | KFSN135 | 14-12 AWG Nylon-Insulated Single Crimp Ring Terminals 3.5-10 | RNY3.5-10 | 10.0 | 10.5 | 15.0 | 13.5 | 34.5 | 13.5 | 6.0 | 1.00 | Black | IZUMI 5# | 500 |
| 2.5~4.0mm² | KFSN136 | 14-12 AWG Nylon-Insulated Single Crimp Ring Terminals 3.5-12 | RNY3.5-12 | 12.0 | 13.0 | 20.0 | 15.5 | 39.0 | 13.5 | 6.0 | 1.00 | Black | IZUMI 5# | 500 |
| 4.0~6.0mm² | KFSN140 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-3.5 | RNY5.5-3.5 | 3.5 | 3.7 | 7.0 | 6.0 | 23.0 | 13.5 | 6.5 | 1.00 | Yellow | IZUMI 5# | 1000 |
| 4.0~6.0mm² | KFSN141 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-4S | RNYS5.5-4 | 4.0 | 4.3 | 7.0 | 6.0 | 23.0 | 13.5 | 6.5 | 1.00 | Yellow | IZUMI 5# | 1000 |
| 4.0~6.0mm² | KFSN142 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-4L | RNYL5.5-4 | 4.0 | 4.3 | 9.5 | 8.0 | 26.5 | 13.5 | 6.5 | 1.00 | Yellow | IZUMI 5# | 1000 |
| 4.0~6.0mm² | KFSN143 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-5 | RNY5.5-5 | 5.0 | 5.3 | 9.5 | 8.0 | 26.5 | 13.5 | 6.5 | 1.00 | Yellow | IZUMI 5# | 1000 |
| 4.0~6.0mm² | KFSN144 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-6 | RNY5.5-6 | 6.0 | 6.5 | 12.0 | 10.5 | 30.0 | 13.5 | 6.5 | 1.00 | Yellow | IZUMI 5# | 500 |
| 4.0~6.0mm² | KFSN145 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-8 | RNY5.5-8 | 8.0 | 8.5 | 15.0 | 13.5 | 34.3 | 13.5 | 6.5 | 1.00 | Yellow | IZUMI 5# | 500 |
| 4.0~6.0mm² | KFSN146 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-10 | RNY5.5-10 | 10.0 | 10.5 | 15.0 | 13.5 | 34.3 | 13.5 | 6.5 | 1.00 | Yellow | IZUMI 5# | 500 |
| 4.0~6.0mm² | KFSN147 | 12-10 AWG Nylon-Insulated Single Crimp Ring Terminals 5.5-12 | RNY5.5-12 | 12.0 | 13.0 | 19.0 | 16.0 | 39.0 | 13.5 | 6.5 | 1.00 | Yellow | IZUMI 5# | 500 |
| 8mm² | KFSN150 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-4 | RNY8-4 | 4.0 | 4.3 | 8.8 | 10.5 | 31.5 | 16.5 | 9.0 | 1.20 | Red | OPT TP-80 | 500 |
| 8mm² | KFSN151 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-5S | RNYS8-5 | 5.0 | 5.3 | 8.8 | 10.5 | 31.5 | 16.5 | 9.0 | 1.20 | Red | OPT TP-80 | 500 |
| 8mm² | KFSN152 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-5M | RNYM8-5 | 5.0 | 5.3 | 12.0 | 9.0 | 31.5 | 16.5 | 9.0 | 1.20 | Red | OPT TP-80 | 500 |
| 8mm² | KFSN153 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-5L | RNYL8-5 | 5.0 | 5.3 | 15.0 | 14.0 | 38.0 | 16.5 | 9.0 | 1.20 | Red | OPT TP-80 | 500 |
| 8mm² | KFSN154 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-6S | RNYS8-6 | 6.0 | 6.5 | 12.0 | 9.0 | 31.5 | 16.5 | 9.0 | 1.20 | Red | OPT TP-80 | 500 |
| 8mm² | KFSN155 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-6L | RNYL8-6 | 6.0 | 6.8 | 15.0 | 14.0 | 38.0 | 16.5 | 9.0 | 1.20 | Red | OPT TP-80 | 250 |
| 8mm² | KFSN156 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-8 | RNY8-8 | 8.0 | 8.5 | 15.0 | 14.0 | 38.0 | 16.5 | 9.0 | 1.20 | Red | OPT TP-80 | 250 |
| 8mm² | KFSN157 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-10 | RNY8-10 | 10.0 | 10.5 | 15.0 | 14.0 | 38.0 | 16.5 | 9.0 | 1.20 | Red | OPT TP-80 | 250 |
| 8mm² | KFSN158 | 8 AWG Nylon-Insulated Single Crimp Ring Terminals 8-12 | RNY8-12 | 12.0 | 13.0 | 22.0 | 15.0 | 42.5 | 16.5 | 9.0 | 1.20 | Red | OPT TP-80 | 250 |
| 14mm² | KFSN160 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-4 | RNY14-4 | 4.0 | 4.3 | 12.0 | 13.5 | 39.5 | 20.5 | 11.0 | 1.40 | Blue | OPT TP-80 | 250 |
| 14mm² | KFSN161 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-5 | RNY14-5 | 5.0 | 5.3 | 12.0 | 13.5 | 39.5 | 20.5 | 11.0 | 1.40 | Blue | OPT TP-80 | 250 |
| 14mm² | KFSN162 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-6S | RNYS14-6 | 6.0 | 6.5 | 12.0 | 13.5 | 39.5 | 20.5 | 11.0 | 1.40 | Blue | OPT TP-80 | 250 |
| 14mm² | KFSN163 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-6L | RNYL14-6 | 6.0 | 6.5 | 16.0 | 14.0 | 42.5 | 20.5 | 11.0 | 1.40 | Blue | OPT TP-80 | 250 |
| 14mm² | KFSN164 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-8 | RNY14-8 | 8.0 | 8.5 | 16.0 | 14.0 | 42.5 | 20.5 | 11.0 | 1.40 | Blue | OPT TP-80 | 250 |
| 14mm² | KFSN165 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-10 | RNY14-10 | 10.0 | 10.5 | 16.0 | 14.0 | 42.5 | 20.5 | 11.0 | 1.40 | Blue | OPT TP-80 | 250 |
| 14mm² | KFSN166 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-12 | RNY14-12 | 12.0 | 13.0 | 22.0 | 19.5 | 51.0 | 20.5 | 11.0 | 1.40 | Blue | OPT TP-80 | 200 |
| 14mm² | KFSN167 | 6 AWG Nylon-Insulated Single Crimp Ring Terminals 14-16 | RNY14-16 | 16.0 | 17.0 | 30.0 | 25.5 | 61.0 | 20.5 | 11.0 | 1.40 | Blue | OPT TP-80 | 200 |
| 22mm² | KFSN170 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-5S | RNYS22-5 | 5.0 | 5.3 | 12.0 | 14.5 | 44.5 | 24.0 | 13.5 | 1.70 | Yellow | OPT TP-80 | 100 |
| 22mm² | KFSN171 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-5L | RNYL22-5 | 5.0 | 5.3 | 16.5 | 13.5 | 45.5 | 24.0 | 13.5 | 1.70 | Yellow | OPT TP-80 | 100 |
| 22mm² | KFSN172 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-6S | RNYS22-6 | 6.0 | 6.5 | 12.0 | 14.5 | 44.5 | 24.0 | 13.5 | 1.70 | Yellow | OPT TP-80 | 100 |
| 22mm² | KFSN173 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-6L | RNYL22-6 | 6.0 | 6.5 | 16.5 | 13.5 | 45.5 | 24.0 | 13.5 | 1.70 | Yellow | OPT TP-80 | 100 |
| 22mm² | KFSN174 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-8 | RNY22-8 | 8.0 | 8.5 | 16.5 | 13.5 | 45.5 | 24.0 | 13.5 | 1.70 | Yellow | OPT TP-80 | 100 |
| 22mm² | KFSN175 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-10 | RNY22-10 | 10.0 | 10.5 | 16.5 | 13.5 | 45.5 | 24.0 | 13.5 | 1.70 | Yellow | OPT TP-80 | 100 |
| 22mm² | KFSN176 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-12 | RNY22-12 | 12.0 | 13.0 | 22.0 | 19.5 | 54.5 | 24.0 | 13.5 | 1.70 | Yellow | OPT TP-80 | 100 |
| 22mm² | KFSN177 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-14 | RNY22-14 | 14.0 | 15.0 | 30.0 | 25.0 | 64.0 | 24.0 | 13.5 | 1.70 | Yellow | OPT TP-80 | 100 |
| 22mm² | KFSN178 | 4 AWG Nylon-Insulated Single Crimp Ring Terminals 22-16 | RNY22-16 | 16.0 | 17.0 | 30.0 | 25.0 | 64.0 | 24.0 | 13.5 | 1.70 | Yellow | OPT TP-80 | 100 |
| 38mm² | KFSN180 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-5 | RNY38-5 | 5.0 | 5.3 | 15.5 | 18.5 | 53.5 | 27.5 | 15.0 | 1.80 | Red | OPT TP-80 | 50 |
| 38mm² | KFSN181 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-6 | RNY38-6 | 6.0 | 6.5 | 15.5 | 18.5 | 53.5 | 27.5 | 15.0 | 1.80 | Red | OPT TP-80 | 50 |
| 38mm² | KFSN182 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-8S | RNYS38-8 | 8.0 | 8.5 | 15.5 | 18.5 | 53.5 | 27.5 | 15.0 | 1.80 | Red | OPT TP-80 | 50 |
| 38mm² | KFSN183 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-8L | RNYL38-8 | 8.0 | 8.5 | 22.0 | 17.5 | 56.0 | 27.5 | 15.0 | 1.80 | Red | OPT TP-80 | 50 |
| 38mm² | KFSN184 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-10S | RNYS38-10 | 10.0 | 10.5 | 15.5 | 18.5 | 53.5 | 27.5 | 15.0 | 1.80 | Red | OPT TP-80 | 50 |
| 38mm² | KFSN185 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-10L | RNYL38-10 | 10.0 | 10.5 | 22.0 | 17.5 | 56.0 | 27.5 | 15.0 | 1.80 | Red | OPT TP-80 | 50 |
| 38mm² | KFSN186 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-12 | RNY38-12 | 12.0 | 13.0 | 22.0 | 17.5 | 56.0 | 27.5 | 15.0 | 1.80 | Red | OPT TP-80 | 50 |
| 38mm² | KFSN187 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-14 | RNY38-14 | 14.0 | 15.0 | 30.0 | 24.0 | 66.0 | 27.5 | 15.0 | 1.80 | Red | OPT TP-80 | 50 |
| 38mm² | KFSN188 | 2 AWG Nylon-Insulated Single Crimp Ring Terminals 38-16 | RNY38-16 | 16.0 | 17.0 | 30.0 | 24.0 | 66.0 | 27.5 | 15.0 | 1.80 | Red | OPT TP-80 | 50 |
You can tick the products you need and communicate with us in the message board.
Allen.Mo
Jackie.Li
Jasmine.Zhang
Jon.Sun
Roy.Liu
