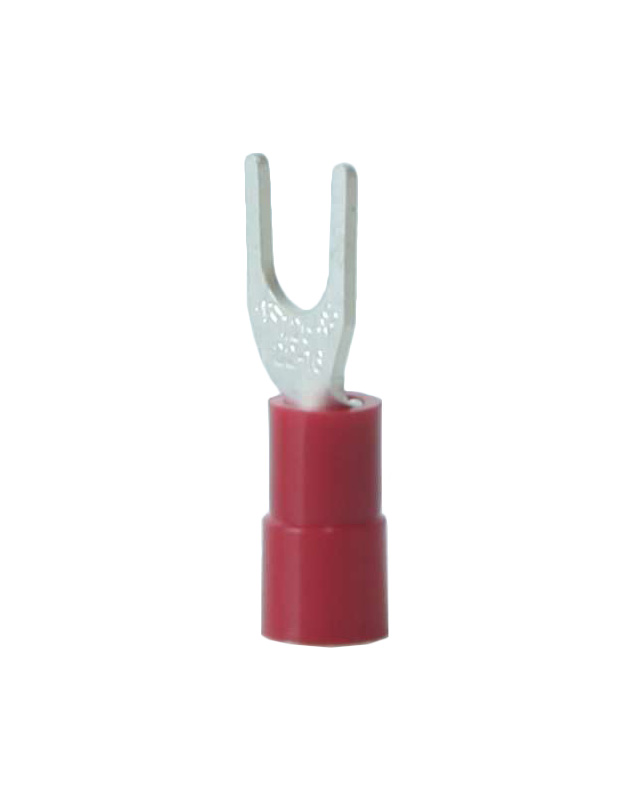

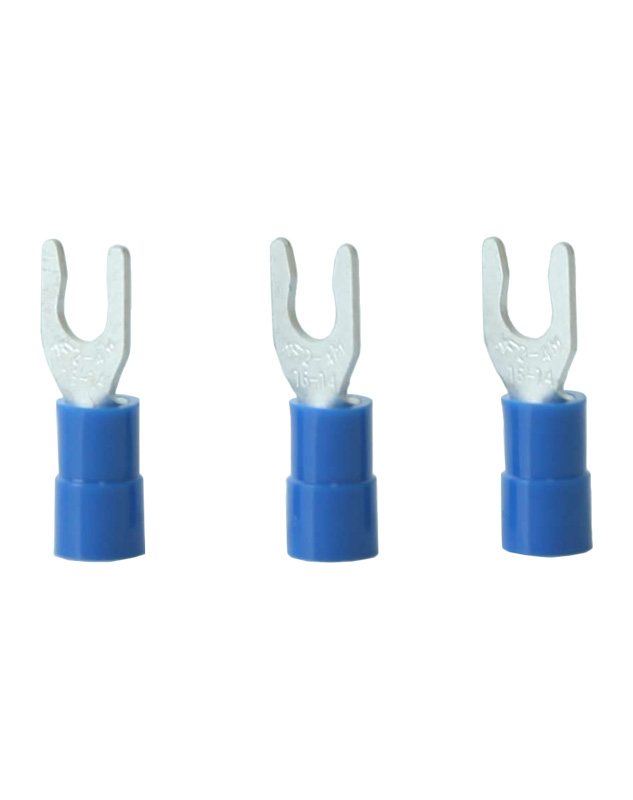

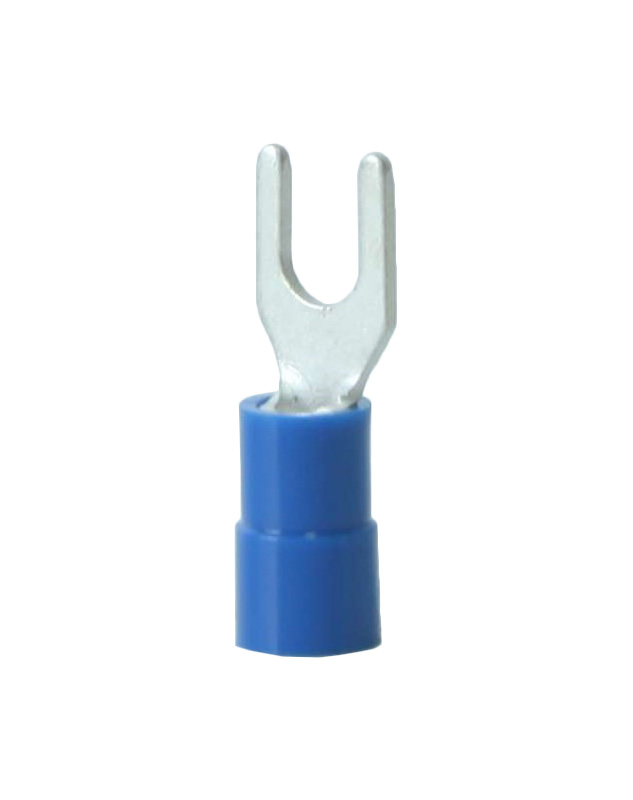

Nylon-Insulated Single Crimp Spade Terminalss

Nylon-Insulated Single Crimp Spade Terminalss

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper,Nylon

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 1,870

Product Details

Spec (American AWG)

22-16

16-1 4

14-12

12-10

8

6

4

Spec (JIS AWG)

1.25

2

3.5

5.5

8

14

22

Spec (DIN AWG)

1

2.5



4.0-6.0

10

16

25

Spec (GB mm2)

0.5-1.5

2.5

4

6

10

16

25

Max Current

19

27

37

48

62

88

115
Operating Voltage 600V
Temperature Withstand 105℃

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA d2 B F L H D T
A.W.G. 22-16 KFSN010 22-16 AWG Nylon-Insulated Single Crimp Spade Terminals 1.25-3 SNY1.25-3 #4 0.126 0.217 0.256 0.846 0.413 0.157 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSN011 22-16 AWG Nylon-Insulated Single Crimp Spade Terminals 1.25-3.5S SNYS1.25-3.5 #6 0.146 0.217 0.256 0.846 0.413 0.157 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSN012 22-16 AWG Nylon-Insulated Single Crimp Spade Terminals 1.25-3.5L SNYL1.25-3.5 #6 0.146 0.256 0.256 0.846 0.413 0.157 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSN013 22-16 AWG Nylon-Insulated Single Crimp Spade Terminals 1.25-4S SNYS1.25-4 #8 0.169 0.256 0.256 0.846 0.413 0.157 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSN014 22-16 AWG Nylon-Insulated Single Crimp Spade Terminals 1.25-4M SNYM1.25-4 #8 0.169 0.276 0.256 0.846 0.413 0.157 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSN015 22-16 AWG Nylon-Insulated Single Crimp Spade Terminals 1.25-4L SNYL1.25-4 #8 0.169 0.315 0.256 0.846 0.413 0.157 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSN016 22-16 AWG Nylon-Insulated Single Crimp Spade Terminals 1.25-5S SNYS1.25-5 #10 0.209 0.315 0.256 0.846 0.413 0.157 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSN017 22-16 AWG Nylon-Insulated Single Crimp Spade Terminals 1.25-5L SNYL1.25-5 #10 0.209 0.374 0.256 0.846 0.413 0.157 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSN018 22-16 AWG Nylon-Insulated Single Crimp Spade Terminals 1.25-6S SNYS1.25-6 1/4" 0.252 0.374 0.256 0.846 0.413 0.157 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSN019 22-16 AWG Nylon-Insulated Single Crimp Spade Terminals 1.25-6L SNYL1.25-6 1/4" 0.252 0.472 0.433 1.083 0.413 0.157 0.030 Red IZUMI 3# 1000
A.W.G. 16-14 KFSN020 16-14 AWG Nylon-Insulated Single Crimp Spade Terminals 2-3 SNY2-3 #4 0.126 0.217 0.256 0.846 0.413 0.177 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSN021 16-14 AWG Nylon-Insulated Single Crimp Spade Terminals 2-3.5S SNYS2.-3.5 #6 0.146 0.217 0.256 0.846 0.413 0.177 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSN022 16-14 AWG Nylon-Insulated Single Crimp Spade Terminals 2-3.5L SNYL2-3.5 #6 0.146 0.276 0.256 0.846 0.413 0.177 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSN023 16-14 AWG Nylon-Insulated Single Crimp Spade Terminals 2-4S SNYS2-4 #8 0.169 0.256 0.256 0.846 0.413 0.177 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSN024 16-14 AWG Nylon-Insulated Single Crimp Spade Terminals 2-4M SNYM2-4 #8 0.169 0.276 0.256 0.846 0.413 0.177 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSN025 16-14 AWG Nylon-Insulated Single Crimp Spade Terminals 2-4L SNYL2-4 #8 0.169 0.315 0.256 0.846 0.413 0.177 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSN026 16-14 AWG Nylon-Insulated Single Crimp Spade Terminals 2-5S SNYS2-5 #10 0.209 0.315 0.256 0.846 0.413 0.177 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSN027 16-14 AWG Nylon-Insulated Single Crimp Spade Terminals 2-5L SNYL2-5 #10 0.209 0.374 0.256 0.846 0.413 0.177 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSN028 16-14 AWG Nylon-Insulated Single Crimp Spade Terminals 2-6S SNYS2-6 1/4" 0.252 0.374 0.256 0.846 0.413 0.177 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSN029 16-14 AWG Nylon-Insulated Single Crimp Spade Terminals 2-6L SNYL2-6 1/4" 0.252 0.472 0.433 1.083 0.413 0.177 0.031 Blue IZUMI 4# 1000
A.W.G. 14-12 KFSN030 14-12 AWG Nylon-Insulated Single Crimp Spade Terminals 3.5-3 SNY3.5-3 #4 0.126 0.217 0.276 1.024 0.531 0.236 0.039 黑(black) IZUMI 5# 1000
A.W.G. 14-12 KFSN031 14-12 AWG Nylon-Insulated Single Crimp Spade Terminals 3.5-4 SNY3.5-4 #8 0.169 0.315 0.276 1.024 0.531 0.236 0.039 黑(black) IZUMI 5# 1000
A.W.G. 14-12 KFSN032 14-12 AWG Nylon-Insulated Single Crimp Spade Terminals 3.5-5 SNY3.5-5 #10 0.209 0.315 0.276 1.024 0.531 0.236 0.039 黑(black) IZUMI 5# 1000
A.W.G. 14-12 KFSN033 14-12 AWG Nylon-Insulated Single Crimp Spade Terminals 3.5-6 SNY3.5-6 1/4" 0.252 0.472 0.354 1.142 0.531 0.236 0.039 黑(black) IZUMI 5# 500
A.W.G. 12-10 KFSN040 12-10 AWG Nylon-Insulated Single Crimp Spade Terminals 5.5-3.5 SNY5.5-3.5 #6 0.146 0.335 0.295 1.024 0.531 0.276 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSN041 12-10 AWG Nylon-Insulated Single Crimp Spade Terminals 5.5-4S SNYS5.5-4 #8 0.169 0.335 0.295 1.024 0.531 0.276 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSN042 12-10 AWG Nylon-Insulated Single Crimp Spade Terminals 5.5-4L SNYL5.5-4 #8 0.169 0.374 0.295 1.024 0.531 0.276 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSN043 12-10 AWG Nylon-Insulated Single Crimp Spade Terminals 5.5-5 SNY5.5-5 #10 0.209 0.354 0.295 1.024 0.531 0.276 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSN044 12-10 AWG Nylon-Insulated Single Crimp Spade Terminals 5.5-6S SNYS5.5-6 1/4" 0.252 0.354 0.295 1.024 0.531 0.276 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSN045 12-10 AWG Nylon-Insulated Single Crimp Spade Terminals 5.5-6L SNYL5.5-6 1/4" 0.252 0.472 0.472 1.260 0.531 0.276 0.039 Yellow IZUMI 5# 500
A.W.G. 12-10 KFSN046 12-10 AWG Nylon-Insulated Single Crimp Spade Terminals 5.5-8 SNY5.5-8 5/16" 0.331 0.551 0.453 1.220 0.531 0.276 0.039 Yellow IZUMI 5# 500
A.W.G. 8 KFSN050 8 AWG Nylon-Insulated Single Crimp Spade Terminals 8-4 SNY8-4 #8 0.169 0.335 0.354 1.240 0.650 0.354 0.047 Red OPT TP-80 500
A.W.G. 8 KFSN051 8 AWG Nylon-Insulated Single Crimp Spade Terminals 8-5 SNY8-5 #10 0.209 0.453 0.335 1.280 0.650 0.354 0.047 Red OPT TP-80 500
A.W.G. 8 KFSN052 8 AWG Nylon-Insulated Single Crimp Spade Terminals 8-6 SNY8-6 1/4" 0.252 0.453 0.335 1.280 0.650 0.354 0.047 Red OPT TP-80 500
A.W.G. 8 KFSN053 8 AWG Nylon-Insulated Single Crimp Spade Terminals 8-8 SNY8-8 5/16" 0.331 0.571 0.472 1.437 0.650 0.354 0.047 Red OPT TP-80 250
A.W.G. 6 KFSN060 6 AWG Nylon-Insulated Single Crimp Spade Terminals 14-5 SNY14-5 #10 0.209 0.433 0.433 1.535 0.807 0.433 0.055 Blue OPT TP-80 250
A.W.G. 6 KFSN061 6 AWG Nylon-Insulated Single Crimp Spade Terminals 14-6 SNY14-6 1/4" 0.252 0.472 0.394 1.516 0.807 0.433 0.055 Blue OPT TP-80 250
A.W.G. 6 KFSN062 6 AWG Nylon-Insulated Single Crimp Spade Terminals 14-8 SNY14-8 5/16" 0.331 0.531 0.433 1.516 0.807 0.433 0.055 Blue OPT TP-80 250
A.W.G. 4 KFSN070 4 AWG Nylon-Insulated Single Crimp Spade Terminals 22-8 SNY22-8 5/16" 0.331 0.551 0.512 1.831 0.945 0.531 0.071 Yellow OPT TP-80 100
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric d2 B F L H D T
0.5~1.5mm² KFSN010 22-16 AWG Nylon-Insulated Single Crimp Spade Terminals 1.25-3 SNY1.25-3 3.0 3.2 5.5 6.5 21.5 10.5 4.0 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSN011 22-16 AWG Nylon-Insulated Single Crimp Spade Terminals 1.25-3.5S SNYS1.25-3.5 3.5 3.7 5.5 6.5 21.5 10.5 4.0 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSN012 22-16 AWG Nylon-Insulated Single Crimp Spade Terminals 1.25-3.5L SNYL1.25-3.5 3.5 3.7 6.5 6.5 21.5 10.5 4.0 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSN013 22-16 AWG Nylon-Insulated Single Crimp Spade Terminals 1.25-4S SNYS1.25-4 4.0 4.3 6.5 6.5 21.5 10.5 4.0 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSN014 22-16 AWG Nylon-Insulated Single Crimp Spade Terminals 1.25-4M SNYM1.25-4 4.0 4.3 7.0 6.5 21.5 10.5 4.0 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSN015 22-16 AWG Nylon-Insulated Single Crimp Spade Terminals 1.25-4L SNYL1.25-4 4.0 4.3 8.0 6.5 21.5 10.5 4.0 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSN016 22-16 AWG Nylon-Insulated Single Crimp Spade Terminals 1.25-5S SNYS1.25-5 5.0 5.3 8.0 6.5 21.5 10.5 4.0 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSN017 22-16 AWG Nylon-Insulated Single Crimp Spade Terminals 1.25-5L SNYL1.25-5 5.0 5.3 9.5 6.5 21.5 10.5 4.0 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSN018 22-16 AWG Nylon-Insulated Single Crimp Spade Terminals 1.25-6S SNYS1.25-6 6.0 6.4 9.5 6.5 21.5 10.5 4.0 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSN019 22-16 AWG Nylon-Insulated Single Crimp Spade Terminals 1.25-6L SNYL1.25-6 6.0 6.4 12.0 11.0 27.5 10.5 4.0 0.75 Red IZUMI 3# 1000
1.5~2.5mm² KFSN020 16-14 AWG Nylon-Insulated Single Crimp Spade Terminals 2-3 SNY2-3 3.0 3.2 5.5 6.5 21.5 10.5 4.5 0.80 Blue IZUMI 4# 1000
1.5~2.5mm² KFSN021 16-14 AWG Nylon-Insulated Single Crimp Spade Terminals 2-3.5S SNYS2.-3.5 3.5 3.7 5.5 6.5 21.5 10.5 4.5 0.80 Blue IZUMI 4# 1000
1.5~2.5mm² KFSN022 16-14 AWG Nylon-Insulated Single Crimp Spade Terminals 2-3.5L SNYL2-3.5 3.5 3.7 7.0 6.5 21.5 10.5 4.5 0.80 Blue IZUMI 4# 1000
1.5~2.5mm² KFSN023 16-14 AWG Nylon-Insulated Single Crimp Spade Terminals 2-4S SNYS2-4 4.0 4.3 6.5 6.5 21.5 10.5 4.5 0.80 Blue IZUMI 4# 1000
1.5~2.5mm² KFSN024 16-14 AWG Nylon-Insulated Single Crimp Spade Terminals 2-4M SNYM2-4 4.0 4.3 7.0 6.5 21.5 10.5 4.5 0.80 Blue IZUMI 4# 1000
1.5~2.5mm² KFSN025 16-14 AWG Nylon-Insulated Single Crimp Spade Terminals 2-4L SNYL2-4 4.0 4.3 8.0 6.5 21.5 10.5 4.5 0.80 Blue IZUMI 4# 1000
1.5~2.5mm² KFSN026 16-14 AWG Nylon-Insulated Single Crimp Spade Terminals 2-5S SNYS2-5 5.0 5.3 8.0 6.5 21.5 10.5 4.5 0.80 Blue IZUMI 4# 1000
1.5~2.5mm² KFSN027 16-14 AWG Nylon-Insulated Single Crimp Spade Terminals 2-5L SNYL2-5 5.0 5.3 9.5 6.5 21.5 10.5 4.5 0.80 Blue IZUMI 4# 1000
1.5~2.5mm² KFSN028 16-14 AWG Nylon-Insulated Single Crimp Spade Terminals 2-6S SNYS2-6 6.0 6.4 9.5 6.5 21.5 10.5 4.5 0.80 Blue IZUMI 4# 1000
1.5~2.5mm² KFSN029 16-14 AWG Nylon-Insulated Single Crimp Spade Terminals 2-6L SNYL2-6 6.0 6.4 12.0 11.0 27.5 10.5 4.5 0.80 Blue IZUMI 4# 1000
2.5~4.0mm² KFSN030 14-12 AWG Nylon-Insulated Single Crimp Spade Terminals 3.5-3 SNY3.5-3 3.0 3.2 5.5 7.0 26.0 13.5 6.0 1.0 Black IZUMI 5# 1000
2.5~4.0mm² KFSN031 14-12 AWG Nylon-Insulated Single Crimp Spade Terminals 3.5-4 SNY3.5-4 4.0 4.3 8.0 7.0 26.0 13.5 6.0 1.0 Black IZUMI 5# 1000
2.5~4.0mm² KFSN032 14-12 AWG Nylon-Insulated Single Crimp Spade Terminals 3.5-5 SNY3.5-5 5.0 5.3 8.0 7.0 26.0 13.5 6.0 1.0 Black IZUMI 5# 1000
2.5~4.0mm² KFSN033 14-12 AWG Nylon-Insulated Single Crimp Spade Terminals 3.5-6 SNY3.5-6 6.0 6.4 12.0 9.0 29.0 13.5 6.0 1.0 Black IZUMI 5# 500
4.0~6.0mm² KFSN040 12-10 AWG Nylon-Insulated Single Crimp Spade Terminals 5.5-3.5 SNY5.5-3.5 3.5 3.7 8.5 7.5 26.0 13.5 7.0 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSN041 12-10 AWG Nylon-Insulated Single Crimp Spade Terminals 5.5-4S SNYS5.5-4 4.0 4.3 8.5 7.5 26.0 13.5 7.0 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSN042 12-10 AWG Nylon-Insulated Single Crimp Spade Terminals 5.5-4L SNYL5.5-4 4.0 4.3 9.5 7.5 26.0 13.5 7.0 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSN043 12-10 AWG Nylon-Insulated Single Crimp Spade Terminals 5.5-5 SNY5.5-5 5.0 5.3 9.0 7.5 26.0 13.5 7.0 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSN044 12-10 AWG Nylon-Insulated Single Crimp Spade Terminals 5.5-6S SNYS5.5-6 6.0 6.4 9.0 7.5 26.0 13.5 7.0 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSN045 12-10 AWG Nylon-Insulated Single Crimp Spade Terminals 5.5-6L SNYL5.5-6 6.0 6.4 12.0 12.0 32.0 13.5 7.0 1.0 Yellow IZUMI 5# 500
4.0~6.0mm² KFSN046 12-10 AWG Nylon-Insulated Single Crimp Spade Terminals 5.5-8 SNY5.5-8 8.0 8.4 14.0 11.5 31.0 13.5 7.0 1.0 Yellow IZUMI 5# 500
8mm² KFSN050 8 AWG Nylon-Insulated Single Crimp Spade Terminals 8-4 SNY8-4 4.0 4.3 8.5 9.0 31.5 16.5 9.0 1.2 Red OPT TP-80 500
8mm² KFSN051 8 AWG Nylon-Insulated Single Crimp Spade Terminals 8-5 SNY8-5 5.0 5.3 11.5 8.5 32.5 16.5 9.0 1.2 Red OPT TP-80 500
8mm² KFSN052 8 AWG Nylon-Insulated Single Crimp Spade Terminals 8-6 SNY8-6 6.0 6.4 11.5 8.5 32.5 16.5 9.0 1.2 Red OPT TP-80 500
8mm² KFSN053 8 AWG Nylon-Insulated Single Crimp Spade Terminals 8-8 SNY8-8 8.0 8.4 14.5 12.0 36.5 16.5 9.0 1.2 Red OPT TP-80 250
14mm² KFSN060 6 AWG Nylon-Insulated Single Crimp Spade Terminals 14-5 SNY14-5 5.0 5.3 11.0 11.0 39.0 20.5 11.0 1.4 Blue OPT TP-80 250
14mm² KFSN061 6 AWG Nylon-Insulated Single Crimp Spade Terminals 14-6 SNY14-6 6.0 6.4 12.0 10.0 38.5 20.5 11.0 1.4 Blue OPT TP-80 250
14mm² KFSN062 6 AWG Nylon-Insulated Single Crimp Spade Terminals 14-8 SNY14-8 8.0 8.4 13.5 11.0 38.5 20.5 11.0 1.4 Blue OPT TP-80 250
22mm² KFSN070 4 AWG Nylon-Insulated Single Crimp Spade Terminals 22-8 SNY22-8 8.0 8.4 14.0 13.0 46.5 24.0 13.5 1.8 Yellow OPT TP-80 100
