Brand |
KF |
|
Finish/Coating |
Tinned |
|
Base Materials |
Copper,PVC |
|
Insulation Material |
N/A |
|
Brazed |
Seam |
|
Wire/Cable Type |
Regular Wire |
|
Color Code |
Standard |
|
MOQ |
1000Pcs/item |
|
Payment Terms |
Based on orders |
|
Delivery |
FOB/CIF/DDP |
|
Spec (American AWG) |
22-16 | 16-14 | 12-10 |
|
Spec (JIS AWG) |
1.25 | 2 | 5.5 |
|
Spec (DIN AWG) |
1 | 2.5 | 4.0-6.0 |
|
Spec (GB mm2) |
0.5-1.5 | 2.5 | 6 |
|
Max Current |
19 | 27 | 48 |
| Operating Voltage | 600V | ||
| Temperature Withstand | 75℃ | ||
You can tick the products you need and communicate with us in the message board.
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions Inch | Color | Tool | PCS/Pack | |||||
| USA | B | L | F | H | D | Thickness | |||||||
| A.W.G. 22-16 | KFSE610 | 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals1.25-10 | DBVE1.25-10 | 0.098 | 0.827 | 0.394 | 0.433 | 0.157 | 0.030 | Red | IZUMI 3# | 1000 | |
| A.W.G. 22-16 | KFSE611 | 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals1.25-14 | DBVE1.25-14 | 0.079 | 0.984 | 0.551 | 0.433 | 0.157 | 0.030 | Red | IZUMI 3# | 1000 | |
| A.W.G. 22-16 | KFSE612 | 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals1.25-18 | DBVE1.25-18 | 0.079 | 1.142 | 0.709 | 0.433 | 0.157 | 0.030 | Red | IZUMI 3# | 1000 | |

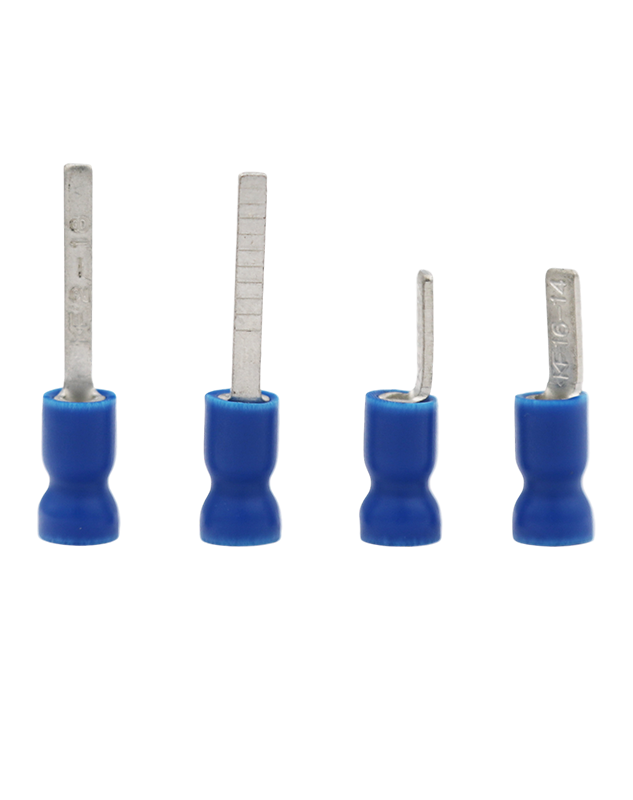

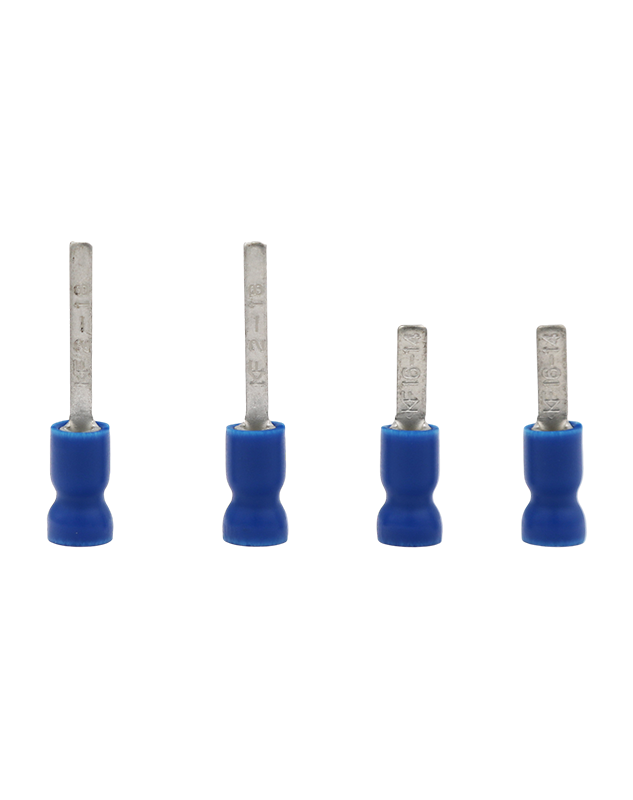

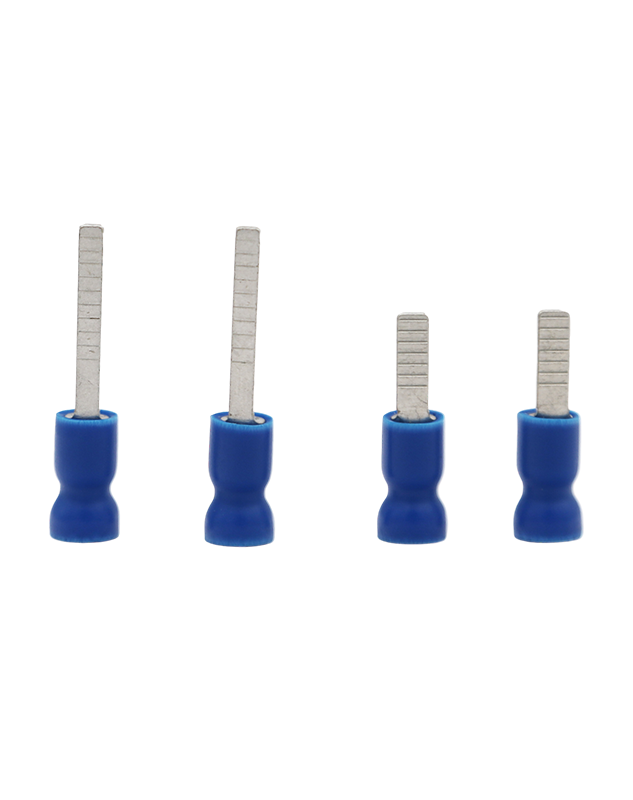

| A.W.G. 16-14 | KFSE620 | 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals2-10 | DBVE2-10 | 0.118 | 0.846 | 0.394 | 0.453 | 0.177 | 0.031 | Blue | IZUMI 4# | 1000 | |
| A.W.G. 16-14 | KFSE621 | 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals2-14 | DBVE2-14 | 0.098 | 1.004 | 0.551 | 0.453 | 0.177 | 0.031 | Blue | IZUMI 4# | 1000 | |
| A.W.G. 16-14 | KFSE622 | 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals2-18 | DBVE2-18 | 0.079 | 1.161 | 0.709 | 0.453 | 0.177 | 0.031 | Blue | IZUMI 4# | 1000 | |
| A.W.G. 12-10 | KFSE630 | 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals5.5-10 | DBVE5.5-10 | 0.118 | 0.945 | 0.394 | 0.511 | 0.256 | 0.039 | Yellow | IZUMI 5# | 1000 | |
| A.W.G. 12-10 | KFSE631 | 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals5.5-14 | DBVE5.5-14 | 0.177 | 1.102 | 0.551 | 0.511 | 0.256 | 0.039 | Yellow | IZUMI 5# | 1000 | |
| A.W.G. 12-10 | KFSE632 | 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals5.5-18 | DBVE5.5-18 | 0.177 | 1.26 | 0.709 | 0.511 | 0.256 | 0.039 | Yellow | IZUMI 5# | 1000 | |
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions mm | Color | Tool | PCS/Pack | |||||
| Meric | B | L | F | H | D | Thickness | |||||||
| 0.5~1.5mm² | KFSE610 | 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals1.25-10 | DBVE1.25-10 | 2.5 | 21.0 | 10.0 | 11.0 | 4.0 | 0.75 | Red | IZUMI 3# | 1000 | |
| 0.5~1.5mm² | KFSE6111 | 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals1.25-14 | DBVE1.25-14 | 2.0 | 25.0 | 14.0 | 11.0 | 4.0 | 0.75 | Red | IZUMI 3# | 1000 | |
| 0.5~1.5mm² | KFSE612 | 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals1.25-18 | DBVE1.25-18 | 2.0 | 29.0 | 18.0 | 11.0 | 4.0 | 0.75 | Red | IZUMI 3# | 1000 | |
| 1.5~2.5mm² | KFSE620 | 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals2-10 | DBVE2-10 | 3.0 | 21.5 | 10.0 | 11.5 | 4.5 | 0.8 | Blue | IZUMI 4# | 1000 | |
| 1.5~2.5mm² | KFSE621 | 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals2-14 | DBVE2-14 | 2.5 | 25.5 | 14.0 | 11.5 | 4.5 | 0.8 | Blue | IZUMI 4# | 1000 | |
| 1.5~2.5mm² | KFSE622 | 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals2-18 | DBVE2-18 | 2.0 | 29.5 | 18.0 | 11.5 | 4.5 | 0.8 | Blue | IZUMI 4# | 1000 | |
| 4.0~6.0mm² | KFSE630 | 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals5.5-10 | DBVE5.5-10 | 3.0 | 24.0 | 10.0 | 14.0 | 6.5 | 1.0 | Yellow | IZUMI 5# | 1000 | |
| 4.0~6.0mm² | KFSE631 | 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals5.5-14 | DBVE5.5-14 | 4.5 | 28.0 | 14.0 | 14.0 | 6.5 | 1.0 | Yellow | IZUMI 5# | 1000 | |
| 4.0~6.0mm² | KFSE632 | 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals5.5-18 | DBVE5.5-18 | 4.5 | 32.0 | 18.0 | 14.0 | 6.5 | 1.0 | Yellow | IZUMI 5# | 1000 | |
Want to get a sample? Please fill in the form, leave your contact information and parameter information.
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions Inch | Color | Tool | PCS/Pack | |||||
| USA | B | L | F | H | D | Thickness | |||||||
| A.W.G. 22-16 | KFSE610 | 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals1.25-10 | DBVE1.25-10 | 0.098 | 0.827 | 0.394 | 0.433 | 0.157 | 0.030 | Red | IZUMI 3# | 1000 | |
| A.W.G. 22-16 | KFSE611 | 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals1.25-14 | DBVE1.25-14 | 0.079 | 0.984 | 0.551 | 0.433 | 0.157 | 0.030 | Red | IZUMI 3# | 1000 | |
| A.W.G. 22-16 | KFSE612 | 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals1.25-18 | DBVE1.25-18 | 0.079 | 1.142 | 0.709 | 0.433 | 0.157 | 0.030 | Red | IZUMI 3# | 1000 | |
| A.W.G. 16-14 | KFSE620 | 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals2-10 | DBVE2-10 | 0.118 | 0.846 | 0.394 | 0.453 | 0.177 | 0.031 | Blue | IZUMI 4# | 1000 | |
| A.W.G. 16-14 | KFSE621 | 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals2-14 | DBVE2-14 | 0.098 | 1.004 | 0.551 | 0.453 | 0.177 | 0.031 | Blue | IZUMI 4# | 1000 | |
| A.W.G. 16-14 | KFSE622 | 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals2-18 | DBVE2-18 | 0.079 | 1.161 | 0.709 | 0.453 | 0.177 | 0.031 | Blue | IZUMI 4# | 1000 | |
| A.W.G. 12-10 | KFSE630 | 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals5.5-10 | DBVE5.5-10 | 0.118 | 0.945 | 0.394 | 0.511 | 0.256 | 0.039 | Yellow | IZUMI 5# | 1000 | |
| A.W.G. 12-10 | KFSE631 | 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals5.5-14 | DBVE5.5-14 | 0.177 | 1.102 | 0.551 | 0.511 | 0.256 | 0.039 | Yellow | IZUMI 5# | 1000 | |
| A.W.G. 12-10 | KFSE632 | 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals5.5-18 | DBVE5.5-18 | 0.177 | 1.26 | 0.709 | 0.511 | 0.256 | 0.039 | Yellow | IZUMI 5# | 1000 | |
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions mm | Color | Tool | PCS/Pack | |||||
| Meric | B | L | F | H | D | Thickness | |||||||
| 0.5~1.5mm² | KFSE610 | 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals1.25-10 | DBVE1.25-10 | 2.5 | 21.0 | 10.0 | 11.0 | 4.0 | 0.75 | Red | IZUMI 3# | 1000 | |
| 0.5~1.5mm² | KFSE6111 | 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals1.25-14 | DBVE1.25-14 | 2.0 | 25.0 | 14.0 | 11.0 | 4.0 | 0.75 | Red | IZUMI 3# | 1000 | |
| 0.5~1.5mm² | KFSE612 | 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals1.25-18 | DBVE1.25-18 | 2.0 | 29.0 | 18.0 | 11.0 | 4.0 | 0.75 | Red | IZUMI 3# | 1000 | |
| 1.5~2.5mm² | KFSE620 | 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals2-10 | DBVE2-10 | 3.0 | 21.5 | 10.0 | 11.5 | 4.5 | 0.8 | Blue | IZUMI 4# | 1000 | |
| 1.5~2.5mm² | KFSE621 | 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals2-14 | DBVE2-14 | 2.5 | 25.5 | 14.0 | 11.5 | 4.5 | 0.8 | Blue | IZUMI 4# | 1000 | |
| 1.5~2.5mm² | KFSE622 | 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals2-18 | DBVE2-18 | 2.0 | 29.5 | 18.0 | 11.5 | 4.5 | 0.8 | Blue | IZUMI 4# | 1000 | |
| 4.0~6.0mm² | KFSE630 | 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals5.5-10 | DBVE5.5-10 | 3.0 | 24.0 | 10.0 | 14.0 | 6.5 | 1.0 | Yellow | IZUMI 5# | 1000 | |
| 4.0~6.0mm² | KFSE631 | 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals5.5-14 | DBVE5.5-14 | 4.5 | 28.0 | 14.0 | 14.0 | 6.5 | 1.0 | Yellow | IZUMI 5# | 1000 | |
| 4.0~6.0mm² | KFSE632 | 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Blade Terminals5.5-18 | DBVE5.5-18 | 4.5 | 32.0 | 18.0 | 14.0 | 6.5 | 1.0 | Yellow | IZUMI 5# | 1000 | |
