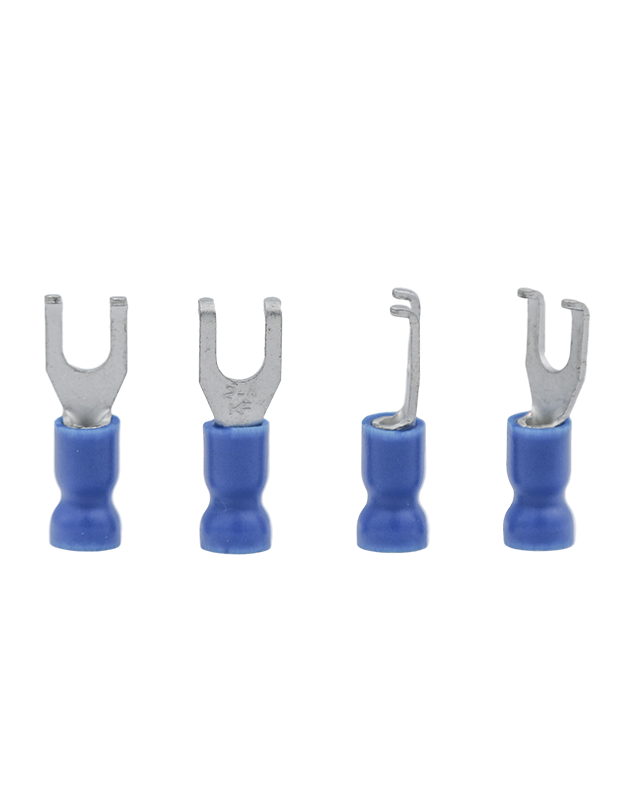

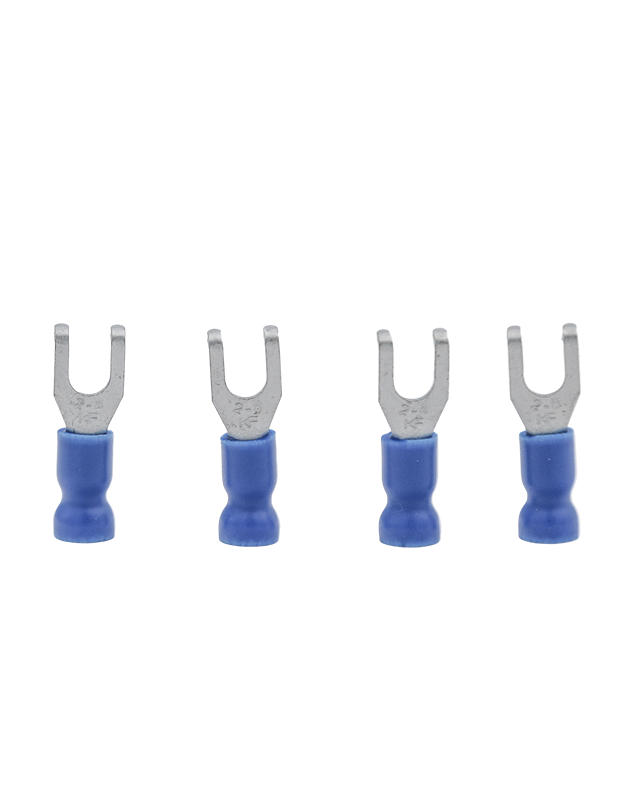

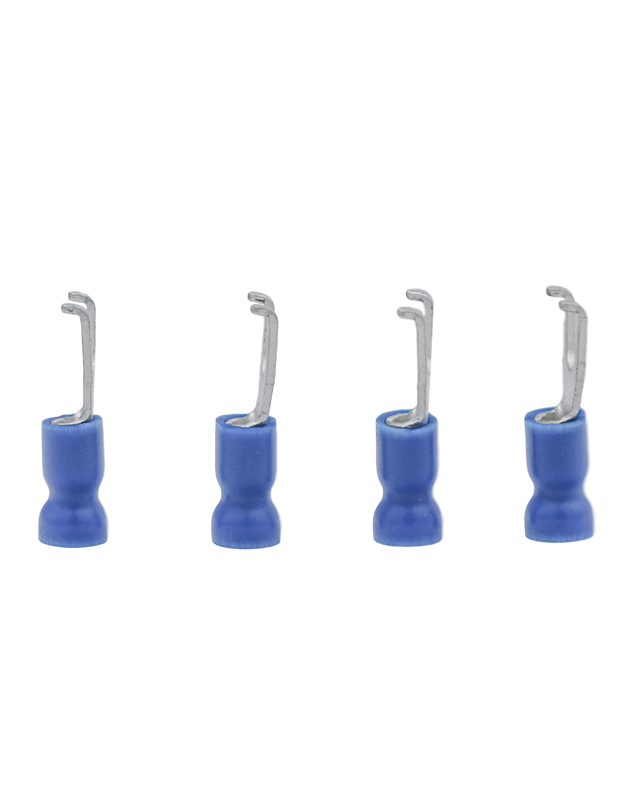

Vinyl-Insulated Single Crimp(Easy Entry) Flange Spade Terminals

Vinyl-Insulated Single Crimp(Easy Entry) Flange Spade Terminals

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper,PVC

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 757

Product Details

Spec (American AWG)

 22-16 16-14 12-10

Spec (JIS AWG)

 1.25 2 5.5

Spec (DIN AWG)

 1 2.5 4.0-6.0

Spec (GB mm2)

 0.5-1.5 2.5 6

Max Current

  19 27 48
Operating Voltage 600V
Temperature Withstand 75℃

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description

MFG#

 Stud Size  Dimensions Inch Color Tool PCS/Pack
USA d2 B L F H D Thickness
A.W.G. 22-16 KFSE210 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Flange Spade Terminals1.25-3.5 FSVE1.25-3.5 #6 0.146 0.256 0.886  0.256  0.433  0.157  0.030  Red IZUMI 3# 1000
A.W.G. 22-16  KFSE211 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Flange Spade Terminals1.25-4 FSVE1.25-4 #8 0.169 0.276 0.886  0.256  0.433  0.157  0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSE212 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Flange Spade Terminals1.25-5 FSVE1.25-5 #10 0.209 0.374 0.886  0.256  0.433  0.157  0.030  Red IZUMI 3# 1000
A.W.G. 16-14 KFSE220 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Flange Spade Terminals2-3.5 FSVE2-3.5 #6 0.146 0.276 0.906  0.256  0.453  0.177  0.031  Blue IZUMI 4# 1000
A.W.G. 16-14 KFSE221 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Flange Spade Terminals2-4 FSVE2-4 #8 0.169 0.276 0.906  0.256  0.453  0.177  0.031  Blue IZUMI 4# 1000
A.W.G. 16-14 KFSE222 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Flange Spade Terminals2-5 FSVE2-5 #10 0.209 0.374 0.906  0.256  0.453  0.177  0.031  Blue IZUMI 4# 1000
A.W.G. 12-10 KFSE230 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Flange Spade Terminals5.5-3.5 FSVE5.5-3.5 #6 0.146 0.335 1.403  0.295  0.511  0.256  0.039  Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSE231 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Flange Spade Terminals5.5-4 FSVE5.5-4 #8 0.169 0.335 1.403  0.295  0.511  0.256  0.039  Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSE232 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Flange Spade Terminals5.5-5 FSVE5.5-5 #10 0.209 0.354 1.403  0.295  0.511  0.256  0.039  Yellow IZUMI 5# 1000
Wire Range SKU# Description

MFG#

 Stud Size  Dimensions mm Color Tool PCS/Pack
Meric d2 B L F H D Thickness
0.5~1.5mm² KFSE210 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Flange Spade Terminals1.25-3.5 FSVE1.25-3.5 3.5 3.7 6.5  22.5  6.5  11.0  4.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSE211 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Flange Spade Terminals1.25-4 FSVE1.25-4 4 4.3 7.0  22.5  6.5  11.0  4.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSE212 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Flange Spade Terminals1.25-5 FSVE1.25-5 5 5.3 9.5  22.5  6.5  11.0  4.0  0.75  Red IZUMI 3# 1000
1.5~2.5mm² KFSE220 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Flange Spade Terminals2-3.5 FSVE2-3.5 3.5 3.7 7.0  23.0  6.5  11.5  4.5  0.8  Blue IZUMI 4# 1000
1.5~2.5mm² KFSE221 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Flange Spade Terminals2-4 FSVE2-4 4 4.3 7.0  23.0  6.5  11.5  4.5  0.8  Blue IZUMI 4# 1000
1.5~2.5mm² KFSE222 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Flange Spade Terminals2-5 FSVE2-5 5 5.3 9.5  23.0  6.5  11.5  4.5  0.8  Blue IZUMI 4# 1000
4.0~6.0mm² KFSE230 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Flange Spade Terminals5.5-3.5 FSVE5.5-3.5 3.5 3.7 8.5  26.5  7.5  14.0  6.5  1.0  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSE231 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Flange Spade Terminals5.5-4 FSVE5.5-4 4 4.3 8.5  26.5  7.5  14.0  6.5  1.0  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSE232 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Flange Spade Terminals5.5-5 FSVE5.5-5 5 5.3 9.0  26.5  7.5  14.0  6.5  1.0  Yellow IZUMI 5# 1000
