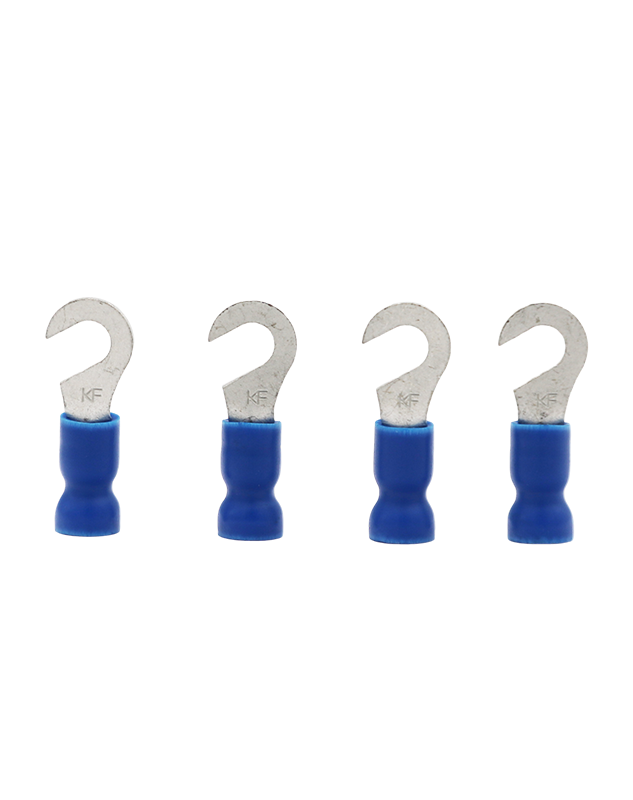

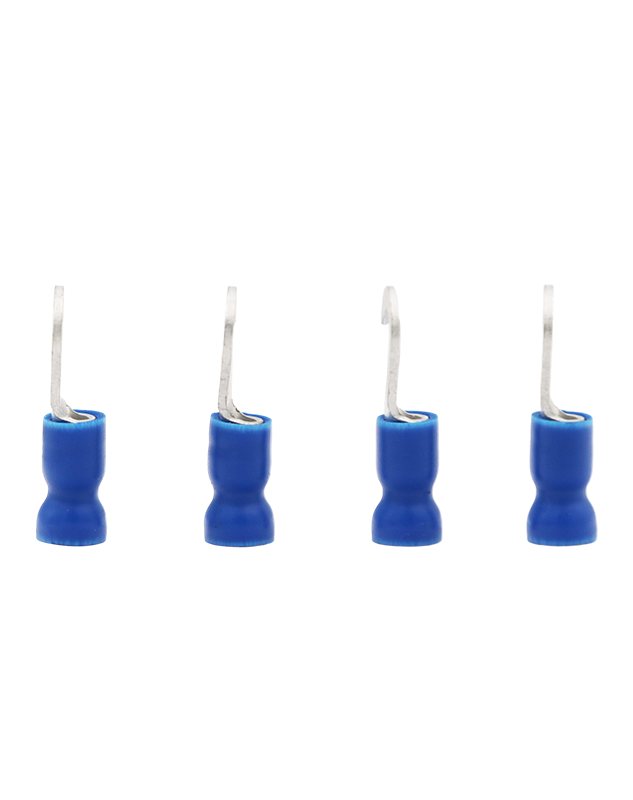

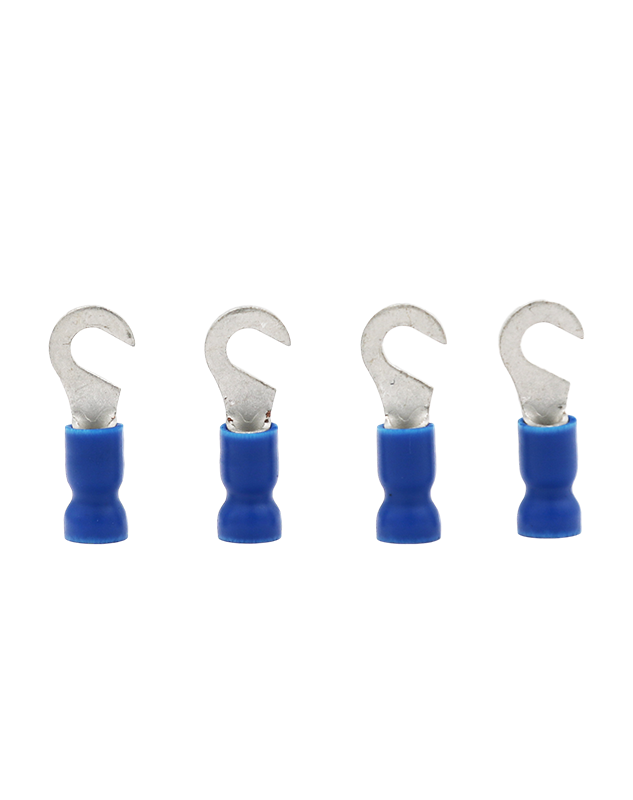

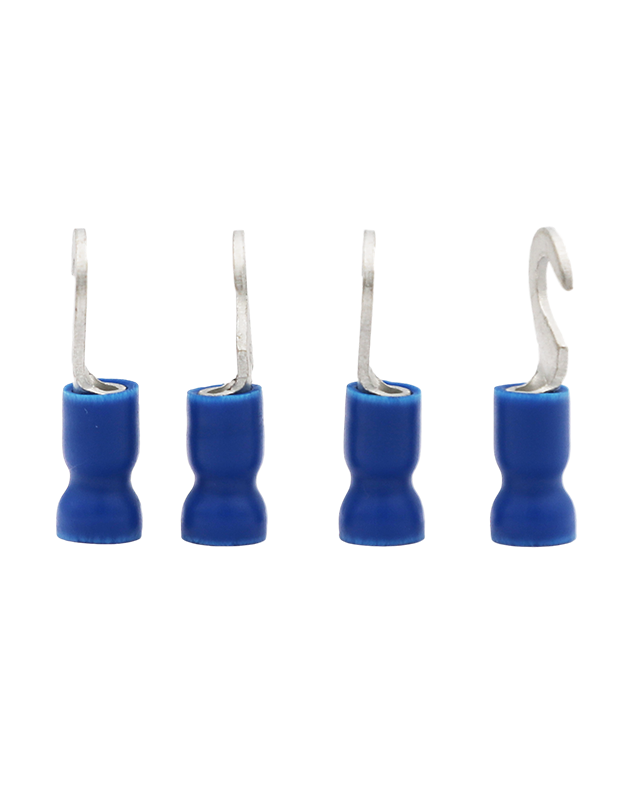

Vinyl-Insulated Single Crimp(Easy Entry) Hook Terminals

Vinyl-Insulated Single Crimp(Easy Entry) Hook Terminals

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper,PVC

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 581

Product Details

Spec (American AWG)

 22-16 16-14 12-10

Spec (JIS AWG)

 1.25 2 5.5

Spec (DIN AWG)

 1 2.5 4.0-6.0

Spec (GB mm2)

 0.5-1.5 2.5 6

Max Current

  19 27 48
Operating Voltage 600V
Temperature Withstand 75℃

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA d2 B L F H D Thickness
A.W.G. 22-16 KFSE810 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals1.25-3.5 HVE1.25-3.5   0.169 0.3  0.866  0.276  0.433  0.157  0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSE811 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals1.25-4 HVE1.25-4   0.209 0.3  0.866  0.276  0.433  0.157  0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSE812 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals1.25-5 HVE1.25-5   0.252 0.3  0.866  0.276  0.433  0.157  0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSE813 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals1.25-6 HVE1.25-6   0.146 0.5  1.102  0.433  0.433  0.157  0.030  Red IZUMI 3# 1000
A.W.G. 16-14 KFSE820 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals2-3.5 HVE2-3.5   0.169 0.3  0.925  0.315  0.453  0.177  0.031  Blue IZUMI 4# 1000
A.W.G. 16-14 KFSE821 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals2-4 HVE2-4   0.209 0.3  0.925  0.315  0.453  0.177  0.031  Blue IZUMI 4# 1000
A.W.G. 16-14 KFSE822 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals2-5 HVE2-5   0.252 0.4  0.925  0.295  0.453  0.177  0.031  Blue IZUMI 4# 1000
A.W.G. 16-14 KFSE823 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals2-6 HVE2-6   0.146 0.5  1.122  0.433  0.453  0.177  0.031  Blue IZUMI 4# 1000
A.W.G. 12-10 KFSE830 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals5.5-3.5 HVE5.5-3.5   0.169 0.3  0.925  0.236  0.511  0.256  0.039  Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSE831 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals5.5-4 HVE5.5-4   0.209 0.4  1.063  0.315  0.511  0.256  0.039  Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSE832 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals5.5-5 HVE5.5-5   0.252 0.4  1.063  0.315  0.511  0.256  0.039  Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSE833 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals5.5-6 HVE5.5-6   0.252 0.5  1.201  0.413  0.511  0.256  0.039  Yellow IZUMI 5# 1000
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric d2 B L F H D Thickness
 0.5~1.5mm²  KFSE810 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals1.25-3.5 HVE1.25-3.5   3.7  8.0  22.0  7.0  11.0  4.0  0.75  Red IZUMI 3# 1000
 0.5~1.5mm²  KFSE811 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals1.25-4 HVE1.25-4   4.3  8.0  22.0  7.0  11.0  4.0  0.75  Red IZUMI 3# 1000
 0.5~1.5mm²  KFSE812 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals1.25-5 HVE1.25-5   5.3  8.0  22.0  7.0  11.0  4.0  0.75  Red IZUMI 3# 1000
 0.5~1.5mm²  KFSE813 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals1.25-6 HVE1.25-6   6.4  11.5  28.0  11.0  11.0  4.0  0.75  Red IZUMI 3# 1000
 1.5~2.5mm² KFSE820 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals2-3.5 HVE2-3.5   3.7  8.5  23.5  8.0  11.5  4.5  0.8  Blue IZUMI 4# 1000
 1.5~2.5mm² KFSE821 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals2-4 HVE2-4   4.3  8.5  23.5  8.0  11.5  4.5  0.8  Blue IZUMI 4# 1000
 1.5~2.5mm² KFSE822 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals2-5 HVE2-5   5.3  9.5  23.5  7.5  11.5  4.5  0.8  Blue IZUMI 4# 1000
 1.5~2.5mm² KFSE823 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals2-6 HVE2-6   6.4  12.0  28.5  11.0  11.5  4.5  0.8  Blue IZUMI 4# 1000
4.0~6.0mm² KFSE830 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals5.5-3.5 HVE5.5-3.5   3.7  7.0  23.5  6.0  14.0  6.5  1.0  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSE831 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals5.5-4 HVE5.5-4   4.3  9.5  27.0  8.0  14.0  6.5  1.0  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSE832 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals5.5-5 HVE5.5-5   5.3  9.5  27.0  8.0  14.0  6.5  1.0  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSE833 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals5.5-6 HVE5.5-6   6.4  12.0  30.5  10.5  14.0  6.5  1.0  Yellow IZUMI 5# 1000







leave A Message

Want to get a sample? Please fill in the form, leave your contact information and parameter information.

*Name: *Tel: *E-mail:
Please fill in the correct and valid email address and contact information
Message:


Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA d2 B L F H D Thickness
A.W.G. 22-16 KFSE810 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals1.25-3.5 HVE1.25-3.5   0.169 0.3  0.866  0.276  0.433  0.157  0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSE811 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals1.25-4 HVE1.25-4   0.209 0.3  0.866  0.276  0.433  0.157  0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSE812 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals1.25-5 HVE1.25-5   0.252 0.3  0.866  0.276  0.433  0.157  0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSE813 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals1.25-6 HVE1.25-6   0.146 0.5  1.102  0.433  0.433  0.157  0.030  Red IZUMI 3# 1000
A.W.G. 16-14 KFSE820 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals2-3.5 HVE2-3.5   0.169 0.3  0.925  0.315  0.453  0.177  0.031  Blue IZUMI 4# 1000
A.W.G. 16-14 KFSE821 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals2-4 HVE2-4   0.209 0.3  0.925  0.315  0.453  0.177  0.031  Blue IZUMI 4# 1000
A.W.G. 16-14 KFSE822 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals2-5 HVE2-5   0.252 0.4  0.925  0.295  0.453  0.177  0.031  Blue IZUMI 4# 1000
A.W.G. 16-14 KFSE823 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals2-6 HVE2-6   0.146 0.5  1.122  0.433  0.453  0.177  0.031  Blue IZUMI 4# 1000
A.W.G. 12-10 KFSE830 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals5.5-3.5 HVE5.5-3.5   0.169 0.3  0.925  0.236  0.511  0.256  0.039  Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSE831 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals5.5-4 HVE5.5-4   0.209 0.4  1.063  0.315  0.511  0.256  0.039  Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSE832 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals5.5-5 HVE5.5-5   0.252 0.4  1.063  0.315  0.511  0.256  0.039  Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSE833 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals5.5-6 HVE5.5-6   0.252 0.5  1.201  0.413  0.511  0.256  0.039  Yellow IZUMI 5# 1000
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric d2 B L F H D Thickness
 0.5~1.5mm²  KFSE810 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals1.25-3.5 HVE1.25-3.5   3.7  8.0  22.0  7.0  11.0  4.0  0.75  Red IZUMI 3# 1000
 0.5~1.5mm²  KFSE811 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals1.25-4 HVE1.25-4   4.3  8.0  22.0  7.0  11.0  4.0  0.75  Red IZUMI 3# 1000
 0.5~1.5mm²  KFSE812 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals1.25-5 HVE1.25-5   5.3  8.0  22.0  7.0  11.0  4.0  0.75  Red IZUMI 3# 1000
 0.5~1.5mm²  KFSE813 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals1.25-6 HVE1.25-6   6.4  11.5  28.0  11.0  11.0  4.0  0.75  Red IZUMI 3# 1000
 1.5~2.5mm² KFSE820 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals2-3.5 HVE2-3.5   3.7  8.5  23.5  8.0  11.5  4.5  0.8  Blue IZUMI 4# 1000
 1.5~2.5mm² KFSE821 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals2-4 HVE2-4   4.3  8.5  23.5  8.0  11.5  4.5  0.8  Blue IZUMI 4# 1000
 1.5~2.5mm² KFSE822 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals2-5 HVE2-5   5.3  9.5  23.5  7.5  11.5  4.5  0.8  Blue IZUMI 4# 1000
 1.5~2.5mm² KFSE823 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals2-6 HVE2-6   6.4  12.0  28.5  11.0  11.5  4.5  0.8  Blue IZUMI 4# 1000
4.0~6.0mm² KFSE830 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals5.5-3.5 HVE5.5-3.5   3.7  7.0  23.5  6.0  14.0  6.5  1.0  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSE831 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals5.5-4 HVE5.5-4   4.3  9.5  27.0  8.0  14.0  6.5  1.0  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSE832 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals5.5-5 HVE5.5-5   5.3  9.5  27.0  8.0  14.0  6.5  1.0  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSE833 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Hook Terminals5.5-6 HVE5.5-6   6.4  12.0  30.5  10.5  14.0  6.5  1.0  Yellow IZUMI 5# 1000
