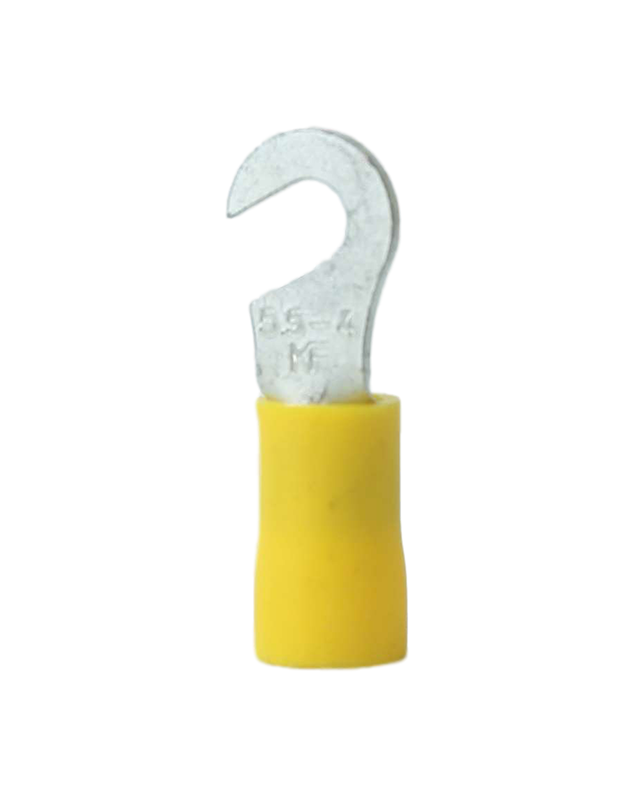

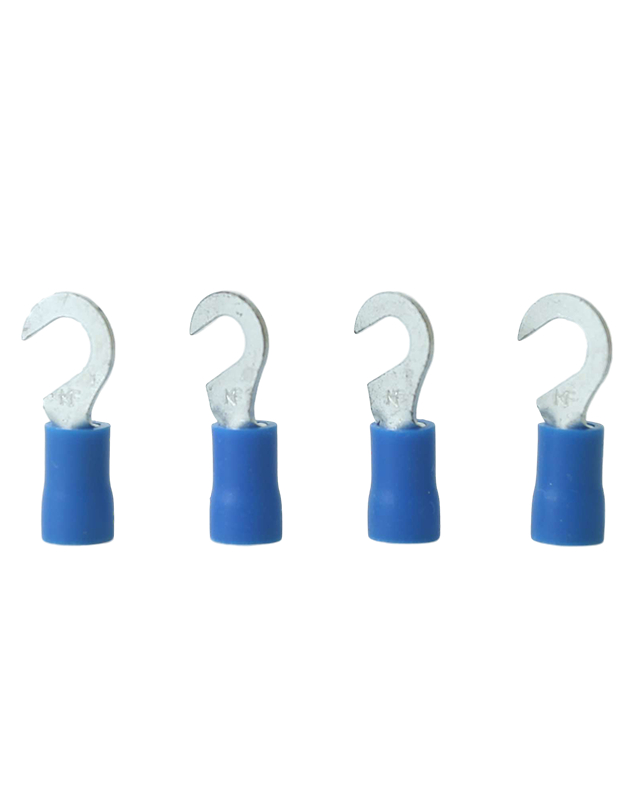

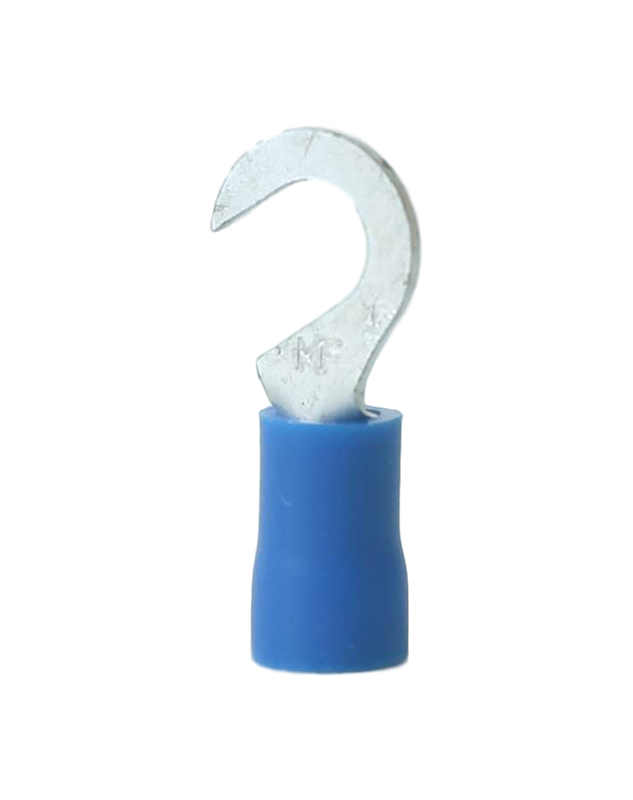

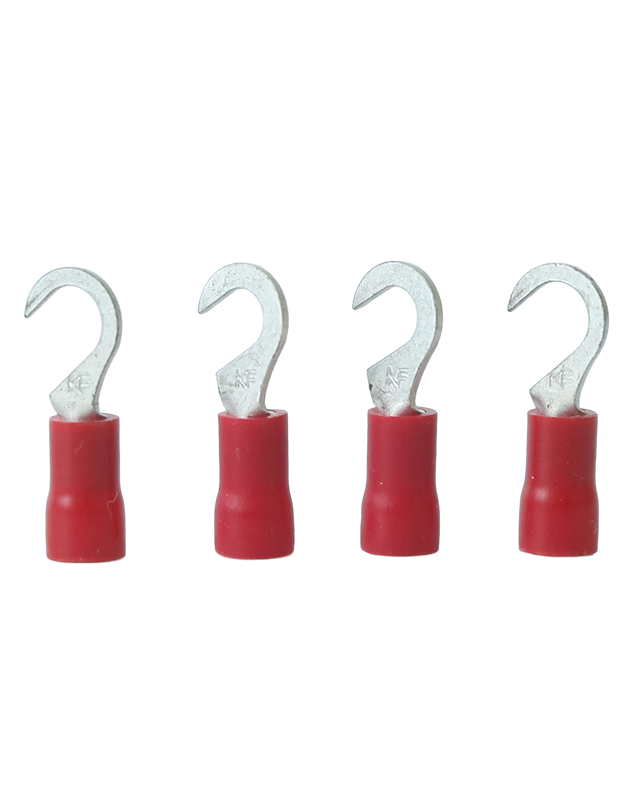

Vinyl-Insulated Single Crimp Hook Terminals

Vinyl-Insulated Single Crimp Hook Terminals

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper,PVC

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 981

Product Details

Spec (American AWG)

 22-16 16-14 12-10

Spec (JIS AWG)

 1.25 2 5.5

Spec (DIN AWG)

 1 2.5 4.0-6.0

Spec (GB mm2)

 0.5-1.5 2.5 6

Max Current

  19 27 48
Operating Voltage 600V
Temperature Withstand 75℃

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description MFG# Stud Size Dimensions Inch Color Tool PCS/Pack
USA d2 B L F H D Thickness
A.W.G. 22-16 KFSV710 22-16 AWG Vinyl-Insulated Single Crimp Hook Terminals 1.25-3.5 HV1.25-3.5 #6 0.146 0.315 0.827 0.276 0.394 0.177 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSV711 22-16 AWG Vinyl-Insulated Single Crimp Hook Terminals 1.25-4 HV1.25-4 #8 0.169 0.315 0.827 0.276 0.394 0.177 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSV712 22-16 AWG Vinyl-Insulated Single Crimp Hook Terminals 1.25-5 HV1.25-5 #10 0.209 0.315 0.827 0.276 0.394 0.177 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSV713 22-16 AWG Vinyl-Insulated Single Crimp Hook Terminals 1.25-6 HV1.25-6 1/4" 0.252 0.453 1.063 0.433 0.394 0.177 0.030 Red IZUMI 3# 1000
A.W.G. 16-14 KFSV720 16-14 AWG Vinyl-Insulated Single Crimp Hook Terminals 2-3.5 HV2-3.5 #6 0.146 0.335 0.866 0.315 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV721 16-14 AWG Vinyl-Insulated Single Crimp Hook Terminals 2-4 HV2-4 #8 0.169 0.335 0.866 0.315 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV722 16-14 AWG Vinyl-Insulated Single Crimp Hook Terminals 2-5 HV2-5 #10 0.209 0.374 0.866 0.295 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV723 16-14 AWG Vinyl-Insulated Single Crimp Hook Terminals 2-6 HV2-6 1/4" 0.252 0.472 1.063 0.433 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 12-10 KFSV730 12-10 AWG Vinyl-Insulated Single Crimp Hook Terminals 5.5-3.5 HV5.5-3.5 #6 0.146 0.276 0.886 0.236 0.512 0.256 0.039 Yellwo IZUMI 5# 1000
A.W.G. 12-10 KFSV731 12-10 AWG Vinyl-Insulated Single Crimp Hook Terminals 5.5-4 HV5.5-4 #8 0.169 0.374 1.024 0.315 0.512 0.256 0.039 Yellwo IZUMI 5# 1000
A.W.G. 12-10 KFSV732 12-10 AWG Vinyl-Insulated Single Crimp Hook Terminals 5.5-5 HV5.5-5 #10 0.209 0.374 1.024 0.315 0.512 0.256 0.039 Yellwo IZUMI 5# 1000
A.W.G. 12-10 KFSV733 12-10 AWG Vinyl-Insulated Single Crimp Hook Terminals 5.5-6 HV5.5-6 1/4" 0.252 0.472 1.161 0.413 0.512 0.256 0.039 Yellwo IZUMI 5# 500
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric d2 B L F H D Thickness
0.5~1.5mm² KFSV710 22-16 AWG Vinyl-Insulated Single Crimp Hook Terminals 1.25-3.5 HV1.25-3.5 3.5 3.7 8.0 21.0 7.0 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV711 22-16 AWG Vinyl-Insulated Single Crimp Hook Terminals 1.25-4 HV1.25-4 4 4.3 8.0 21.0 7.0 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV712 22-16 AWG Vinyl-Insulated Single Crimp Hook Terminals 1.25-5 HV1.25-5 5 5.3 8.0 21.0 7.0 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV713 22-16 AWG Vinyl-Insulated Single Crimp Hook Terminals 1.25-6 HV1.25-6   6.4 11.5 27.0 11.0 10.0 4.5 0.75 Red IZUMI 3# 1000
1.5~2.5mm² KFSV720 16-14 AWG Vinyl-Insulated Single Crimp Hook Terminals 2-3.5 HV2-3.5 3.5 3.7 8.5 22.0 8.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV721 16-14 AWG Vinyl-Insulated Single Crimp Hook Terminals 2-4 HV2-4 4 4.3 8.5 22.0 8.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV722 16-14 AWG Vinyl-Insulated Single Crimp Hook Terminals 2-5 HV2-5 5 5.3 9.5 22.0 7.5 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV723 16-14 AWG Vinyl-Insulated Single Crimp Hook Terminals 2-6 HV2-6   6.4 12.0 27.0 11.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
4.0~6.0mm² KFSV730 12-10 AWG Vinyl-Insulated Single Crimp Hook Terminals 5.5-3.5 HV5.5-3.5 3.5 3.7 7.0 22.5 6.0 13.0 6.5 1.0 Yellwo IZUMI 5# 1000
4.0~6.0mm² KFSV731 12-10 AWG Vinyl-Insulated Single Crimp Hook Terminals 5.5-4 HV5.5-4 4 4.3 9.5 26.0 8.0 13.0 6.5 1.0 Yellwo IZUMI 5# 1000
4.0~6.0mm² KFSV732 12-10 AWG Vinyl-Insulated Single Crimp Hook Terminals 5.5-5 HV5.5-5 5 5.3 9.5 26.0 8.0 13.0 6.5 1.0 Yellwo IZUMI 5# 1000
4.0~6.0mm² KFSV733 12-10 AWG Vinyl-Insulated Single Crimp Hook Terminals 5.5-6 HV5.5-6   6.4 12.0 29.5 10.5 13.0 6.5 1.0 Yellwo IZUMI 5# 500
