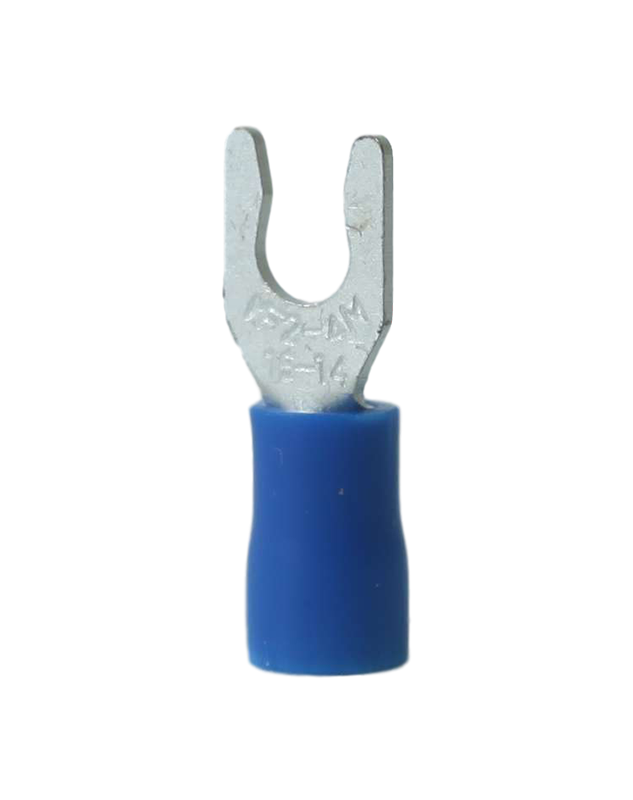

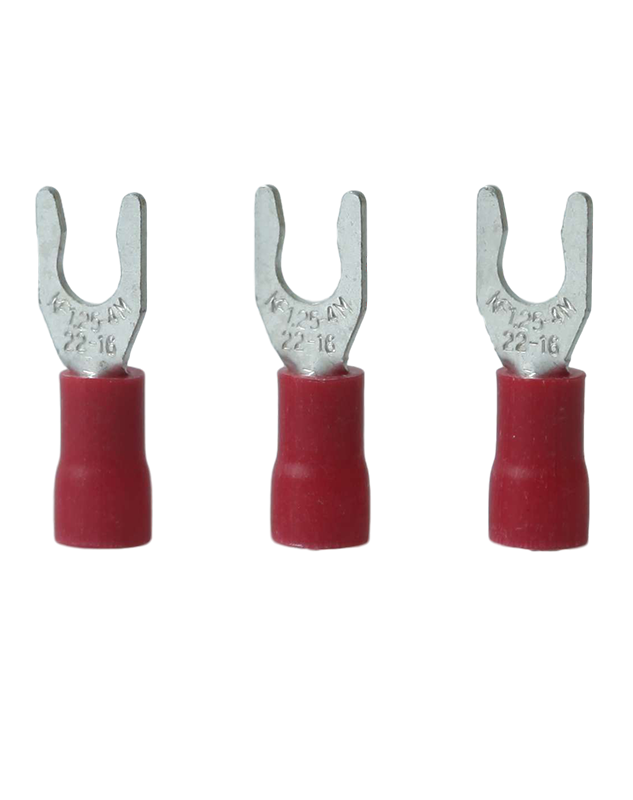

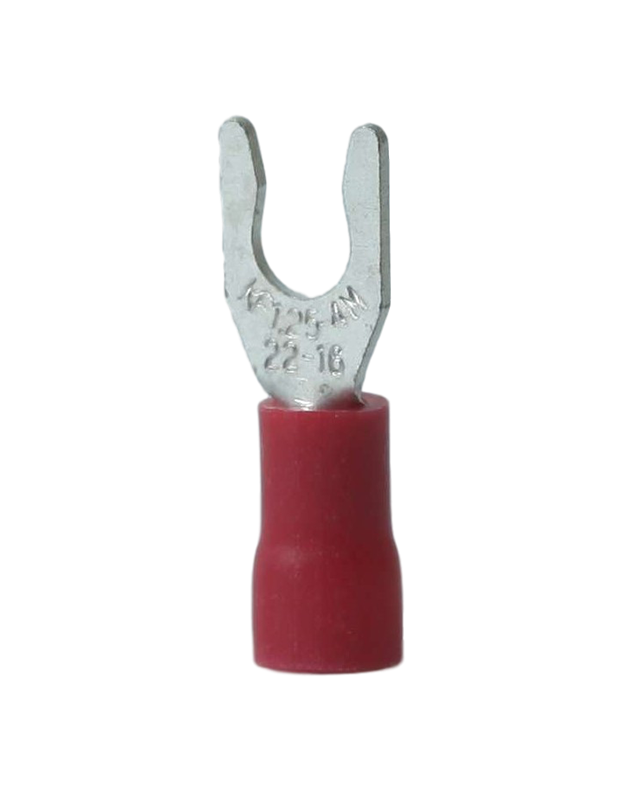

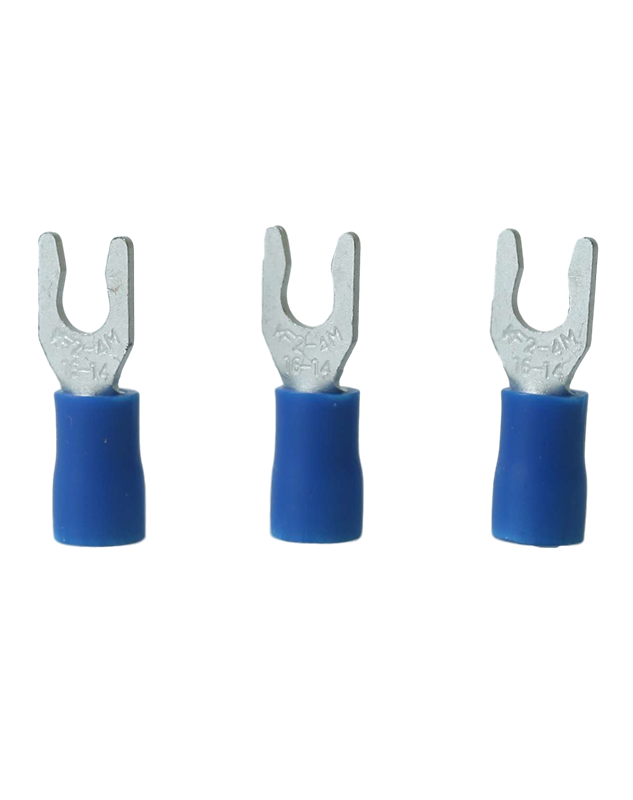

Vinyl-Insulated Single Crimp Locking Spade Terminals

Vinyl-Insulated Single Crimp Locking Spade Terminals

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper,PVC

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 1,726

Product Details

Spec (American AWG)

 22-16 16-14 12-10

Spec (JIS AWG)

 1.25 2 5.5

Spec (DIN AWG)

 1 2.5 4.0-6.0

Spec (GB mm2)

 0.5-1.5 2.5 6

Max Current

  19 27 48
Operating Voltage 600V
Temperature Withstand 75℃

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA d2 B L F H D Thickness
A.W.G. 22-16  KFSV310 22-16 AWG Vinyl-Insulated Single Crimp Locking Spade Terminals 1.25-3.5 LSV1.25-3.5 #6 0.146 0.256 0.827 0.256 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16  KFSV311 22-16 AWG Vinyl-Insulated Single Crimp Locking Spade Terminals 1.25-4M LSVM1.25-4 #8 0.169 0.276 0.827 0.256 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16  KFSV312 22-16 AWG Vinyl-Insulated Single Crimp Locking Spade Terminals 1.25-4L LSVL1.25-4 #8 0.169 0.315 0.827 0.256 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16  KFSV313 22-16 AWG Vinyl-Insulated Single Crimp Locking Spade Terminals 1.25-5S LSVS1.25-5 #10 0.209 0.315 0.827 0.256 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16  KFSV314 22-16 AWG Vinyl-Insulated Single Crimp Locking Spade Terminals 1.25-5L LSVL1.25-5 #10 0.209 0.374 0.827 0.256 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 16-14   KFSV320 16-14 AWG Vinyl-Insulated Single Crimp Locking Spade Terminals 2-3.5 LSV2-3.5 #6 0.146 0.236 0.827 0.256 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14   KFSV321 16-14 AWG Vinyl-Insulated Single Crimp Locking Spade Terminals 2-4M LSVM2-4 #8 0.169 0.276 0.827 0.256 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14   KFSV322 16-14 AWG Vinyl-Insulated Single Crimp Locking Spade Terminals 2-4L LSVL2-4 #8 0.169 0.315 0.827 0.256 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14   KFSV323 16-14 AWG Vinyl-Insulated Single Crimp Locking Spade Terminals 2-5S LSVS2-5 #10 0.209 0.315 0.827 0.256 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14   KFSV324 16-14 AWG Vinyl-Insulated Single Crimp Locking Spade Terminals 2-5L LSVL2-5 #10 0.209 0.374 0.827 0.256 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 12-10   KFSV330 12-10 AWG Vinyl-Insulated Single Crimp Locking Spade Terminals 5.5-3.5 LSV5.5-3.5 #6 0.146 0.335 1.004 0.295 0.512 0.256 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10   KFSV331 12-10 AWG Vinyl-Insulated Single Crimp Locking Spade Terminals 5.5-4 LSV5.5-4 #8 0.169 0.335 1.004 0.295 0.512 0.256 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10   KFSV332 12-10 AWG Vinyl-Insulated Single Crimp Locking Spade Terminals 5.5-5 LSV5.5-5 #10 0.209 0.354 1.004 0.295 0.512 0.256 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10   KFSV333 12-10 AWG Vinyl-Insulated Single Crimp Locking Spade Terminals 5.5-6 LSV5.5-6   0.252 0.472 1.24 0.472 0.512 0.256 0.039 Yellow IZUMI 5# 1000
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric d2 B L F H D Thickness
0.5~1.5mm² KFSV310 22-16 AWG Vinyl-Insulated Single Crimp Locking Spade Terminals 1.25-3.5 LSV1.25-3.5 3.5 3.7 6.5 21.0 6.5 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV311 22-16 AWG Vinyl-Insulated Single Crimp Locking Spade Terminals 1.25-4M LSVM1.25-4 4 4.3 7.0 21.0 6.5 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV312 22-16 AWG Vinyl-Insulated Single Crimp Locking Spade Terminals 1.25-4L LSVL1.25-4 4 4.3 8.0 21.0 6.5 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV313 22-16 AWG Vinyl-Insulated Single Crimp Locking Spade Terminals 1.25-5S LSVS1.25-5 5 5.3 8.0 21.0 6.5 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV314 22-16 AWG Vinyl-Insulated Single Crimp Locking Spade Terminals 1.25-5L LSVL1.25-5 5 5.3 9.5 21.0 6.5 10.0 4.5 0.75 Red IZUMI 3# 1000
1.5~2.5mm² KFSV320 16-14 AWG Vinyl-Insulated Single Crimp Locking Spade Terminals 2-3.5 LSV2-3.5 3.5 3.7 6.0 21.0 6.5 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV321 16-14 AWG Vinyl-Insulated Single Crimp Locking Spade Terminals 2-4M LSVM2-4 4 4.3 7.0 21.0 6.5 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV322 16-14 AWG Vinyl-Insulated Single Crimp Locking Spade Terminals 2-4L LSVL2-4 4 4.3 8.0 21.0 6.5 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV323 16-14 AWG Vinyl-Insulated Single Crimp Locking Spade Terminals 2-5S LSVS2-5 5 5.3 8.0 21.0 6.5 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV324 16-14 AWG Vinyl-Insulated Single Crimp Locking Spade Terminals 2-5L LSVL2-5 5 5.3 9.5 21.0 6.5 10.0 5.0 0.8 Blue IZUMI 4# 1000
4.0~6.0mm² KFSV330 12-10 AWG Vinyl-Insulated Single Crimp Locking Spade Terminals 5.5-3.5 LSV5.5-3.5 3.5 3.7 8.5 25.5 7.5 13.0 6.5 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSV331 12-10 AWG Vinyl-Insulated Single Crimp Locking Spade Terminals 5.5-4 LSV5.5-4 4 4.3 8.5 25.5 7.5 13.0 6.5 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSV332 12-10 AWG Vinyl-Insulated Single Crimp Locking Spade Terminals 5.5-5 LSV5.5-5 5 5.3 9.0 25.5 7.5 13.0 6.5 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSV333 12-10 AWG Vinyl-Insulated Single Crimp Locking Spade Terminals 5.5-6 LSV5.5-6   6.4 12.0 31.5 12.0 13.0 6.5 1.0 Yellow IZUMI 5# 1000
