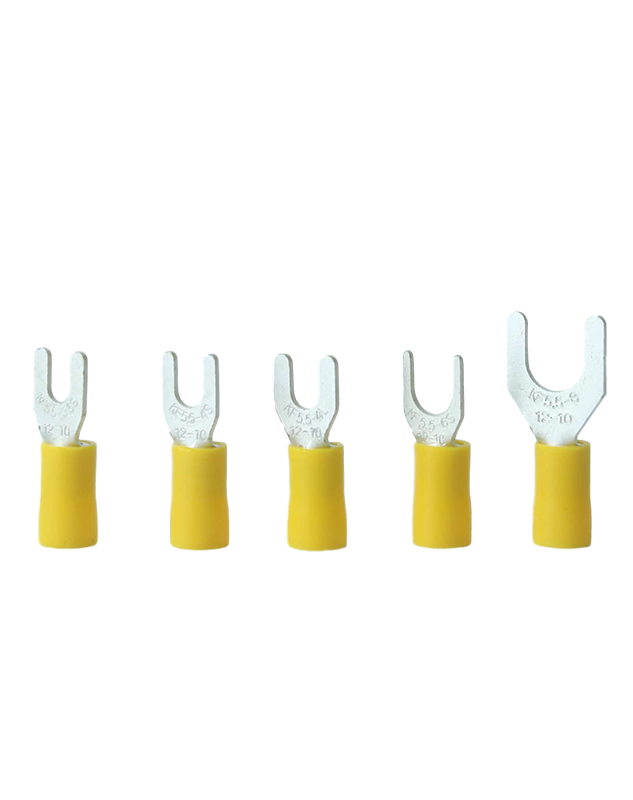

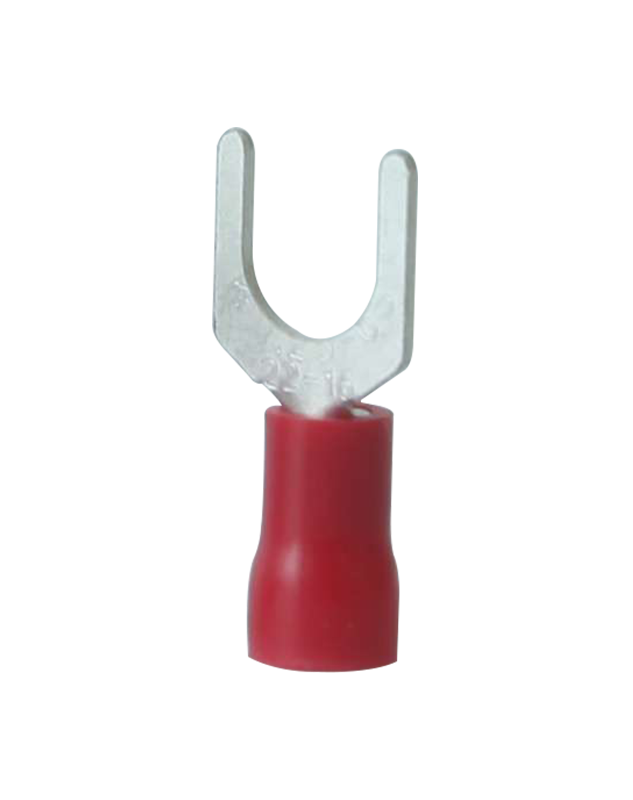

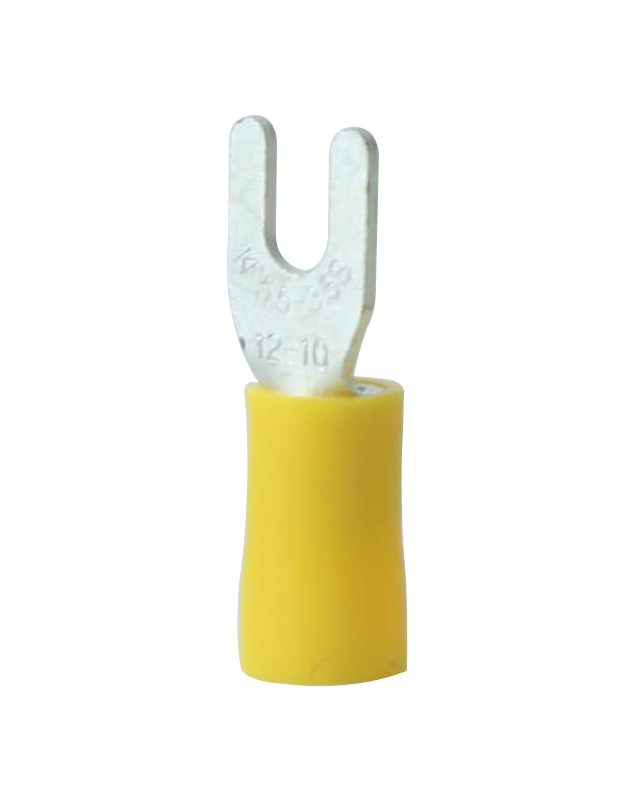

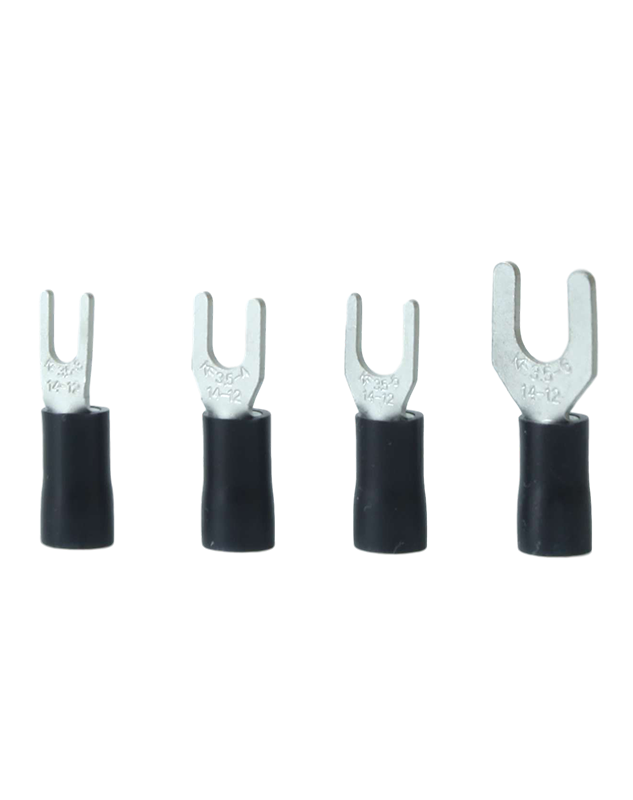

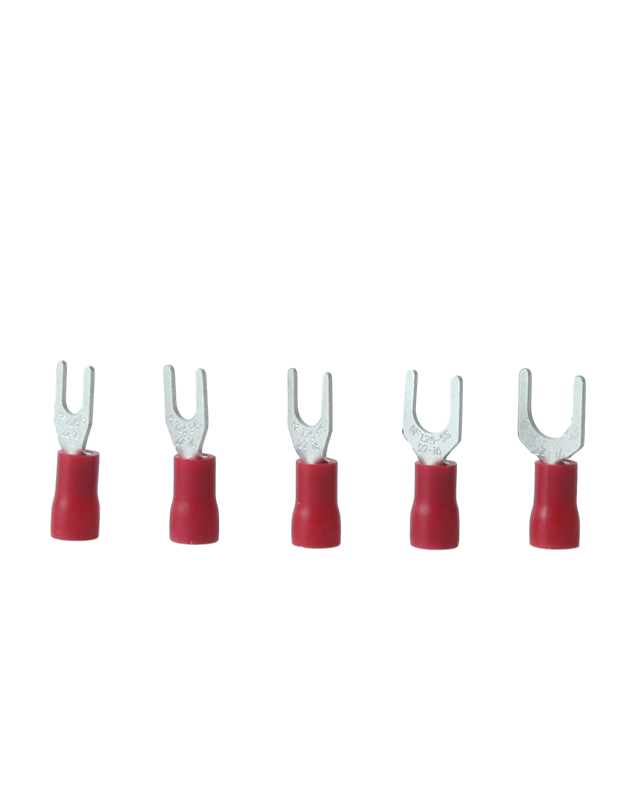

Vinyl-Insulated Single Crimp Spade Terminals

Vinyl-Insulated Single Crimp Spade Terminals

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper,PVC

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





2+
Views: 39,953

Product Details

Spec (American AWG)

22-16

16-1 4

14-12

12-10

8

6

4

Spec (JIS AWG)

1.25

2

3.5

5.5

8

14

22

Spec (DIN AWG)

1

2.5



4.0-6.0

10

16

25

Spec (GB mm2)

0.5-1.5

2.5

4

6

10

16

25

Max Current

19

27

37

48

62

88

115
Operating Voltage 600V
Temperature Withstand 75℃

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA d2 B F L H D T
A.W.G. 22-16 KFSV010 22-16 AWG Vinyl-Insulated Single Crimp Spade Terminals 1.25-3 SV1.25-3 #4 0.126 0.217 0.256 0.827 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV011 22-16 AWG Vinyl-Insulated Single Crimp Spade Terminals 1.25-3.5S SVS1.25-3.5 #6 0.146 0.217 0.256 0.827 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV012 22-16 AWG Vinyl-Insulated Single Crimp Spade Terminals 1.25-3.5L SVL1.25-3.5 #6 0.146 0.256 0.256 0.827 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV013 22-16 AWG Vinyl-Insulated Single Crimp Spade Terminals 1.25-4S SVS1.25-4 #8 0.169 0.256 0.256 0.827 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV014 22-16 AWG Vinyl-Insulated Single Crimp Spade Terminals 1.25-4M SVM1.25-4 #8 0.169 0.276 0.256 0.827 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV015 22-16 AWG Vinyl-Insulated Single Crimp Spade Terminals 1.25-4L SVL1.25-4 #8 0.169 0.315 0.256 0.827 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV016 22-16 AWG Vinyl-Insulated Single Crimp Spade Terminals 1.25-5S SVS1.25-5 #10 0.209 0.315 0.256 0.827 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV017 22-16 AWG Vinyl-Insulated Single Crimp Spade Terminals 1.25-5L SVL1.25-5 #10 0.209 0.374 0.256 0.827 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV018 22-16 AWG Vinyl-Insulated Single Crimp Spade Terminals 1.25-6S SVS1.25-6 1/4" 0.252 0.374 0.256 0.827 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV019 22-16 AWG Vinyl-Insulated Single Crimp Spade Terminals 1.25-6L SVL1.25-6 1/4" 0.252 0.472 0.433 1.063 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 16-14 KFSV020 16-14 AWG Vinyl-Insulated Single Crimp Spade Terminals 2-3 SV2-3 #4 0.126 0.217 0.256 0.827 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV021 16-14 AWG Vinyl-Insulated Single Crimp Spade Terminals 2-3.5S SVS2.-3.5 #6 0.146 0.217 0.256 0.827 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV022 16-14 AWG Vinyl-Insulated Single Crimp Spade Terminals 2-3.5L SVL2-3.5 #6 0.146 0.276 0.256 0.827 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV023 16-14 AWG Vinyl-Insulated Single Crimp Spade Terminals 2-4S SVS2-4 #8 0.169 0.256 0.256 0.827 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV024 16-14 AWG Vinyl-Insulated Single Crimp Spade Terminals 2-4M SVM2-4 #8 0.169 0.276 0.256 0.827 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV025 16-14 AWG Vinyl-Insulated Single Crimp Spade Terminals 2-4L SVL2-4 #8 0.169 0.315 0.256 0.827 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV026 16-14 AWG Vinyl-Insulated Single Crimp Spade Terminals 2-5S SVS2-5 #10 0.209 0.315 0.256 0.827 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV027 16-14 AWG Vinyl-Insulated Single Crimp Spade Terminals 2-5L SVL2-5 #10 0.209 0.374 0.256 0.827 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV028 16-14 AWG Vinyl-Insulated Single Crimp Spade Terminals 2-6S SVS2-6 1/4" 0.252 0.374 0.256 0.827 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV029 16-14 AWG Vinyl-Insulated Single Crimp Spade Terminals 2-6L SVL2-6 1/4" 0.252 0.472 0.433 1.063 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 14-12 KFSV030 14-12 AWG Vinyl-Insulated Single Crimp Spade Terminals 3.5-3 SV3.5-3 #4 0.126 0.217 0.276 1.004 0.512 0.236 0.039 Black IZUMI 5# 1000
A.W.G. 14-12 KFSV031 14-12 AWG Vinyl-Insulated Single Crimp Spade Terminals 3.5-4 SV3.5-4 #8 0.169 0.315 0.276 1.004 0.512 0.236 0.039 Black IZUMI 5# 1000
A.W.G. 14-12 KFSV032 14-12 AWG Vinyl-Insulated Single Crimp Spade Terminals 3.5-5 SV3.5-5 #10 0.209 0.315 0.276 1.004 0.512 0.236 0.039 Black IZUMI 5# 1000
A.W.G. 14-12 KFSV033 14-12 AWG Vinyl-Insulated Single Crimp Spade Terminals 3.5-6 SV3.5-6 1/4" 0.252 0.472 0.354 1.122 0.512 0.236 0.039 Black IZUMI 5# 500
A.W.G. 12-10 KFSV040 12-10 AWG Vinyl-Insulated Single Crimp Spade Terminals 5.5-3.5 SV5.5-3.5 #6 0.146 0.335 0.295 1.004 0.512 0.256 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSV041 12-10 AWG Vinyl-Insulated Single Crimp Spade Terminals 5.5-4S SVS5.5-4 #8 0.169 0.335 0.295 1.004 0.512 0.256 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSV042 12-10 AWG Vinyl-Insulated Single Crimp Spade Terminals 5.5-4L SVL5.5-4 #8 0.169 0.374 0.295 1.004 0.512 0.256 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSV043 12-10 AWG Vinyl-Insulated Single Crimp Spade Terminals 5.5-5 SV5.5-5 #10 0.209 0.354 0.295 1.004 0.512 0.256 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSV044 12-10 AWG Vinyl-Insulated Single Crimp Spade Terminals 5.5-6S SVS5.5-6 1/4" 0.252 0.354 0.295 1.004 0.512 0.256 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSV045 12-10 AWG Vinyl-Insulated Single Crimp Spade Terminals 5.5-6L SVL5.5-6 1/4" 0.252 0.472 0.472 1.24 0.512 0.256 0.039 Yellow IZUMI 5# 500
A.W.G. 12-10 KFSV046 12-10 AWG Vinyl-Insulated Single Crimp Spade Terminals 5.5-8 SV5.5-8 1/4" 0.331 0.551 0.453 1.201 0.512 0.256 0.039 Yellow IZUMI 5# 500
A.W.G. 8 KFSV050 8 AWG Vinyl-Insulated Single Crimp Spade Terminals 8-4 SV8-4 #8 0.169 0.335 0.354 1.181 0.591 0.315 0.047 Red OPT TP - 80 500
A.W.G. 8 KFSV051 8 AWG Vinyl-Insulated Single Crimp Spade Terminals 8-5 SV8-5 #10 0.209 0.453 0.335 1.22 0.591 0.315 0.047 Red OPT TP - 80 500
A.W.G. 8 KFSV052 8 AWG Vinyl-Insulated Single Crimp Spade Terminals 8-6 SV8-6 1/4" 0.252 0.453 0.335 1.22 0.591 0.315 0.047 Red OPT TP - 80 500
A.W.G. 8 KFSV053 8 AWG Vinyl-Insulated Single Crimp Spade Terminals 8-8 SV8-8 1/4" 0.331 0.571 0.472 1.378 0.591 0.315 0.047 Red OPT TP - 80 250
A.W.G. 6 KFSV060 6 AWG Vinyl-Insulated Single Crimp Spade Terminals 14-5 SV14-5 #10 0.209 0.433 0.433 1.535 0.807 0.394 0.055 Blue OPT TP - 80 250
A.W.G. 6 KFSV061 6 AWG Vinyl-Insulated Single Crimp Spade Terminals 14-6 SV14-6 1/4" 0.252 0.472 0.394 1.516 0.807 0.394 0.055 Blue OPT TP - 80 250
A.W.G. 6  KFSV062 6 AWG Vinyl-Insulated Single Crimp Spade Terminals 14-8 SV14-8 1/4" 0.331 0.531 0.433 1.516 0.807 0.394 0.055 Blue OPT TP - 80 250
A.W.G. 4 KFSV070 4 AWG Vinyl-Insulated Single Crimp Spade Terminals 22-8 SV22-8 1/4" 0.331 0.551 0.512 1.811 0.925 0.492 0.071 Yellow OPT TP - 80 100
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric d2 B F L H D T
0.5~1.5mm² KFSV010 22-16 AWG Vinyl-Insulated Single Crimp Spade Terminals 1.25-3 SV1.25-3 3 3.2 5.5 6.5 21.0 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV011 22-16 AWG Vinyl-Insulated Single Crimp Spade Terminals 1.25-3.5S SVS1.25-3.5 3.5 3.7 5.5 6.5 21.0 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV012 22-16 AWG Vinyl-Insulated Single Crimp Spade Terminals 1.25-3.5L SVL1.25-3.5 3.5 3.7 6.5 6.5 21.0 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV013 22-16 AWG Vinyl-Insulated Single Crimp Spade Terminals 1.25-4S SVS1.25-4 4 4.3 6.5 6.5 21.0 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV014 22-16 AWG Vinyl-Insulated Single Crimp Spade Terminals 1.25-4M SVM1.25-4 4 4.3 7.0 6.5 21.0 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV015 22-16 AWG Vinyl-Insulated Single Crimp Spade Terminals 1.25-4L SVL1.25-4 4 4.3 8.0 6.5 21.0 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV016 22-16 AWG Vinyl-Insulated Single Crimp Spade Terminals 1.25-5S SVS1.25-5 5 5.3 8.0 6.5 21.0 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV017 22-16 AWG Vinyl-Insulated Single Crimp Spade Terminals 1.25-5L SVL1.25-5 5 5.3 9.5 6.5 21.0 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV018 22-16 AWG Vinyl-Insulated Single Crimp Spade Terminals 1.25-6S SVS1.25-6 6 6.4 9.5 6.5 21.0 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV019 22-16 AWG Vinyl-Insulated Single Crimp Spade Terminals 1.25-6L SVL1.25-6 6 6.4 12.0 11.0 27.0 10.0 4.5 0.75 Red IZUMI 3# 1000
1.5~2.5mm² KFSV020 16-14 AWG Vinyl-Insulated Single Crimp Spade Terminals 2-3 SV2-3 3 3.2 5.5 6.5 21.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV021 16-14 AWG Vinyl-Insulated Single Crimp Spade Terminals 2-3.5S SVS2.-3.5 3.5 3.7 5.5 6.5 21.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV022 16-14 AWG Vinyl-Insulated Single Crimp Spade Terminals 2-3.5L SVL2-3.5 3.5 3.7 7.0 6.5 21.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV023 16-14 AWG Vinyl-Insulated Single Crimp Spade Terminals 2-4S SVS2-4 4 4.3 6.5 6.5 21.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV024 16-14 AWG Vinyl-Insulated Single Crimp Spade Terminals 2-4M SVM2-4 4 4.3 7.0 6.5 21.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV025 16-14 AWG Vinyl-Insulated Single Crimp Spade Terminals 2-4L SVL2-4 4 4.3 8.0 6.5 21.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV026 16-14 AWG Vinyl-Insulated Single Crimp Spade Terminals 2-5S SVS2-5 5 5.3 8.0 6.5 21.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV027 16-14 AWG Vinyl-Insulated Single Crimp Spade Terminals 2-5L SVL2-5 5 5.3 9.5 6.5 21.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV028 16-14 AWG Vinyl-Insulated Single Crimp Spade Terminals 2-6S SVS2-6 6 6.4 9.5 6.5 21.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV029 16-14 AWG Vinyl-Insulated Single Crimp Spade Terminals 2-6L SVL2-6 6 6.4 12.0 11.0 27.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
2.5~4.0mm² KFSV030 14-12 AWG Vinyl-Insulated Single Crimp Spade Terminals 3.5-3 SV3.5-3 3 3.2 5.5 7.0 25.5 13.0 6.0 1.0 Black IZUMI 5# 1000
2.5~4.0mm² KFSV031 14-12 AWG Vinyl-Insulated Single Crimp Spade Terminals 3.5-4 SV3.5-4 4 4.3 8.0 7.0 25.5 13.0 6.0 1.0 Black IZUMI 5# 1000
2.5~4.0mm² KFSV032 14-12 AWG Vinyl-Insulated Single Crimp Spade Terminals 3.5-5 SV3.5-5 5 5.3 8.0 7.0 25.5 13.0 6.0 1.0 Black IZUMI 5# 1000
2.5~4.0mm² KFSV033 14-12 AWG Vinyl-Insulated Single Crimp Spade Terminals 3.5-6 SV3.5-6 6 6.4 12.0 9.0 28.5 13.0 6.0 1.0 Black IZUMI 5# 500
4.0~6.0mm² KFSV040 12-10 AWG Vinyl-Insulated Single Crimp Spade Terminals 5.5-3.5 SV5.5-3.5 3.5 3.7 8.5 7.5 25.5 13.0 6.5 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSV041 12-10 AWG Vinyl-Insulated Single Crimp Spade Terminals 5.5-4S SVS5.5-4 4 4.3 8.5 7.5 25.5 13.0 6.5 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSV042 12-10 AWG Vinyl-Insulated Single Crimp Spade Terminals 5.5-4L SVL5.5-4 4 4.3 9.5 7.5 25.5 13.0 6.5 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSV043 12-10 AWG Vinyl-Insulated Single Crimp Spade Terminals 5.5-5 SV5.5-5 5 5.3 9.0 7.5 25.5 13.0 6.5 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSV044 12-10 AWG Vinyl-Insulated Single Crimp Spade Terminals 5.5-6S SVS5.5-6 6 6.4 9.0 7.5 25.5 13.0 6.5 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSV045 12-10 AWG Vinyl-Insulated Single Crimp Spade Terminals 5.5-6L SVL5.5-6 6 6.4 12.0 12.0 31.5 13.0 6.5 1.0 Yellow IZUMI 5# 500
4.0~6.0mm² KFSV046 12-10 AWG Vinyl-Insulated Single Crimp Spade Terminals 5.5-8 SV5.5-8 8 8.4 14.0 11.5 30.5 13.0 6.5 1.0 Yellow IZUMI 5# 500
8mm² KFSV050 8 AWG Vinyl-Insulated Single Crimp Spade Terminals 8-4 SV8-4 4 4.3 8.5 9.0 30.0 15.0 8.0 1.2 Red OPT TP - 80 500
8mm² KFSV051 8 AWG Vinyl-Insulated Single Crimp Spade Terminals 8-5 SV8-5 5 5.3 11.5 8.5 31.0 15.0 8.0 1.2 Red OPT TP - 80 500
8mm² KFSV052 8 AWG Vinyl-Insulated Single Crimp Spade Terminals 8-6 SV8-6 6 6.4 11.5 8.5 31.0 15.0 8.0 1.2 Red OPT TP - 80 500
8mm² KFSV053 8 AWG Vinyl-Insulated Single Crimp Spade Terminals 8-8 SV8-8 8 8.4 14.5 12.0 35.0 15.0 8.0 1.2 Red OPT TP - 80 250
14mm² KFSV060 6 AWG Vinyl-Insulated Single Crimp Spade Terminals 14-5 SV14-5 5 5.3 11.0 11.0 39.0 20.5 10.0 1.4 Blue OPT TP - 80 250
14mm² KFSV061 6 AWG Vinyl-Insulated Single Crimp Spade Terminals 14-6 SV14-6 6 6.4 12.0 10.0 38.5 20.5 10.0 1.4 Blue OPT TP - 80 250
14mm² KFSV062 6 AWG Vinyl-Insulated Single Crimp Spade Terminals 14-8 SV14-8 8 8.4 13.5 11.0 38.5 20.5 10.0 1.4 Blue OPT TP - 80 250
22mm² KFSV070 4 AWG Vinyl-Insulated Single Crimp Spade Terminals 22-8 SV22-8 8 8.4 14.0 13.0 46.0 23.5 12.5 1.8 Yellow OPT TP - 80 100
