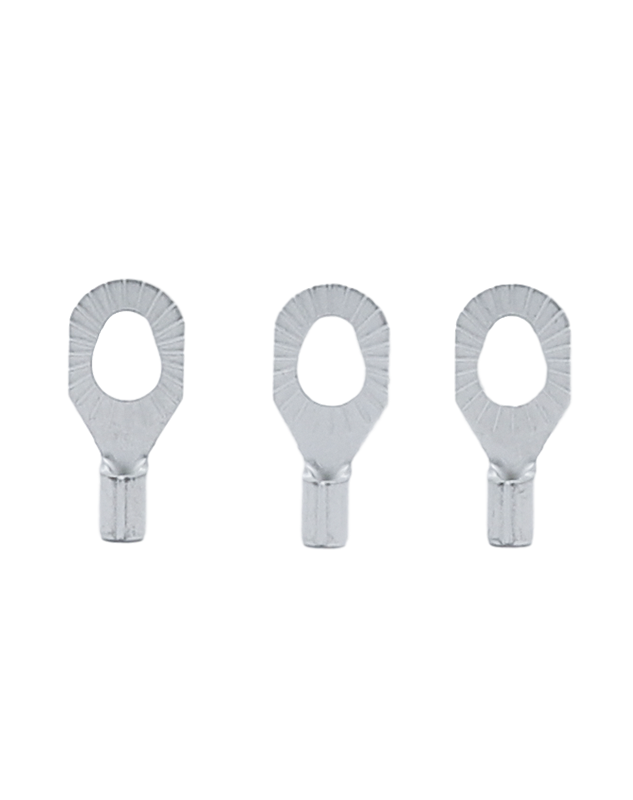

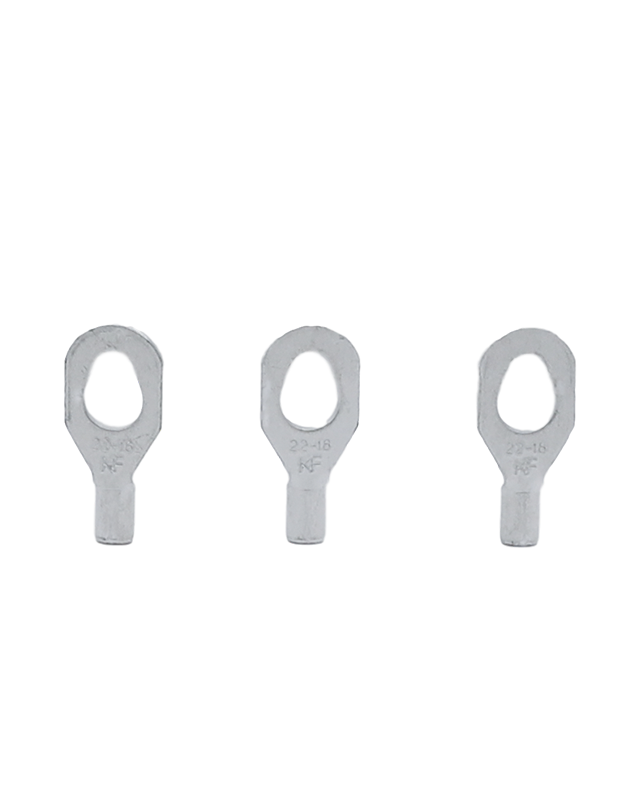

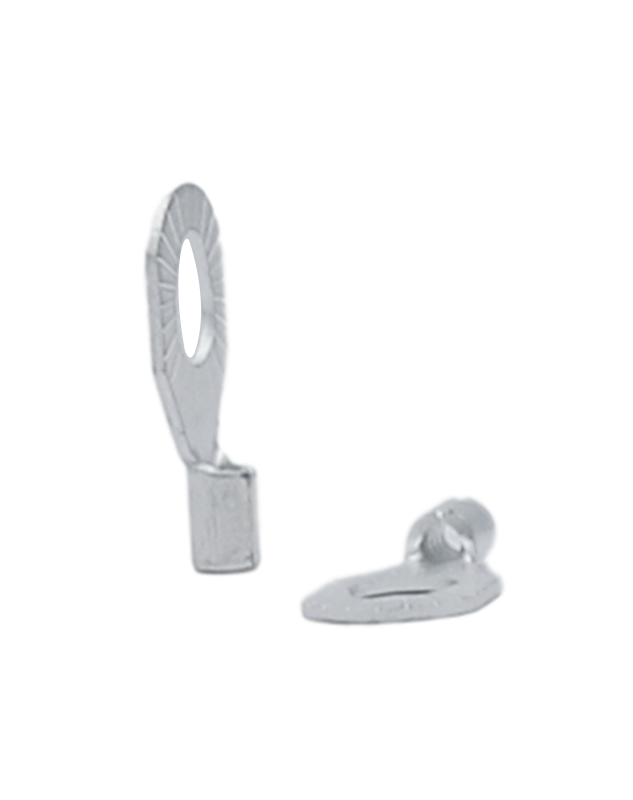

Non-Insulated Dual Screw Terminals

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

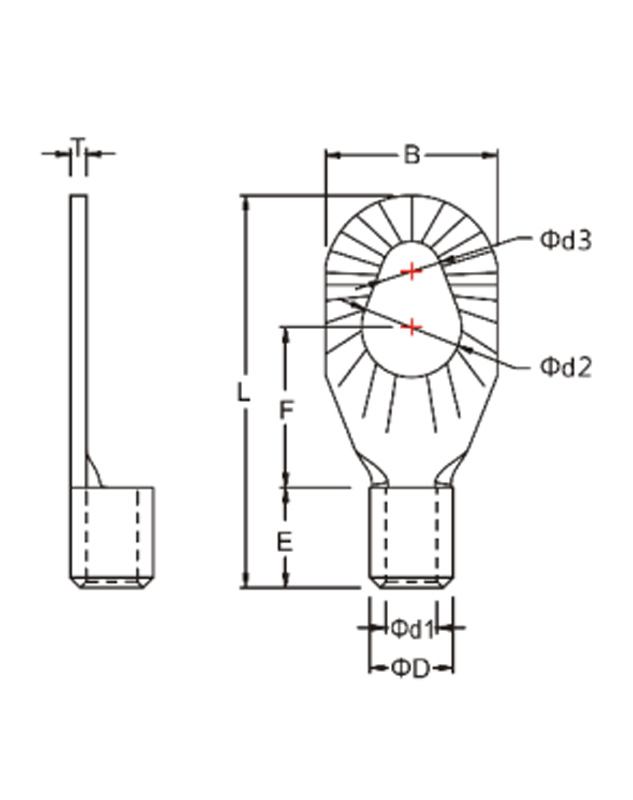

Wire Range	SKU#	Description	MFG#	Stud Size	Dimensions Inch									Tool	PCS/Pack
				USA	d2	d3	B	L	F	E	D	d1	T
A.W.G. 22-16	KFO0810	22-16 AWG Non-insulated Dual Screw Terminal 1.25-2237	MSRNB1.25-2237	#6	0.146	0.087	0.276	0.669	0.276	0.197	0.138	0.079	0.030	IZUMI 5N18	1000
A.W.G. 22-16	KFO0811	22-16 AWG Non-insulated Dual Screw Terminal 1.25-3753	MSRNB1.25-3753	#10	0.209	0.146	0.335	0.768	0.315	0.197	0.138	0.079	0.030	IZUMI 5N18	1000
A.W.G. 16-14	KFO0820	16-14 AWG Non-insulated Dual Screw Terminal 2-2237	MSRNB2-2237	#6	0.146	0.087	0.276	0.669	0.276	0.197	0.157	0.098	0.031	IZUMI 5N18	1000
A.W.G. 16-14	KFO0821	16-14 AWG Non-insulated Dual Screw Terminal 2-3753	MSRNB2-3753	#10	0.209	0.146	0.335	0.768	0.315	0.197	0.157	0.098	0.031	IZUMI 5N18	1000
A.W.G. 12-10	KFO0830	12-10 AWG Non-insulated Dual Screw Terminal 5.5-3753	MSRNB5.5-3753	#10	0.209	0.146	0.394	0.886	0.354	0.276	0.217	0.138	0.039	IZUMI 5N18	1000

Wire Range	SKU#	Description	MFG#	Stud Size	Dimensions mm									Tool	PCS/Pack
				Meric	d2	d3	B	L	F	E	D	d1	T
0.5~1.5mm²	KFO0810	22-16 AWG Non-insulated Dual Screw Terminal 1.25-2237	MSRNB1.25-2237	3.5	3.7	2.2	7.0	17.0	7.0	5.0	3.5	2.0	0.75	IZUMI 5N18	1000
0.5~1.5mm²	KFO0811	22-16 AWG Non-insulated Dual Screw Terminal 1.25-3753	MSRNB1.25-3753	5	5.3	3.7	8.5	19.5	8.0	5.0	3.5	2.0	0.75	IZUMI 5N18	1000
1.5~2.5mm²	KFO0820	16-14 AWG Non-insulated Dual Screw Terminal 2-2237	MSRNB2-2237	3.5	3.7	2.2	7.0	17.0	7.0	5.0	4.0	2.5	0.8	IZUMI 5N18	1000
1.5~2.5mm²	KFO0821	16-14 AWG Non-insulated Dual Screw Terminal 2-3753	MSRNB2-3753	5	5.3	3.7	8.5	19.5	8.0	5.0	4.0	2.5	0.8	IZUMI 5N18	1000
4.0~6.0mm²	KFO0830	12-10 AWG Non-insulated Dual Screw Terminal 5.5-3753	MSRNB5.5-3753	5	5.3	3.7	10.0	22.5	9.0	7.0	5.5	3.5	1.0	IZUMI 5N18	1000
