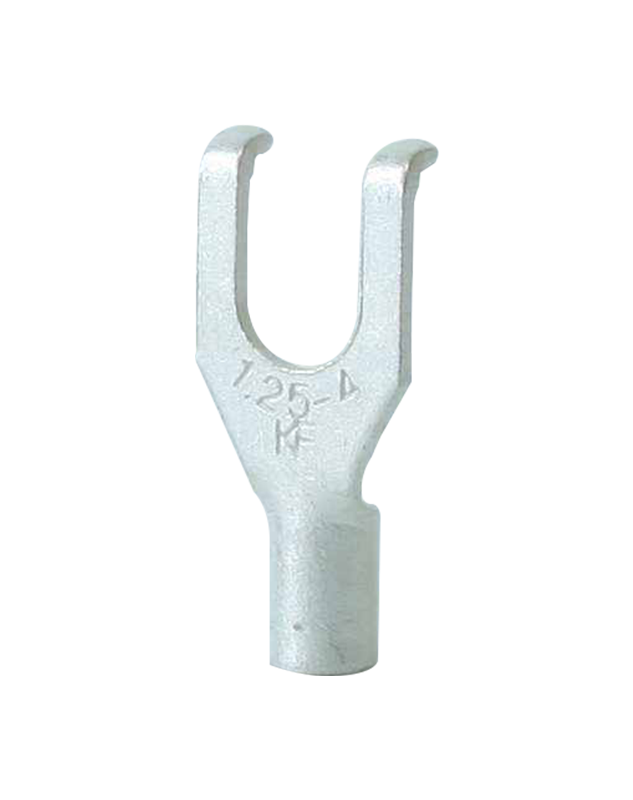

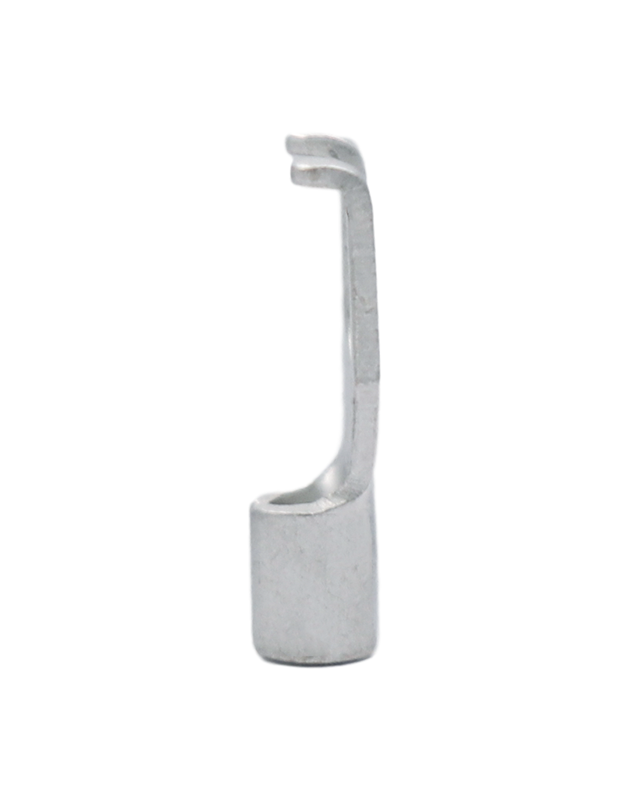

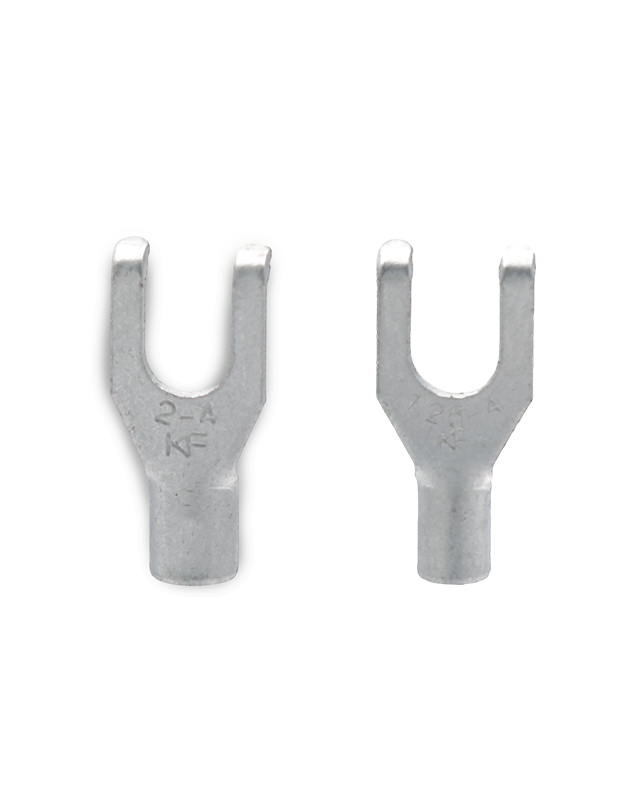

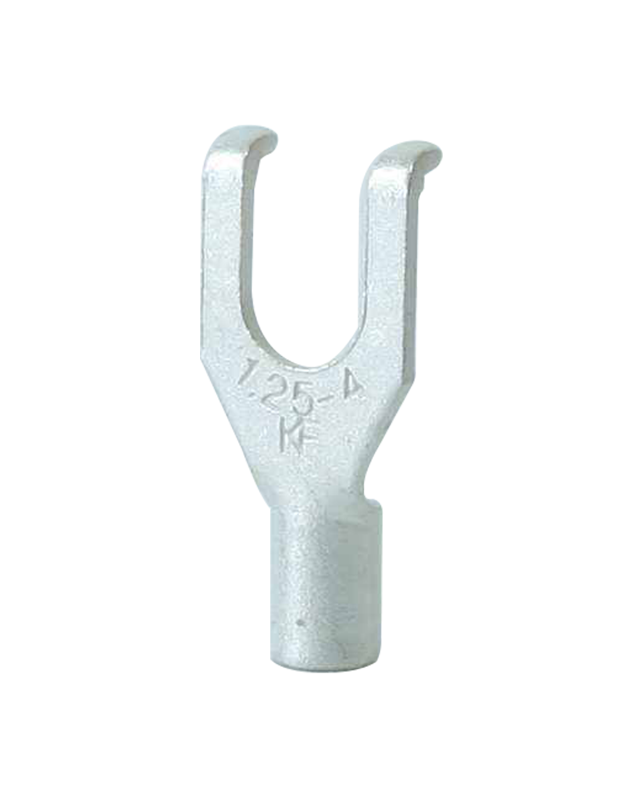

Non-Insulated Flange Spade Terminals

Non-Insulated Flange Spade Terminals

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 1,888

Product Details

Spec (American AWG) 26 -22 22-16 16-1 4 14-12 12-10 8 6 4
Spec (JIS AWG) 0.5 1.25 2 3.5 5.5  8 14 22
Spec (DIN AWG) 0.5 1 2.5   4.0-6.0 10 16 25
Spec (GB mm2) 0.1- 0.5 0.5-1.5 2.5 4 6.0  10 16 25
Max Current   19 27 37 48 62 88 115

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

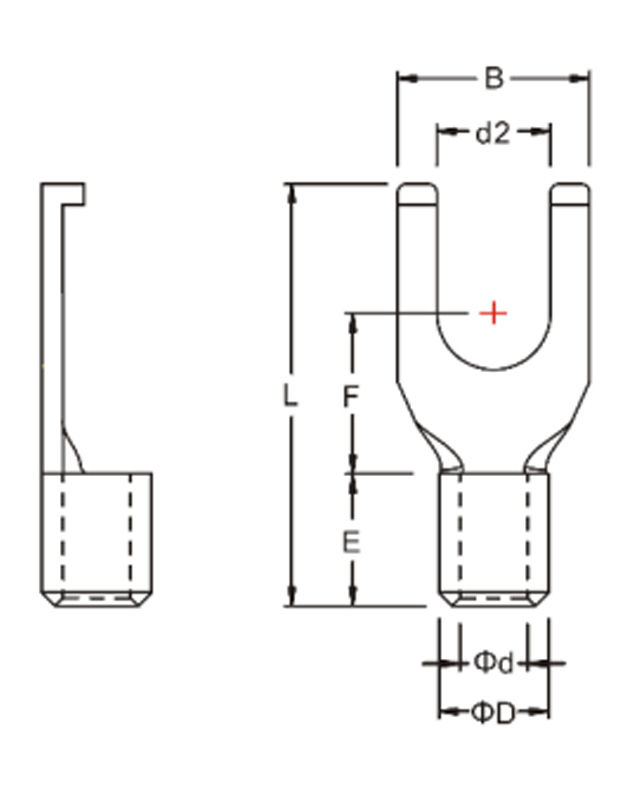

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Tool PCS /Pack
USA d2 B F L E D d Thickness
A.W.G. 22-16 KFO0210 22-16 Non-insulated Flange Spade Terminal 1.25-3.5 FSNB1.25-3.5 #6 0.146 0.146 0.630 0.256 0.197 0.138 0.079 0.030 IZUMI 5N18 1000
A.W.G. 22-16 KFO0211 22-16 Non-insulated Flange Spade Terminal 1.25-4 FSNB1.25-4 #8 0.169 0.169 0.630 0.256 0.197 0.138 0.079 0.030 IZUMI 5N18 1000
A.W.G. 22-16 KFO0212 22-16 Non-insulated Flange Spade Terminal 1.25-5 FSNB1.25-5 #10 0.209 0.209 0.630 0.256 0.197 0.138 0.079 0.030 IZUMI 5N18 1000
A.W.G. 16-14 KFO0220 16-14 Non-insulated Flange Spade Terminal 2-3.5 FSNB2-3.5 #6 0.146 0.146 0.630 0.256 0.197 0.157 0.098 0.031 IZUMI 5N18 1000
A.W.G. 16-14 KFO0221 16-14 Non-insulated Flange Spade Terminal 2-4 FSNB2-4 #8 0.169 0.169 0.630 0.256 0.197 0.157 0.098 0.031 IZUMI 5N18 1000
A.W.G. 16-14 KFO0222 16-14 Non-insulated Flange Spade Terminal 2-5 FSNB2-5 #10 0.209 0.209 0.630 0.256 0.197 0.157 0.098 0.031 IZUMI 5N18 1000
A.W.G. 12-10 KFO0230 12-10 Non-insulated Flange Spade Terminal 5.5-3.5 FSNB5.5-3.5 #6 0.146 0.146 0.768 0.295 0.276 0.217 0.138 0.039 IZUMI 5N18 1000
A.W.G. 12-10 KFO0231 12-10 Non-insulated Flange Spade Terminal 5.5-4 FSNB5.5-4 #8 0.169 0.169 0.768 0.295 0.276 0.217 0.138 0.039 IZUMI 5N18 1000
A.W.G. 12-10 KFO0232 12-10 Non-insulated Flange Spade Terminal 5.5-5 FSNB5.5-5 #10 0.209 0.209 0.768 0.295 0.276 0.217 0.138 0.039 IZUMI 5N18 1000
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Tool PCS /Pack
Meric d2 B F L E D d Thickness
0.5~1.5mm² KFO0210 22-16 Non-insulated Flange Spade Terminal 1.25-3.5 FSNB1.25-3.5 3.5 3.7 6.5 16.0 6.5 5.0 3.5 2.0 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0211 22-16 Non-insulated Flange Spade Terminal 1.25-4 FSNB1.25-4 4 4.3 7.0 16.0 6.5 5.0 3.5 2.0 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0212 22-16 Non-insulated Flange Spade Terminal 1.25-5 FSNB1.25-5 5 5.3 9.5 16.0 6.5 5.0 3.5 2.0 0.75 IZUMI 5N18 1000
1.5~2.5mm² KFO0220 16-14 Non-insulated Flange Spade Terminal 2-3.5 FSNB2-3.5 3.5 3.7 7.0 16.0 6.5 5.0 4.0 2.5 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0221 16-14 Non-insulated Flange Spade Terminal 2-4 FSNB2-4 4 4.3 7.0 16.0 6.5 5.0 4.0 2.5 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0222 16-14 Non-insulated Flange Spade Terminal 2-5 FSNB2-5 5 5.3 9.5 16.0 6.5 5.0 4.0 2.5 0.8 IZUMI 5N18 1000
4~6mm² KFO0230 12-10 Non-insulated Flange Spade Terminal 5.5-3.5 FSNB5.5-3.5 3.5 3.7 8.5 19.5 7.5 7.0 5.5 3.5 1.0 IZUMI 5N18 1000
4~6mm² KFO0231 12-10 Non-insulated Flange Spade Terminal 5.5-4 FSNB5.5-4 4 4.3 8.5 19.5 7.5 7.0 5.5 3.5 1.0 IZUMI 5N18 1000
4~6mm² KFO0232 12-10 Non-insulated Flange Spade Terminal 5.5-5 FSNB5.5-5 5 5.3 9.0 19.5 7.5 7.0 5.5 3.5 1.0 IZUMI 5N18 1000
