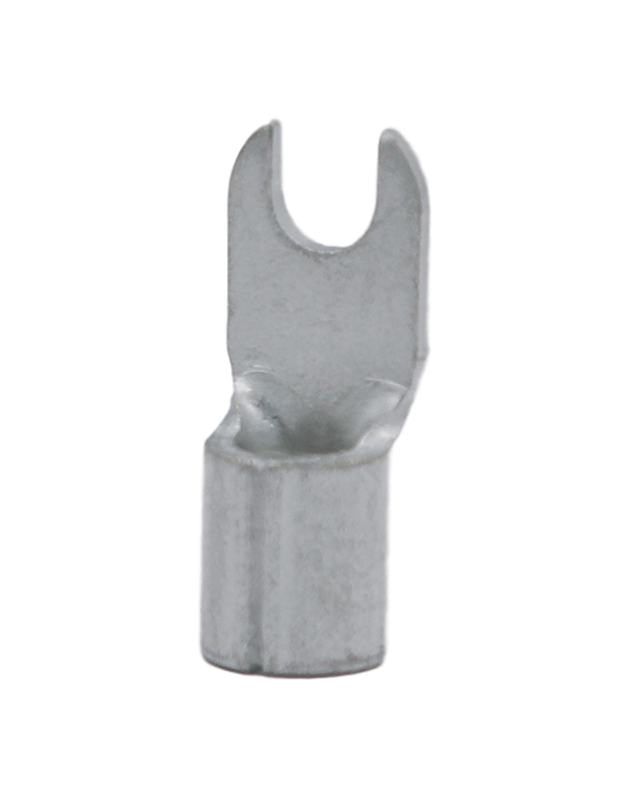

Non-Insulated Fork Terminals

Non-Insulated Fork Terminals

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 1,724

Product Details

Spec (American AWG) 26 -22 22-16 16-1 4 14-12 12-10 8 6
Spec (JIS AWG) 0.5 1.25 2 3.5 5.5  8 14
Spec (DIN AWG) 0.5 1 2.5   4.0-6.0 10 16
Spec (GB mm2) 0.1- 0.5 0.5-1.5 2.5 4 6 10 16
Max Current   19 27 37 48  62 88

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Tool PCS/Pack
USA d2 W F L E D d1 T
A.W.G. 22-16  KFO0A10 22-16 AWG Non-insulated Fork Terminal 1-3.2 ANB1-3.2 #4 0.126 0.217 0.197 0.457 0.189 0.134 0.067 0.030 IZUMI 5N18 1000
A.W.G. 22-16  KFO0A11 22-16 AWG Non-insulated Fork Terminal 1-3.7 ANB1-3.7 #6 0.146 0.260 0.248 0.531 0.189 0.134 0.067 0.030 IZUMI 5N18 1000
A.W.G. 22-16 KFO0A12 22-16 AWG Non-insulated Fork Terminal 1-4 ANB1-4 #8 0.169 0.315 0.276 0.583 0.189 0.134 0.067 0.030 IZUMI 5N18 1000
A.W.G. 22-16 KFO0A13 22-16 AWG Non-insulated Fork Terminal 1-5 ANB1-5 #10 0.209 0.315 0.276 0.583 0.189 0.134 0.067 0.030 IZUMI 5N18 1000
A.W.G. 22-16  KFO0A14 22-16 AWG Non-insulated Fork Terminal 1-6 ANB1-6 1/4" 0.252 0.457 0.433 0.799 0.189 0.134 0.067 0.030 IZUMI 5N18 1000
A.W.G. 22-16 KFO0A15 22-16 AWG Non-insulated Fork Terminal 1-8 ANB1-8 5/16" 0.331 0.457 0.433 0.764 0.189 0.134 0.067 0.030 IZUMI 5N18 1000
A.W.G. 22-16 KFO0A16 22-16 AWG Non-insulated Fork Terminal 1-10 ANB1-10 3/8" 0.413 0.591 0.433 0.886 0.189 0.134 0.067 0.030 IZUMI 5N18 1000
A.W.G. 16-14 KFO0A20 16-14 AWG Non-insulated Fork Terminal 2-3.2 ANB2-3.2 #4 0.126 0.260 0.185 0.472 0.189 0.161 0.091 0.031 IZUMI 5N18 1000
A.W.G. 16-14 KFO0A21 16-14 AWG Non-insulated Fork Terminal 2-3.7 ANB2-3.7 #6 0.146 0.260 0.248 0.531 0.189 0.161 0.091 0.031 IZUMI 5N18 1000
A.W.G. 16-14 KFO0A22 16-14 AWG Non-insulated Fork Terminal 2-4 ANB2-4 #8 0.169 0.335 0.307 0.626 0.189 0.161 0.091 0.031 IZUMI 5N18 1000
A.W.G. 16-14 KFO0A23 16-14 AWG Non-insulated Fork Terminal 2-5 ANB2-5 #10 0.209 0.374 0.287 0.614 0.189 0.161 0.091 0.031 IZUMI 5N18 1000
A.W.G. 16-14 KFO0A24 16-14 AWG Non-insulated Fork Terminal 2-6 ANB2-6 1/4" 0.252 0.472 0.433 0.807 0.189 0.161 0.091 0.031 IZUMI 5N18 1000
A.W.G. 16-14 KFO0A25 16-14 AWG Non-insulated Fork Terminal 2-8 ANB2-8 5/16" 0.331 0.472 0.433 0.776 0.189 0.161 0.091 0.031 IZUMI 5N18 1000
A.W.G. 16-14 KFO0A26 16-14 AWG Non-insulated Fork Terminal 2-10 ANB2-10 3/8" 0.413 0.591 0.539 0.886 0.189 0.161 0.091 0.031 IZUMI 5N18 1000
A.W.G. 12-10 KFO0A30 12-10 AWG Non-insulated Fork Terminal 5-4 ANB5-4 #8 0.169 0.283 0.358 0.744 0.236 0.220 0.134 0.039 IZUMI 5N18 1000
A.W.G. 12-10 KFO0A31 12-10 AWG Non-insulated Fork Terminal 5-5 ANB5-5 #10 0.209 0.374 0.358 0.732 0.236 0.220 0.134 0.039 IZUMI 5N18 1000
A.W.G. 12-10 KFO0A32 12-10 AWG Non-insulated Fork Terminal 5-6 ANB5-6 1/4" 0.252 0.472 0.413 0.835 0.236 0.220 0.134 0.039 IZUMI 5N18 1000
A.W.G. 12-10 KFO0A33 12-10 AWG Non-insulated Fork Terminal 5-8 ANB5-8 5/16" 0.331 0.591 0.531 1.000 0.236 0.220 0.134 0.039 IZUMI 5N18 1000
A.W.G. 12-10  KFO0A34 12-10 AWG Non-insulated Fork Terminal 5-10 ANB5-10 3/8" 0.413 0.591 0.531 0.965 0.236 0.220 0.134 0.039 IZUMI 5N18 1000
A.W.G. 8 KFO0A40 8 AWG Non-insulated Fork Terminal 8-3.7 ANB8-3.7 #6 0.146 0.315 0.366 0.807 0.335 0.283 0.177 0.047 IZUMI 5N18 500
A.W.G. 8 KFO0A41 8 AWG Non-insulated Fork Terminal 8-4 ANB8-4 #8 0.169 0.315 0.366 0.807 0.335 0.283 0.177 0.047 IZUMI 5N18 500
A.W.G. 8 KFO0A42 8 AWG Non-insulated Fork Terminal 8-5 ANB8-5 #10 0.209 0.315 0.366 0.807 0.335 0.283 0.177 0.047 IZUMI 5N18 500
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Tool PCS/Pack
Meric d2 W F L E D d1 T
0.5~1.5mm² KFO0A10 22-16 AWG Non-insulated Fork Terminal 1-3.2 ANB1-3.2 3 3.2 5.5 5.0 11.6 4.8 3.4 1.7 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0A11 22-16 AWG Non-insulated Fork Terminal 1-3.7 ANB1-3.7 3.5 3.7 6.6 6.3 13.5 4.8 3.4 1.7 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0A12 22-16 AWG Non-insulated Fork Terminal 1-4 ANB1-4 4 4.3 8.0 7.0 14.8 4.8 3.4 1.7 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0A13 22-16 AWG Non-insulated Fork Terminal 1-5 ANB1-5 5 5.3 8.0 7.0 14.8 4.8 3.4 1.7 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0A14 22-16 AWG Non-insulated Fork Terminal 1-6 ANB1-6 6 6.4 11.6 11.0 20.3 4.8 3.4 1.7 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0A15 22-16 AWG Non-insulated Fork Terminal 1-8 ANB1-8 8 8.4 11.6 11.0 19.4 4.8 3.4 1.7 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0A16 22-16 AWG Non-insulated Fork Terminal 1-10 ANB1-10 10 10.5 15.0 11.0 22.5 4.8 3.4 1.7 0.75 IZUMI 5N18 1000
1.5~2.5mm² KFO0A20 16-14 AWG Non-insulated Fork Terminal 2-3.2 ANB2-3.2 3 3.2 6.6 4.7 12.0 4.8 4.1 2.3 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0A21 16-14 AWG Non-insulated Fork Terminal 2-3.7 ANB2-3.7 3.5 3.7 6.6 6.3 13.5 4.8 4.1 2.3 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0A22 16-14 AWG Non-insulated Fork Terminal 2-4 ANB2-4 4 4.3 8.5 7.8 15.9 4.8 4.1 2.3 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0A23 16-14 AWG Non-insulated Fork Terminal 2-5 ANB2-5 5 5.3 9.5 7.3 15.6 4.8 4.1 2.3 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0A24 16-14 AWG Non-insulated Fork Terminal 2-6 ANB2-6 6 6.4 12.0 11.0 20.5 4.8 4.1 2.3 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0A25 16-14 AWG Non-insulated Fork Terminal 2-8 ANB2-8 8 8.4 12.0 11.0 19.7 4.8 4.1 2.3 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0A26 16-14 AWG Non-insulated Fork Terminal 2-10 ANB2-10 10 10.5 15.0 13.7 22.5 4.8 4.1 2.3 0.8 IZUMI 5N18 1000
4.0~6.0mm² KFO0A30 12-10 AWG Non-insulated Fork Terminal 5-4 ANB5-4 4 4.3 7.2 9.1 18.9 6.0 5.6 3.4 1.0 IZUMI 5N18 1000
4.0~6.0mm² KFO0A31 12-10 AWG Non-insulated Fork Terminal 5-5 ANB5-5 5 5.3 9.5 9.1 18.6 6.0 5.6 3.4 1.0 IZUMI 5N18 1000
4.0~6.0mm² KFO0A32 12-10 AWG Non-insulated Fork Terminal 5-6 ANB5-6 6 6.4 12.0 10.5 21.2 6.0 5.6 3.4 1.0 IZUMI 5N18 1000
4.0~6.0mm² KFO0A33 12-10 AWG Non-insulated Fork Terminal 5-8 ANB5-8 8 8.4 15.0 13.5 25.4 6.0 5.6 3.4 1.0 IZUMI 5N18 1000
4.0~6.0mm² KFO0A34 12-10 AWG Non-insulated Fork Terminal 5-10 ANB5-10 10 10.5 15.0 13.5 24.5 6.0 5.6 3.4 1.0 IZUMI 5N18 1000
8mm² KFO0A40 8 AWG Non-insulated Fork Terminal 8-3.7 ANB8-3.7 3.5 3.7 8.0 9.3 20.5 8.5 7.2 4.5 1.2 IZUMI 5N18 500
8mm² KFO0A41 8 AWG Non-insulated Fork Terminal 8-4 ANB8-4 4 4.3 8.0 9.3 20.5 8.5 7.2 4.5 1.2 IZUMI 5N18 500
8mm² KFO0A42 8 AWG Non-insulated Fork Terminal 8-5 ANB8-5 5 5.3 8.0 9.3 20.5 8.5 7.2 4.5 1.2 IZUMI 5N18 500







leave A Message

Want to get a sample? Please fill in the form, leave your contact information and parameter information.

*Name: *Tel: *E-mail:
Please fill in the correct and valid email address and contact information
Message:


Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Tool PCS/Pack
USA d2 W F L E D d1 T
A.W.G. 22-16  KFO0A10 22-16 AWG Non-insulated Fork Terminal 1-3.2 ANB1-3.2 #4 0.126 0.217 0.197 0.457 0.189 0.134 0.067 0.030 IZUMI 5N18 1000
A.W.G. 22-16  KFO0A11 22-16 AWG Non-insulated Fork Terminal 1-3.7 ANB1-3.7 #6 0.146 0.260 0.248 0.531 0.189 0.134 0.067 0.030 IZUMI 5N18 1000
A.W.G. 22-16 KFO0A12 22-16 AWG Non-insulated Fork Terminal 1-4 ANB1-4 #8 0.169 0.315 0.276 0.583 0.189 0.134 0.067 0.030 IZUMI 5N18 1000
A.W.G. 22-16 KFO0A13 22-16 AWG Non-insulated Fork Terminal 1-5 ANB1-5 #10 0.209 0.315 0.276 0.583 0.189 0.134 0.067 0.030 IZUMI 5N18 1000
A.W.G. 22-16  KFO0A14 22-16 AWG Non-insulated Fork Terminal 1-6 ANB1-6 1/4" 0.252 0.457 0.433 0.799 0.189 0.134 0.067 0.030 IZUMI 5N18 1000
A.W.G. 22-16 KFO0A15 22-16 AWG Non-insulated Fork Terminal 1-8 ANB1-8 5/16" 0.331 0.457 0.433 0.764 0.189 0.134 0.067 0.030 IZUMI 5N18 1000
A.W.G. 22-16 KFO0A16 22-16 AWG Non-insulated Fork Terminal 1-10 ANB1-10 3/8" 0.413 0.591 0.433 0.886 0.189 0.134 0.067 0.030 IZUMI 5N18 1000
A.W.G. 16-14 KFO0A20 16-14 AWG Non-insulated Fork Terminal 2-3.2 ANB2-3.2 #4 0.126 0.260 0.185 0.472 0.189 0.161 0.091 0.031 IZUMI 5N18 1000
A.W.G. 16-14 KFO0A21 16-14 AWG Non-insulated Fork Terminal 2-3.7 ANB2-3.7 #6 0.146 0.260 0.248 0.531 0.189 0.161 0.091 0.031 IZUMI 5N18 1000
A.W.G. 16-14 KFO0A22 16-14 AWG Non-insulated Fork Terminal 2-4 ANB2-4 #8 0.169 0.335 0.307 0.626 0.189 0.161 0.091 0.031 IZUMI 5N18 1000
A.W.G. 16-14 KFO0A23 16-14 AWG Non-insulated Fork Terminal 2-5 ANB2-5 #10 0.209 0.374 0.287 0.614 0.189 0.161 0.091 0.031 IZUMI 5N18 1000
A.W.G. 16-14 KFO0A24 16-14 AWG Non-insulated Fork Terminal 2-6 ANB2-6 1/4" 0.252 0.472 0.433 0.807 0.189 0.161 0.091 0.031 IZUMI 5N18 1000
A.W.G. 16-14 KFO0A25 16-14 AWG Non-insulated Fork Terminal 2-8 ANB2-8 5/16" 0.331 0.472 0.433 0.776 0.189 0.161 0.091 0.031 IZUMI 5N18 1000
A.W.G. 16-14 KFO0A26 16-14 AWG Non-insulated Fork Terminal 2-10 ANB2-10 3/8" 0.413 0.591 0.539 0.886 0.189 0.161 0.091 0.031 IZUMI 5N18 1000
A.W.G. 12-10 KFO0A30 12-10 AWG Non-insulated Fork Terminal 5-4 ANB5-4 #8 0.169 0.283 0.358 0.744 0.236 0.220 0.134 0.039 IZUMI 5N18 1000
A.W.G. 12-10 KFO0A31 12-10 AWG Non-insulated Fork Terminal 5-5 ANB5-5 #10 0.209 0.374 0.358 0.732 0.236 0.220 0.134 0.039 IZUMI 5N18 1000
A.W.G. 12-10 KFO0A32 12-10 AWG Non-insulated Fork Terminal 5-6 ANB5-6 1/4" 0.252 0.472 0.413 0.835 0.236 0.220 0.134 0.039 IZUMI 5N18 1000
A.W.G. 12-10 KFO0A33 12-10 AWG Non-insulated Fork Terminal 5-8 ANB5-8 5/16" 0.331 0.591 0.531 1.000 0.236 0.220 0.134 0.039 IZUMI 5N18 1000
A.W.G. 12-10  KFO0A34 12-10 AWG Non-insulated Fork Terminal 5-10 ANB5-10 3/8" 0.413 0.591 0.531 0.965 0.236 0.220 0.134 0.039 IZUMI 5N18 1000
A.W.G. 8 KFO0A40 8 AWG Non-insulated Fork Terminal 8-3.7 ANB8-3.7 #6 0.146 0.315 0.366 0.807 0.335 0.283 0.177 0.047 IZUMI 5N18 500
A.W.G. 8 KFO0A41 8 AWG Non-insulated Fork Terminal 8-4 ANB8-4 #8 0.169 0.315 0.366 0.807 0.335 0.283 0.177 0.047 IZUMI 5N18 500
A.W.G. 8 KFO0A42 8 AWG Non-insulated Fork Terminal 8-5 ANB8-5 #10 0.209 0.315 0.366 0.807 0.335 0.283 0.177 0.047 IZUMI 5N18 500
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Tool PCS/Pack
Meric d2 W F L E D d1 T
0.5~1.5mm² KFO0A10 22-16 AWG Non-insulated Fork Terminal 1-3.2 ANB1-3.2 3 3.2 5.5 5.0 11.6 4.8 3.4 1.7 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0A11 22-16 AWG Non-insulated Fork Terminal 1-3.7 ANB1-3.7 3.5 3.7 6.6 6.3 13.5 4.8 3.4 1.7 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0A12 22-16 AWG Non-insulated Fork Terminal 1-4 ANB1-4 4 4.3 8.0 7.0 14.8 4.8 3.4 1.7 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0A13 22-16 AWG Non-insulated Fork Terminal 1-5 ANB1-5 5 5.3 8.0 7.0 14.8 4.8 3.4 1.7 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0A14 22-16 AWG Non-insulated Fork Terminal 1-6 ANB1-6 6 6.4 11.6 11.0 20.3 4.8 3.4 1.7 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0A15 22-16 AWG Non-insulated Fork Terminal 1-8 ANB1-8 8 8.4 11.6 11.0 19.4 4.8 3.4 1.7 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0A16 22-16 AWG Non-insulated Fork Terminal 1-10 ANB1-10 10 10.5 15.0 11.0 22.5 4.8 3.4 1.7 0.75 IZUMI 5N18 1000
1.5~2.5mm² KFO0A20 16-14 AWG Non-insulated Fork Terminal 2-3.2 ANB2-3.2 3 3.2 6.6 4.7 12.0 4.8 4.1 2.3 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0A21 16-14 AWG Non-insulated Fork Terminal 2-3.7 ANB2-3.7 3.5 3.7 6.6 6.3 13.5 4.8 4.1 2.3 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0A22 16-14 AWG Non-insulated Fork Terminal 2-4 ANB2-4 4 4.3 8.5 7.8 15.9 4.8 4.1 2.3 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0A23 16-14 AWG Non-insulated Fork Terminal 2-5 ANB2-5 5 5.3 9.5 7.3 15.6 4.8 4.1 2.3 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0A24 16-14 AWG Non-insulated Fork Terminal 2-6 ANB2-6 6 6.4 12.0 11.0 20.5 4.8 4.1 2.3 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0A25 16-14 AWG Non-insulated Fork Terminal 2-8 ANB2-8 8 8.4 12.0 11.0 19.7 4.8 4.1 2.3 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0A26 16-14 AWG Non-insulated Fork Terminal 2-10 ANB2-10 10 10.5 15.0 13.7 22.5 4.8 4.1 2.3 0.8 IZUMI 5N18 1000
4.0~6.0mm² KFO0A30 12-10 AWG Non-insulated Fork Terminal 5-4 ANB5-4 4 4.3 7.2 9.1 18.9 6.0 5.6 3.4 1.0 IZUMI 5N18 1000
4.0~6.0mm² KFO0A31 12-10 AWG Non-insulated Fork Terminal 5-5 ANB5-5 5 5.3 9.5 9.1 18.6 6.0 5.6 3.4 1.0 IZUMI 5N18 1000
4.0~6.0mm² KFO0A32 12-10 AWG Non-insulated Fork Terminal 5-6 ANB5-6 6 6.4 12.0 10.5 21.2 6.0 5.6 3.4 1.0 IZUMI 5N18 1000
4.0~6.0mm² KFO0A33 12-10 AWG Non-insulated Fork Terminal 5-8 ANB5-8 8 8.4 15.0 13.5 25.4 6.0 5.6 3.4 1.0 IZUMI 5N18 1000
4.0~6.0mm² KFO0A34 12-10 AWG Non-insulated Fork Terminal 5-10 ANB5-10 10 10.5 15.0 13.5 24.5 6.0 5.6 3.4 1.0 IZUMI 5N18 1000
8mm² KFO0A40 8 AWG Non-insulated Fork Terminal 8-3.7 ANB8-3.7 3.5 3.7 8.0 9.3 20.5 8.5 7.2 4.5 1.2 IZUMI 5N18 500
8mm² KFO0A41 8 AWG Non-insulated Fork Terminal 8-4 ANB8-4 4 4.3 8.0 9.3 20.5 8.5 7.2 4.5 1.2 IZUMI 5N18 500
8mm² KFO0A42 8 AWG Non-insulated Fork Terminal 8-5 ANB8-5 5 5.3 8.0 9.3 20.5 8.5 7.2 4.5 1.2 IZUMI 5N18 500

Recommended Products

You can tick the products you need and communicate with us in the message board.

Copper Tubular Lugs(Type TM)

Copper Tubular Lugs(Type TM)

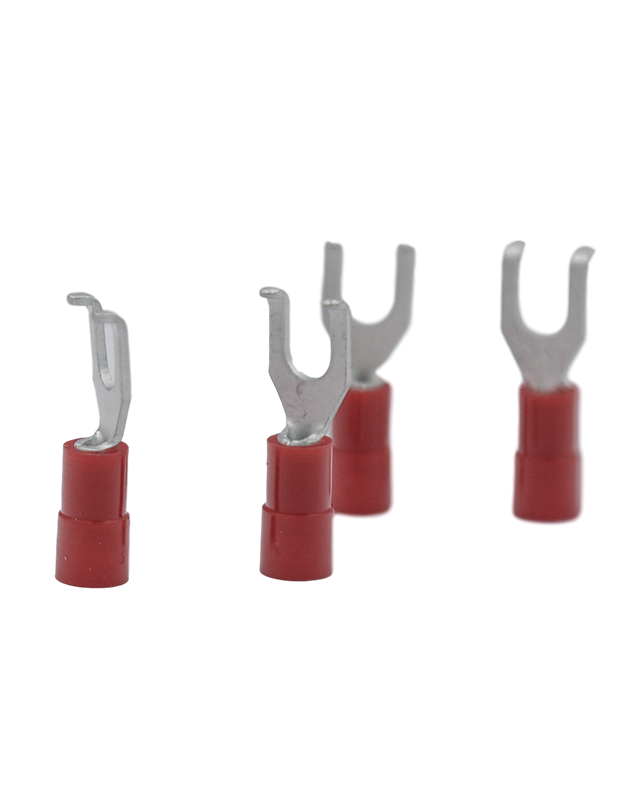

Vinyl-Insulated Single Crimp(Easy Entry) Hook Terminals
