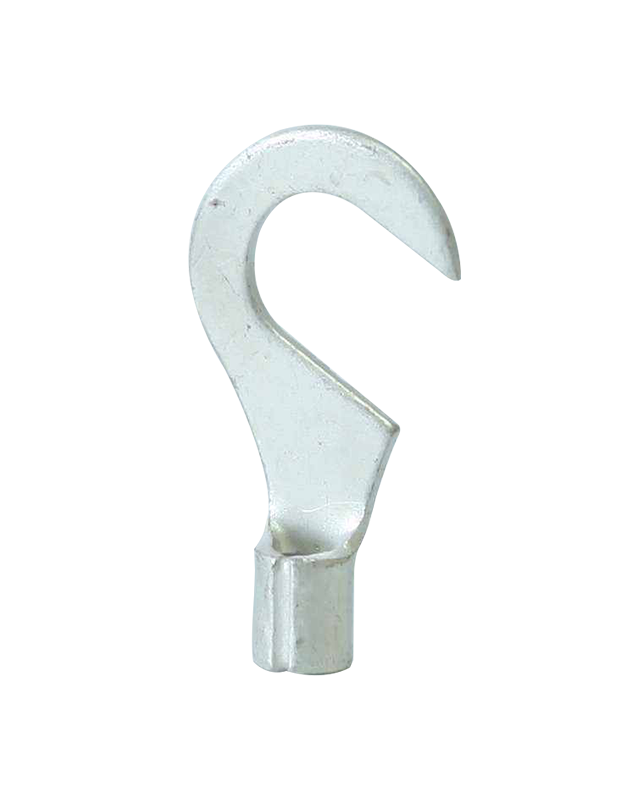

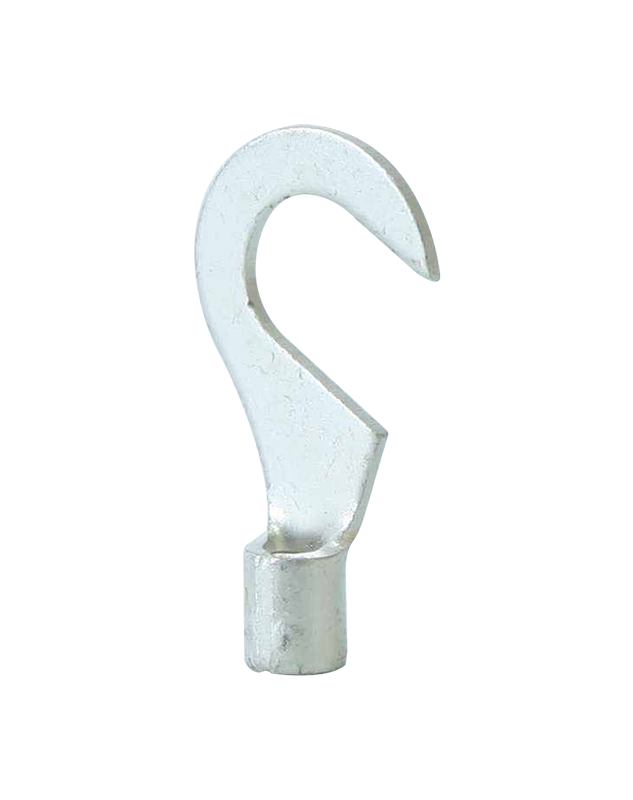

Non-Insulated Hook Terminals

Non-Insulated Hook Terminals

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 1,346

Product Details

Spec (American AWG) 26 -22 22-16 16-1 4 14-12 12-10 8
Spec (JIS AWG) 0.5 1.25 2 3.5 5.5  8
Spec (DIN AWG) 0.5 1 2.5   4.0-6.0 10
Spec (GB mm2) 0.1- 0.5 0.5-1.5 2.5 4 6 10
Max Current   19 27 37 48 62

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

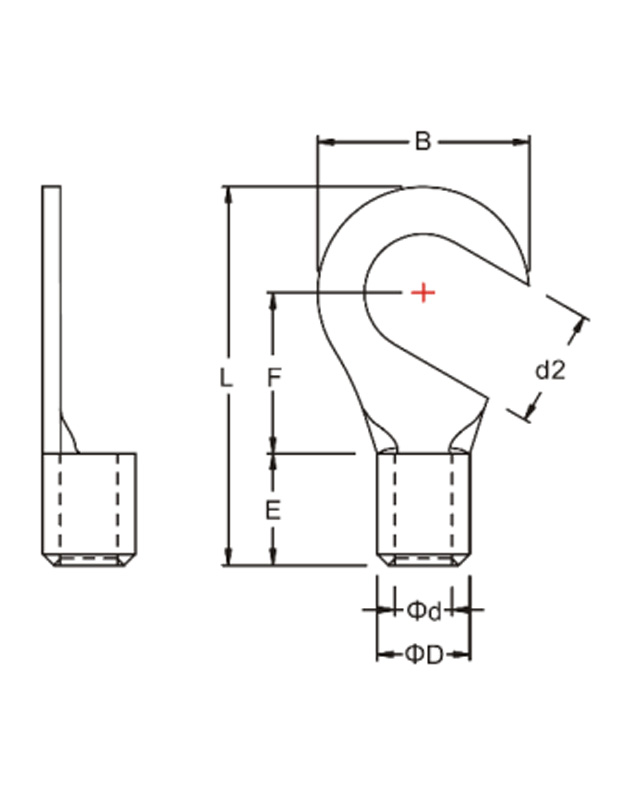

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Tool PCS/Pack
USA d2 B F L E D d Thickness
A.W.G. 22-16  KFO0710 22-16 AWG Non-insulated Hook Terminal 1.25-3.5 HNB1.25-3.5 #6 0.146  0.315 0.276 0.630 0.197 0.138 0.079 0.030 IZUMI 5N18 1000
A.W.G. 22-16  KFO0711 22-16 AWG Non-insulated Hook Terminal 1.25-4 HNB1.25-4 #8 0.169 0.315 0.276 0.630 0.197 0.138 0.079 0.030 IZUMI 5N18 1000
A.W.G. 22-16   KFO0712 22-16 AWG Non-insulated Hook Terminal 1.25-5 HNB1.25-5 #10 0.209 0.315 0.276 0.630 0.197 0.138 0.079 0.030 IZUMI 5N18 1000
A.W.G. 22-16   KFO0713 22-16 AWG Non-insulated Hook Terminal 1.25-6 HNB1.25-6 1/4" 0.252 0.453 0.433 0.866 0.197 0.138 0.079 0.030 IZUMI 5N18 1000
A.W.G. 16-14   KFO0720 16-14 AWG Non-insulated Hook Terminal 2-3.5 HNB2-3.5 #6 0.146  0.335 0.315 0.669 0.197 0.157 0.098 0.031 IZUMI 5N18 1000
A.W.G. 16-14   KFO0721 16-14 AWG Non-insulated Hook Terminal 2-4 HNB2-4 #8 0.169 0.335 0.315 0.669 0.197 0.157 0.098 0.031 IZUMI 5N18 1000
A.W.G. 16-14   KFO0722 16-14 AWG Non-insulated Hook Terminal 2-5 HNB2-5 #10 0.209 0.374 0.295 0.669 0.197 0.157 0.098 0.031 IZUMI 5N18 1000
A.W.G. 16-14   KFO0723 16-14 AWG Non-insulated Hook Terminal 2-6 HNB2-6 1/4" 0.252 0.472 0.433 0.866 0.197 0.157 0.098 0.031 IZUMI 5N18 1000
A.W.G. 12-10  KFO0730 12-10 AWG Non-insulated Hook Terminal 5.5-3.5 HNB5.5-3.5 #6 0.146  0.276 0.236 0.650 0.276 0.217 0.138 0.039 IZUMI 5N18 1000
A.W.G. 12-10  KFO0731 12-10 AWG Non-insulated Hook Terminal 5.5-4 HNB5.5-4 #8 0.169 0.374 0.315 0.787 0.276 0.217 0.138 0.039 IZUMI 5N18 1000
A.W.G. 12-10  KFO0732 12-10 AWG Non-insulated Hook Terminal 5.5-5 HNB5.5-5 #10 0.209 0.374 0.315 0.787 0.276 0.217 0.138 0.039 IZUMI 5N18 1000
A.W.G. 12-10  KFO0733 12-10 AWG Non-insulated Hook Terminal 5.5-6 HNB5.5-6 1/4" 0.252 0.472 0.413 0.925 0.276 0.217 0.138 0.039 IZUMI 5N18 1000
A.W.G. 12-10  KFO0734 12-10 AWG Non-insulated Hook Terminal 5.5-8 HNB5.5-8 5/16" 0.331 0.591 0.531 1.102 0.276 0.217 0.138 0.039 IZUMI 5N18 1000
A.W.G. 8   KFO0740 8 AWG Non-insulated Hook Terminal 8-8 HNB8-8 5/16" 0.331 0.591 0.551 1.181 0.335 0.276 0.197 0.047 IZUMI 5N18 500
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Tool PCS/Pack
Meric d2 B F L E D d Thickness
0.5~1.5mm² KFO0710 22-16 AWG Non-insulated Hook Terminal 1.25-3.5 HNB1.25-3.5 3.5 3.7 8.0 7.0 16.0 5.0 3.5 2.0 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0711 22-16 AWG Non-insulated Hook Terminal 1.25-4 HNB1.25-4 4 4.3 8.0 7.0 16.0 5.0 3.5 2.0 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0712 22-16 AWG Non-insulated Hook Terminal 1.25-5 HNB1.25-5 5 5.3 8.0 7.0 16.0 5.0 3.5 2.0 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0713 22-16 AWG Non-insulated Hook Terminal 1.25-6 HNB1.25-6 6 6.4 11.5 11.0 22.0 5.0 3.5 2.0 0.75 IZUMI 5N18 1000
1.5~2.5mm² KFO0720 16-14 AWG Non-insulated Hook Terminal 2-3.5 HNB2-3.5 3.5 3.7 8.5 8.0 17.0 5.0 4.0 2.5 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0721 16-14 AWG Non-insulated Hook Terminal 2-4 HNB2-4 4 4.3 8.5 8.0 17.0 5.0 4.0 2.5 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0722 16-14 AWG Non-insulated Hook Terminal 2-5 HNB2-5 5 5.3 9.5 7.5 17.0 5.0 4.0 2.5 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0723 16-14 AWG Non-insulated Hook Terminal 2-6 HNB2-6 6 6.4 12.0 11.0 22.0 5.0 4.0 2.5 0.8 IZUMI 5N18 1000
4.0~6.0mm² KFO0730 12-10 AWG Non-insulated Hook Terminal 5.5-3.5 HNB5.5-3.5 3.5 3.7 7.0 6.0 16.5 7.0 5.5 3.5 1.0 IZUMI 5N18 1000
4.0~6.0mm² KFO0731 12-10 AWG Non-insulated Hook Terminal 5.5-4 HNB5.5-4 4 4.3 9.5 8.0 20.0 7.0 5.5 3.5 1.0 IZUMI 5N18 1000
4.0~6.0mm² KFO0732 12-10 AWG Non-insulated Hook Terminal 5.5-5 HNB5.5-5 5 5.3 9.5 8.0 20.0 7.0 5.5 3.5 1.0 IZUMI 5N18 1000
4.0~6.0mm² KFO0733 12-10 AWG Non-insulated Hook Terminal 5.5-6 HNB5.5-6 6 6.4 12.0 10.5 23.5 7.0 5.5 3.5 1.0 IZUMI 5N18 1000
4.0~6.0mm² KFO0734 12-10 AWG Non-insulated Hook Terminal 5.5-8 HNB5.5-8 8 8.4 15.0 13.5 28.0 7.0 5.5 3.5 1.0 IZUMI 5N18 1000
8mm² KFO0740 8 AWG Non-insulated Hook Terminal 8-8 HNB8-8 8 8.4 15.0 14.0 30.0 8.5 7.0 5.0 1.2 IZUMI 5N18 500
