Non-Insulated Spade Terminals

Non-Insulated Spade Terminals

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





6+
Views: 3,306

Product Details

Spec (American AWG)

26 -22

22-16

16-1 4

14-12

12-10

8

6

4

Spec (JIS AWG)

0.5

1.25

2

3.5

5.5

8

14

22

Spec (DIN AWG)

0.5

1

2.5



4.0-6.0

10

16

25

Spec (GB mm2)

0.1- 0.5

0.5-1.5

2.5

4

6.0

10

16

25

Max Current



19

27

37

48.0

62

88

115

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

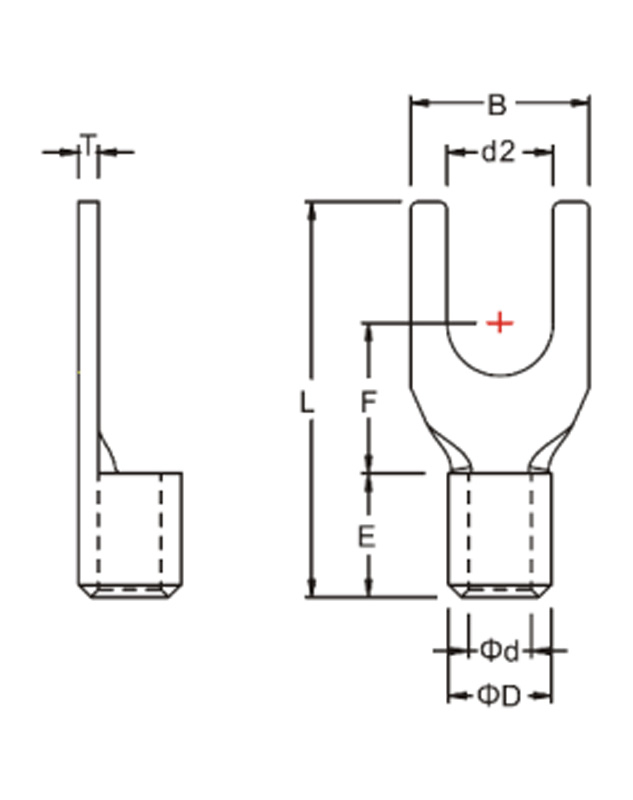

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Tool PCS/Pack
USA d2 B F L E D d T
A.W.G. 22-20 KFO0000 22-20 AWG Non-insulated Spade Terminal 0.5-3 SNB0.5-3 #4 0.087  0.205  0.256  0.488  0.197  0.043  0.079  0.030  IZUMI 5N18 1000
A.W.G. 22-20 KFO0001 22-20 AWG Non-insulated Spade Terminal 0.5-3.5 SNB0.5-3.5 #6 0.146  0.260  0.256  0.551  0.197  0.043  0.079  0.030  IZUMI 5N18 1000
A.W.G. 22-20 KFO0002 22-20 AWG Non-insulated Spade Terminal 0.5-4 SNB0.5-4 #8 0.169  0.260  0.256  0.551  0.197  0.043  0.079  0.030  IZUMI 5N18 1000
A.W.G. 22-16 KFO0010 22-16 AWG Non-insulated  Spade Terminal 1.25-3 SNB1.25-3 #4 0.126  0.217  0.256  0.630  0.197  0.138  0.079  0.030  IZUMI 5N18 1000
A.W.G. 22-16  KFO0011 22-16 AWG Non-insulated Spade Terminal 1.25-3.5S SNBS1.25-3.5 #6 0.146  0.217  0.256  0.630  0.197  0.138  0.079  0.030  IZUMI 5N18 1000
A.W.G. 22-16  KFO0012 22-16 AWG Non-insulated Spade Terminal 1.25-3.5L SNBL1.25-3.5 #6 0.146  0.256  0.256  0.630  0.197  0.138  0.079  0.030  IZUMI 5N18 1000
A.W.G. 22-16 KFO0013 22-16 AWG Non-insulated Spade Terminal 1.25-4S SNBS1.25-4 #8 0.169  0.256  0.256  0.630  0.197  0.138  0.079  0.030  IZUMI 5N18 1000
A.W.G. 22-16 KFO0014 22-16 AWG Non-insulated Spade Terminal 1.25-4M SNBM1.25-4 #8 0.169  0.276  0.256  0.630  0.197  0.138  0.079  0.030  IZUMI 5N18 1000
A.W.G. 22-16 KFO0015 22-16 AWG Non-insulated Spade Terminal 1.25-4L SNBL1.25-4 #8 0.169  0.315  0.256  0.630  0.197  0.138  0.079  0.030  IZUMI 5N18 1000
A.W.G. 22-16 KFO0016 22-16 AWG Non-insulated Spade Terminal 1.25-5S SNBS1.25-5 #10 0.209  0.315  0.256  0.630  0.197  0.138  0.079  0.030  IZUMI 5N18 1000
A.W.G. 22-16 KFO0017 22-16 AWG Non-insulated Spade Terminal 1.25-5L SNBL1.25-5 #10 0.209  0.374  0.256  0.630  0.197  0.138  0.079  0.030  IZUMI 5N18 1000
A.W.G. 22-16 KFO0018 22-16 AWG Non-insulated Spade Terminal 1.25-6S SNBS1.25-6 1/4" 0.252  0.374  0.256  0.630  0.197  0.138  0.079  0.030  IZUMI 5N18 1000
A.W.G. 22-16  KFO0019 22-16 AWG Non-insulated Spade Terminal 1.25-6L SNBL1.25-6 1/4" 0.252  0.472  0.433  0.866  0.197  0.138  0.079  0.030  IZUMI 5N18 1000
A.W.G. 16-14  KFO0020 16-14 AWG Non-insulated Spade Terminal 2-3 SNB2-3 #4 0.126  0.217  0.256  0.630  0.197  0.157  0.098  0.031  IZUMI 5N18 1000
A.W.G. 16-14 KFO0021 16-14 AWG Non-insulated Spade Terminal 2-3.5S SNBS2-3.5 #6 0.146  0.217  0.256  0.630  0.197  0.157  0.098  0.031  IZUMI 5N18 1000
A.W.G. 16-14 KFO0022 16-14 AWG Non-insulated Spade Terminal 2-3.5L SNBL2-3.5 #6 0.146  0.276  0.256  0.630  0.197  0.157  0.098  0.031  IZUMI 5N18 1000
A.W.G. 16-14  KFO0023 16-14 AWG Non-insulated Spade Terminal 2-4S SNBS2-4 #8 0.169  0.256  0.256  0.630  0.197  0.157  0.098  0.031  IZUMI 5N18 1000
A.W.G. 16-14 KFO0024 16-14 AWG Non-insulated Spade Terminal 2-4M SNBM2-4 #8 0.169  0.276  0.256  0.630  0.197  0.157  0.098  0.031  IZUMI 5N18 1000
A.W.G. 16-14 KFO0025 16-14 AWG Non-insulated Spade Terminal 2-4L SNBL2-4 #8 0.169  0.315  0.256  0.630  0.197  0.157  0.098  0.031  IZUMI 5N18 1000
A.W.G. 16-14 KFO0026 16-14 AWG Non-insulated Spade Terminal 2-5S SNBS2-5 #10 0.209  0.315  0.256  0.630  0.197  0.157  0.098  0.031  IZUMI 5N18 1000
A.W.G. 16-14 KFO0027 16-14 AWG Non-insulated Spade Terminal 2-5L SNBL2-5 #10 0.209  0.374  0.256  0.630  0.197  0.157  0.098  0.031  IZUMI 5N18 1000
A.W.G. 16-14 KFO0028 16-14 AWG Non-insulated Spade Terminal 2-6S SNBS2-6 1/4" 0.252  0.374  0.256  0.630  0.197  0.157  0.098  0.031  IZUMI 5N18 1000
A.W.G. 16-14  KFO0029 16-14 AWG Non-insulated Spade Terminal 2-6L SNBL2-6 1/4" 0.252  0.472  0.433  0.866  0.197  0.157  0.098  0.031  IZUMI 5N18 1000
A.W.G. 14-12 KFO0030 14-12 AWG Non-insulated Spade Terminal 3.5-3 SNB3.5-3 #4 0.126  0.217  0.276  0.728  0.236  0.197  0.118  0.039  IZUMI 5N18 1000
A.W.G. 14-12 KFO0031 14-12 AWG Non-insulated Spade Terminal 3.5-4 SNB3.5-4 #8 0.169  0.315  0.276  0.728  0.236  0.197  0.118  0.039  IZUMI 5N18 1000
A.W.G. 14-12 KFO0032 14-12 AWG Non-insulated Spade Terminal 3.5-5 SNB3.5-5 #10 0.209  0.315  0.276  0.728  0.236  0.197  0.118  0.039  IZUMI 5N18 1000
A.W.G. 14-12 KFO0033 14-12 AWG Non-insulated Spade Terminal 3.5-6 SNB3.5-6 1/4" 0.252  0.472  0.354  0.846  0.236  0.197  0.118  0.039  IZUMI 5N18 1000
A.W.G. 12-10  KFO0040 12-10 AWG Non-insulated Spade Terminal 5.5-3.5 SNB5.5-3.5 #6 0.146  0.335  0.295  0.768  0.276  0.217  0.138  0.039  IZUMI 5N18 1000
A.W.G. 12-10 KFO0041 12-10 AWG Non-insulated Spade Terminal 5.5-4S SNBS5.5-4 #8 0.169  0.335  0.295  0.768  0.276  0.217  0.138  0.039  IZUMI 5N18 1000
A.W.G. 12-10 KFO0042 12-10 AWG Non-insulated Spade Terminal 5.5-4L SNBL5.5-4 #8 0.169  0.374  0.295  0.768  0.276  0.217  0.138  0.039  IZUMI 5N18 1000
A.W.G. 12-10  KFO0043 12-10 AWG Non-insulated Spade Terminal 5.5-5 SNB5.5-5 #10 0.209  0.354  0.295  0.768  0.276  0.217  0.138  0.039  IZUMI 5N18 1000
A.W.G. 12-10 KFO0044 12-10 AWG Non-insulated Spade Terminal 5.5-6S SNBS5.5-6 1/4" 0.252  0.354  0.295  0.768  0.276  0.217  0.138  0.039  IZUMI 5N18 1000
A.W.G. 12-10  KFO0045 12-10 AWG Non-insulated Spade Terminal 5.5-6L SNBL5.5-6 1/4" 0.252  0.472  0.472  1.004  0.276  0.217  0.138  0.039  IZUMI 5N18 1000
A.W.G. 12-10 KFO0046 12-10 AWG Non-insulated Spade Terminal 5.5-8 SNB5.5-8 5/16" 0.331  0.551  0.453  0.965  0.276  0.217  0.138  0.039  IZUMI 5N18 1000
A.W.G. 8 KFO0050 8 AWG Non-insulated Spade Terminal 8-4 SNB8-4 #8 0.169  0.335  0.354  0.925  0.335  0.276  0.197  0.047  IZUMI 5N18 500
A.W.G. 8 KFO0051 8 AWG Non-insulated Spade Terminal 8-5 SNB8-5 #10 0.209  0.453  0.335  0.965  0.335  0.276  0.197  0.047  IZUMI 5N18 500
A.W.G. 8 KFO0052 8 AWG Non-insulated Spade Terminal 8-6 SNB8-6 1/4" 0.252  0.453  0.335  0.965  0.335  0.276  0.197  0.047  IZUMI 5N18 500
A.W.G. 8 KFO0053 8 AWG Non-insulated Spade Terminal 8-8 SNB8-8 5/16" 0.331  0.571  0.472  1.122  0.335  0.276  0.197  0.047  IZUMI 5N18 500
A.W.G. 6 KFO0060 6 AWG Non-insulated Spade Terminal 14-5 SNB14-5 #10 0.209  0.433  0.433  1.142  0.413  0.354  0.236  0.055  OPT TP - 150D 500
A.W.G. 6 KFO0061 6 AWG Non-insulated Spade Terminal 14-6 SNB14-6 1/4" 0.252  0.472  0.394  1.122  0.413  0.354  0.236  0.055  OPT TP - 150D 500
A.W.G. 6 KFO0062 6 AWG Non-insulated Spade Terminal 14-8 SNB14-8 5/16" 0.331  0.532  0.433  1.122  0.413  0.354  0.236  0.055  OPT TP - 150D 500
A.W.G. 4 KFO0070 4 AWG Non-insulated Spade Terminal 22-8S SNB22-8S 1/4" 0.252  0.512  0.433  1.220  0.472  0.453  0.315  0.071  OPT TP - 150D 500
A.W.G. 4 KFO0071 4 AWG Non-insulated Spade Terminal 22-8 SNB22-8 5/16" 0.331  0.551  0.512  1.358  0.472  0.453  0.315  0.071  OPT TP - 150D 500
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Tool PCS/Pack
Meric d2 B F L E D d T
(0.2-0.5 mm3) KFO0000 22-20 AWG Non-insulated Spade Terminal 0.5-3 SNB0.5-3 3 2.2 5.2 6.5 12.4  5.0  1.1 2.0  0.75 IZUMI 5N18 1000
(0.2-0.5 mm3) KFO0001 22-20 AWG Non-insulated Spade Terminal 0.5-3.5 SNB0.5-3.5 3.5 3.7 6.6 6.5 14.0  5.0  1.1 2.0  0.75 IZUMI 5N18 1000
(0.2-0.5 mm3) KFO0002 22-20 AWG Non-insulated Spade Terminal 0.5-4 SNB0.5-4 4 4.3 6.6 6.5 14.0  5.0  1.1 2.0  0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0010 22-16 AWG Non-insulated Spade Terminal 1.25-3 SNB1.25-3 3 3.2 5.5 6.5 16.0  5.0 3.5 2.0 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0011 22-16 AWG Non-insulated Spade Terminal 1.25-3.5S SNBS1.25-3.5 3.5 3.7 5.5 6.5 16.0  5.0 3.5 2.0 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0012 22-16 AWG Non-insulated Spade Terminal 1.25-3.5L SNBL1.25-3.5 3.5 3.7 6.5 6.5 16.0  5.0 3.5 2.0 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0013 22-16 AWG Non-insulated Spade Terminal 1.25-4S SNBS1.25-4 4 4.3 6.5 6.5 16.0  5.0 3.5 2.0 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0014 22-16 AWG Non-insulated Spade Terminal 1.25-4M SNBM1.25-4 4 4.3 7.0 6.5 16.0  5.0 3.5 2.0 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0015 22-16 AWG Non-insulated Spade Terminal 1.25-4L SNBL1.25-4 4 4.3 8.0 6.5 16.0  5.0 3.5 2.0 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0016 22-16 AWG Non-insulated Spade Terminal 1.25-5S SNBS1.25-5 5 5.3 8.0 6.5 16.0  5.0 3.5 2.0 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0017 22-16 AWG Non-insulated Spade Terminal 1.25-5L SNBL1.25-5 5 5.3 9.5 6.5 16.0  5.0 3.5 2.0 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0018 22-16 AWG Non-insulated Spade Terminal 1.25-6S SNBS1.25-6 6 6.4 9.5 6.5 16.0  5.0 3.5 2.0 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0019 22-16 AWG Non-insulated Spade Terminal 1.25-6L SNBL1.25-6 6 6.4 12.0 11.0 22.0  5.0 3.5 2.0 0.75 IZUMI 5N18 1000
1.5~2.5mm² KFO0020 16-14 AWG Non-insulated Spade Terminal 2-3 SNB2-3 3 3.2 5.5 6.5 16.0  5.0 4.0 2.5 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0021 16-14 AWG Non-insulated Spade Terminal 2-3.5S SNBS2-3.5 3.5 3.7 5.5 6.5 16.0  5.0 4.0 2.5 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0022 16-14 AWG Non-insulated Spade Terminal 2-3.5L SNBL2-3.5 3.5 3.7 7.0 6.5 16.0  5.0 4.0 2.5 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0023 16-14 AWG Non-insulated Spade Terminal 2-4S SNBS2-4 4 4.3 6.5 6.5 16.0  5.0 4.0 2.5 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0024 16-14 AWG Non-insulated Spade Terminal 2-4M SNBM2-4 4 4.3 7.0 6.5 16.0  5.0 4.0 2.5 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0025 16-14 AWG Non-insulated Spade Terminal 2-4L SNBL2-4 4 4.3 8.0 6.5 16.0  5.0 4.0 2.5 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0026 16-14 AWG Non-insulated Spade Terminal 2-5S SNBS2-5 5 5.3 8.0 6.5 16.0  5.0 4.0 2.5 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0027 16-14 AWG Non-insulated Spade Terminal 2-5L SNBL2-5 5 5.3 9.5 6.5 16.0  5.0 4.0 2.5 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0028 16-14 AWG Non-insulated Spade Terminal 2-6S SNBS2-6 6 6.4 9.5 6.5 16.0  5.0 4.0 2.5 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0029 16-14 AWG Non-insulated Spade Terminal 2-6L SNBL2-6 6 6.4 12.0 11.0 22.0  5.0 4.0 2.5 0.8 IZUMI 5N18 1000
2.5~4.0mm² KFO0030 14-12 AWG Non-insulated Spade Terminal 3.5-3 SNB3.5-3 3 3.2 5.5 7.0 18.5  6.0 5.0 3.0 1.0  IZUMI 5N18 1000
2.5~4.0mm² KFO0031 14-12 AWG Non-insulated Spade Terminal 3.5-4 SNB3.5-4 4 4.3 8.0 7.0 18.5  6.0 5.0 3.0 1.0  IZUMI 5N18 1000
2.5~4.0mm² KFO0032 14-12 AWG Non-insulated Spade Terminal 3.5-5 SNB3.5-5 5 5.3 8.0 7.0 18.5  6.0 5.0 3.0 1.0  IZUMI 5N18 1000
2.5~4.0mm² KFO0033 14-12 AWG Non-insulated Spade Terminal 3.5-6 SNB3.5-6 6 6.4 12.0 9.0 21.5  6.0 5.0 3.0 1.0  IZUMI 5N18 1000
4.0~6.0mm² KFO0040 12-10 AWG Non-insulated Spade Terminal 5.5-3.5 SNB5.5-3.5 3.5 3.7 8.5 7.5 19.5  7.0 5.5 3.5 1.0  IZUMI 5N18 1000
4.0~6.0mm² KFO0041 12-10 AWG Non-insulated Spade Terminal 5.5-4S SNBS5.5-4 4 4.3 8.5 7.5 19.5  7.0 5.5 3.5 1.0  IZUMI 5N18 1000
4.0~6.0mm² KFO0042 12-10 AWG Non-insulated Spade Terminal 5.5-4L SNBL5.5-4 4 4.3 9.5 7.5 19.5  7.0 5.5 3.5 1.0  IZUMI 5N18 1000
4.0~6.0mm² KFO0043 12-10 AWG Non-insulated Spade Terminal 5.5-5 SNB5.5-5 5 5.3 9.0 7.5 19.5  7.0 5.5 3.5 1.0  IZUMI 5N18 1000
4.0~6.0mm² KFO0044 12-10 AWG Non-insulated Spade Terminal 5.5-6S SNBS5.5-6 6 6.4 9.0 7.5 19.5  7.0 5.5 3.5 1.0  IZUMI 5N18 1000
4.0~6.0mm² KFO0045 12-10 AWG Non-insulated Spade Terminal 5.5-6L SNBL5.5-6 6 6.4 12.0 12.0 25.5  7.0 5.5 3.5 1.0  IZUMI 5N18 1000
4.0~6.0mm² KFO0046 12-10 AWG Non-insulated Spade Terminal 5.5-8 SNB5.5-8 8 8.4 14.0 11.5 24.5  7.0 5.5 3.5 1.0  IZUMI 5N18 1000
8mm² KFO0050 8 AWG Non-insulated Spade Terminal 8-4 SNB8-4 4 4.3 8.5 9.0 23.5  8.5 7.0 5.0 1.2 IZUMI 5N18 500
8mm² KFO0051 8 AWG Non-insulated Spade Terminal 8-5 SNB8-5 5 5.3 11.5 8.5 24.5  8.5 7.0 5.0 1.2 IZUMI 5N18 500
8mm² KFO0052 8 AWG Non-insulated Spade Terminal 8-6 SNB8-6 6 6.4 11.5 8.5 24.5  8.5 7.0 5.0 1.2 IZUMI 5N18 500
8mm² KFO0053 8 AWG Non-insulated Spade Terminal 8-8 SNB8-8 8 8.4 14.5 12.0 28.5  8.5 7.0 5.0 1.2 IZUMI 5N18 500
14mm² KFO0060 6 AWG Non-insulated Spade Terminal 14-5 SNB14-5 5 5.3 11.0 11.0 29.0  10.5 9.0 6.0 1.4 OPT TP - 150D 500
14mm² KFO0061 6 AWG Non-insulated Spade Terminal 14-6 SNB14-6 6 6.4 12.0 10.0 28.5  10.5 9.0 6.0 1.4 OPT TP - 150D 500
14mm² KFO0062 6 AWG Non-insulated Spade Terminal 14-8 SNB14-8 8 8.4 13.5 11.0 28.5  10.5 9.0 6.0 1.4 OPT TP - 150D 500
22mm² KFO0070 4 AWG Non-insulated Spade Terminal 22-8S SNB22-8S 6 6.6 13.0 11.0 31.0  12.0 11.5 8.0 1.8 OPT TP - 150D 500
22mm² KFO0071 4 AWG Non-insulated Spade Terminal 22-8 SNB22-8 8 8.4 14.0 13.0 34.5  12.0 11.5 8.0 1.8 OPT TP - 150D 500







leave A Message

Want to get a sample? Please fill in the form, leave your contact information and parameter information.

*Name: *Tel: *E-mail:
Please fill in the correct and valid email address and contact information
Message:


Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Tool PCS/Pack
USA d2 B F L E D d T
A.W.G. 22-20 KFO0000 22-20 AWG Non-insulated Spade Terminal 0.5-3 SNB0.5-3 #4 0.087  0.205  0.256  0.488  0.197  0.043  0.079  0.030  IZUMI 5N18 1000
A.W.G. 22-20 KFO0001 22-20 AWG Non-insulated Spade Terminal 0.5-3.5 SNB0.5-3.5 #6 0.146  0.260  0.256  0.551  0.197  0.043  0.079  0.030  IZUMI 5N18 1000
A.W.G. 22-20 KFO0002 22-20 AWG Non-insulated Spade Terminal 0.5-4 SNB0.5-4 #8 0.169  0.260  0.256  0.551  0.197  0.043  0.079  0.030  IZUMI 5N18 1000
A.W.G. 22-16 KFO0010 22-16 AWG Non-insulated  Spade Terminal 1.25-3 SNB1.25-3 #4 0.126  0.217  0.256  0.630  0.197  0.138  0.079  0.030  IZUMI 5N18 1000
A.W.G. 22-16  KFO0011 22-16 AWG Non-insulated Spade Terminal 1.25-3.5S SNBS1.25-3.5 #6 0.146  0.217  0.256  0.630  0.197  0.138  0.079  0.030  IZUMI 5N18 1000
A.W.G. 22-16  KFO0012 22-16 AWG Non-insulated Spade Terminal 1.25-3.5L SNBL1.25-3.5 #6 0.146  0.256  0.256  0.630  0.197  0.138  0.079  0.030  IZUMI 5N18 1000
A.W.G. 22-16 KFO0013 22-16 AWG Non-insulated Spade Terminal 1.25-4S SNBS1.25-4 #8 0.169  0.256  0.256  0.630  0.197  0.138  0.079  0.030  IZUMI 5N18 1000
A.W.G. 22-16 KFO0014 22-16 AWG Non-insulated Spade Terminal 1.25-4M SNBM1.25-4 #8 0.169  0.276  0.256  0.630  0.197  0.138  0.079  0.030  IZUMI 5N18 1000
A.W.G. 22-16 KFO0015 22-16 AWG Non-insulated Spade Terminal 1.25-4L SNBL1.25-4 #8 0.169  0.315  0.256  0.630  0.197  0.138  0.079  0.030  IZUMI 5N18 1000
A.W.G. 22-16 KFO0016 22-16 AWG Non-insulated Spade Terminal 1.25-5S SNBS1.25-5 #10 0.209  0.315  0.256  0.630  0.197  0.138  0.079  0.030  IZUMI 5N18 1000
A.W.G. 22-16 KFO0017 22-16 AWG Non-insulated Spade Terminal 1.25-5L SNBL1.25-5 #10 0.209  0.374  0.256  0.630  0.197  0.138  0.079  0.030  IZUMI 5N18 1000
A.W.G. 22-16 KFO0018 22-16 AWG Non-insulated Spade Terminal 1.25-6S SNBS1.25-6 1/4" 0.252  0.374  0.256  0.630  0.197  0.138  0.079  0.030  IZUMI 5N18 1000
A.W.G. 22-16  KFO0019 22-16 AWG Non-insulated Spade Terminal 1.25-6L SNBL1.25-6 1/4" 0.252  0.472  0.433  0.866  0.197  0.138  0.079  0.030  IZUMI 5N18 1000
A.W.G. 16-14  KFO0020 16-14 AWG Non-insulated Spade Terminal 2-3 SNB2-3 #4 0.126  0.217  0.256  0.630  0.197  0.157  0.098  0.031  IZUMI 5N18 1000
A.W.G. 16-14 KFO0021 16-14 AWG Non-insulated Spade Terminal 2-3.5S SNBS2-3.5 #6 0.146  0.217  0.256  0.630  0.197  0.157  0.098  0.031  IZUMI 5N18 1000
A.W.G. 16-14 KFO0022 16-14 AWG Non-insulated Spade Terminal 2-3.5L SNBL2-3.5 #6 0.146  0.276  0.256  0.630  0.197  0.157  0.098  0.031  IZUMI 5N18 1000
A.W.G. 16-14  KFO0023 16-14 AWG Non-insulated Spade Terminal 2-4S SNBS2-4 #8 0.169  0.256  0.256  0.630  0.197  0.157  0.098  0.031  IZUMI 5N18 1000
A.W.G. 16-14 KFO0024 16-14 AWG Non-insulated Spade Terminal 2-4M SNBM2-4 #8 0.169  0.276  0.256  0.630  0.197  0.157  0.098  0.031  IZUMI 5N18 1000
A.W.G. 16-14 KFO0025 16-14 AWG Non-insulated Spade Terminal 2-4L SNBL2-4 #8 0.169  0.315  0.256  0.630  0.197  0.157  0.098  0.031  IZUMI 5N18 1000
A.W.G. 16-14 KFO0026 16-14 AWG Non-insulated Spade Terminal 2-5S SNBS2-5 #10 0.209  0.315  0.256  0.630  0.197  0.157  0.098  0.031  IZUMI 5N18 1000
A.W.G. 16-14 KFO0027 16-14 AWG Non-insulated Spade Terminal 2-5L SNBL2-5 #10 0.209  0.374  0.256  0.630  0.197  0.157  0.098  0.031  IZUMI 5N18 1000
A.W.G. 16-14 KFO0028 16-14 AWG Non-insulated Spade Terminal 2-6S SNBS2-6 1/4" 0.252  0.374  0.256  0.630  0.197  0.157  0.098  0.031  IZUMI 5N18 1000
A.W.G. 16-14  KFO0029 16-14 AWG Non-insulated Spade Terminal 2-6L SNBL2-6 1/4" 0.252  0.472  0.433  0.866  0.197  0.157  0.098  0.031  IZUMI 5N18 1000
A.W.G. 14-12 KFO0030 14-12 AWG Non-insulated Spade Terminal 3.5-3 SNB3.5-3 #4 0.126  0.217  0.276  0.728  0.236  0.197  0.118  0.039  IZUMI 5N18 1000
A.W.G. 14-12 KFO0031 14-12 AWG Non-insulated Spade Terminal 3.5-4 SNB3.5-4 #8 0.169  0.315  0.276  0.728  0.236  0.197  0.118  0.039  IZUMI 5N18 1000
A.W.G. 14-12 KFO0032 14-12 AWG Non-insulated Spade Terminal 3.5-5 SNB3.5-5 #10 0.209  0.315  0.276  0.728  0.236  0.197  0.118  0.039  IZUMI 5N18 1000
A.W.G. 14-12 KFO0033 14-12 AWG Non-insulated Spade Terminal 3.5-6 SNB3.5-6 1/4" 0.252  0.472  0.354  0.846  0.236  0.197  0.118  0.039  IZUMI 5N18 1000
A.W.G. 12-10  KFO0040 12-10 AWG Non-insulated Spade Terminal 5.5-3.5 SNB5.5-3.5 #6 0.146  0.335  0.295  0.768  0.276  0.217  0.138  0.039  IZUMI 5N18 1000
A.W.G. 12-10 KFO0041 12-10 AWG Non-insulated Spade Terminal 5.5-4S SNBS5.5-4 #8 0.169  0.335  0.295  0.768  0.276  0.217  0.138  0.039  IZUMI 5N18 1000
A.W.G. 12-10 KFO0042 12-10 AWG Non-insulated Spade Terminal 5.5-4L SNBL5.5-4 #8 0.169  0.374  0.295  0.768  0.276  0.217  0.138  0.039  IZUMI 5N18 1000
A.W.G. 12-10  KFO0043 12-10 AWG Non-insulated Spade Terminal 5.5-5 SNB5.5-5 #10 0.209  0.354  0.295  0.768  0.276  0.217  0.138  0.039  IZUMI 5N18 1000
A.W.G. 12-10 KFO0044 12-10 AWG Non-insulated Spade Terminal 5.5-6S SNBS5.5-6 1/4" 0.252  0.354  0.295  0.768  0.276  0.217  0.138  0.039  IZUMI 5N18 1000
A.W.G. 12-10  KFO0045 12-10 AWG Non-insulated Spade Terminal 5.5-6L SNBL5.5-6 1/4" 0.252  0.472  0.472  1.004  0.276  0.217  0.138  0.039  IZUMI 5N18 1000
A.W.G. 12-10 KFO0046 12-10 AWG Non-insulated Spade Terminal 5.5-8 SNB5.5-8 5/16" 0.331  0.551  0.453  0.965  0.276  0.217  0.138  0.039  IZUMI 5N18 1000
A.W.G. 8 KFO0050 8 AWG Non-insulated Spade Terminal 8-4 SNB8-4 #8 0.169  0.335  0.354  0.925  0.335  0.276  0.197  0.047  IZUMI 5N18 500
A.W.G. 8 KFO0051 8 AWG Non-insulated Spade Terminal 8-5 SNB8-5 #10 0.209  0.453  0.335  0.965  0.335  0.276  0.197  0.047  IZUMI 5N18 500
A.W.G. 8 KFO0052 8 AWG Non-insulated Spade Terminal 8-6 SNB8-6 1/4" 0.252  0.453  0.335  0.965  0.335  0.276  0.197  0.047  IZUMI 5N18 500
A.W.G. 8 KFO0053 8 AWG Non-insulated Spade Terminal 8-8 SNB8-8 5/16" 0.331  0.571  0.472  1.122  0.335  0.276  0.197  0.047  IZUMI 5N18 500
A.W.G. 6 KFO0060 6 AWG Non-insulated Spade Terminal 14-5 SNB14-5 #10 0.209  0.433  0.433  1.142  0.413  0.354  0.236  0.055  OPT TP - 150D 500
A.W.G. 6 KFO0061 6 AWG Non-insulated Spade Terminal 14-6 SNB14-6 1/4" 0.252  0.472  0.394  1.122  0.413  0.354  0.236  0.055  OPT TP - 150D 500
A.W.G. 6 KFO0062 6 AWG Non-insulated Spade Terminal 14-8 SNB14-8 5/16" 0.331  0.532  0.433  1.122  0.413  0.354  0.236  0.055  OPT TP - 150D 500
A.W.G. 4 KFO0070 4 AWG Non-insulated Spade Terminal 22-8S SNB22-8S 1/4" 0.252  0.512  0.433  1.220  0.472  0.453  0.315  0.071  OPT TP - 150D 500
A.W.G. 4 KFO0071 4 AWG Non-insulated Spade Terminal 22-8 SNB22-8 5/16" 0.331  0.551  0.512  1.358  0.472  0.453  0.315  0.071  OPT TP - 150D 500
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Tool PCS/Pack
Meric d2 B F L E D d T
(0.2-0.5 mm3) KFO0000 22-20 AWG Non-insulated Spade Terminal 0.5-3 SNB0.5-3 3 2.2 5.2 6.5 12.4  5.0  1.1 2.0  0.75 IZUMI 5N18 1000
(0.2-0.5 mm3) KFO0001 22-20 AWG Non-insulated Spade Terminal 0.5-3.5 SNB0.5-3.5 3.5 3.7 6.6 6.5 14.0  5.0  1.1 2.0  0.75 IZUMI 5N18 1000
(0.2-0.5 mm3) KFO0002 22-20 AWG Non-insulated Spade Terminal 0.5-4 SNB0.5-4 4 4.3 6.6 6.5 14.0  5.0  1.1 2.0  0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0010 22-16 AWG Non-insulated Spade Terminal 1.25-3 SNB1.25-3 3 3.2 5.5 6.5 16.0  5.0 3.5 2.0 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0011 22-16 AWG Non-insulated Spade Terminal 1.25-3.5S SNBS1.25-3.5 3.5 3.7 5.5 6.5 16.0  5.0 3.5 2.0 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0012 22-16 AWG Non-insulated Spade Terminal 1.25-3.5L SNBL1.25-3.5 3.5 3.7 6.5 6.5 16.0  5.0 3.5 2.0 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0013 22-16 AWG Non-insulated Spade Terminal 1.25-4S SNBS1.25-4 4 4.3 6.5 6.5 16.0  5.0 3.5 2.0 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0014 22-16 AWG Non-insulated Spade Terminal 1.25-4M SNBM1.25-4 4 4.3 7.0 6.5 16.0  5.0 3.5 2.0 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0015 22-16 AWG Non-insulated Spade Terminal 1.25-4L SNBL1.25-4 4 4.3 8.0 6.5 16.0  5.0 3.5 2.0 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0016 22-16 AWG Non-insulated Spade Terminal 1.25-5S SNBS1.25-5 5 5.3 8.0 6.5 16.0  5.0 3.5 2.0 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0017 22-16 AWG Non-insulated Spade Terminal 1.25-5L SNBL1.25-5 5 5.3 9.5 6.5 16.0  5.0 3.5 2.0 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0018 22-16 AWG Non-insulated Spade Terminal 1.25-6S SNBS1.25-6 6 6.4 9.5 6.5 16.0  5.0 3.5 2.0 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0019 22-16 AWG Non-insulated Spade Terminal 1.25-6L SNBL1.25-6 6 6.4 12.0 11.0 22.0  5.0 3.5 2.0 0.75 IZUMI 5N18 1000
1.5~2.5mm² KFO0020 16-14 AWG Non-insulated Spade Terminal 2-3 SNB2-3 3 3.2 5.5 6.5 16.0  5.0 4.0 2.5 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0021 16-14 AWG Non-insulated Spade Terminal 2-3.5S SNBS2-3.5 3.5 3.7 5.5 6.5 16.0  5.0 4.0 2.5 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0022 16-14 AWG Non-insulated Spade Terminal 2-3.5L SNBL2-3.5 3.5 3.7 7.0 6.5 16.0  5.0 4.0 2.5 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0023 16-14 AWG Non-insulated Spade Terminal 2-4S SNBS2-4 4 4.3 6.5 6.5 16.0  5.0 4.0 2.5 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0024 16-14 AWG Non-insulated Spade Terminal 2-4M SNBM2-4 4 4.3 7.0 6.5 16.0  5.0 4.0 2.5 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0025 16-14 AWG Non-insulated Spade Terminal 2-4L SNBL2-4 4 4.3 8.0 6.5 16.0  5.0 4.0 2.5 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0026 16-14 AWG Non-insulated Spade Terminal 2-5S SNBS2-5 5 5.3 8.0 6.5 16.0  5.0 4.0 2.5 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0027 16-14 AWG Non-insulated Spade Terminal 2-5L SNBL2-5 5 5.3 9.5 6.5 16.0  5.0 4.0 2.5 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0028 16-14 AWG Non-insulated Spade Terminal 2-6S SNBS2-6 6 6.4 9.5 6.5 16.0  5.0 4.0 2.5 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0029 16-14 AWG Non-insulated Spade Terminal 2-6L SNBL2-6 6 6.4 12.0 11.0 22.0  5.0 4.0 2.5 0.8 IZUMI 5N18 1000
2.5~4.0mm² KFO0030 14-12 AWG Non-insulated Spade Terminal 3.5-3 SNB3.5-3 3 3.2 5.5 7.0 18.5  6.0 5.0 3.0 1.0  IZUMI 5N18 1000
2.5~4.0mm² KFO0031 14-12 AWG Non-insulated Spade Terminal 3.5-4 SNB3.5-4 4 4.3 8.0 7.0 18.5  6.0 5.0 3.0 1.0  IZUMI 5N18 1000
2.5~4.0mm² KFO0032 14-12 AWG Non-insulated Spade Terminal 3.5-5 SNB3.5-5 5 5.3 8.0 7.0 18.5  6.0 5.0 3.0 1.0  IZUMI 5N18 1000
2.5~4.0mm² KFO0033 14-12 AWG Non-insulated Spade Terminal 3.5-6 SNB3.5-6 6 6.4 12.0 9.0 21.5  6.0 5.0 3.0 1.0  IZUMI 5N18 1000

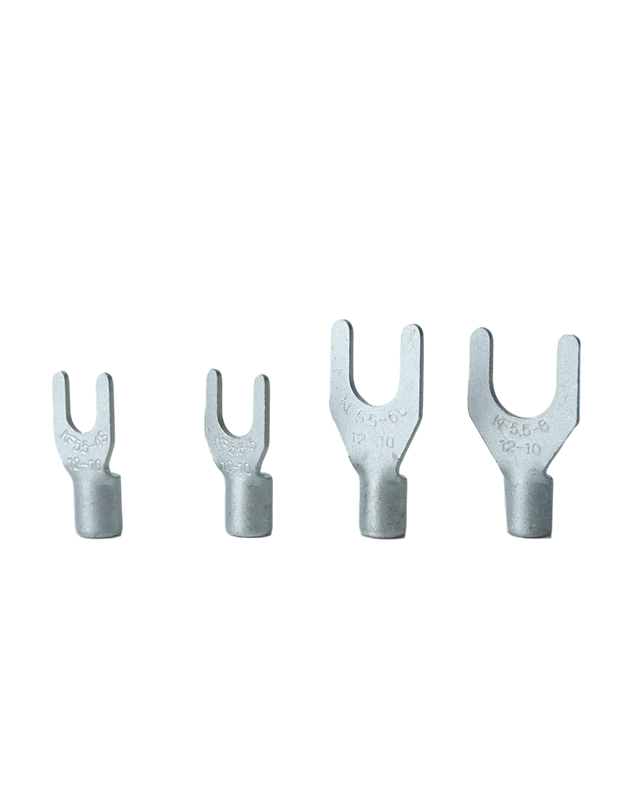

4.0~6.0mm² KFO0040 12-10 AWG Non-insulated Spade Terminal 5.5-3.5 SNB5.5-3.5 3.5 3.7 8.5 7.5 19.5  7.0 5.5 3.5 1.0  IZUMI 5N18 1000
4.0~6.0mm² KFO0041 12-10 AWG Non-insulated Spade Terminal 5.5-4S SNBS5.5-4 4 4.3 8.5 7.5 19.5  7.0 5.5 3.5 1.0  IZUMI 5N18 1000
4.0~6.0mm² KFO0042 12-10 AWG Non-insulated Spade Terminal 5.5-4L SNBL5.5-4 4 4.3 9.5 7.5 19.5  7.0 5.5 3.5 1.0  IZUMI 5N18 1000
4.0~6.0mm² KFO0043 12-10 AWG Non-insulated Spade Terminal 5.5-5 SNB5.5-5 5 5.3 9.0 7.5 19.5  7.0 5.5 3.5 1.0  IZUMI 5N18 1000
4.0~6.0mm² KFO0044 12-10 AWG Non-insulated Spade Terminal 5.5-6S SNBS5.5-6 6 6.4 9.0 7.5 19.5  7.0 5.5 3.5 1.0  IZUMI 5N18 1000
4.0~6.0mm² KFO0045 12-10 AWG Non-insulated Spade Terminal 5.5-6L SNBL5.5-6 6 6.4 12.0 12.0 25.5  7.0 5.5 3.5 1.0  IZUMI 5N18 1000
4.0~6.0mm² KFO0046 12-10 AWG Non-insulated Spade Terminal 5.5-8 SNB5.5-8 8 8.4 14.0 11.5 24.5  7.0 5.5 3.5 1.0  IZUMI 5N18 1000

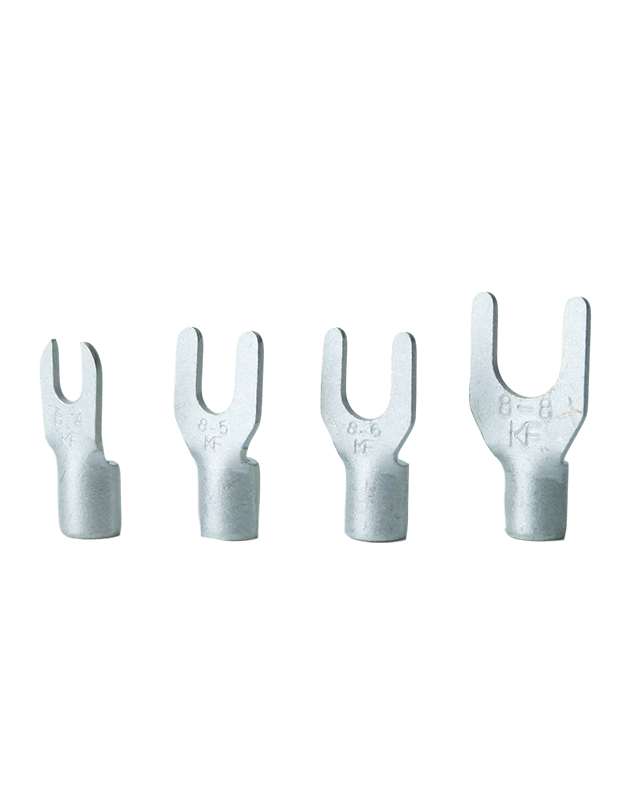

8mm² KFO0050 8 AWG Non-insulated Spade Terminal 8-4 SNB8-4 4 4.3 8.5 9.0 23.5  8.5 7.0 5.0 1.2 IZUMI 5N18 500
8mm² KFO0051 8 AWG Non-insulated Spade Terminal 8-5 SNB8-5 5 5.3 11.5 8.5 24.5  8.5 7.0 5.0 1.2 IZUMI 5N18 500
8mm² KFO0052 8 AWG Non-insulated Spade Terminal 8-6 SNB8-6 6 6.4 11.5 8.5 24.5  8.5 7.0 5.0 1.2 IZUMI 5N18 500
8mm² KFO0053 8 AWG Non-insulated Spade Terminal 8-8 SNB8-8 8 8.4 14.5 12.0 28.5  8.5 7.0 5.0 1.2 IZUMI 5N18 500

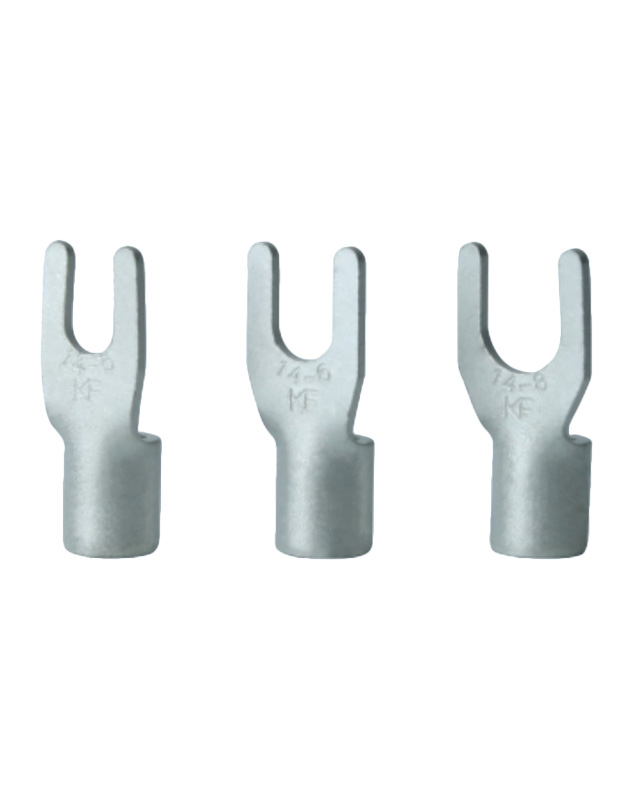

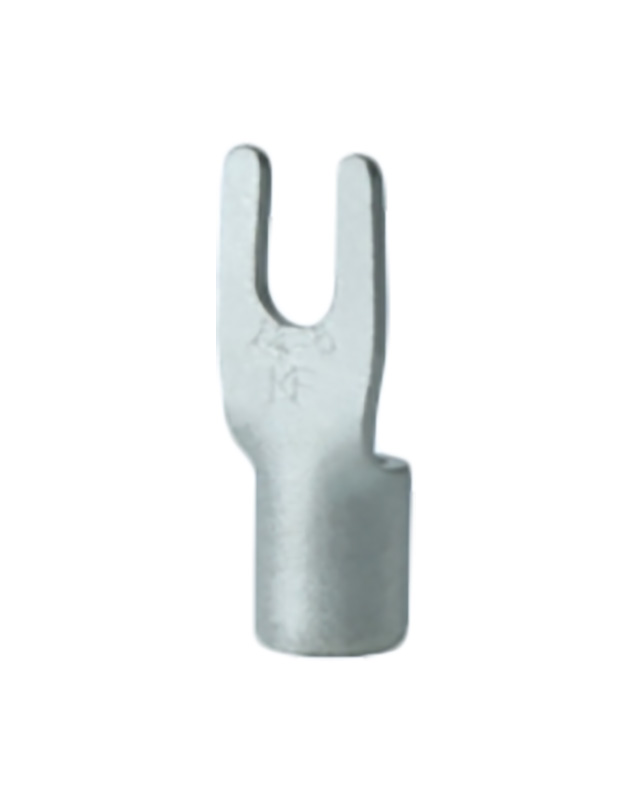

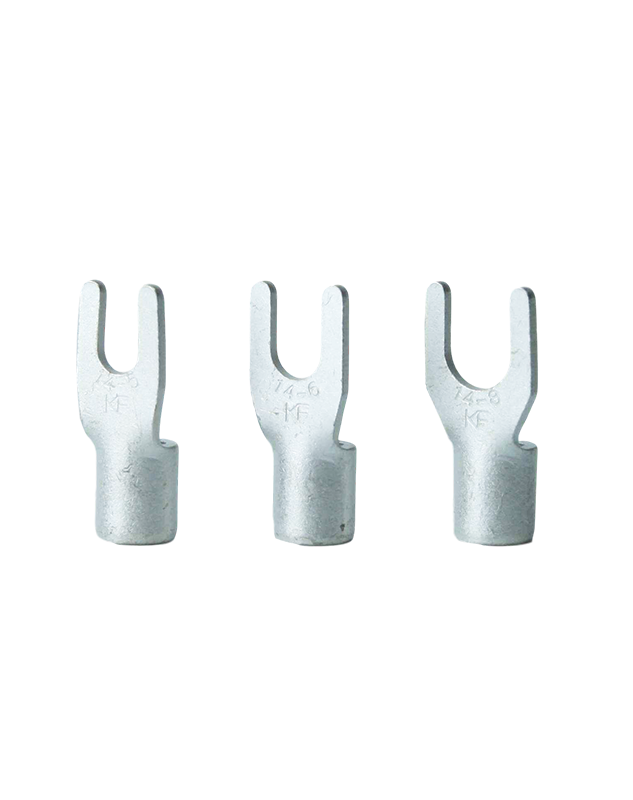

14mm² KFO0060 6 AWG Non-insulated Spade Terminal 14-5 SNB14-5 5 5.3 11.0 11.0 29.0  10.5 9.0 6.0 1.4 OPT TP - 150D 500
14mm² KFO0061 6 AWG Non-insulated Spade Terminal 14-6 SNB14-6 6 6.4 12.0 10.0 28.5  10.5 9.0 6.0 1.4 OPT TP - 150D 500
14mm² KFO0062 6 AWG Non-insulated Spade Terminal 14-8 SNB14-8 8 8.4 13.5 11.0 28.5  10.5 9.0 6.0 1.4 OPT TP - 150D 500
22mm² KFO0070 4 AWG Non-insulated Spade Terminal 22-8S SNB22-8S 6 6.6 13.0 11.0 31.0  12.0 11.5 8.0 1.8 OPT TP - 150D 500
22mm² KFO0071 4 AWG Non-insulated Spade Terminal 22-8 SNB22-8 8 8.4 14.0 13.0 34.5  12.0 11.5 8.0 1.8 OPT TP - 150D 500

Recommended Products

You can tick the products you need and communicate with us in the message board.

Vinyl-Insulated Single Crimp(Easy Entry)Dual Screw Terminals

Vinyl-Insulated Single Crimp(Easy Entry)Dual Screw Terminals

Non-Insulated Flag Terminals

Non-Insulated Flag Terminals

Non-Insulated Dual Screw Terminals

Non-Insulated Dual Screw Terminals

Nylon-Insulated Single Crimp Blade Terminals

Nylon-Insulated Single Crimp Blade Terminals

    • CN

    KF China Factory

    AS

    KF Asia Office

    USA

    KF America Office

    EUR

    KF Europe Office
