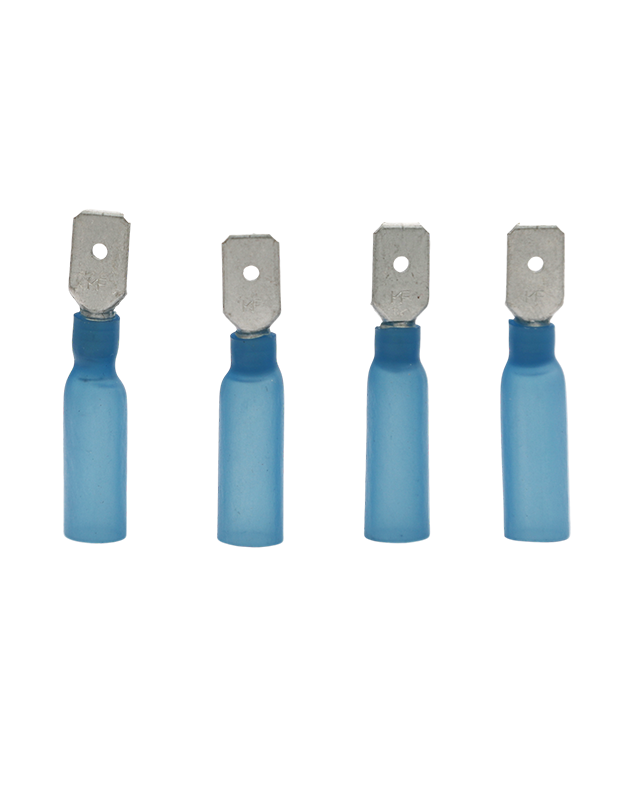

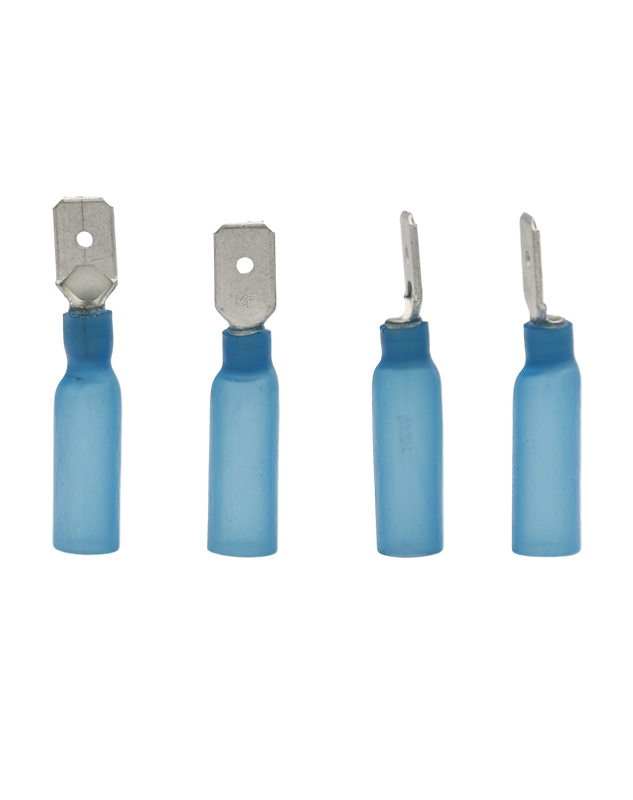

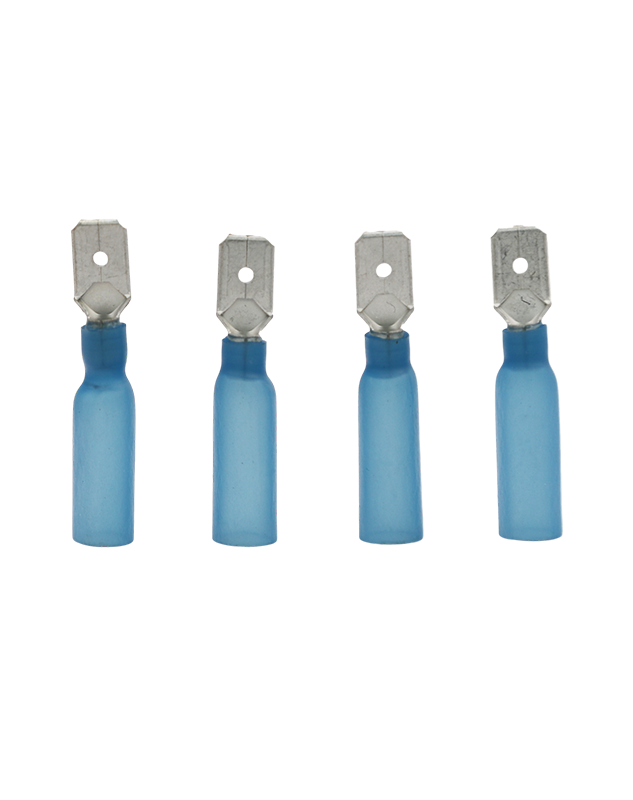

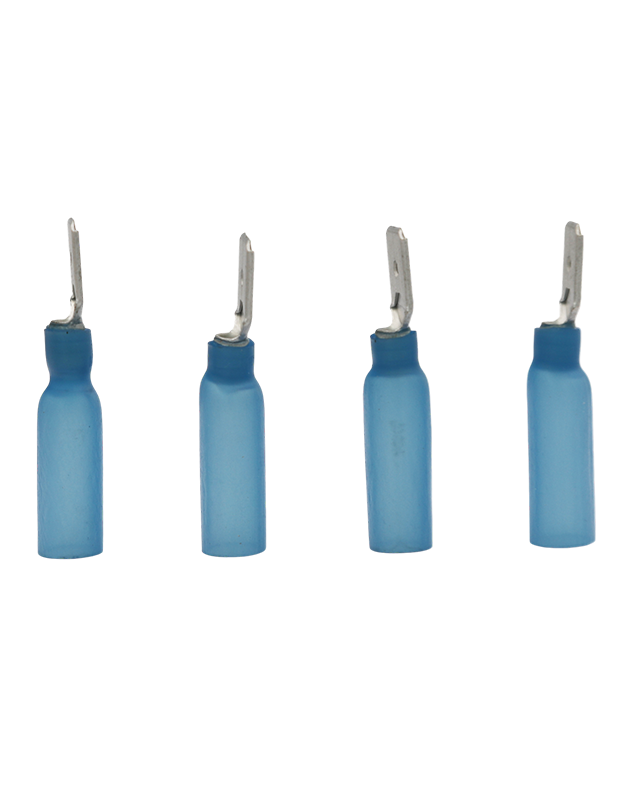

Heat Shrink-Insulated Male Quick Disconnectors

Heat Shrink-Insulated Male Quick Disconnectors

Brand

KF

Finish/Coating

Tinned

Base Materials

Brass,PE

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 1,232

Product Details

Spec (American AWG)

 22-16 16-14 12-10

Spec (JIS AWG)

 1.25 2 5.5

Spec (DIN AWG)

 1 2.5 4.0-6.0

Spec (GB mm2)

 0.5-1.5 2.5 6

Max Current

  19 27 48
Operating Voltage 600V
Heat Shrinkable Temperature 150℃

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA B L D Thickness
A.W.G. 22-16 KFQHM10 22-16 AWG Heat Shrink-Insulated Male Quick Disconnectors MDH 1.25-110(5) MDH 1.25-110(5)   0.112 1.220 0.197 0.020 Red IZUMI  3# 1000
A.W.G. 22-16 KFQHM11 22-16 AWG Heat Shrink-Insulated Male Quick Disconnectors MDH 1.25-110(8) MDH 1.25-110(8)   0.112 1.220 0.197 0.031 Red IZUMI  3# 1000
A.W.G. 22-16 KFQHM12 22-16 AWG Heat Shrink-Insulated Male Quick Disconnectors MDH 1.25-187(5) MDH 1.25-187(5)   0.187 1.260 0.197 0.020 Red IZUMI  3# 1000
A.W.G. 22-16 KFQHM13 22-16 AWG Heat Shrink-Insulated Male Quick Disconnectors MDH 1.25-187(8) MDH 1.25-187(8)   0.187 1.260 0.197 0.031 Red IZUMI  3# 1000
A.W.G. 22-16 KFQHM14 22-16 AWG Heat Shrink-Insulated Male Quick Disconnectors MDH 1.25-250 MDH 1.25-250   0.250 1.299 0.197 0.031 Red IZUMI  3# 1000
A.W.G. 16～14  KFQHM20 16-14 AWG Heat Shrink-Insulated Male Quick Disconnectors MDH 2-187(5) MDH 2-187(5)   0.187 1.260 0.236 0.020 Blue IZUMI  4# 1000
A.W.G. 16～14 KFQHM21 16-14 AWG Heat Shrink-Insulated Male Quick Disconnectors MDH 2-187(8) MDH 2-187(8)   0.187 1.260 0.236 0.031 Blue IZUMI  4# 1000
A.W.G. 16～14 KFQHM22 16-14 AWG Heat Shrink-Insulated Male Quick Disconnectors MDH 2-250 MDH 2-250   0.250 1.299 0.236 0.031 Blue IZUMI  4# 1000
A.W.G. 12～10 KFQHM30 12-10 AWG Heat Shrink-Insulated Male Quick Disconnectors MDH 5.5-250 MDH 5.5-250   0.250 1.339 0.256 0.031 Yellow IZUMI  5# 500
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric B L D Thickness
0.5～1.5mm² KFQHM10 22-16 AWG Heat Shrink-Insulated Male Quick Disconnectors MDH 1.25-110(5) MDH 1.25-110(5)   2.9  31.0  5.0  0.50  Red IZUMI  3# 1000
0.5～1.5mm² KFQHM11 22-16 AWG Heat Shrink-Insulated Male Quick Disconnectors MDH 1.25-110(8) MDH 1.25-110(8)   2.9  31.0  5.0  0.80  Red IZUMI  3# 1000
0.5～1.5mm² KFQHM12 22-16 AWG Heat Shrink-Insulated Male Quick Disconnectors MDH 1.25-187(5) MDH 1.25-187(5)   4.8  32.0  5.0  0.50  Red IZUMI  3# 1000
0.5～1.5mm² KFQHM13 22-16 AWG Heat Shrink-Insulated Male Quick Disconnectors MDH 1.25-187(8) MDH 1.25-187(8)   4.8  32.0  5.0  0.80  Red IZUMI  3# 1000
0.5～1.5mm² KFQHM14 22-16 AWG Heat Shrink-Insulated Male Quick Disconnectors MDH 1.25-250 MDH 1.25-250   6.4  33.0  5.0  0.80  Red IZUMI  3# 1000
1.5～2.5mm² KFQHM20 16-14 AWG Heat Shrink-Insulated Male Quick Disconnectors MDH 2-187(5) MDH 2-187(5)   4.8  32.0  6.0  0.50  Blue IZUMI  4# 1000
1.5～2.5mm² KFQHM21 16-14 AWG Heat Shrink-Insulated Male Quick Disconnectors MDH 2-187(8) MDH 2-187(8)   4.8  32.0  6.0  0.80  Blue IZUMI  4# 1000
1.5～2.5mm² KFQHM22 16-14 AWG Heat Shrink-Insulated Male Quick Disconnectors MDH 2-250 MDH 2-250   6.4  33.0  6.0  0.80  Blue IZUMI  4# 1000
4～6mm² KFQHM30 12-10 AWG Heat Shrink-Insulated Male Quick Disconnectors MDH 5.5-250 MDH 5.5-250   6.4  34.0  6.5  0.80  Yellow IZUMI  5# 500
