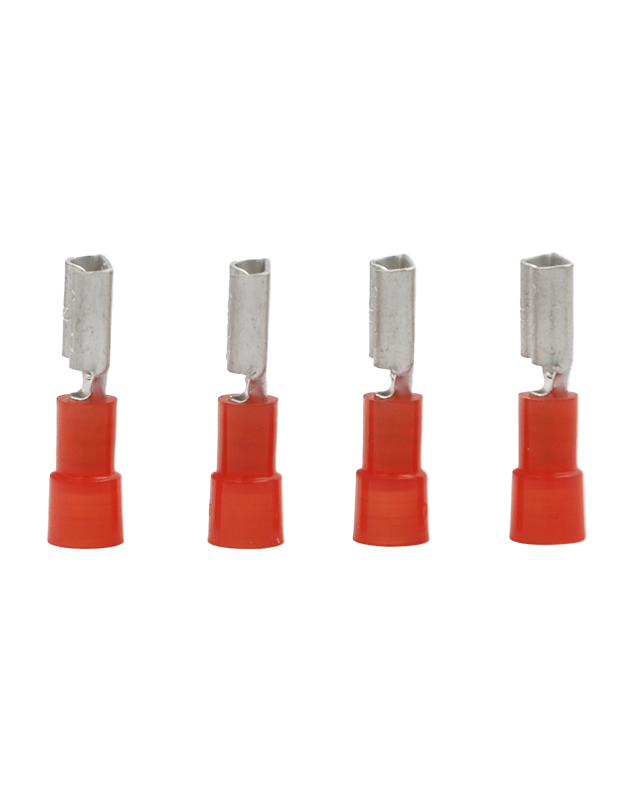

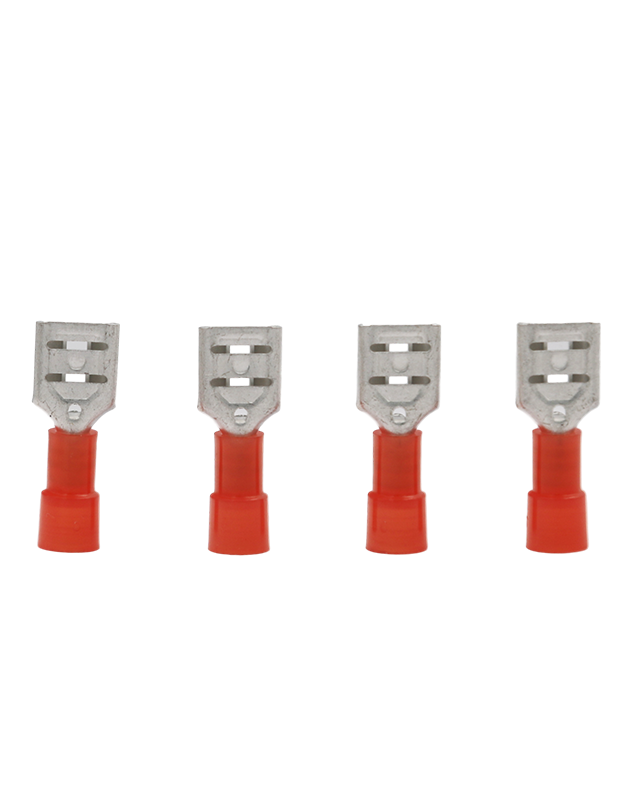

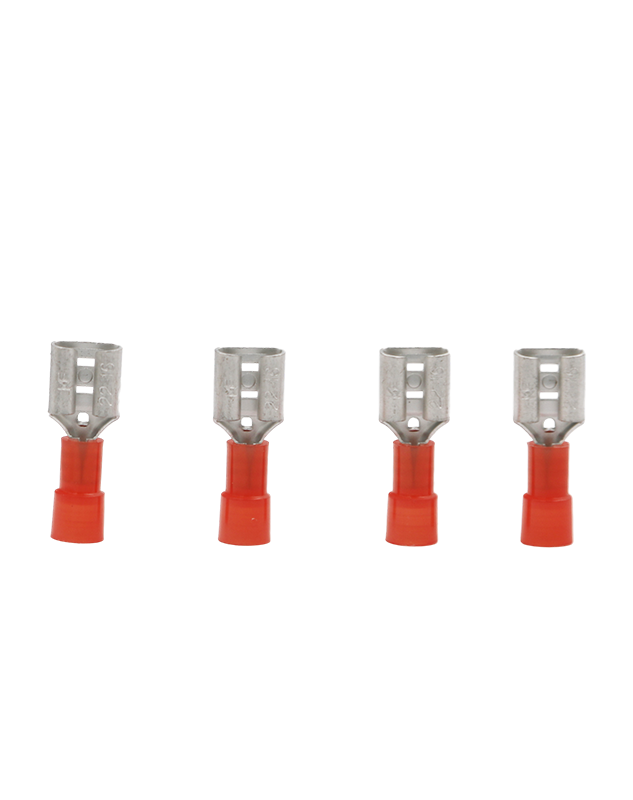

Nylon-Insulated Female Quick Disconnectors

Brand	KF
Finish/Coating	Tinned
Base Materials	Brass,Nylon
Insulation Material	N/A
Brazed	Seam
Wire/Cable Type	Regular Wire
Color Code	Standard
MOQ	1000Pcs/item
Payment Terms	Based on orders
Delivery	FOB/CIF/DDP

Contact

Product Details

Spec (American AWG)	22-16	16-14	12-10
Spec (JIS AWG)	1.25	2	5.5
Spec (DIN AWG)	1	2.5	4.0-6.0
Spec (GB mm2)	0.5-1.5	2.5	6
Max Current	10	15	24
Operating Voltage	600V
Temperature Withstand	105℃

You can tick the products you need and communicate with us in the message board.

British（in） Meric (mm)

Wire Range	SKU#	Description	MFG#	Stud Size	Dimensions Inch						Color	Tool	PCS/Pack
Wire Range	SKU#	Description	MFG#	USA	B	L	D	d	H	Thickness	Color	Tool	PCS/Pack
A.W.G. 22～16	KFQNF110	22-16 AWG Nylon-Insulated Female Quick Disconnectors FDNY1.25-110(5）	FDNY1.25-110(5）		0.138	0.768	0.157	0.079	0.394	0.014	Red	IZUMI 3#	1000
A.W.G. 22～16	KFQNF111	22-16 AWG Nylon-Insulated Female Quick Disconnectors FDNY1.25-110(8）	FDNY1.25-110(8）		0.138	0.768	0.157	0.079	0.394	0.014	Red	IZUMI 3#	1000
A.W.G. 22～16	KFQNF112	22-16 AWG Nylon-Insulated Female Quick Disconnectors FDNY1.25-187(5）	FDNY1.25-187(5）		0.197	0.768	0.157	0.079	0.394	0.014	Red	IZUMI 3#	1000
A.W.G. 22～16	KFQNF113	22-16 AWG Nylon-Insulated Female Quick Disconnectors FDNY1.25-187(8）	FDNY1.25-110(8）		0.197	0.768	0.157	0.079	0.394	0.014	Red	IZUMI 3#	1000
A.W.G. 22～16	KFQNF114	22-16 AWG Nylon-Insulated Female Quick Disconnectors FDNY1.25-205	FDNY1.25-205		0.217	0.768	0.157	0.079	0.394	0.014	Red	IZUMI 3#	1000
A.W.G. 22～16	KFQNF115	22-16 AWG Nylon-Insulated Female Quick Disconnectors FDNY1.25-250	FDNY1.25-250		0.256	0.807	0.157	0.079	0.394	0.016	Red	IZUMI 3#	1000
A.W.G. 22～16	KFQNF116	22-16 AWG Nylon-Insulated Female Quick Disconnectors FDNY1.25-312	FDNY1.25-312		0.315	0.945	0.157	0.079	0.394	0.016	Red	IZUMI 3#	1000
A.W.G. 16～14	KFQNF120	16-14 AWG Nylon-Insulated Female Quick Disconnectors FDNY2-110(5)	FDNY2-110(5)		0.138	0.748	0.177	0.098	0.413	0.014	Blue	IZUMI 4#	1000
A.W.G. 16～14	KFQNF121	16-14 AWG Nylon-Insulated Female Quick Disconnectors FDNY2-110(8)	FDNY2-110(8)		0.138	0.748	0.177	0.098	0.413	0.014	Blue	IZUMI 4#	1000
A.W.G. 16～14	KFQNF122	16-14 AWG Nylon-Insulated Female Quick Disconnectors FDNY2-187(5)	FDNY2-187(5)		0.197	0.768	0.177	0.098	0.413	0.014	Blue	IZUMI 4#	1000
A.W.G. 16～14	KFQNF123	16-14 AWG Nylon-Insulated Female Quick Disconnectors FDNY2-187(8)	FDNY2-187(8)		0.197	0.768	0.177	0.098	0.413	0.014	Blue	IZUMI 4#	1000
A.W.G. 16～14	KFQNF124	16-14 AWG Nylon-Insulated Female Quick Disconnectors FDNY2-205	FDNY2-205		0.217	0.768	0.177	0.098	0.413	0.014	Blue	IZUMI 4#	1000
A.W.G. 16～14	KFQNF125	16-14 AWG Nylon-Insulated Female Quick Disconnectors FDNY2-250	FDNY2-250		0.217	0.807	0.177	0.098	0.413	0.016	Blue	IZUMI 4#	1000
A.W.G. 16～14	KFQNF126	16-14 AWG Nylon-Insulated Female Quick Disconnectors FDNY2-312	FDNY2-312		0.315	0.945	0.177	0.098	0.413	0.016	Blue	IZUMI 4#	1000
A.W.G. 12～10	KFQNF130	12-10 AWG Nylon-Insulated Female Quick Disconnectors FDNY5.5-250	FDNY5.5-250		0.256	0.925	0.276	0.138	0.531	0.016	Yellow	IZUMI 5#	1000
A.W.G. 12～10	KFQNF131	12-10 AWG Nylon-Insulated Female Quick Disconnectors FDNY5.5-312	FDNY5.5-312		0.315	1.063	0.276	0.138	0.531	0.016	Yellow	IZUMI 5#	500
A.W.G. 12～10	KFQNF132	12-10 AWG Nylon-Insulated Female Quick Disconnectors FDNY5.5-375	FDNY5.5-375		0.394	1.161	0.276	0.138	0.531	0.020	Yellow	IZUMI 5#	500

Wire Range	SKU#	Description	MFG#	Stud Size	Dimensions mm						Color	Tool	PCS/Pack
Wire Range	SKU#	Description	MFG#	Meric	B	L	D	d	H	Thickness	Color	Tool	PCS/Pack
0.5～1.5mm²	KFQNF110	22-16 AWG Nylon-Insulated Female Quick Disconnectors FDNY1.25-110(5）	FDNY1.25-110(5）		3.50	19.50	4.00	2.00	10.00	0.35	Red	IZUMI 3#	1000
0.5～1.5mm²	KFQNF111	22-16 AWG Nylon-Insulated Female Quick Disconnectors FDNY1.25-110(8）	FDNY1.25-110(8）		3.50	19.50	4.00	2.00	10.00	0.35	Red	IZUMI 3#	1000
0.5～1.5mm²	KFQNF112	22-16 AWG Nylon-Insulated Female Quick Disconnectors FDNY1.25-187(5）	FDNY1.25-187(5）		5.00	19.50	4.00	2.00	10.00	0.35	Red	IZUMI 3#	1000
0.5～1.5mm²	KFQNF113	22-16 AWG Nylon-Insulated Female Quick Disconnectors FDNY1.25-187(8）	FDNY1.25-110(8）		5.00	19.50	4.00	2.00	10.00	0.35	Red	IZUMI 3#	1000
0.5～1.5mm²	KFQNF114	22-16 AWG Nylon-Insulated Female Quick Disconnectors FDNY1.25-205	FDNY1.25-205		5.50	19.50	4.00	2.00	10.00	0.35	Red	IZUMI 3#	1000
0.5～1.5mm²	KFQNF115	22-16 AWG Nylon-Insulated Female Quick Disconnectors FDNY1.25-250	FDNY1.25-250		6.50	20.50	4.00	2.00	10.00	0.40	Red	IZUMI 3#	1000
0.5～1.5mm²	KFQNF116	22-16 AWG Nylon-Insulated Female Quick Disconnectors FDNY1.25-312	FDNY1.25-312		8.00	24.00	4.00	2.00	10.00	0.40	Red	IZUMI 3#	1000
1.5～2.5mm²	KFQNF120	16-14 AWG Nylon-Insulated Female Quick Disconnectors FDNY2-110(5)	FDNY2-110(5)		3.50	19.00	4.50	2.50	10.50	0.35	Blue	IZUMI 4#	1000
1.5～2.5mm²	KFQNF121	16-14 AWG Nylon-Insulated Female Quick Disconnectors FDNY2-110(8)	FDNY2-110(8)		3.50	19.00	4.50	2.50	10.50	0.35	Blue	IZUMI 4#	1000
1.5～2.5mm²	KFQNF122	16-14 AWG Nylon-Insulated Female Quick Disconnectors FDNY2-187(5)	FDNY2-187(5)		5.00	19.50	4.50	2.50	10.50	0.35	Blue	IZUMI 4#	1000
1.5～2.5mm²	KFQNF123	16-14 AWG Nylon-Insulated Female Quick Disconnectors FDNY2-187(8)	FDNY2-187(8)		5.00	19.50	4.50	2.50	10.50	0.35	Blue	IZUMI 4#	1000
1.5～2.5mm²	KFQNF124	16-14 AWG Nylon-Insulated Female Quick Disconnectors FDNY2-205	FDNY2-205		5.50	19.50	4.50	2.50	10.50	0.35	Blue	IZUMI 4#	1000
1.5～2.5mm²	KFQNF125	16-14 AWG Nylon-Insulated Female Quick Disconnectors FDNY2-250	FDNY2-250		5.50	20.50	4.50	2.50	10.50	0.40	Blue	IZUMI 4#	1000
1.5～2.5mm²	KFQNF126	16-14 AWG Nylon-Insulated Female Quick Disconnectors FDNY2-312	FDNY2-312		8.00	24.00	4.50	2.50	10.50	0.40	Blue	IZUMI 4#	1000
4～6mm²	KFQNF130	12-10 AWG Nylon-Insulated Female Quick Disconnectors FDNY5.5-250	FDNY5.5-250		6.50	23.50	7.00	3.50	13.50	0.40	Yellow	IZUMI 5#	1000
4～6mm²	KFQNF131	12-10 AWG Nylon-Insulated Female Quick Disconnectors FDNY5.5-312	FDNY5.5-312		8.00	27.00	7.00	3.50	13.50	0.40	Yellow	IZUMI 5#	500
4～6mm²	KFQNF132	12-10 AWG Nylon-Insulated Female Quick Disconnectors FDNY5.5-375	FDNY5.5-375		10.00	29.50	7.00	3.50	13.50	0.50	Yellow	IZUMI 5#	500
