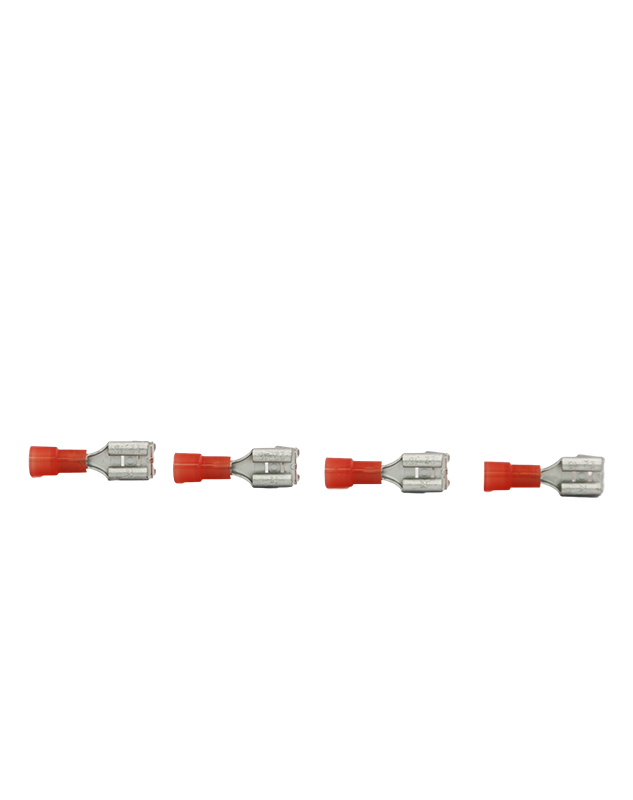

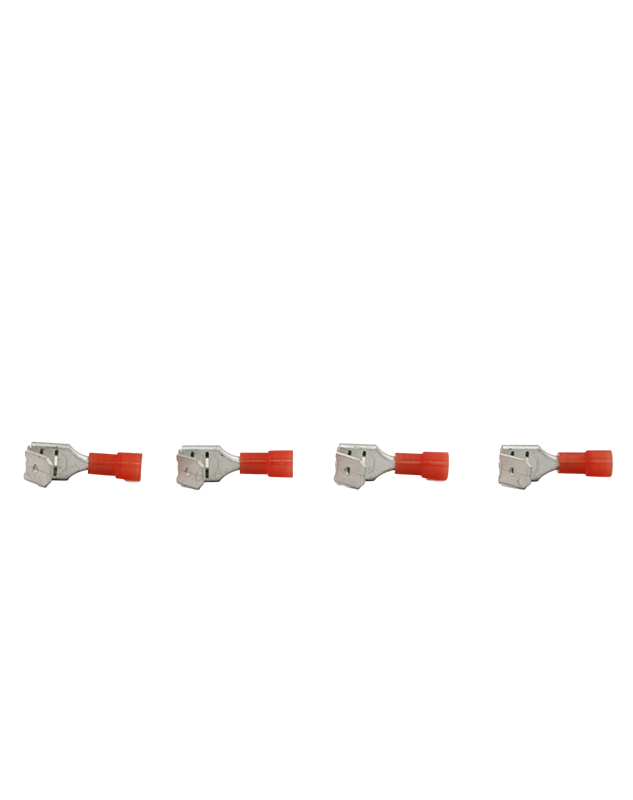

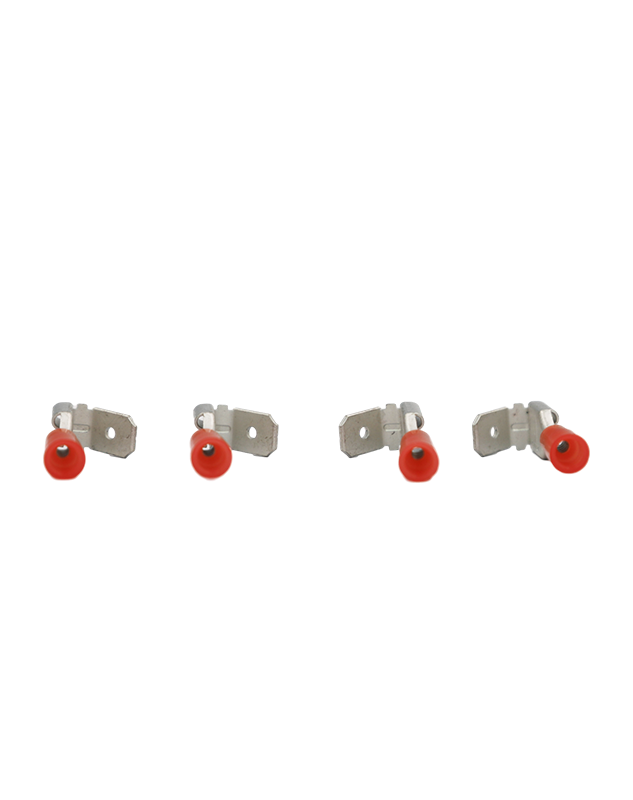

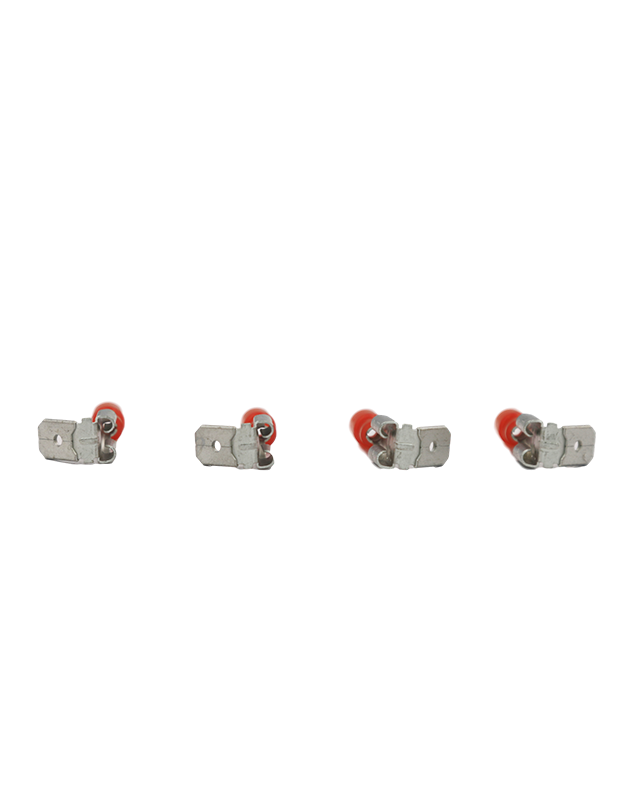

Nylon-Insulated Piggyback Quick Disconnectors

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range	SKU#	Description	MFG#	Stud Size	Dimensions Inch							Color	Tool	PCS/Pack
				USA	B	B1	H	D	d	L	Thickness
A.W.G. 22-16	KFQNP10	22-16 AWG Nylon-Insulated Piggyback Quick Disconnectors PBDNY 1.25-250	PBDNY 1.25-250		0.256	0.250	0.413	0.157	0.079	0.886	0.016	Red	IZUMI  3#	1000
A.W.G. 16-14	KFQNP20	16-14 AWG Nylon-Insulated Piggyback Quick Disconnectors PBDNY 2-250	PBDNY 2-250		0.256	0.250	0.413	0.177	0.098	0.886	0.016	Blue	IZUMI  4#	1000
A.W.G. 12-10	KFQNP30	12-10 AWG Nylon-Insulated Piggyback Quick Disconnectors PBDNY 5.5-250	PBDNY 5.5-250		0.256	0.250	0.531	0.276	0.138	1.004	0.016	Yellow	IZUMI  5#	500

Wire Range	SKU#	Description	MFG#	Stud Size	Dimensions mm							Color	Tool	PCS/Pack
				Meric	B	B1	H	D	d	L	Thickness
0.5～1.5mm²	KFQNP01	22 AWG Quick Disconnectors PBDNY 1.25-250	PBDNY 1.25-250		6.5	6.4	10.5	4.0	2.0	22.5	0.40	Red	IZUMI  3#	1000
1.5～2.5mm²	KFQNP11	16 AWG Quick Disconnectors PBDNY 2-250	PBDNY 2-250		6.5	6.4	10.5	4.5	2.5	22.5	0.40	Blue	IZUMI  4#	1000
4～6mm²	KFQNP21	12 AWG Quick Disconnectors PBDNY 5.5-250	PBDNY 5.5-250		6.5	6.4	13.5	7.0	3.5	25.5	0.40	Yellow	IZUMI  5#	500
