Vinyl-Fully Insulated Female Quick Disconnectors

Vinyl-Fully Insulated Female Quick Disconnectors

Brand

KF

Finish/Coating

Tinned

Base Materials

Brass,PVC

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 881

Product Details

Spec (American AWG)

 22-16 16-14 12-10

Spec (JIS AWG)

 1.25 2 5.5

Spec (DIN AWG)

 1 2.5 4.0-6.0

Spec (GB mm2)

 0.5-1.5 2.5 6

Max Current

  10 15 24
Operating Voltage 600V
Temperature Withstand 75℃

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA B L H F d D Thickness

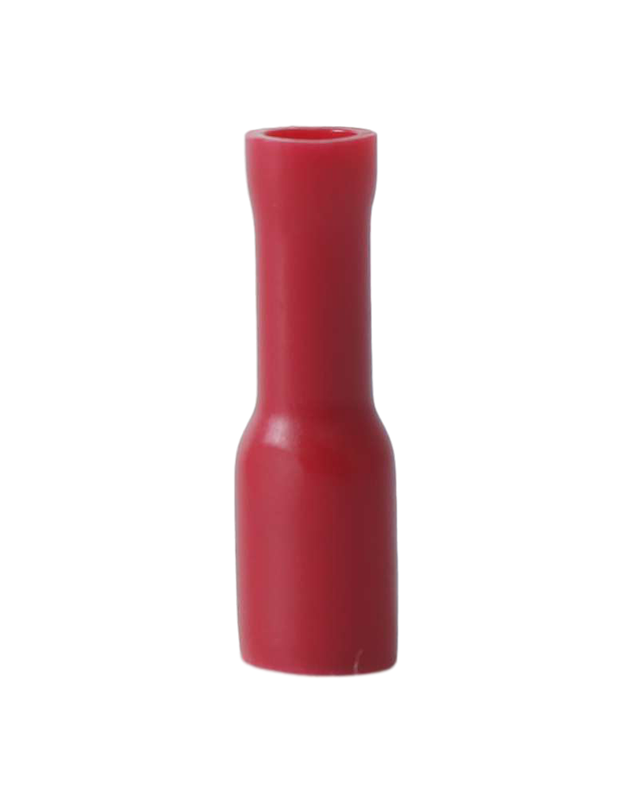

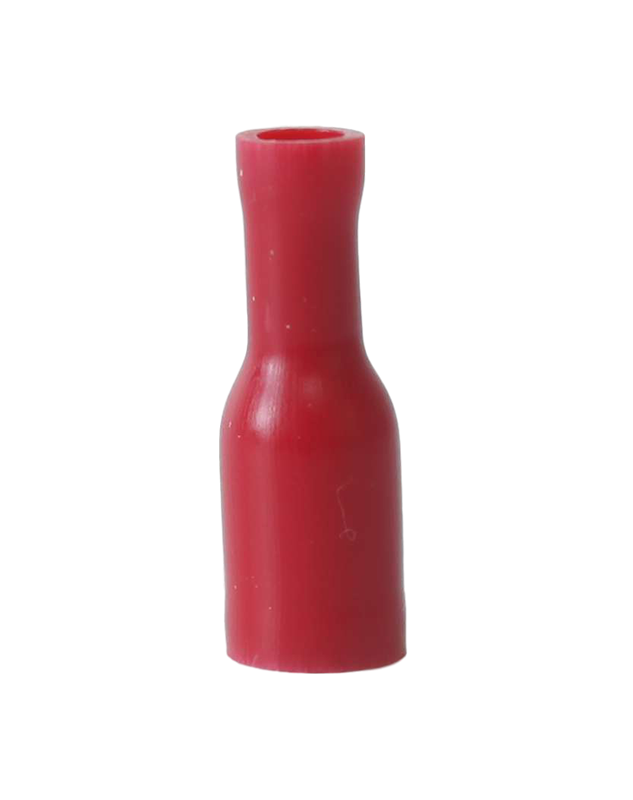

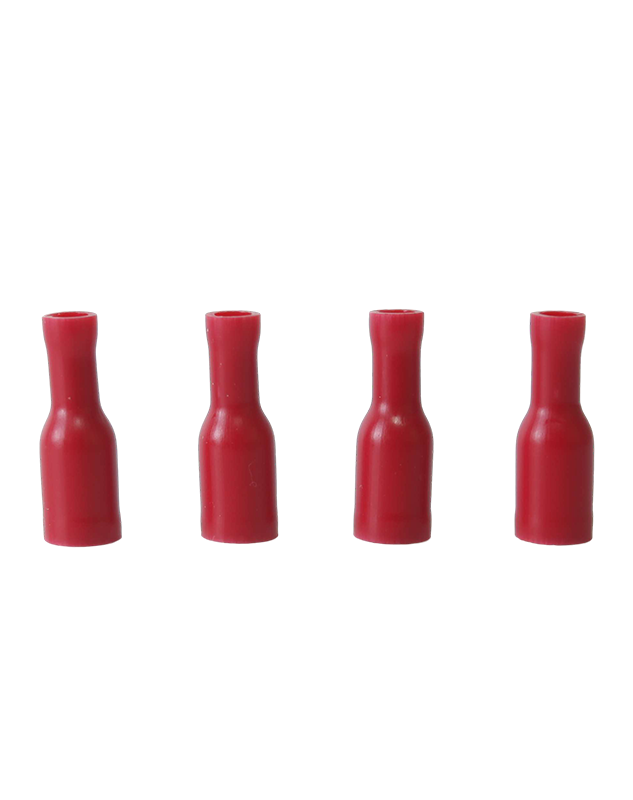

A.W.G. 22-16 KFQVF210 22-16 AWG Vinyl-Fully Insulated Female Quick Disconnectors FDFD 1.25-110(5) FDFD 1.25-110(5)   0.138 0.827 0.433 0.256 0.079 0.138 0.014 Red IZUMI  3# 1000
A.W.G. 22-16 KFQVF211 22-16 AWG Vinyl-Fully Insulated Female Quick Disconnectors FDFD 1.25-110(8) FDFD 1.25-110(8)   0.138 0.827 0.433 0.256 0.079 0.138 0.014 Red IZUMI  3# 1000
A.W.G. 22-16 KFQVF212 22-16 AWG Vinyl-Fully Insulated Female Quick Disconnectors FDFD 1.25-187(5) FDFD 1.25-187(5)   0.197 0.768 0.374 0.256 0.079 0.138 0.014 Red IZUMI  3# 1000
A.W.G. 22-16 KFQVF213 22-16 AWG Vinyl-Fully Insulated Female Quick Disconnectors FDFD 1.25-187(8) FDFD 1.25-187(8)   0.197 0.768 0.374 0.256 0.079 0.138 0.014 Red IZUMI  3# 1000
A.W.G. 22-16 KFQVF214 22-16 AWG Vinyl-Fully Insulated Female Quick Disconnectors FDFD 1.25-250 FDFD 1.25-250   0.256 0.866 0.335 0.295 0.079 0.138 0.016 Red IZUMI  3# 1000

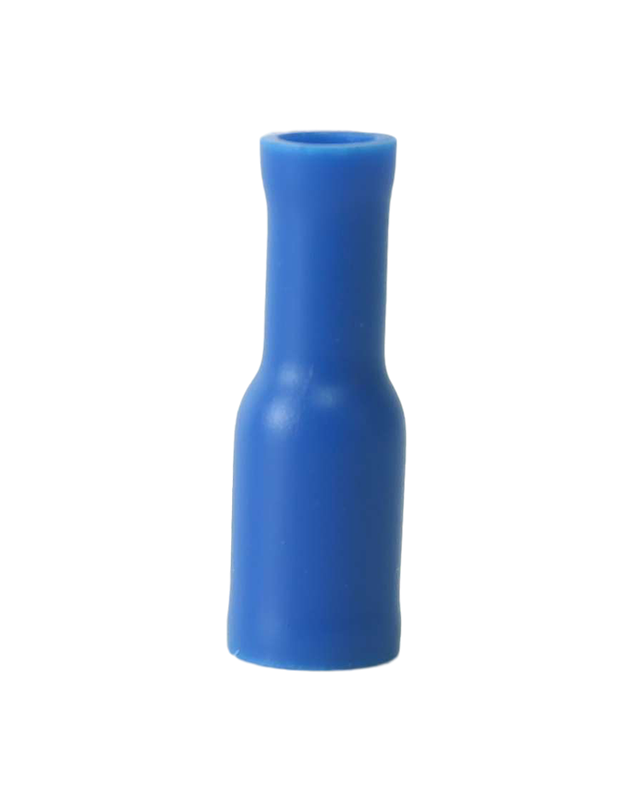

A.W.G. 16～14 KFQVF220 16-14 AWG Vinyl-Fully Insulated Female Quick Disconnectors FDFD 2-187(5) FDFD 2-187(5)   0.197 0.827 0.433 0.256 0.098 0.177 0.014 Blue IZUMI  4# 1000
A.W.G. 16～14 KFQVF221 16-14 AWG Vinyl-Fully Insulated Female Quick Disconnectors FDFD 2-187(8) FDFD 2-187(8)   0.197 0.827 0.433 0.256 0.098 0.177 0.014 Blue IZUMI  4# 1000
A.W.G. 16～14 KFQVF222 16-14 AWG Vinyl-Fully Insulated Female Quick Disconnectors FDFD 2-250 FDFD 2-250   0.256 0.886 0.453 0.295 0.098 0.177 0.016 Blue IZUMI  4# 1000

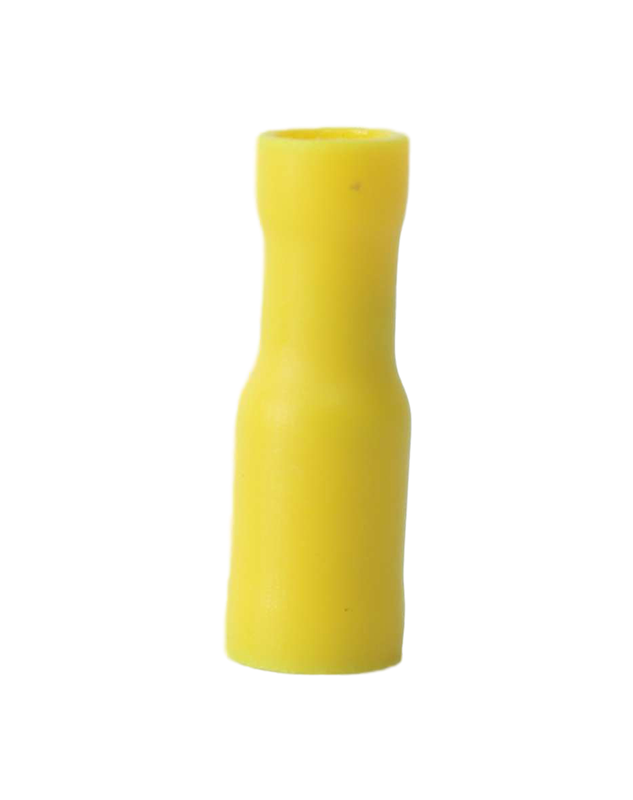

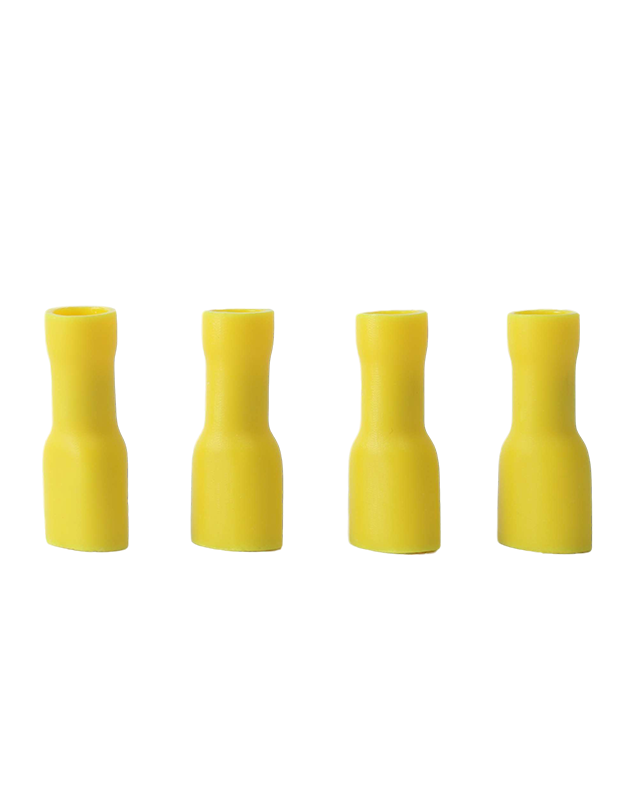

A.W.G. 12～10 KFQVF230 12-10 AWG Vinyl-Fully Insulated Female Quick Disconnectors FDFD 5.5-250 FDFD 5.5-250   0.256 0.906 0.472 0.295 0.138 0.217 0.016 Yellow IZUMI  5# 500
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric B L H F d D Thickness
0.5～1.5mm² KFQVF210 22-16 AWG Vinyl-Fully Insulated Female Quick Disconnectors FDFD 1.25-110(5) FDFD 1.25-110(5)   3.5  21.0  11.0  6.5  2.0  3.50  0.35  Red IZUMI  3# 1000
0.5～1.5mm² KFQVF211 22-16 AWG Vinyl-Fully Insulated Female Quick Disconnectors FDFD 1.25-110(8) FDFD 1.25-110(8)   3.5  21.0  11.0  6.5  2.0  3.50  0.35  Red IZUMI  3# 1000
0.5～1.5mm² KFQVF212 22-16 AWG Vinyl-Fully Insulated Female Quick Disconnectors FDFD 1.25-187(5) FDFD 1.25-187(5)   5.0  19.5  9.5  6.5  2.0  3.50  0.35  Red IZUMI  3# 1000
0.5～1.5mm² KFQVF213 22-16 AWG Vinyl-Fully Insulated Female Quick Disconnectors FDFD 1.25-187(8) FDFD 1.25-187(8)   5.0  19.5  9.5  6.5  2.0  3.50  0.35  Red IZUMI  3# 1000
0.5～1.5mm² KFQVF214 22-16 AWG Vinyl-Fully Insulated Female Quick Disconnectors FDFD 1.25-250 FDFD 1.25-250   6.5  22.0  8.5  7.5  2.0  3.50  0.40  Red IZUMI  3# 1000
1.5～2.5mm² KFQVF220 16-14 AWG Vinyl-Fully Insulated Female Quick Disconnectors FDFD 2-187(5) FDFD 2-187(5)   5.0  21.0  11.0  6.5  2.5  4.50  0.35  Blue IZUMI  4# 1000
1.5～2.5mm² KFQVF221 16-14 AWG Vinyl-Fully Insulated Female Quick Disconnectors FDFD 2-187(8) FDFD 2-187(8)   5.0  21.0  11.0  6.5  2.5  4.50  0.35  Blue IZUMI  4# 1000
1.5～2.5mm² KFQVF222 16-14 AWG Vinyl-Fully Insulated Female Quick Disconnectors FDFD 2-250 FDFD 2-250   6.5  22.5  11.5  7.5  2.5  4.50  0.40  Blue IZUMI  4# 1000
4～6mm² KFQVF230 12-10 AWG Vinyl-Fully Insulated Female Quick Disconnectors FDFD 5.5-250 FDFD 5.5-250   6.5  23.0  12.0  7.5  3.5  5.50  0.40  Yellow IZUMI  5# 500
